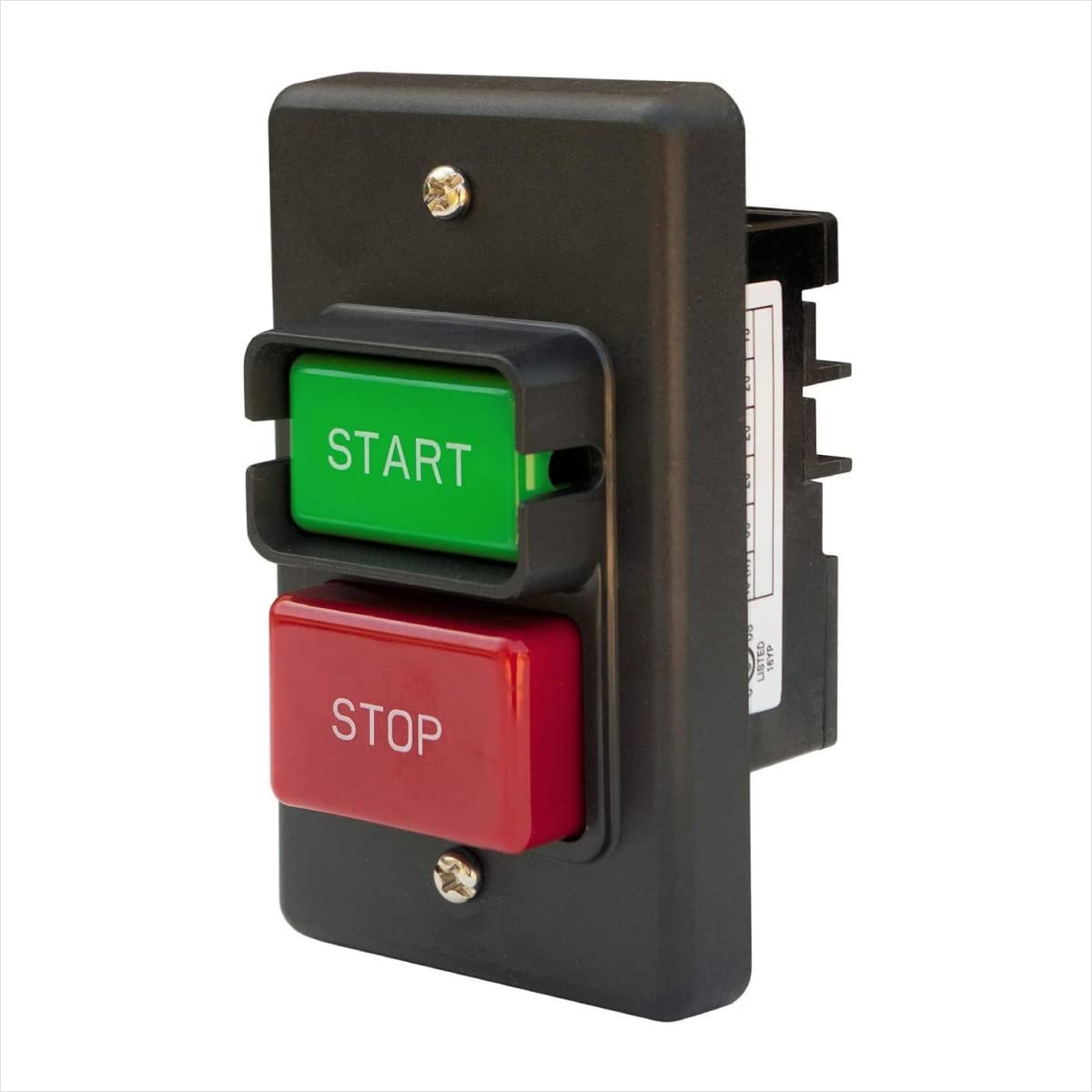

POWERTEC 71008 110/220V Single Phase On/Off Switch, 3HP, fits Table Saw, Router Table, Drill Press, Bench Saw, Band Saw
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: POWERTEC
Color: 3
Features:

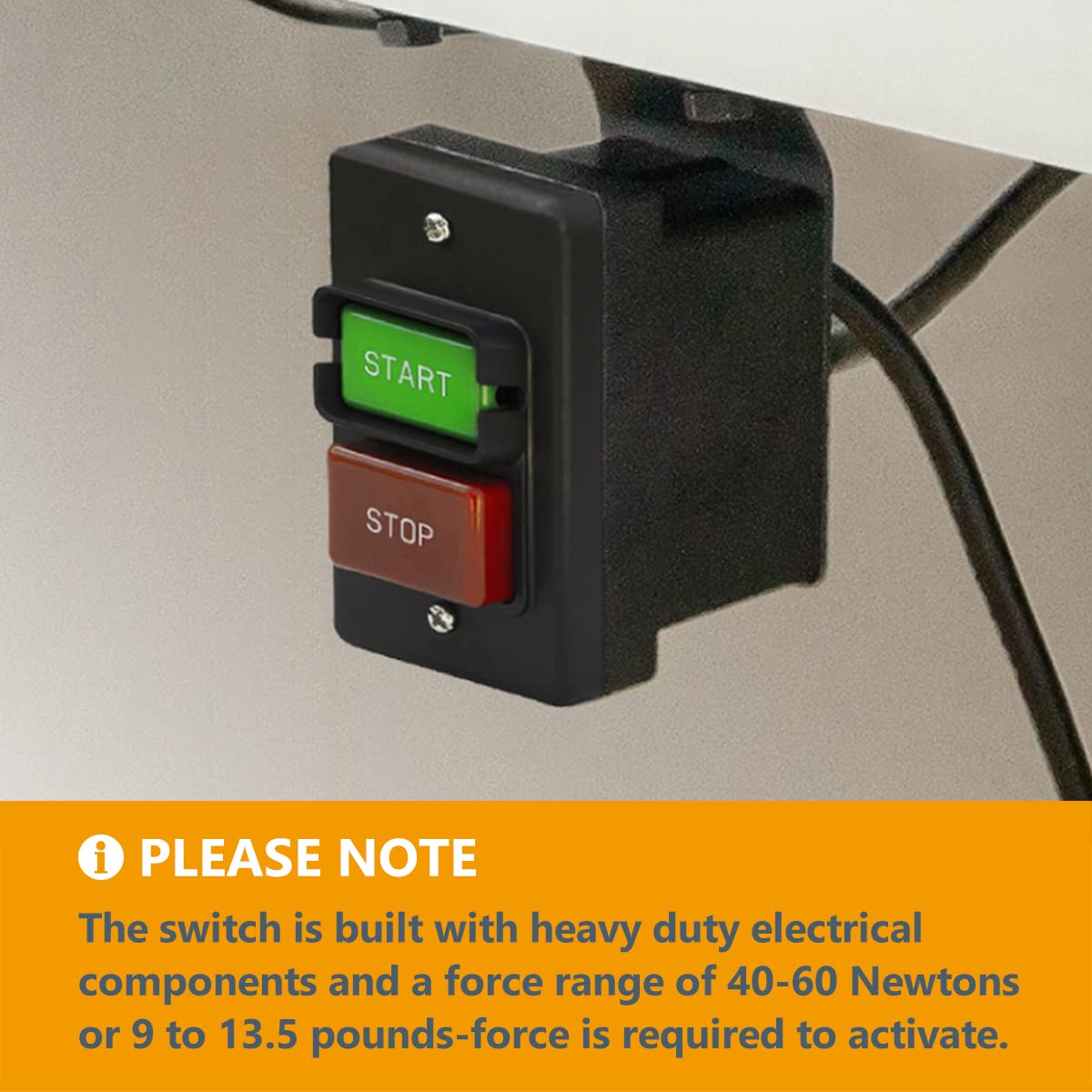

- SPECIFICATIONS: Dual Voltage: 110V/220V; Single Phase | Rated Current: 2HP/28 Amps at 120V; 3HP/16 Amps at 230V | Approved according to UL508 E195428 (Please Note: The switch is built with heavy duty electrical components and a force range of 40-60 Newtons or 9 to 13.5 pounds-force is required to activate)
- INCLUDES: (1) Single Phase On/Off Switch

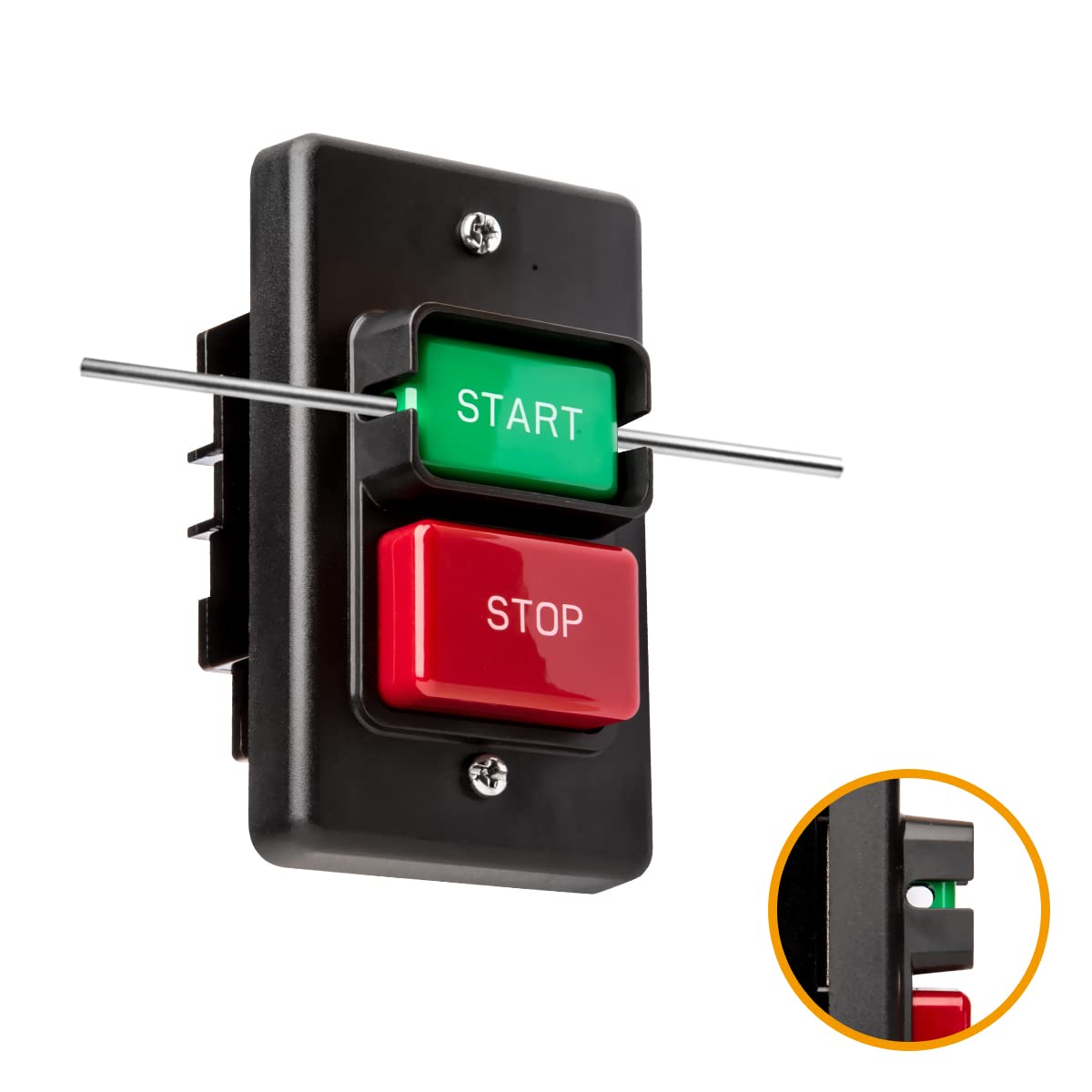

- FUNCTION: Provides you with a master or emergency power off safety switch box designed to safeguard your woodworking machines. The start button can be locked to prevent unauthorized use

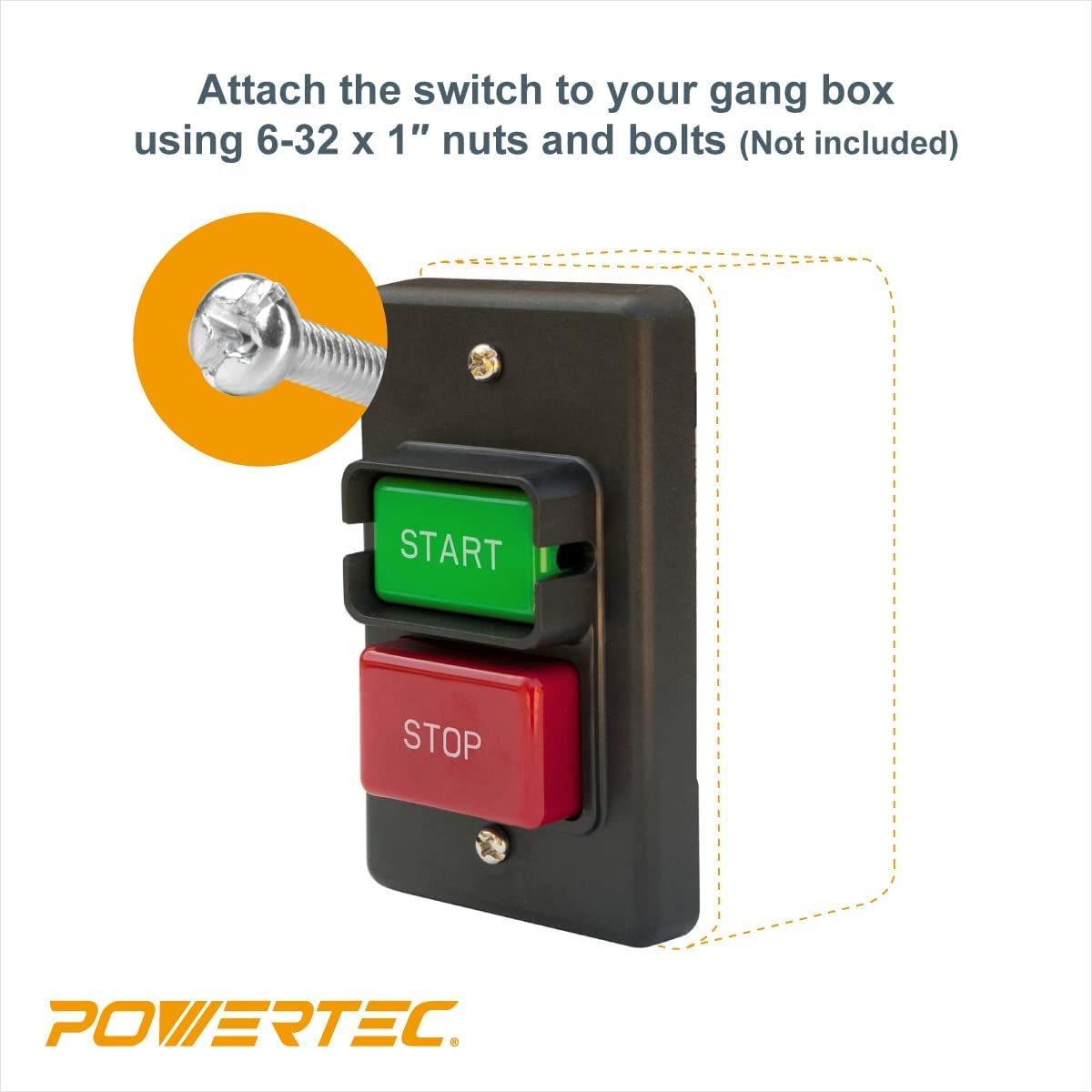

- PUSH-BUTTON POWER: Switch features a simplistic, color-coded design with indented/bump style buttons to signify the switch has been opened or closed. PLUS a convenient design that fits deep gang boxes or standard boxes with an extension ring (6-32 hardware not included)
- VERSATILE: Works with a wide assortment of popular name brand table saws, drill press, belt sanders, jointers, dust collectors and other power tools
model number: 71008
Part Number: 71008

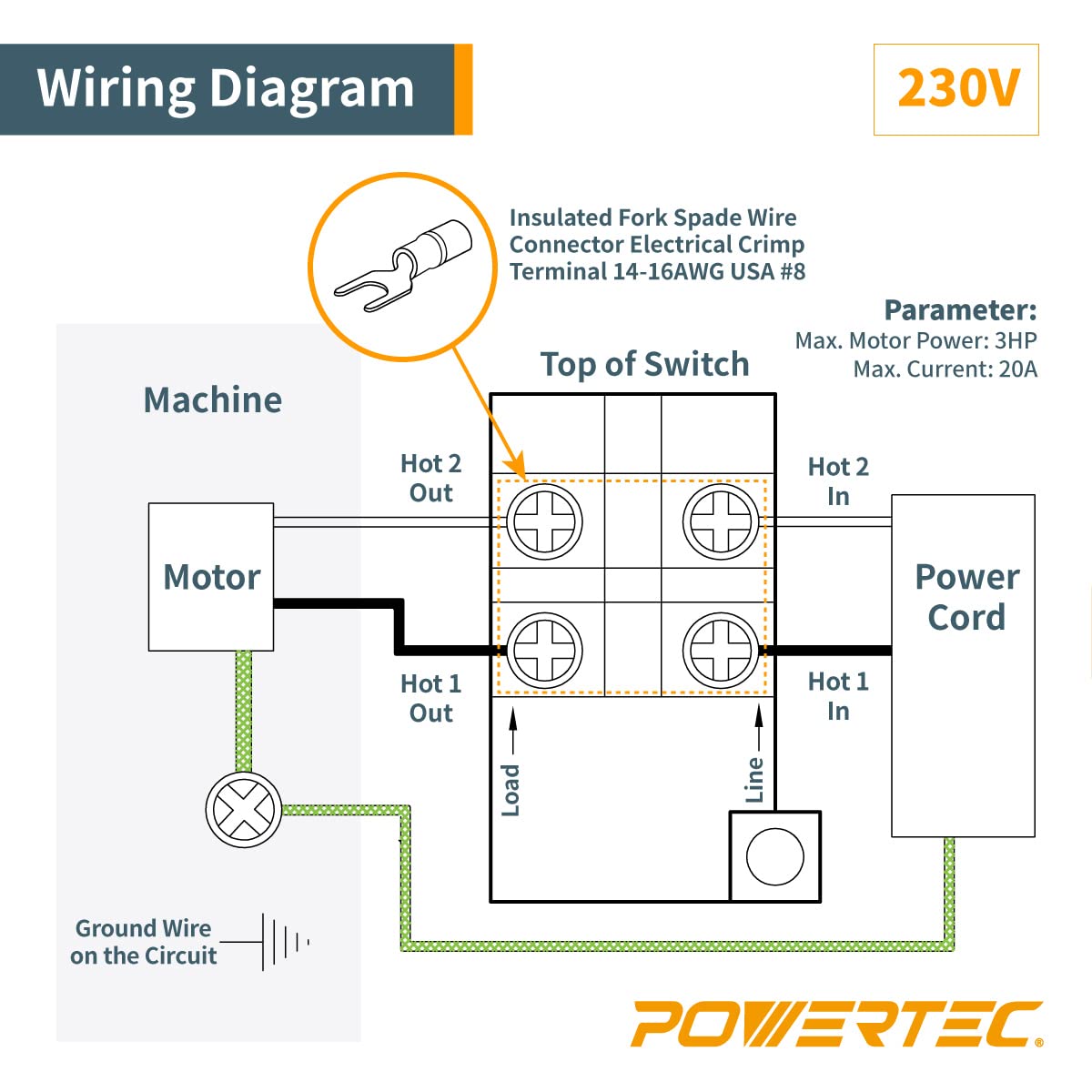

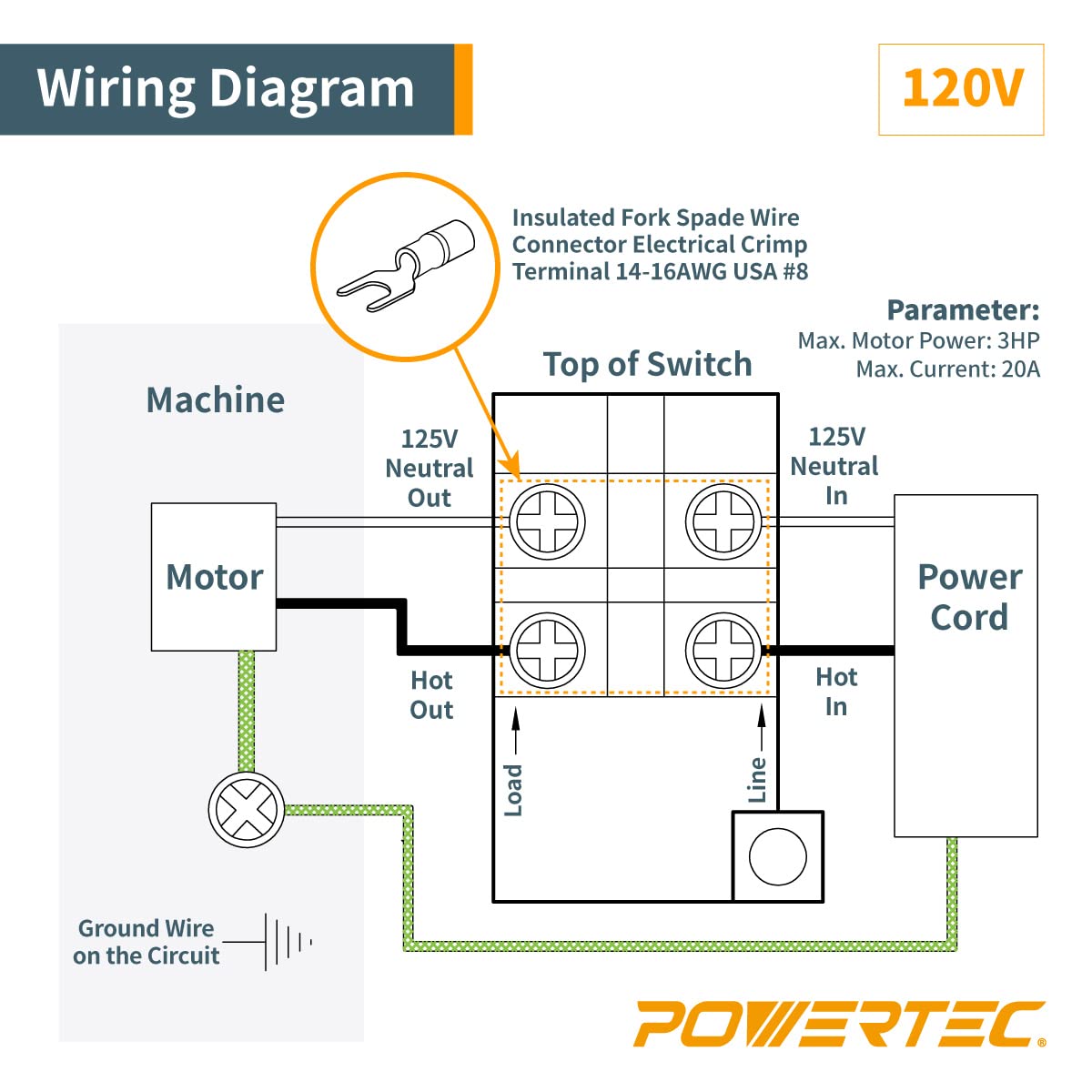

Details: Introducing the Single Phase On/Off Switch by POWERTEC. This single phase on/off switch is intended to provide you with a high quality safeguarding component for your workshop and power tool needs. It features a simplistic, yet straightforward design that can be easily wired (installed) into deep gang boxes or standard gang boxes with an extension ring. The power switch has 2 throws so one can switch both hot and neutral or both phases of a 220V line. It features an easy-to-install mounting design and comes with color-coded start stop push buttons that possess an indented/bump style profile to signify the switch has been opened or closed. For added safety measures, the start button can be locked to prevent unauthorized use. (Please Note: The switch is built with heavy duty electrical components and a force range of 40-60 Newtons or 9 to 13.5 pounds-force is required to activate) It’s the perfect safety feature for: Table Saws Drill Press Band Saw Sanders and Jointers Dust Collection Systems for Woodworking Single Phase Power Switch Specifications Type: Start Stop Push Button Operation Mode: ON-OFF-ON Dual Voltage: 110V/220V Rated current: 2 HP/35 amps at 120 volts | 3 HP/20 amps at 230 volts Approved By: UL, TUV, CSA, CE, ETL standards POWERTEC is a leading manufacturer of high quality woodworking tools and accessories, machines, and an assortment of OEM replacement parts. We are committed to exceeding expectations, while bringing the latest innovations, technology, and product development to the industry.
EAN: 7147905907638
Package Dimensions: 5.4 x 5.2 x 3.7 inches
