POWERTEC 71913 Full Size Router Bit Guard with 2.5" ID Router Table Dust Port and 2-PC Router Fence/Router Table Featherboards

Brand: POWERTEC

Features:

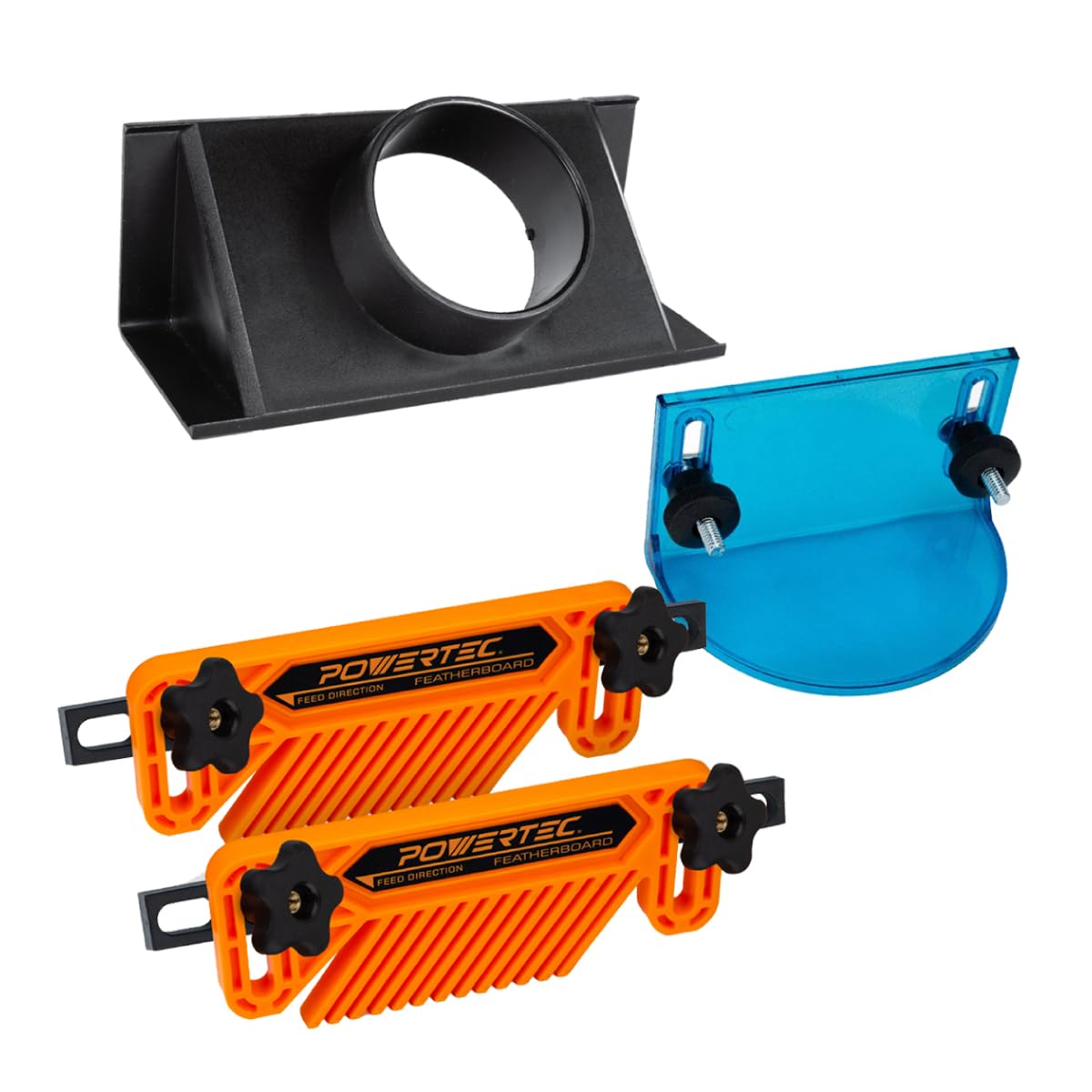

• INCLUDES: (1) Router Table Bit Guard Kit with Mounting Hardware, (1) 2.5” ID Dust Port for Router Tables (2) Router Fence/Router Table Featherboard
• ROUTER TABLE BIT GUARD KIT: This safety device mounts seamlessly to the router table fence, providing your fingers with a premium level of protection from spinning bits
• DUST PORT: Can be used with a DIY router table fence or shaper, or simply connect a 2-1/2" dust hose to the port and use it to collect dust and chips directly from your drill press. Helps provide a cleaner and safer work area
• PREMIUM BUILD: Guard Kit is made with our exclusive Blue-Tint acrylic. | Dust Port is made and molded with black ABS plastic.

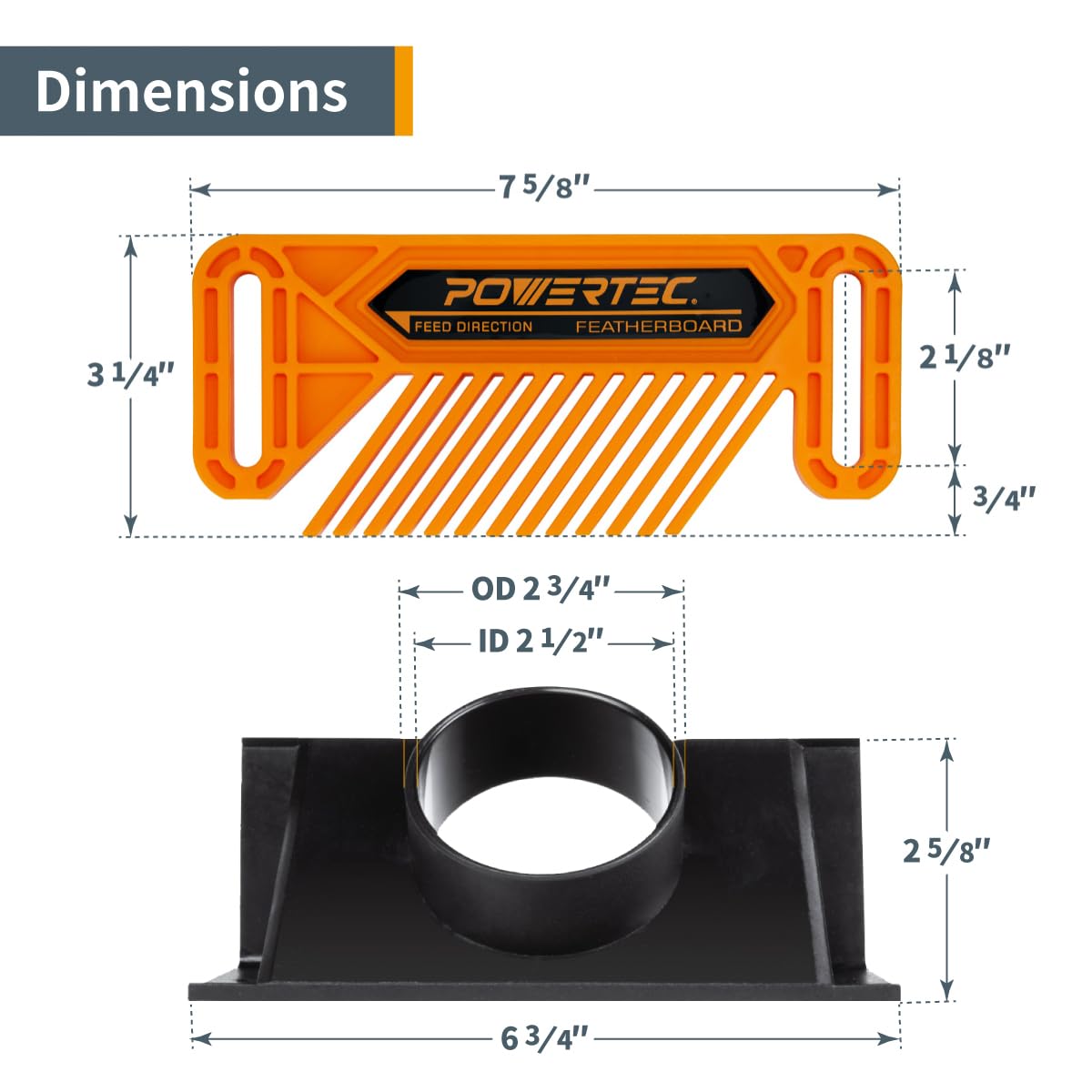

• IMPORTANT SIZE SPECS: Guard Kit overall size: 4-15/16” long x 2-15/16” high | Dust Port overall size: 6-1/2” length by 2-1/2” (ID 2.480”, OD 2.74”) Dust Collection Port accommodates 2.5” OD dust port adapters and hose fittings. PLEASE NOTE: Will not attach directly to 2-1/2” ID dust collection hoses
• APPLICATION: Ideal for holding your workpiece in place (against the fence or table top) while cutting for router table and drill press applications, while safely keeping your fingers out of harms way from bits and blades
• PREMIUM DESIGN: Made with highly durable polymer, this featherboard set allows you to apply steady, heavy duty pressure for high precision cutting results while reducing kickback and problematic movement
• EASY TO INSTALL: 5-star threaded knobs and a standard 3/8” x ¾” miter gauge slot bracket allows you to set up your feather boards quickly and easily to any miter slot. Also includes 5/16”-18 t-bolts for t-slot or t-track applications
• VERSATILITY: For band saws, router tables and/or any woodworking machine with a standard 3/8” x ¾” miter gauge slot – double stacked and locked in both the horizontal and vertical position Note: Will work horizontally on some table saws, but because of the narrow design, the range will be limited.

Binding: Tools & Home Improvement

model number: 71913

Part Number: 71913

Details: Introducing the Router Table Bit Guard & Dust Port by POWERTEC.

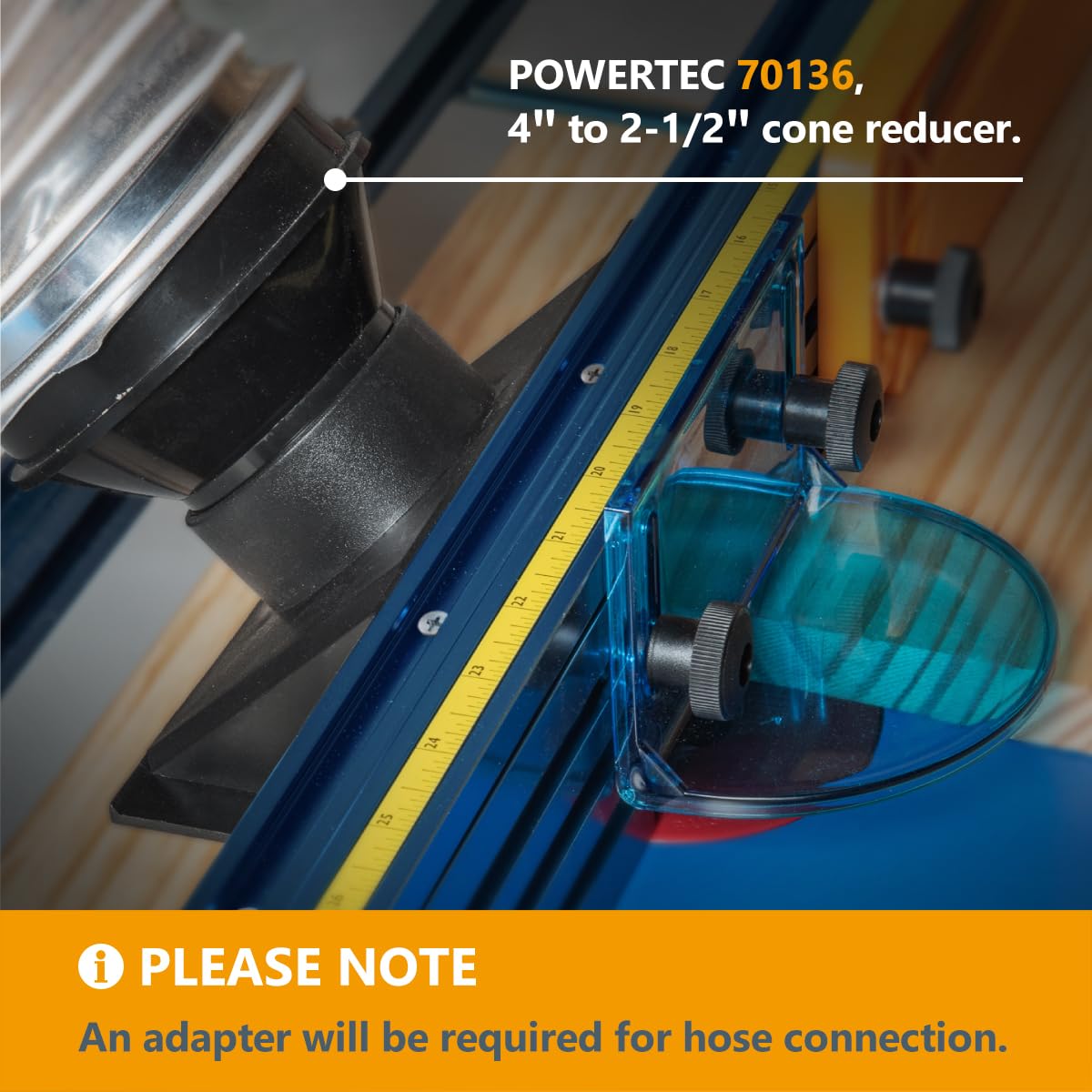

Router Guard Bit: Mounting Hardware Included: We provide you with everything you need to get started. Easy-To-Mount Design: They mount directly to the table fence with the included t-bolts and mounts in ½” t-slot or any t-track that accepts t-bolts. The guards can be easily removed by loosening the knobs and sliding out of the track. Adjustability: The guard is vertically adjustable (by 1-1/2”), giving you project flexibility for router bit height. Design Coverage: Along with finger-protection, it offers excellent bit and bit opening coverage.

Dust Port:

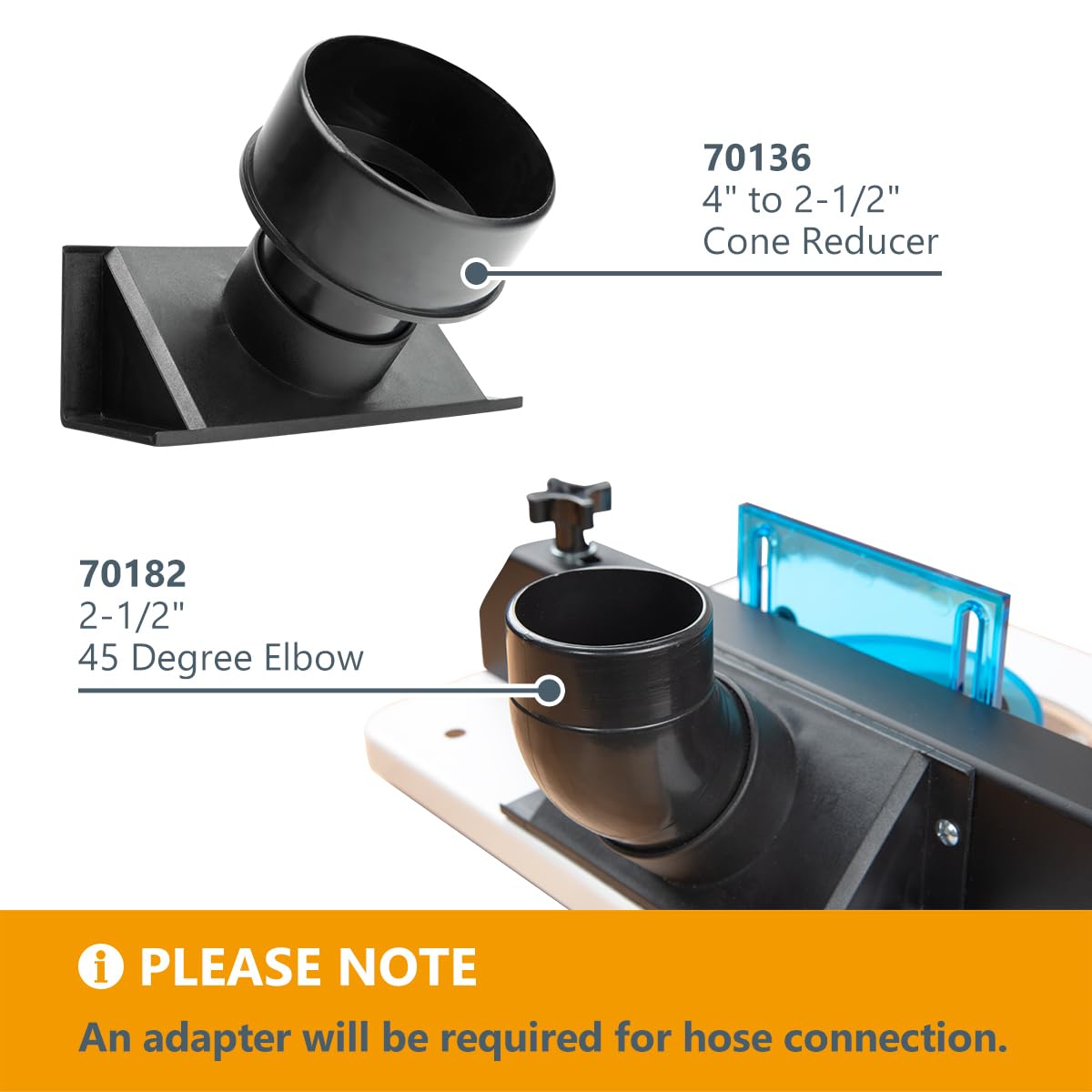

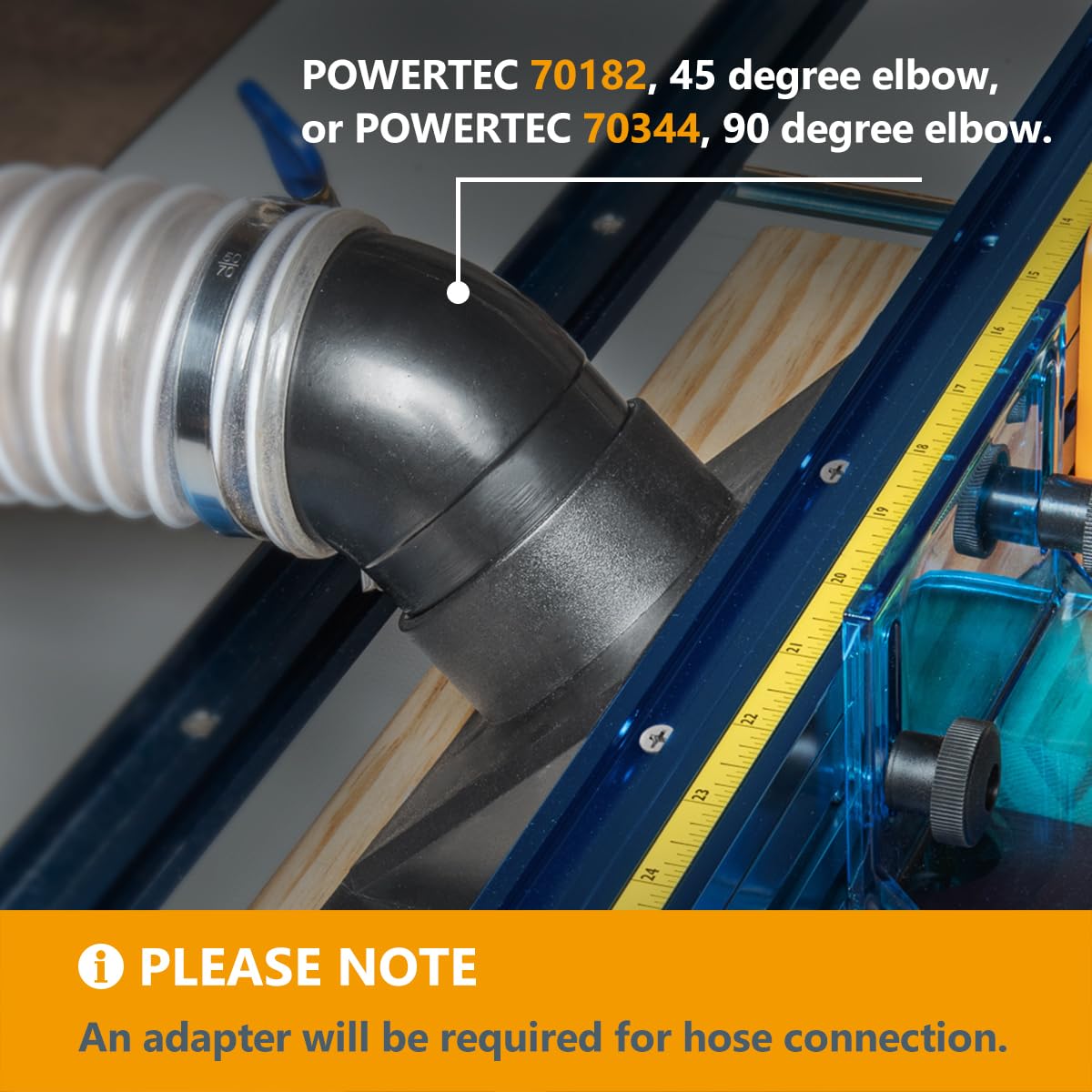

This small dust port is built with a 1/8” thickness to withstand the daily wear and tear commonly associated with woodworking dust collection – including the abrasive nature of wood fiber chips, saw dust and other debris. In conjunction with a 2-1/2” OD 45 or 90 degree adapter, you can even connect a 2/1/2 inch ID flexible hose to the port and use it in combination with your drill press.

Package Contains

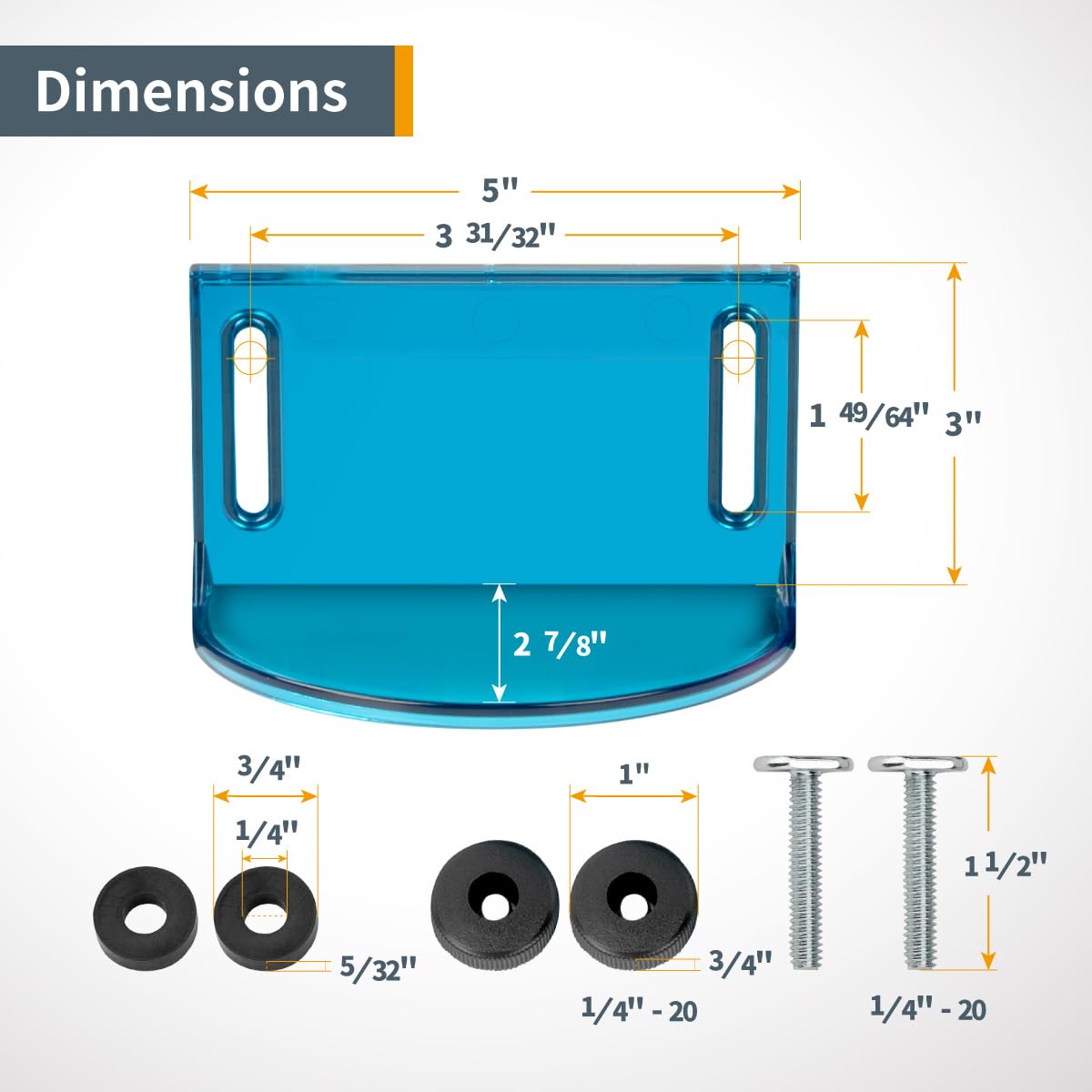

Router Guard Bit: (1) Bit Guard (2) ¼-20 t-bolts 1-1/2” long (2) plastic spacers ¾” diameter x 5/32” thick with a ¼” hole (2) ¼-20 round knobs, 1” in diameter by ¾” tall
Dust Port: (1) 2-1/2 in. Dust Port (ID: 2.480 inches, OD: 2.740 inches) PLEASE NOTE: Unit is meant to possess 2.5" ID & 2.75" OD. However, due to it’s high quality molded plastic construction – exact size may vary.

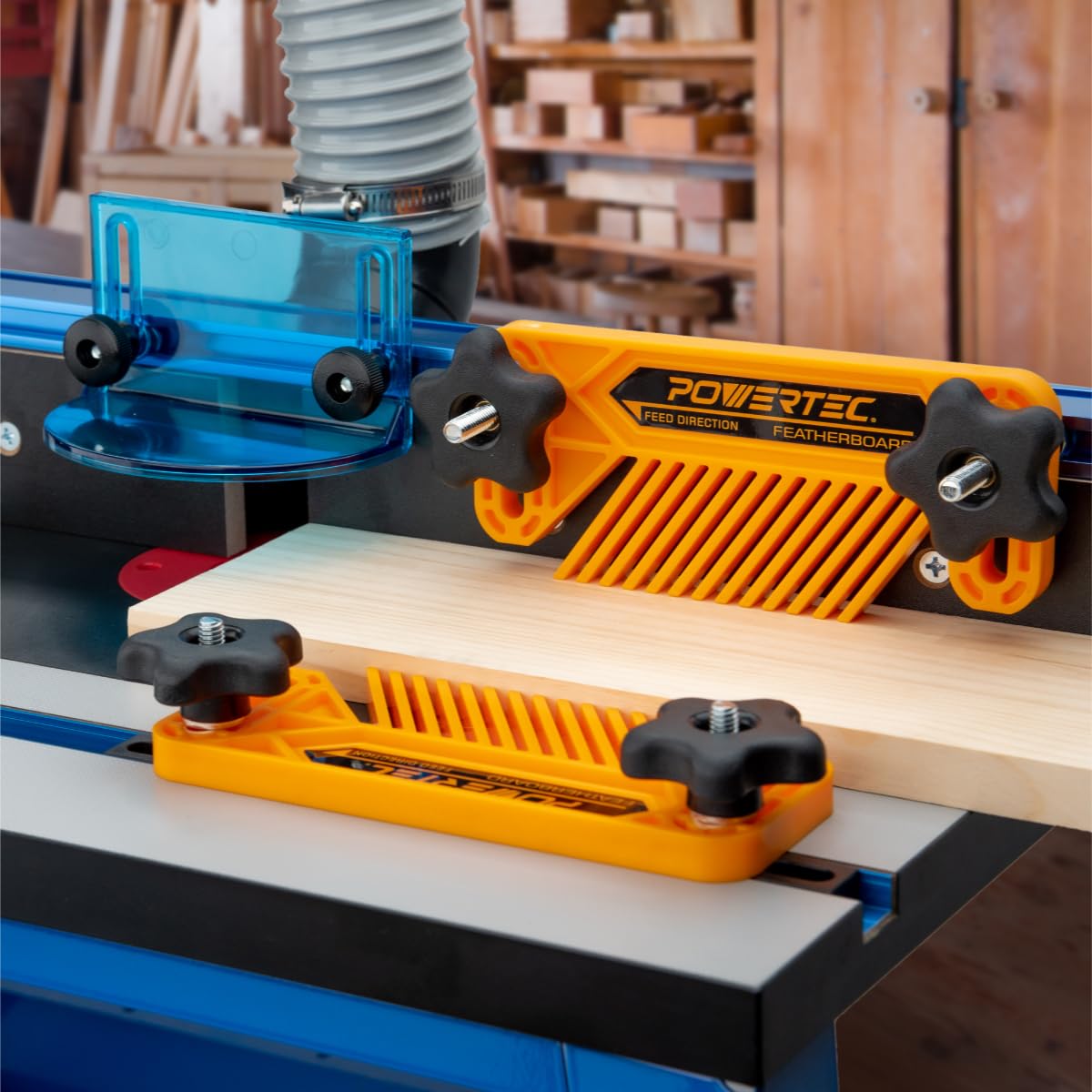

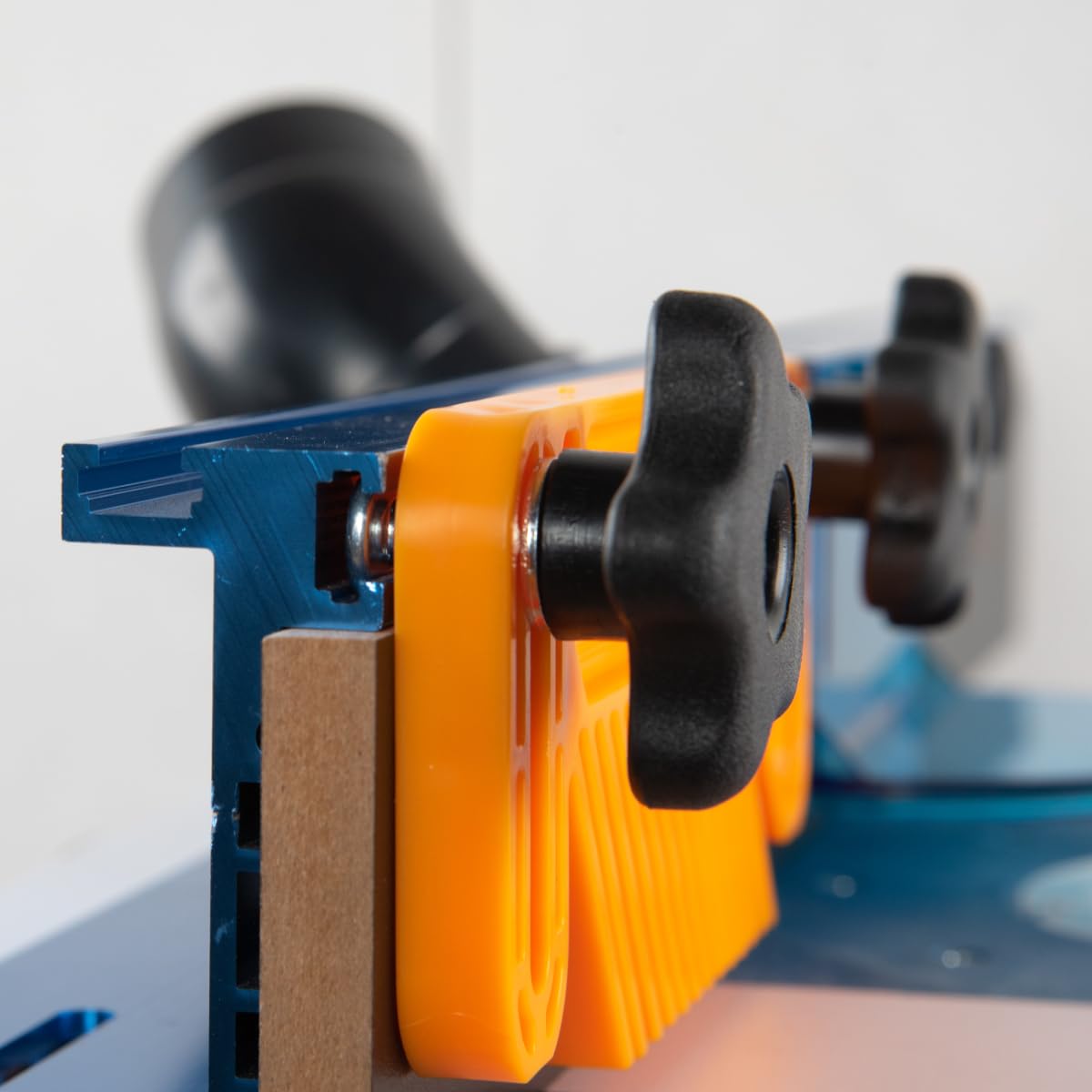

Introducing the Fence Featherboard by POWERTEC. This dual feather board set provides you with the necessary tools for both, infeed and outfeed applications helping produce high precision cuts with increased safety for kickback protection. They are designed to help keep your boards and workpieces firmly against your table, while keeping your fingers away from the blades and other bits. You can connect each featherboard seamlessly to your miter slot or t-slot jig assemblies. For optimal versatility, double stack and lock them in for both, horizontal and vertical positions for many of your router table fence projects. High Quality Build Each component is manufactured with premium quality material. They were made for durability and possess the strength to withstand high volume usage. Furthermore, we've included five star knobs, miter bar slot brackets and other hardware that allow you to make quick and easy adjustments without additional hardware. Whether you're a professional or DIY craftsmen, reap the rewards of better, more accurate cuts for your woodworking projects. Package Contains (2) Featherboards (4) Knobs (4) Miter Slot Brackets (4) Miter Screws 5/16-18 , 2 length (2) Miter Screws 5/16-18 , 3 length (4) T Bolts 5/16-18 , 2-1/2 length (4) Spacers (4) Washers Instruction Sheet. POWERTEC is a leading manufacturer of high quality woodworking tools and accessories, machines, and an assortment of OEM replacement parts. We are committed to exceeding expectations, while bringing the latest innovations, technology, and product development to the industry. Note: Will work horizontally on some table saws, but because of the narrow design, the range will be limited.

EAN: 0843441126072

Package Dimensions: 11.4 x 9.1 x 4.0 inches
