Description
Description
Brand: Proxxon
Features:
- Quiet, precise and vibration-free for fatigue free use
- Low weight and slim design, without ever compromising performance
- High quality precision tools

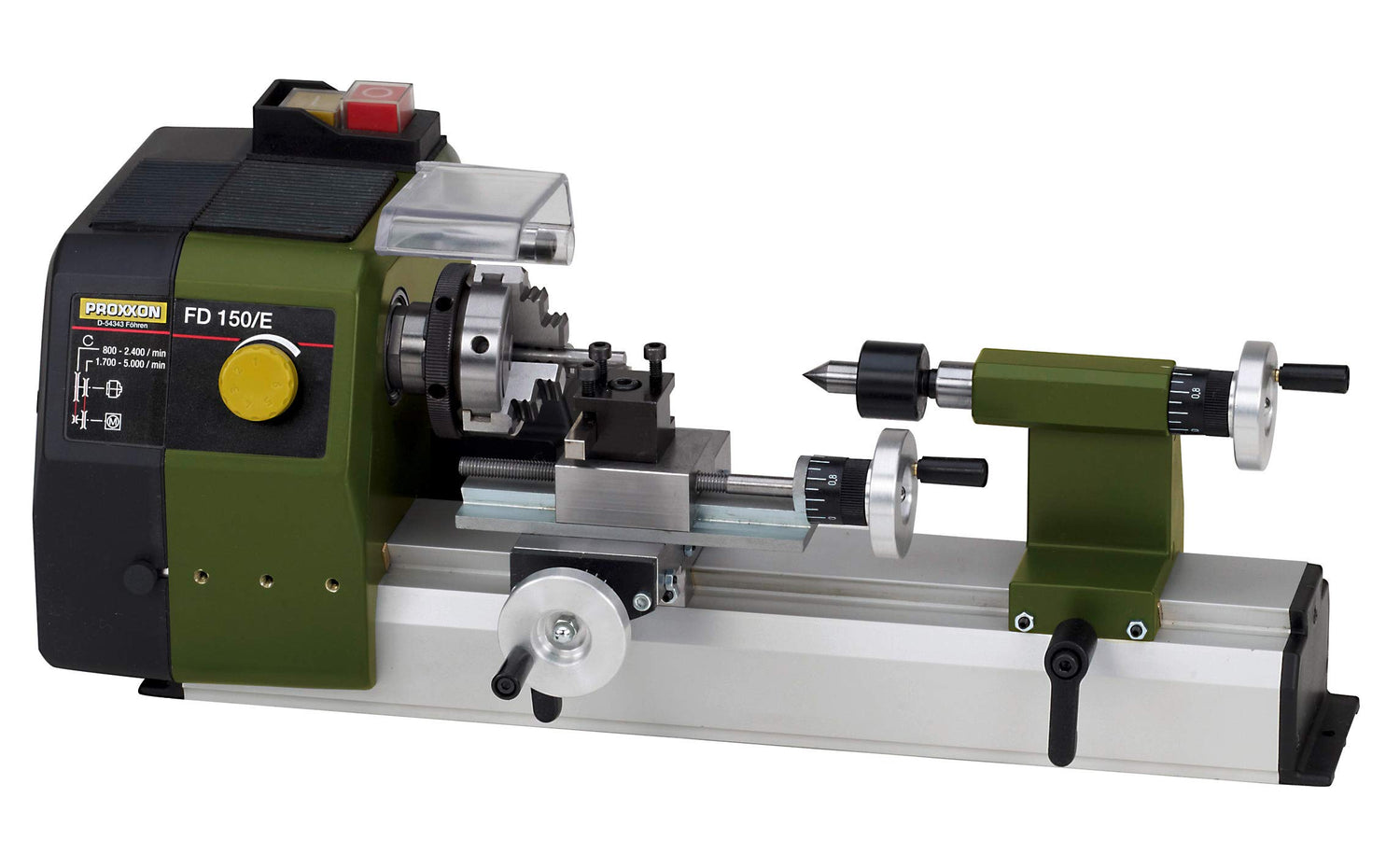

Details: 2-stage belt drive and additional electronic control enables spindle speeds up to 5,000rpm. The right cutting speed for even the smallest pieces. For face turning, longitudinal turning, boring, taper turning, slicing and drilling. Complete with 3-jaw chuck and live center. Center distance 150mm (4"). Swing 55mm (2.2"). Height over cross slide 33mm (1.3"). Machine bed with dovetail guides of continuous aluminum casting. Die-cast aluminum spindle headstock. With quiet special DC motor, 2-stage belt drive and additional electronic speed control for high torque at low speeds for larger work pieces and for the appropriate cutting speed, even for the smallest pieces. Main switch with emergency stop function and restart protection. Precision bearing mounted main spindle with continuous 8.5mm (21/64") bore. Chuck fit for standard ER 11 type collets. Three-jaw chuck, self-centering (inside jaws 1 - 20mm (1/32" - 4/5"), outside jaws 20 - 50mm (4/5" - 2")). Die-cast aluminum tailstock with spindle and live center (fitting MK 0/short). Support: To be shifted manually on the bed and clamped with lever. Rotating tool post for turning steels 6 x 6mm (15/64" x 15/64"). Processing via top slide (60mm (2.35"), travel distance Z) and cross slide (40mm / 1.57"), travel distance X). The angle adjustment of the upper carriage makes it possible to turn tapers up to +/- 45°. Handwheels with zero adjustable scale ring (1 division = 0.05mm (0.002"), 1 revolution = 1mm (1/32")). Other technical data: 110 - 120V AC. 50/60Hz. Distance between centers 150mm (4"). Swing 55mm (2.2"). Height over cross slide 33mm (1.3"). Cross slide travel (X) 40mm (1.57"), top slide travel (Z) 60mm (2.35"). Steel tool post for turning steels 6 x 6mm (15/64" x 15/64"). Spindle bore 8.5mm (21/64"). 2-stage belt drive with electronic speed control: Stage 1 = 800 - 2,800rpm. Stage 2 = 1,500 - 5,000rpm. Dimensions approx. 360 x 150 x 150mm. (14.1" x 4" x 4"). Weight 4.5kg (10 lbs).
EAN: 4006274341500
Binding: Tools & Home Improvement
Part Number: 34150
model number: 34150
