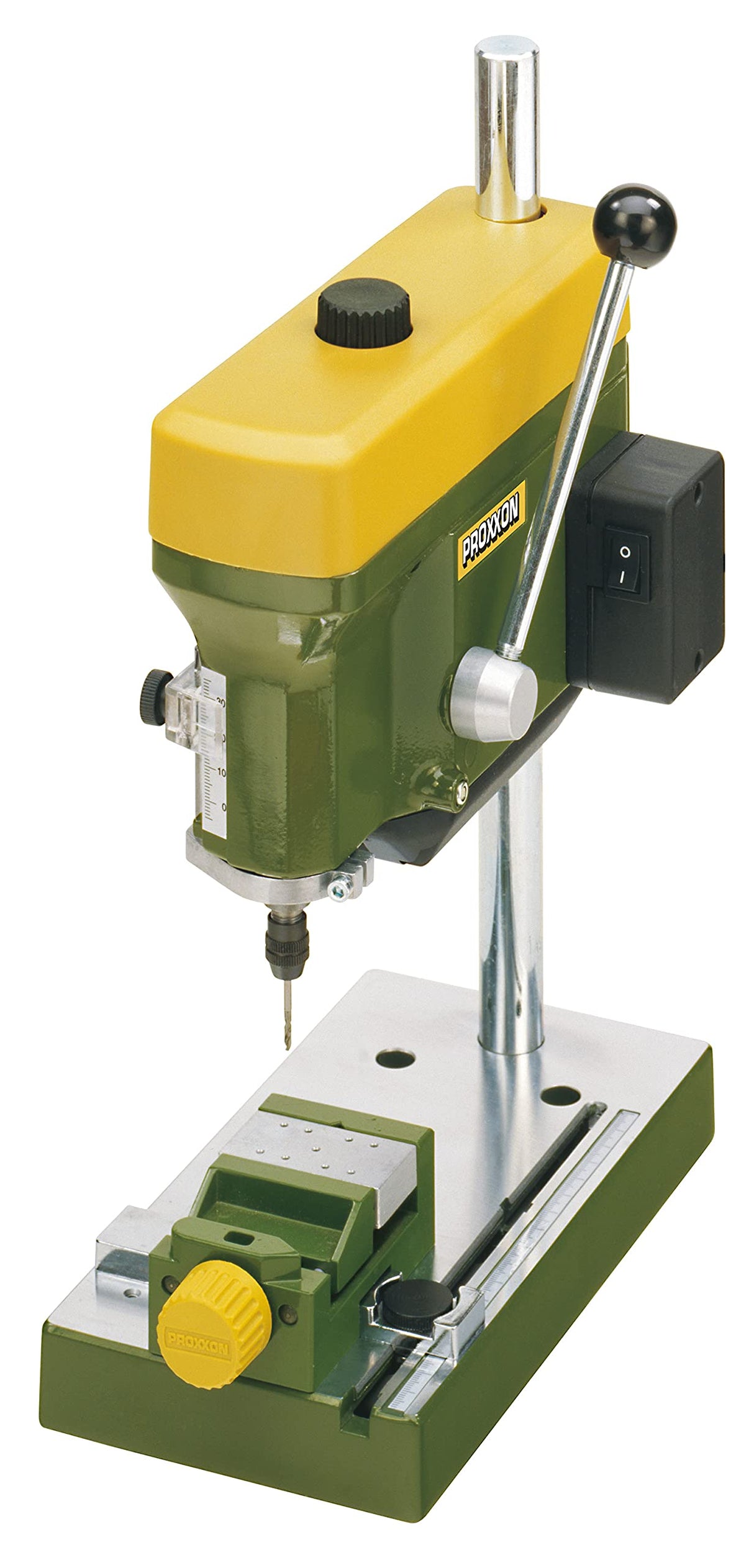

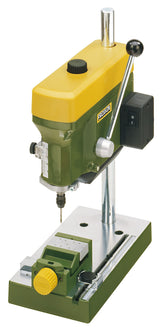

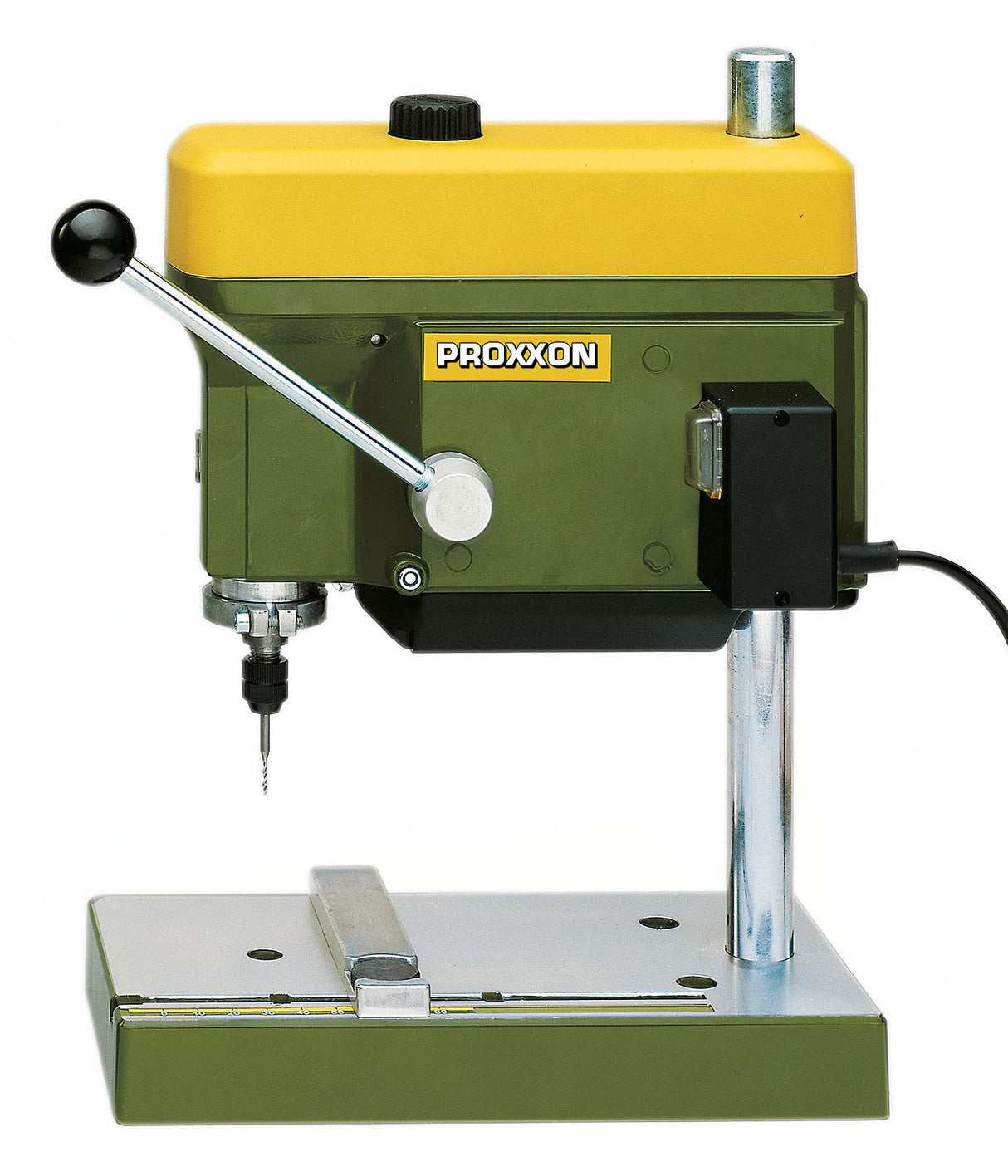

PROXXON Bench Drill Press TBM 115, 38128 , Green
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Proxxon
Color: Green
Features:
- Competent drilling of micro holes down to1/64" (0.5 mm) with extremely high rotational accuracy
- High quality machined work table of ribbed die-cast aluminum (work table size 8 1/2" x 4 3/4" (220 x 120mm))
- 3 spindle speeds of 1,800, 4,700 and 8,500rpm allowing triple torque at lower speeds
- Quill diameter 1 1/4" (32mm) with return spring, throat depth (column to drill spindle) 5 1/2" (140mm)
- Scope of delivery: 1x PROXXON Bench Drill Press TBM 115 including MICROMOT Steel Collet Set. Part number: 38128
Binding: Tools & Home Improvement
model number: 38128
Part Number: 38128
Details: Product Description

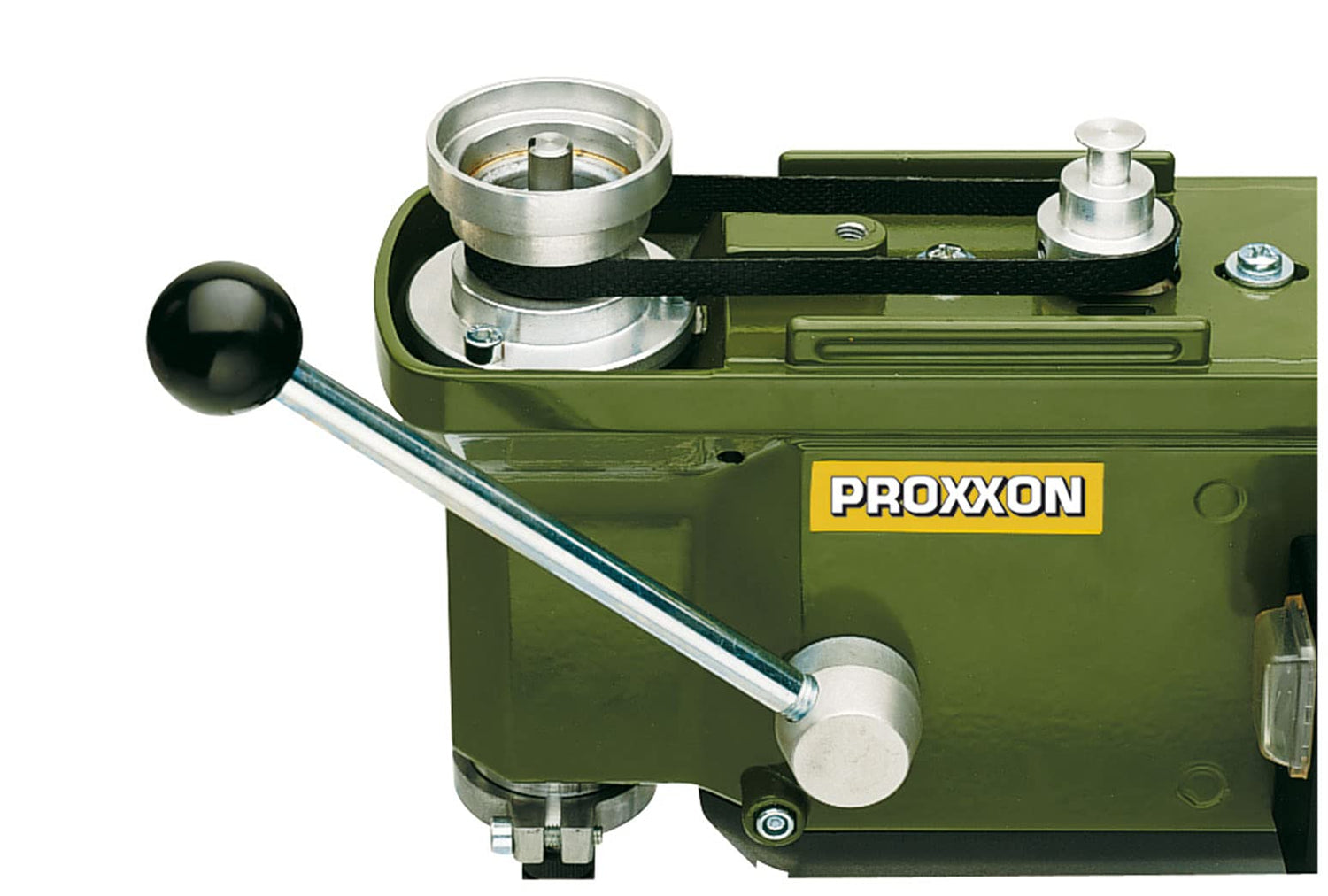

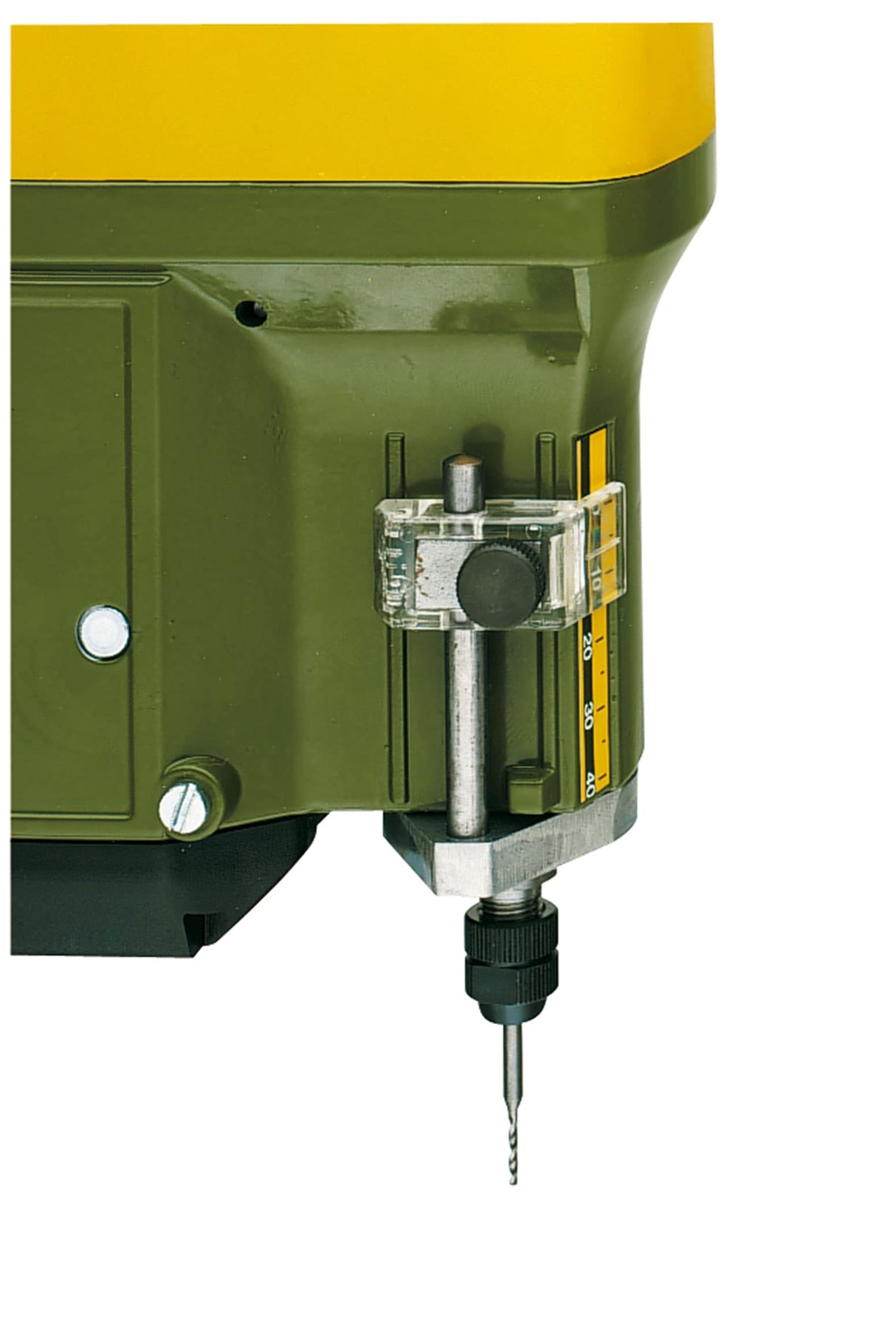

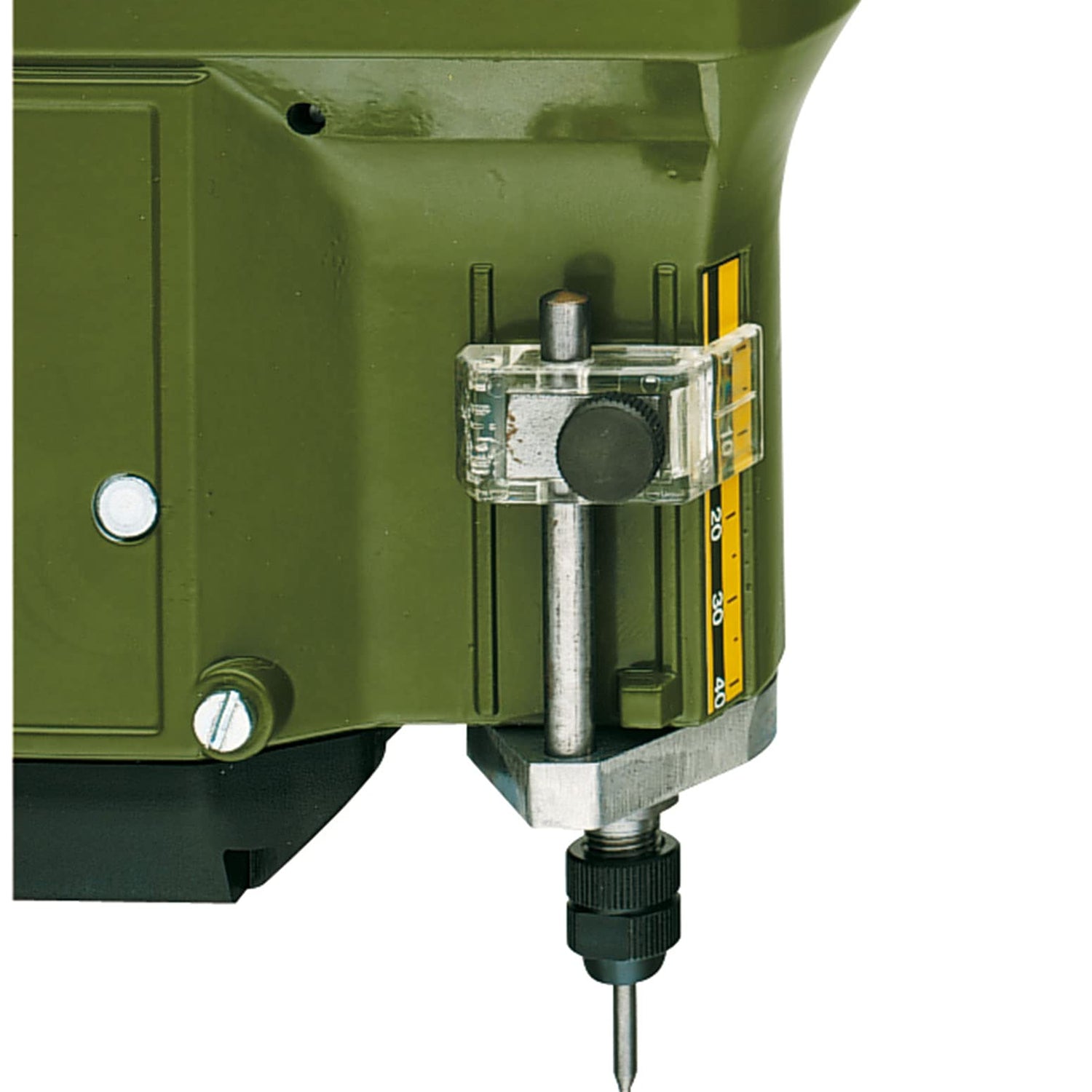

The unit offers a high quality machined work table of ribbed die-cast aluminum (work table size 8 1/2" x 4 3/4" (220 x 120mm)) providing an adjustable parallel fence with scale. The solid, hard-chromed steel column is 11" high (280mm) and has a diameter of 4/5" (20mm). The powerful motor, which is built into the super stable die-cast head of the machine, runs very quiet and has a long life expectancy. The power transmission by 3-step aluminum pulleys and flat belt provides 3 spindle speeds of 1,800, 4,700 and 8,500rpm allowing triple torque at lower speeds. The chrome feed lever has a practical adjustable drilling depth gauge. The spindle is essentially free of play as a result of the three high quality ball bearing assemblies. It is recessed for the insertion of MICROMOT steel collets, but also threaded for attaching drill chucks with 3/8" thread. The spindle has an extremely high rotational accuracy and a 1 3/16" (30mm) feed. The quill diameter is 1 1/4" (32mm) with return spring, the throat depth (column to drill spindle) is 5 1/2" (140mm). The unit provides quick coarse height adjustment of the headstock via clamp lever. The max. height (worktable surface to spindle end) is 5 1/2" 140mm). Technical data: 110 - 120V, 60Hz, 85W (0.115hp), speeds 1,800/ 4,700/8,500rpm. The unit comes with six triple slit MICROMOT precision steel collets in sizes 1/32", 1/16", 5/64", 3/32", 7/64" and 1/8" (1.0, 1.5, 2.0, 2.4, 3.0 and 3.2mm). To clamp work pieces we recommend using either one of our machine vises or the X-Y table KT 70 to convert this machine into a high-precision machining center.
From the Manufacturer
Proxxon Bench Drill Press TBM 115 - This 3 speed drill press excels at drilling micro holes down to 1/64 inch (0.5 millimeters). The unit offers a high quality machined work table of ribbed die cast aluminum, 8-1/2 inch x 4-3/4 inch in side. It provides an adjustable parallel fence with scale. The solid high chrome steel column is 11 inches high and is 4/5 inch in diameter. The powerful motor is built into the super stable die cast head of the machine, runs very quietlyand has a long life expectancy. The power transmission by 3 step aluminum pulley and flat belt provides 3 spindle speeds of 1800, 4700, 8500 rpm. This allows triple torque and lower speeds. The chrome feed lever has a practical adjustable drilling depth gauge. The spindle is free of play because of the 3 high quality ball bearing assemblies. Spindle is recessed for the insertion of Micromot steel collets but also threaded for attaching drill chucks with 3/8 inch thread. The spindle has an extremely high rotational accuracy and a 1-3/16 inch (30 millimeter) feed. The quill diameter is 1-1/4 inch with return spring; the throat depth column to spindle is 5-1/2 inches. The unit provides quick coarse adjustment of the headstock via the clamp lever. Maximum height work table to spindle is 5-1/2 inches.
EAN: 4006274381285
Package Dimensions: 14.0 x 9.3 x 4.8 inches
