PSI Woodworking TCLVSKIT2 Variable Speed Lathe Conversion Kit

Brand: PSI Woodworking

Features:

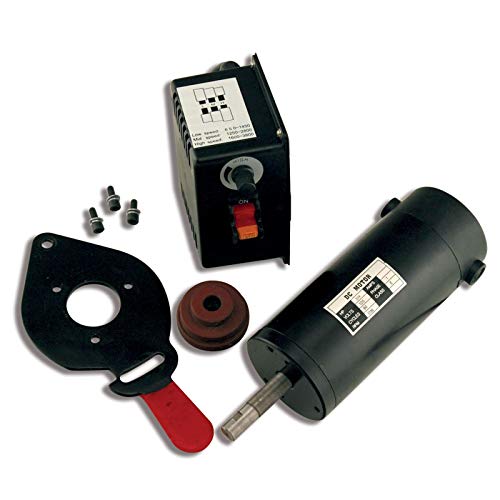

• Convert your lathe from Multi Speed to Variable Speed; Includes 3/4 HP variable speed motor, switch box controller, motor pulley, motor mounting plate, 7mm drill bit, metric allen wrench, and hardware
• 3/4 Horsepower Variable Speed Motor: Shaft is 15mm diameter by 2-1/4" long; Body is 3-3/16" diameter; Length from tip of shaft to back of end cap is 9-3/4"
• Three belt positions; #1 650-1450 RPM; #2 1250-2800 RPM; #3 1600-3800 RPM
• 110/120 Volts; 60 Cycles; 1700 RPM; Single phase; Class E
• Compatible with the following lathes: PSI Turncrafter Commander TCLC10 & KWL-1018, Rockler Excelsior 33207, Harbor Freight 65345, Shop Fox W1752, Jet 1015, Rikon 70-105, Delta 46-455, Grizzly H8259, and more

Binding: Tools & Home Improvement

model number: TCLVSKIT2

Part Number: TCLVSKIT2

Details: Convert your lathe from Multi Speed to Variable Speed. Includes 3/4 HP variable speed motor, switch box controller, motor pulley, motor mounting plate, 7mm drill bit, metric allen wrench, and hardware. 3/4 Horsepower Variable Speed Motor: Shaft is 15mm diameter by 2-1/4" long; Body is 3-3/16" diameter; Length from tip of shaft to back of end cap is 9-3/4". Three belt positions; #1 650-1450 RPM; #2 1250-2800 RPM; #3 1600-3800 RPM. 110/120 Volts; 60 Cycles; 1700 RPM; Single phase; Class E. Compatible with the following lathes: PSI Turncrafter Commander TCLC10 & KWL-1018, Rockler Excelsior 33207, Harbor Freight 65345, Shop Fox W1752, Jet 1015, Rikon 70-105, Delta 46-455, Grizzly H8259, and more.

EAN: 0810011932067

Package Dimensions: 13.7 x 12.2 x 6.7 inches
