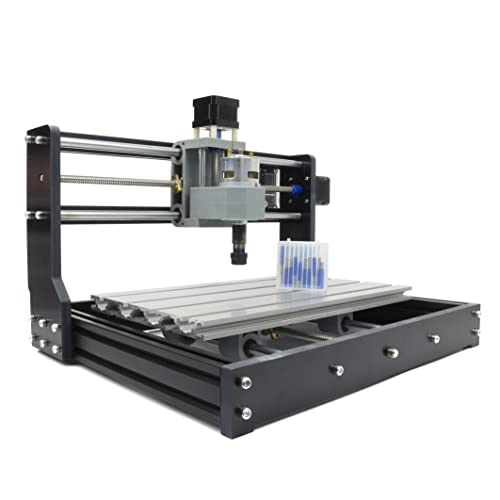

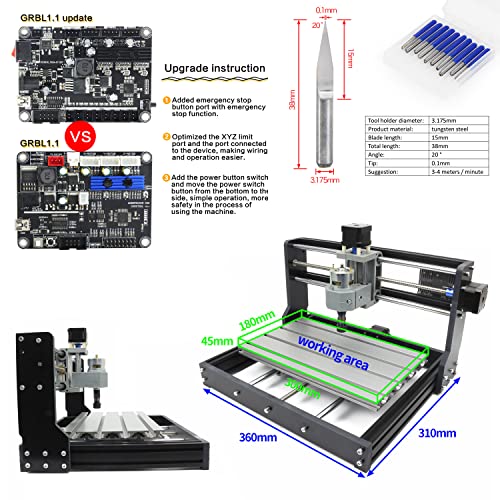

RATTMMOTOR 3018 Pro DIY CNC Router Kit, 3 Axis Hobby CNC Router Machine GRBL Control, Plastic Acrylic PVC PCB Wood Mini Desktop Engraving Milling

Brand: RATTMMOTOR

Color: Cnc3018pro

Features:

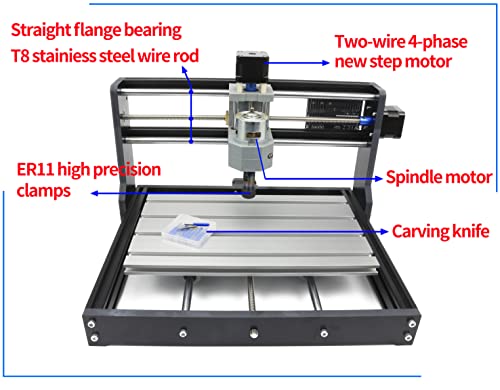

• 【Upgrade Version CNC 3018 PRO】※ Frame size: 42x35x27CM (16.53 x 13.78 x 10.63”). Working area:18x10x4.5CM(11.8 x 7.1 x 1.8”). Material: Aluminum Alloy. Spindle: 775 spindle motor (12-24V) 24V:10000r/min. Stepper motor: 42 stepper motor, 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m
• 【Material/Dimensions】※ The fixed external frame is made of black injection molding material, working table is aluminum alloy material. Screw rods uses stainless steel quality. It can able to engraving in plane by moving X/Y/Zaxis. High precision and durability and good appearance.
• 【Simple Assembly/Use】※ This mini cnc router machine kit is mainly designed for DIY carving enthusiasts/beginners, easily assembled and opertated, coming with a paper manual and USB flash drive of all the files.

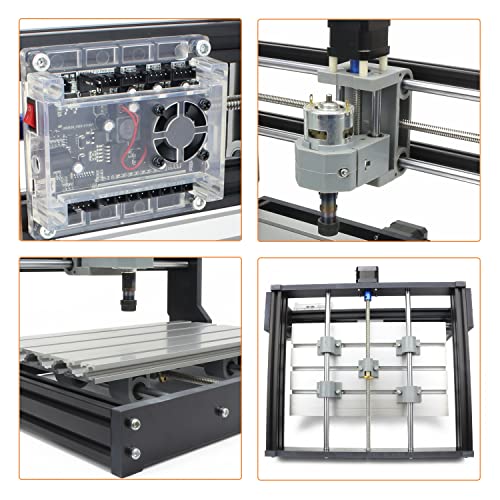

• 【Update GRBL Board】※ The updated control board has added the functions of supporting emergency stop button and X/Y/Z axis limit, and the functions are more complete. Users can design and equip those DIY accessories suitable for this mini engraving machine according to their own needs. Equipped with a silent cooling fan, which can dissipate heat quickly during operation, with low noise and good quality. Also, the control board can automatically identify the offline controller, support PWM.
• 【Applicable Engraving Material】※ CNC 3018 PRO machine can not only engraving wood/plastic/acrylic/ pvc/pcb/carbon fiber/density board and so on, but also soft metal like copper, aluminum and the similar materials. Howerever, harder materials cannot be engraved such as glass, hard metal, jade, ect.

Binding: Tools & Home Improvement

model number: 3018PRO

Part Number: 3018PRO

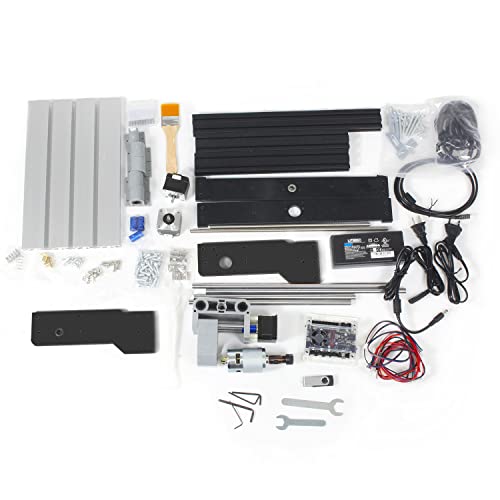

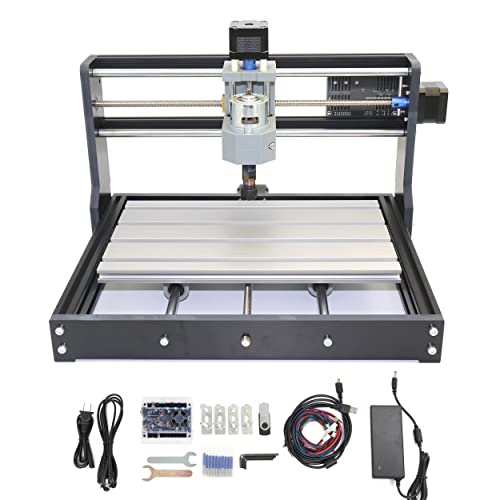

Details: Package include:

1 set 3018PRO GRBL Control CNC Engraving Milling Machine Kit
1 set ER11 Collet
1 set Power Supply
10 set 20°0.1mm Drill Bits
1 set Allen Wrench


Specification:

Working area: 30x18x4.5cm
Frame size: 40x33x24cm
Material: Aluminum Alloy
Processing thickness:4.5cm
Chuck specification: ER11 Collet
Control software: Grbl Controller
Interface: USB
Stepper motor: 42 stepper motor
Voltage: 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m
Spindle: 775 spindle motor (12-36V) 24V:10000r / min
Power: 24V 5.6A power adapter (input voltage 110-240V), simple and convenient
System requirements: windows XP SP3, win7. (32/64 can be). Linux; Can't support Apple product

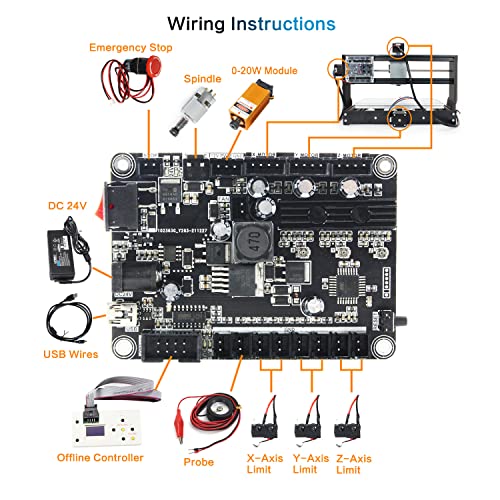

GRBL 1.1f,USB port cnc engraving machine control board, 3 axis control:

Connection: USB (USB-CH340)

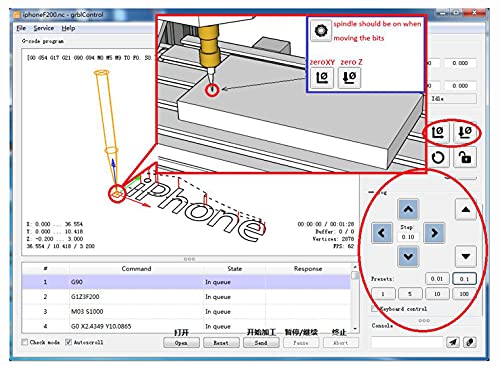

Software: GRBL controller,UniversalGcodeSender
Input voltage: 12-24V
Master chip: atmel 328P
Stepper motor driver: A4988
Spindle drive chip: MOSFET (recommendation 12~24V, current : within 10A )
Spindle PWM speed: Support
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Power Interface: 5.5-2.5mm DC interface


Main application:Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.

EAN: 0680904985384

Package Dimensions: 17.0 x 9.3 x 6.9 inches
