RATTMMOTOR 4-Jaw K72-80mm 3.15 Inch Independent Reversible Metal Lathe Chuck with Wrench for CNC Router, Lathe, Turning Machine
Regular price
$59.00
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: RATTMMOTOR
Color: 80mm
Features:

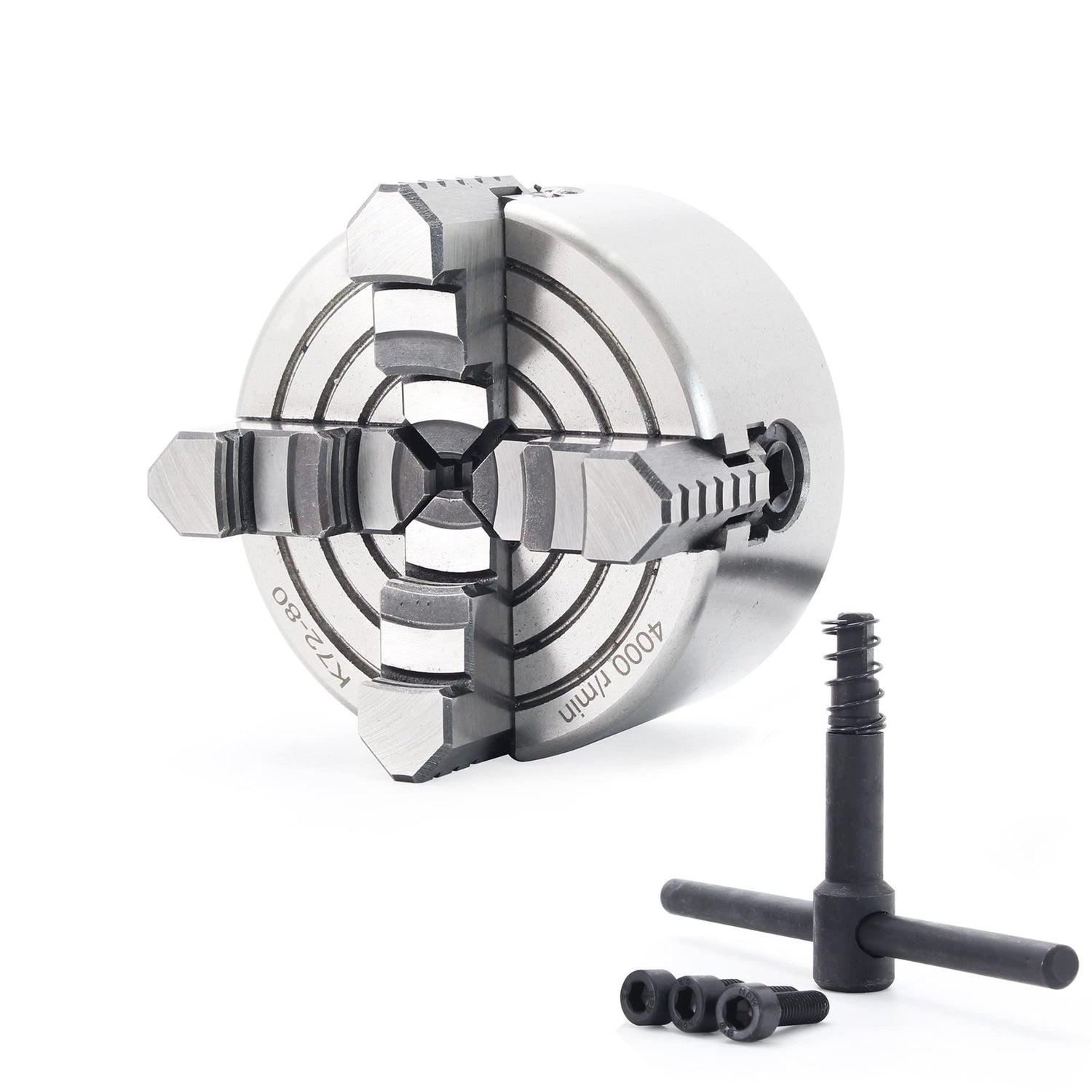

- 1 x 4-jaw K72 80mm (3.15Inch ) Indepent Lathe Chuck+3 x Mounting Screws+1 x T Wrench.

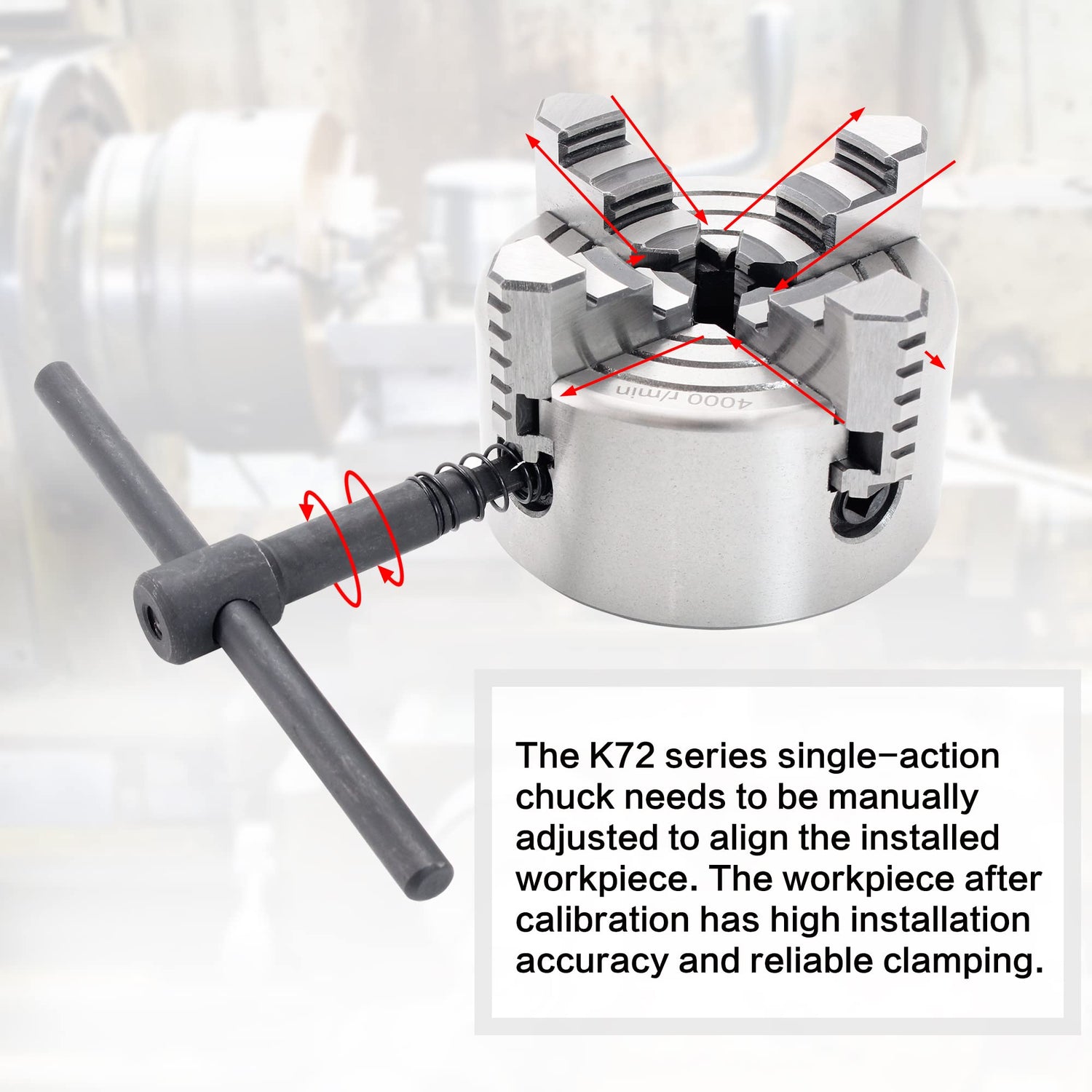

- The K72 series single-action chuck needs to be manually adjusted to align the installed workpiece. The workpiece after calibration has high installation accuracy and reliable clamping.

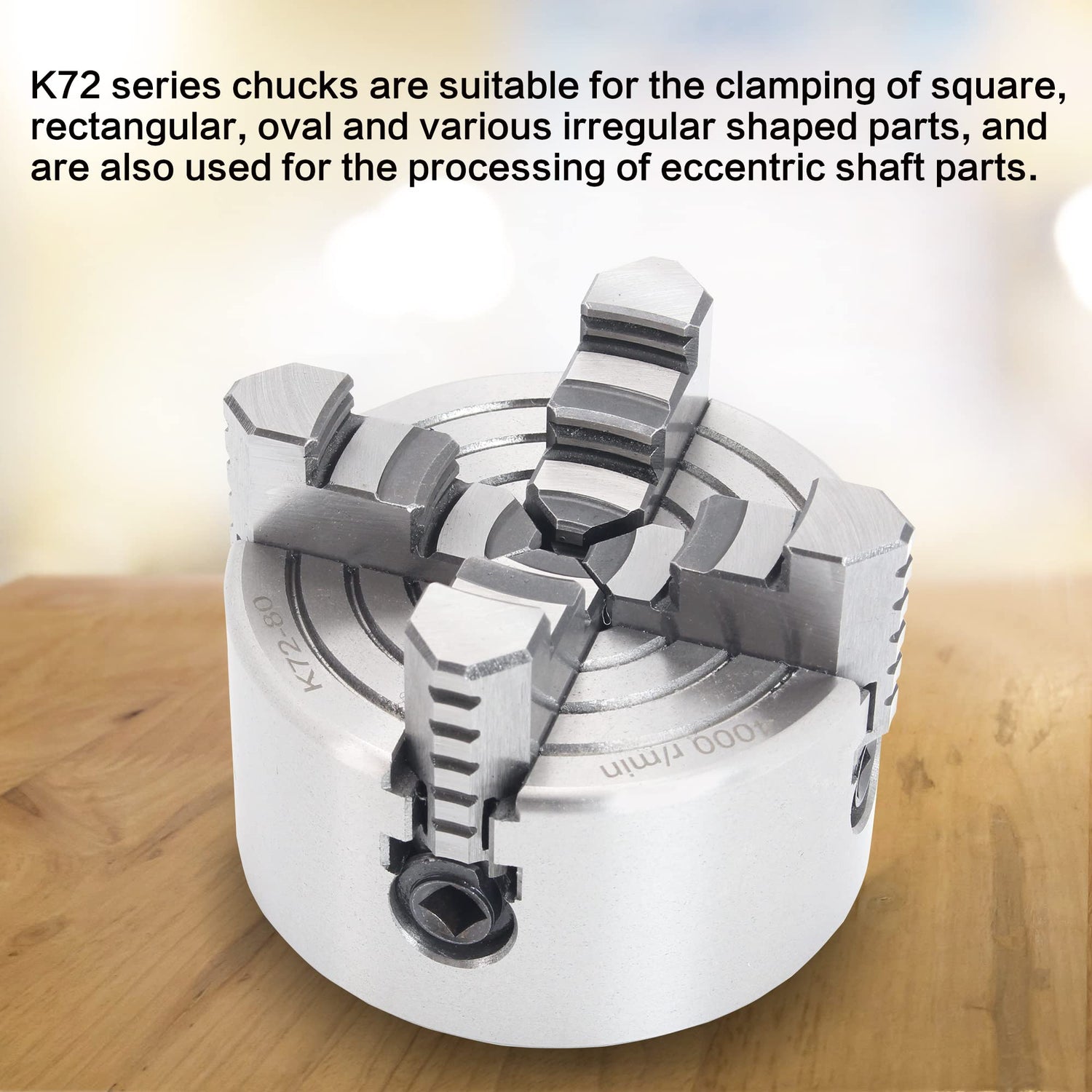

- K72 series chucks are suitable for the clamping of square, rectangular, oval and various irregular shaped parts, and are also used for the processing of eccentric shaft parts.
- The four-jaw single-action chuck can be installed in two forms: positive jaw and reverse jaw, of which the reverse jaw is used to clamp workpieces with larger diameters.

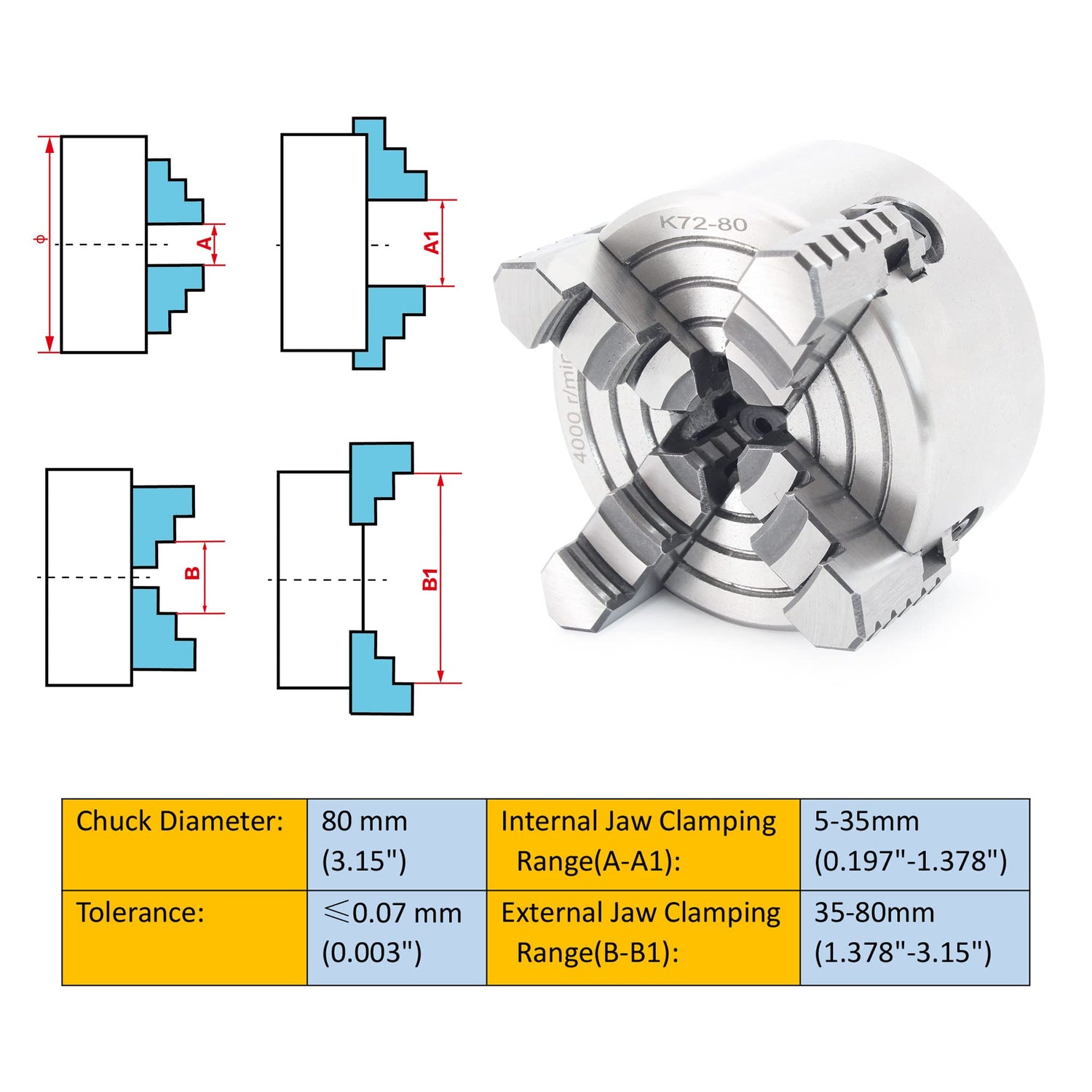

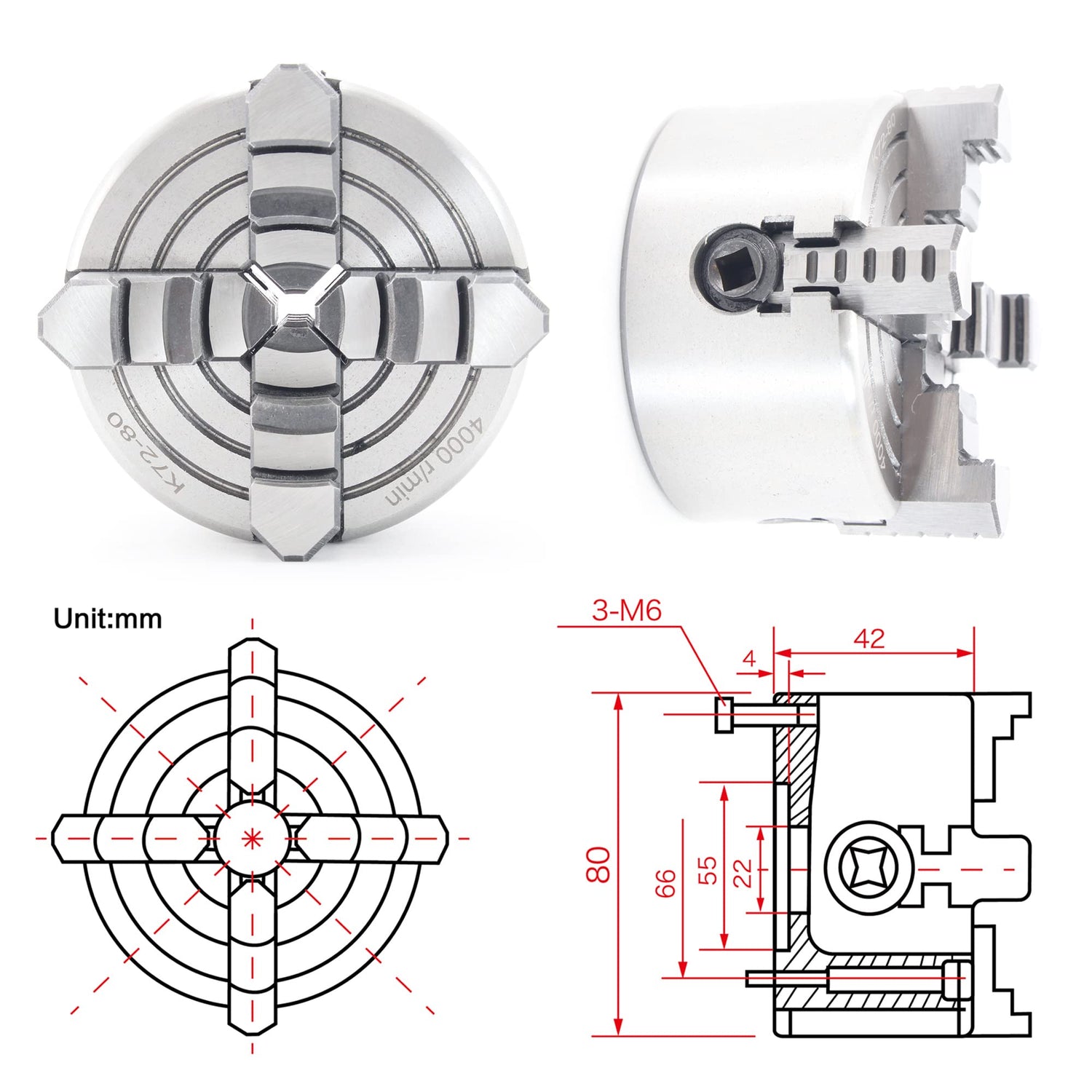

- Chuck Diameter: 80 mm (3.15"); Internal Jaw Clamping Range: 5-35 mm (0.197"-1.378"); External Jaw Clamping Range: 35-80 mm (1.378"-3.15"); Tolerance: ≤0.07 mm (0.003").
Binding: Tools & Home Improvement
Part Number: K72-80
model number: K72-80
