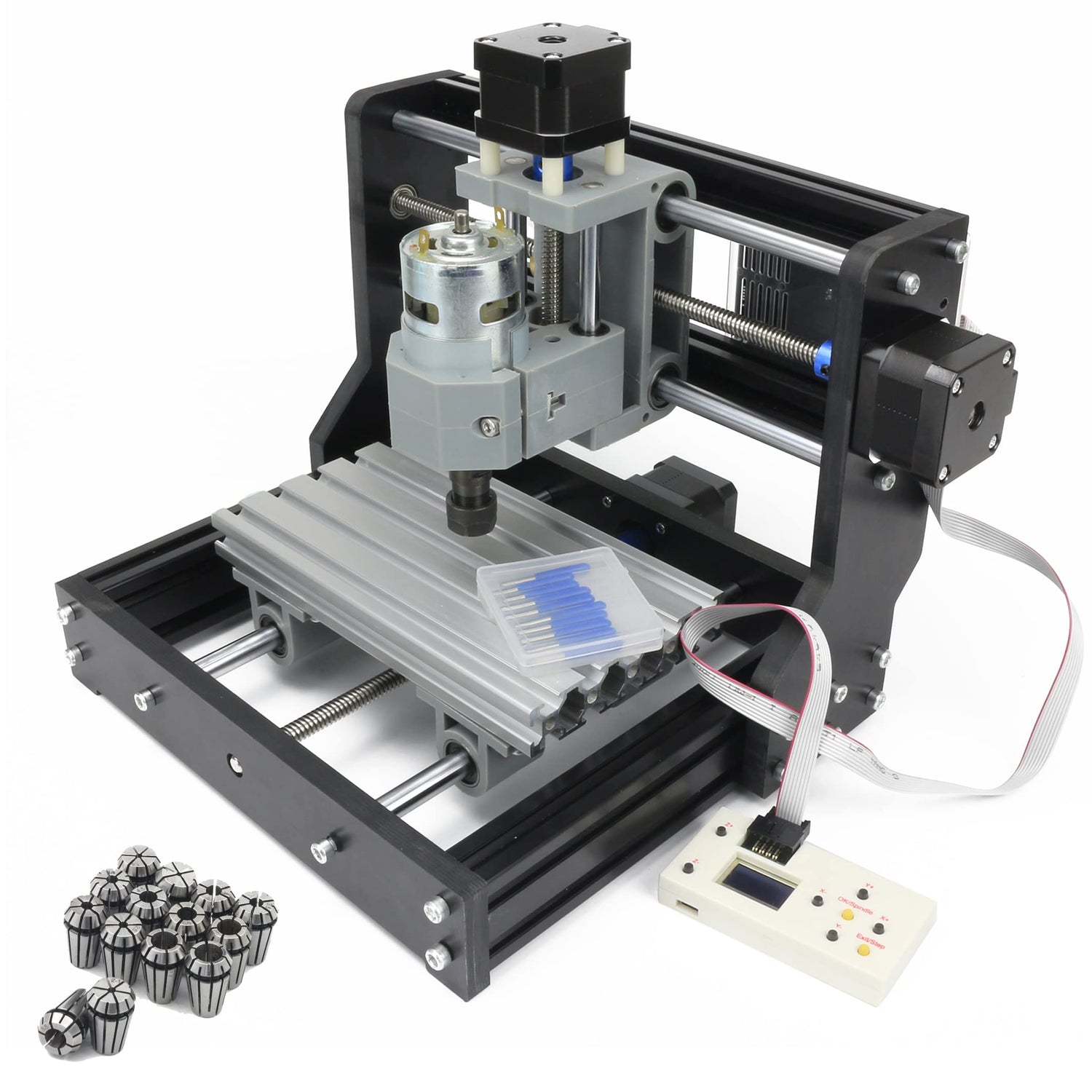

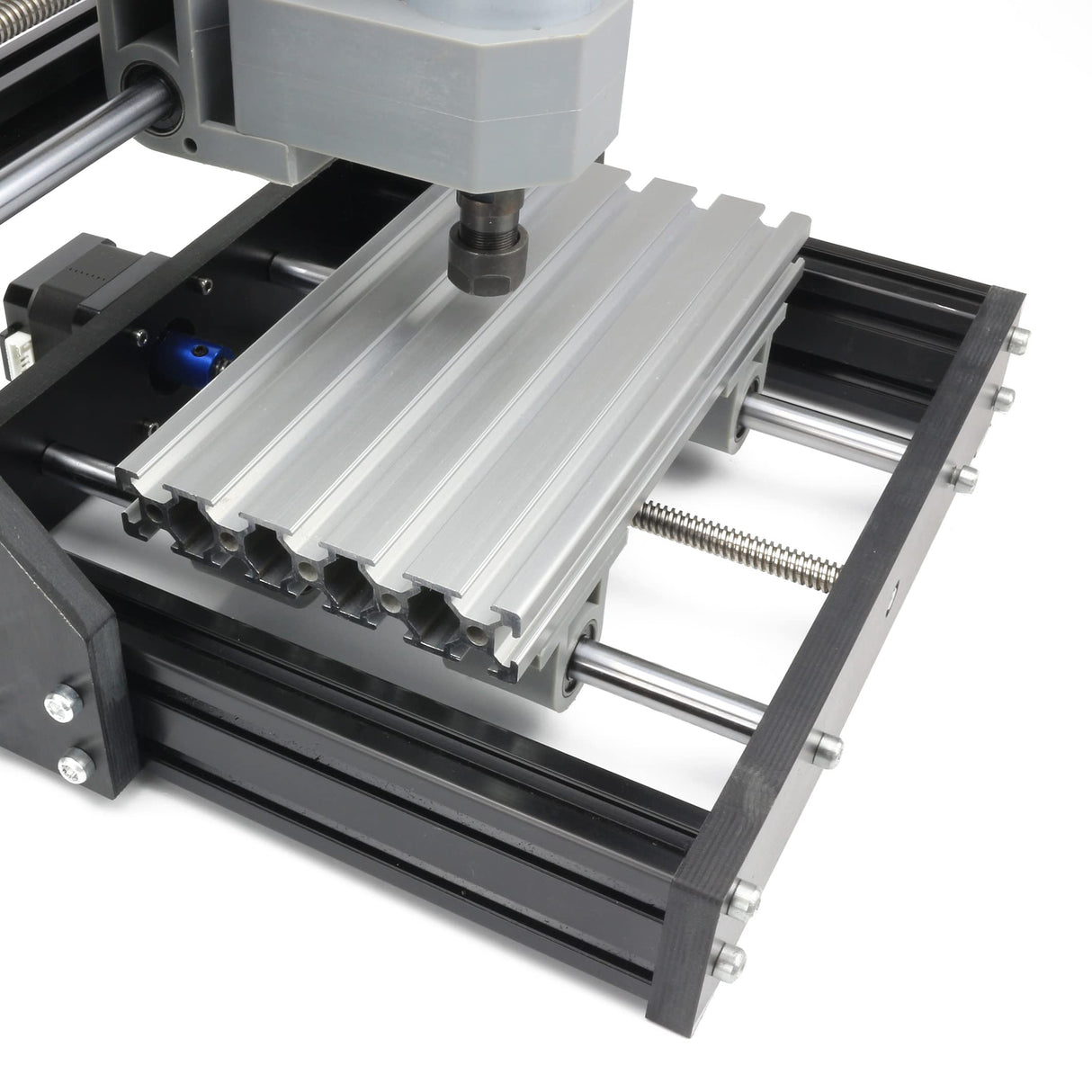

RATTMMOTOR CNC 1610 PRO 3 Axis GRBL Control DIY Mini CNC Router Machine Kit with Offline Controller and 14pcs ER11 Collets CNC Engraving Milling

Brand: RATTMMOTOR

Features:

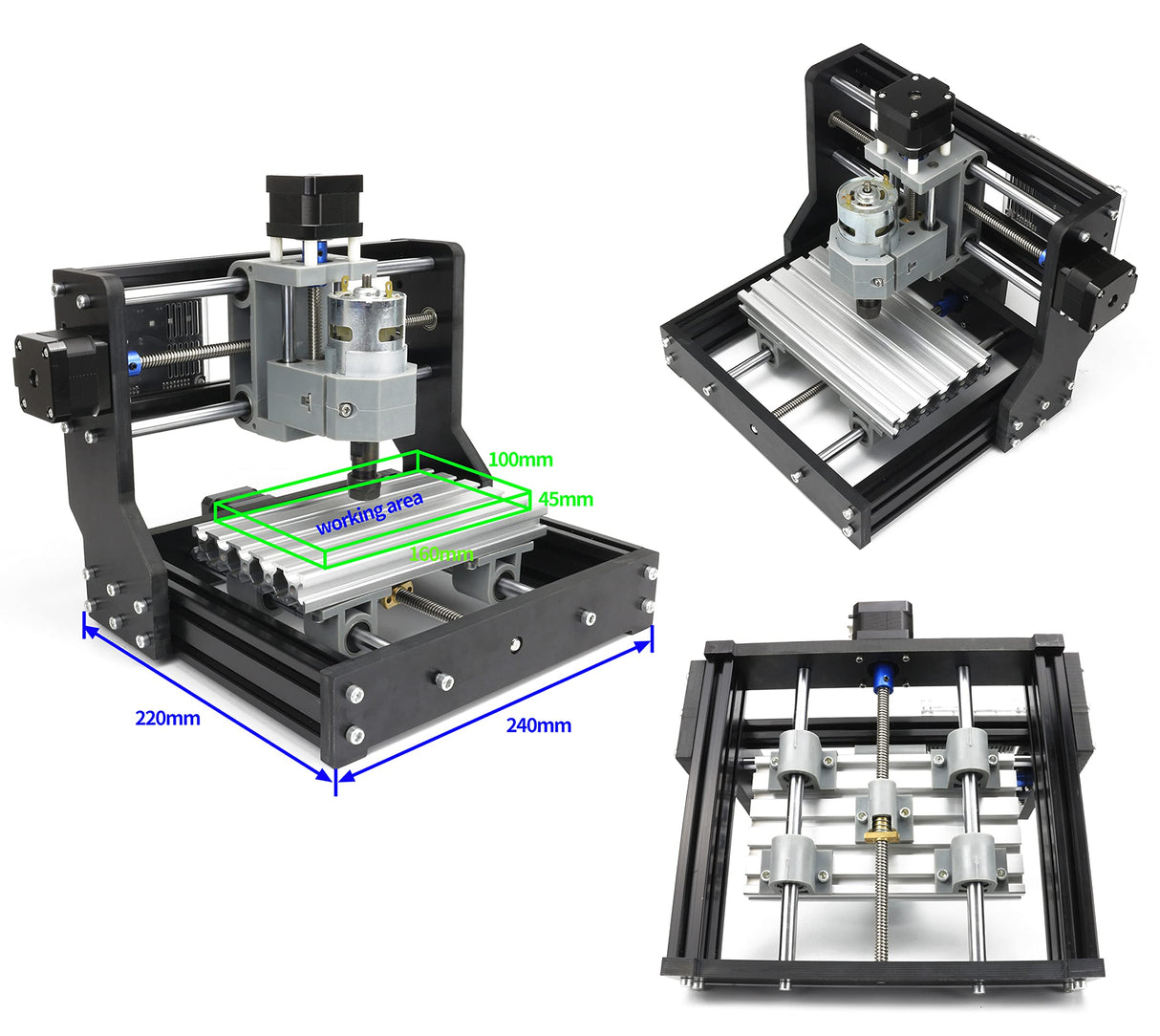

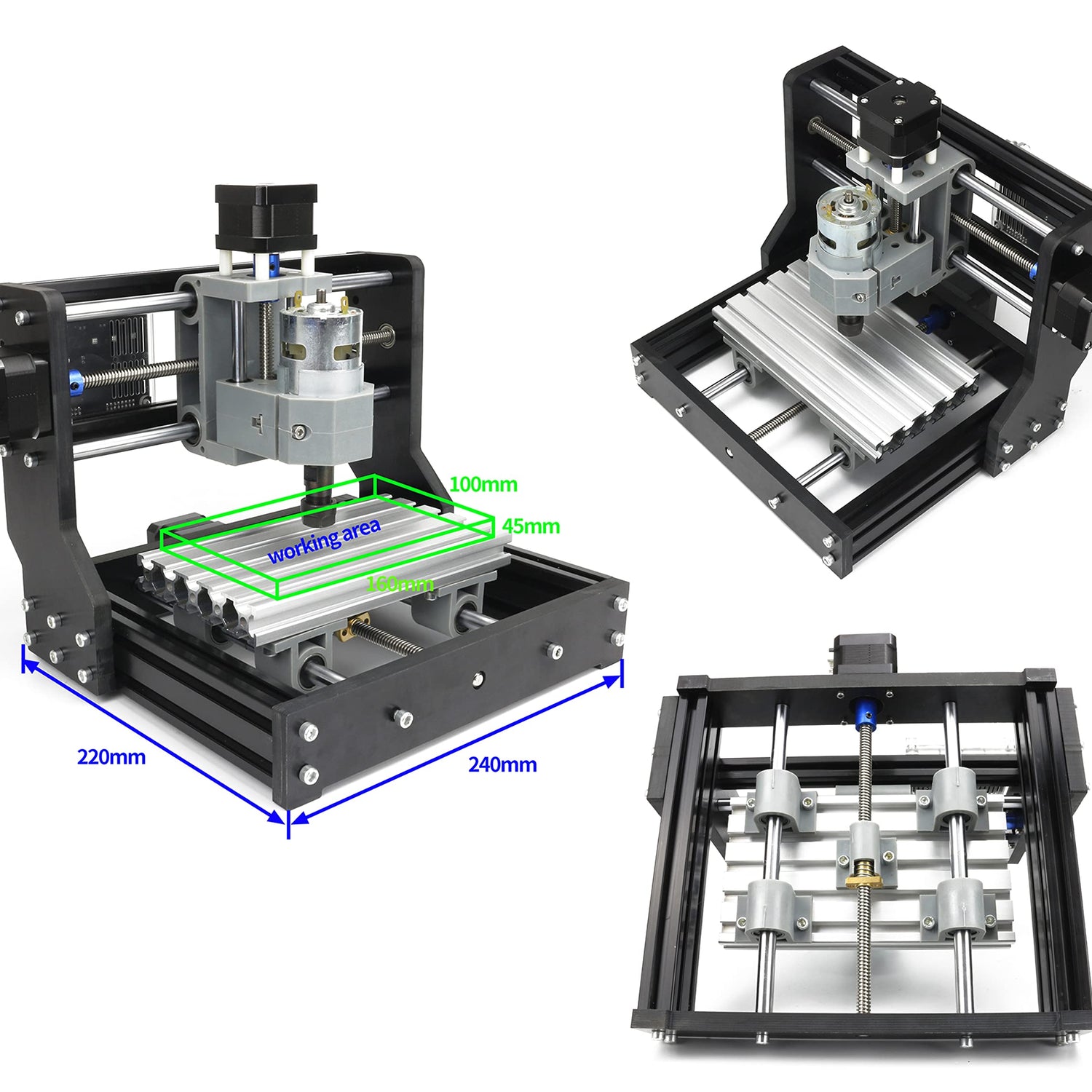

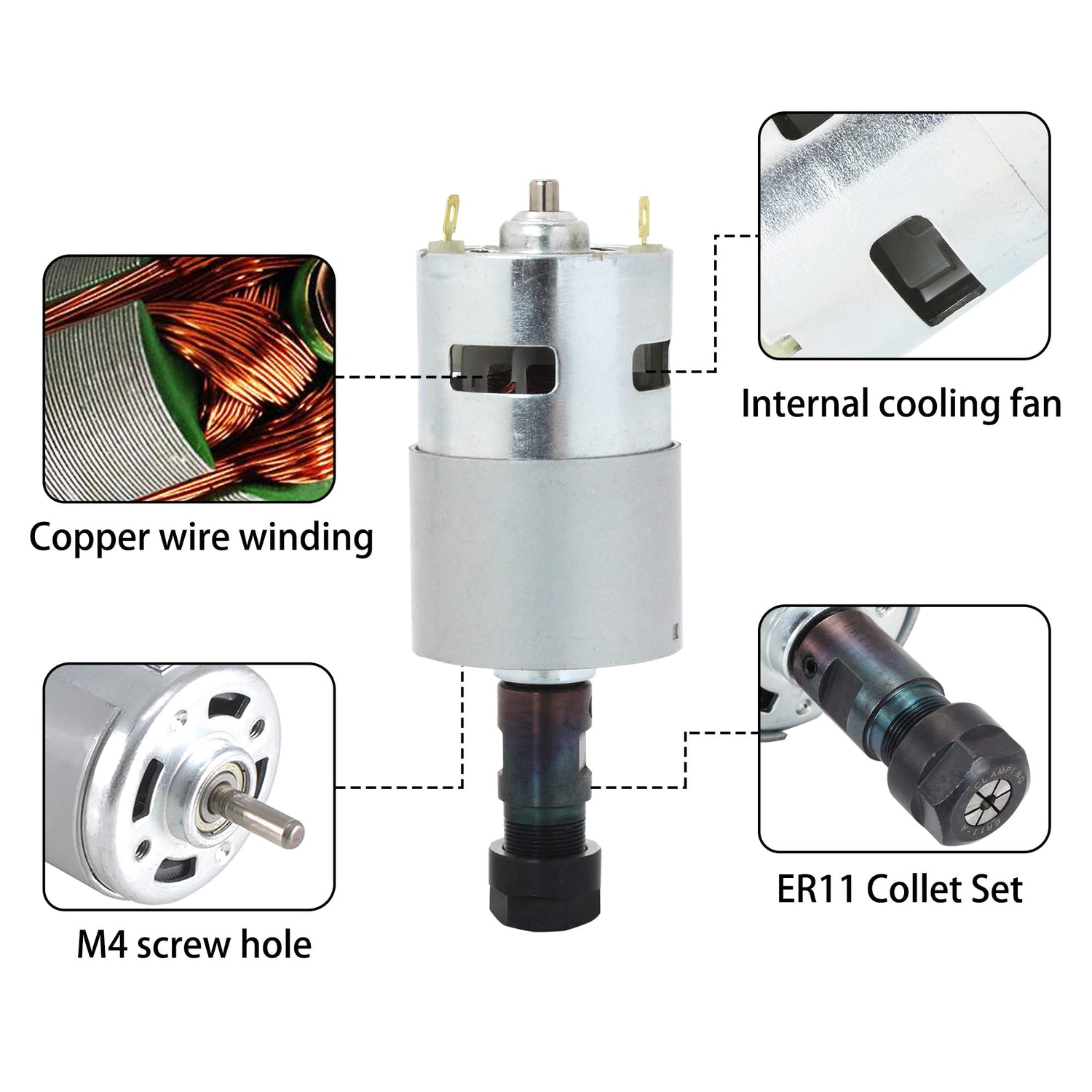

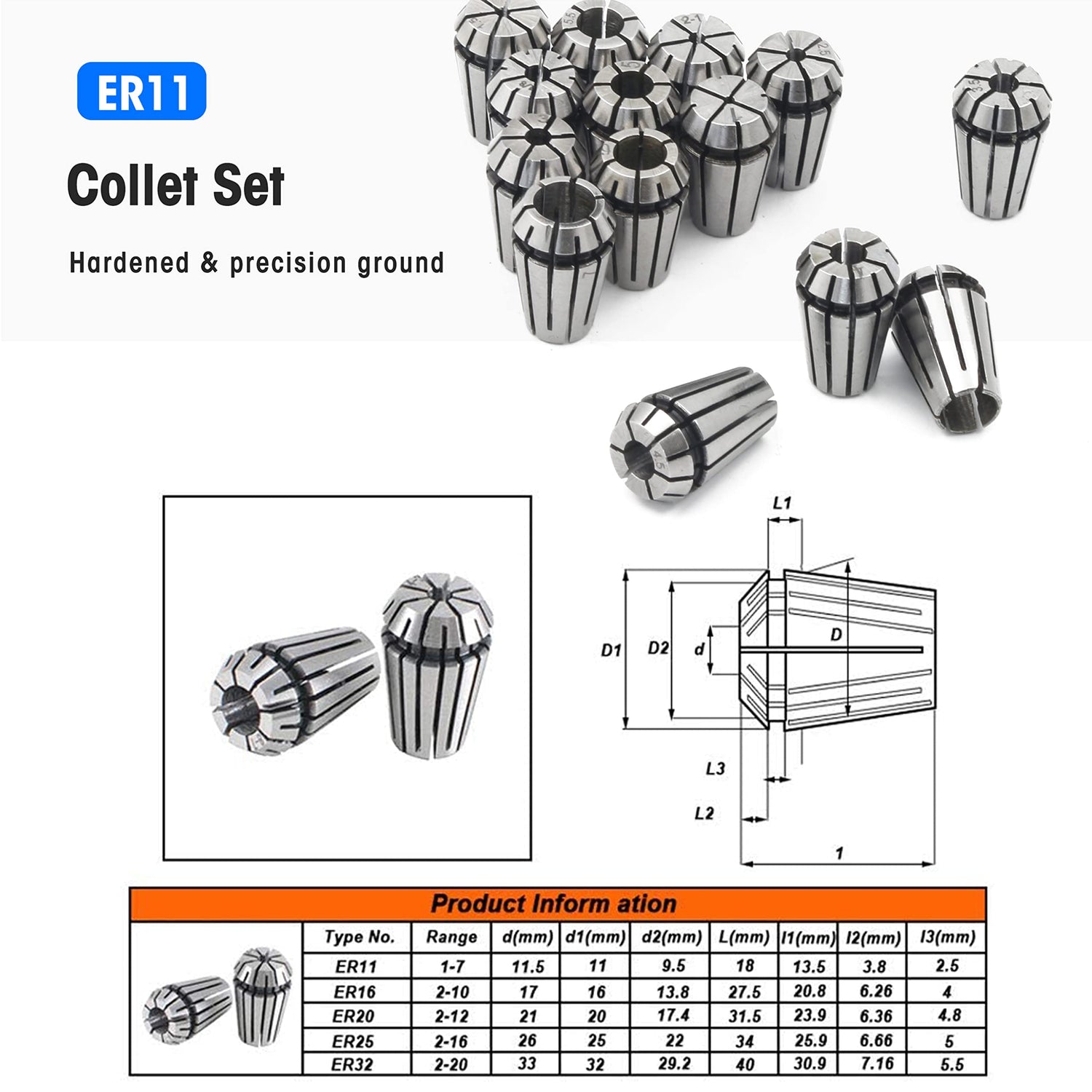

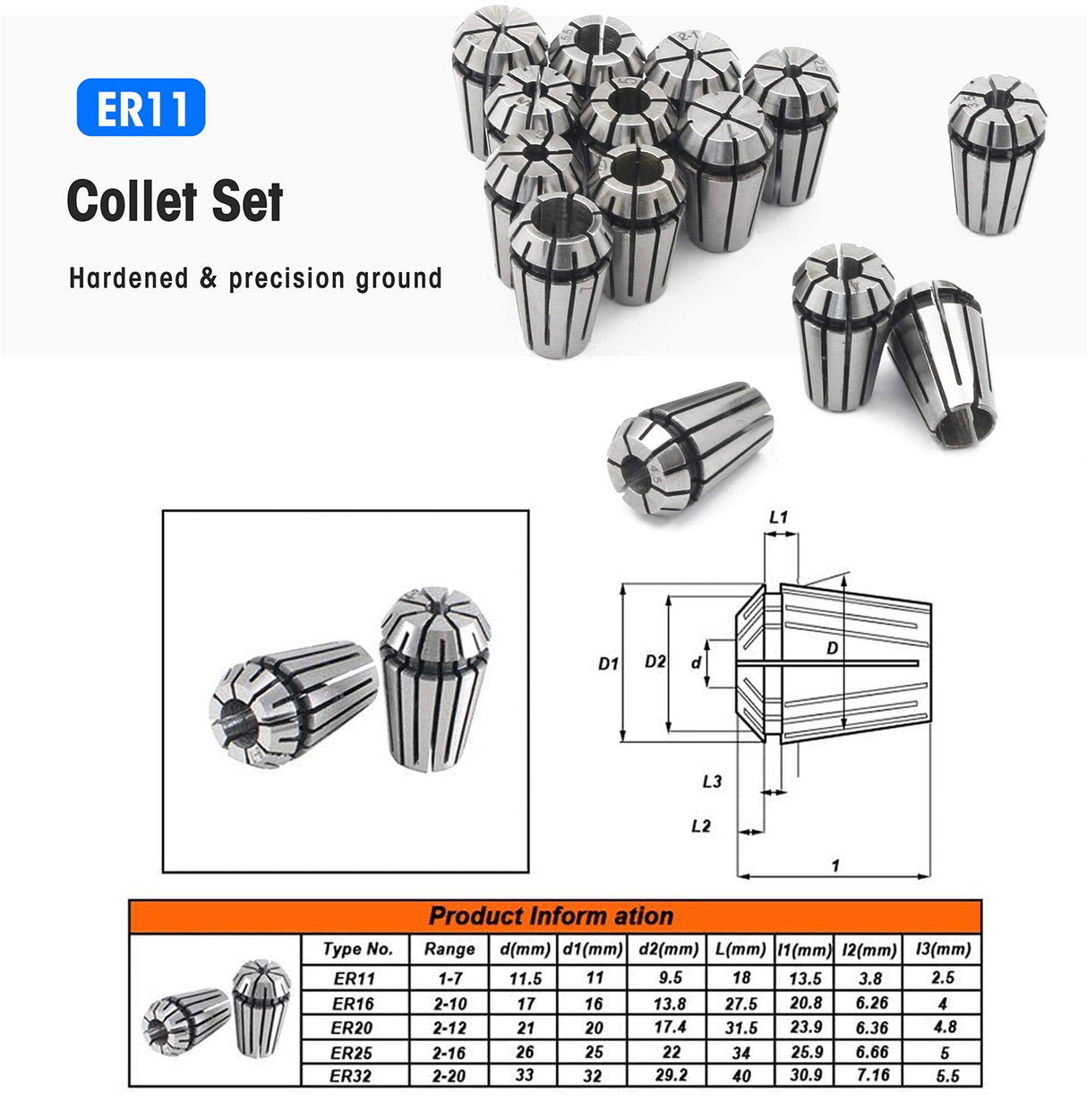

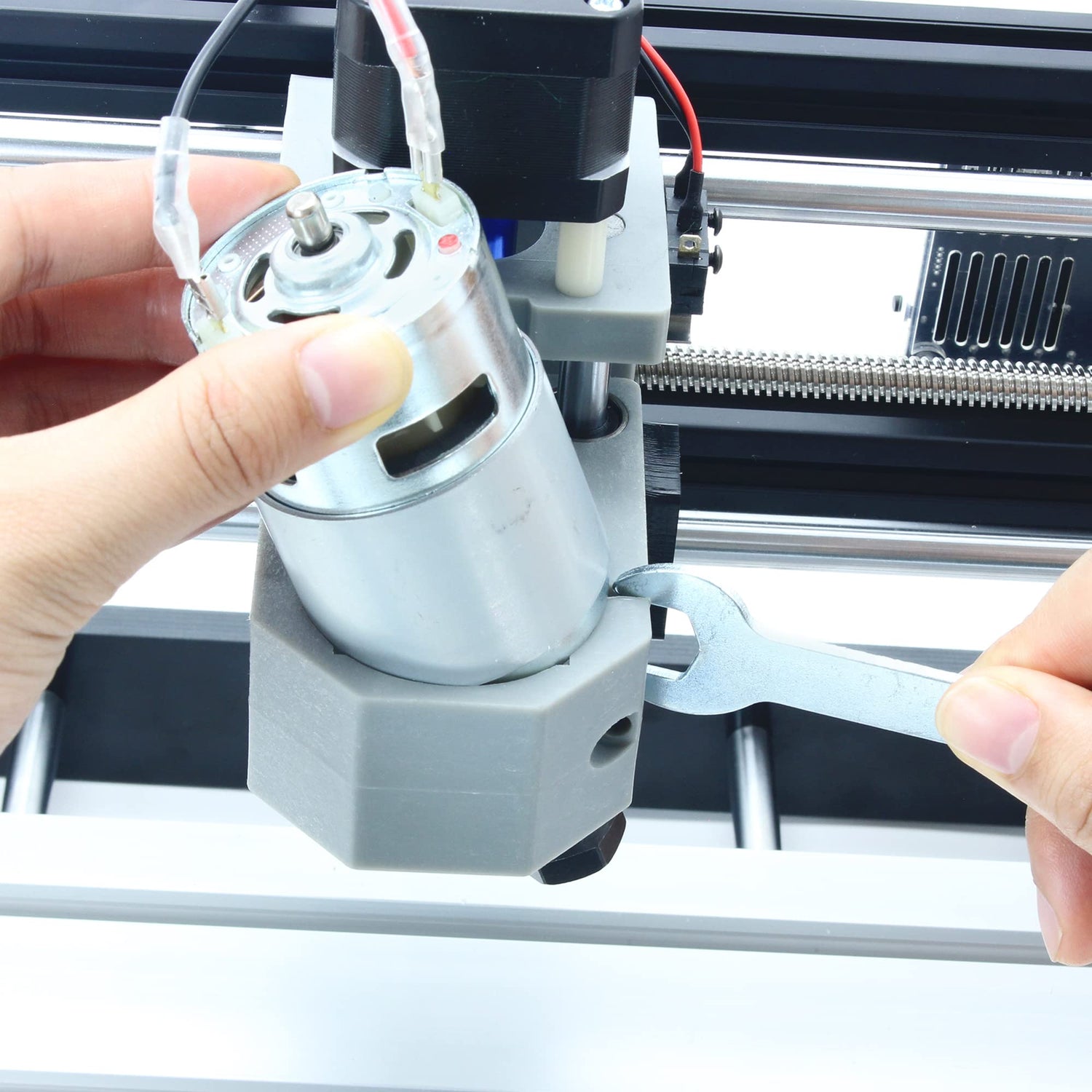

• 【Upgrade Version CNC 1610 PRO】Frame size: 30x26x25CM. Working area:18x10x4.5CM. Material: Aluminum Alloy. Spindle: 775 spindle motor (12-24V) 24V:10000r/min（with14pcs ER11 collets）. Stepper motor: 42 stepper motor, 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.25N.m
• 【Simple Assembly/Use】This mini cnc router machine kit is mainly designed for DIY carving enthusiasts/beginners, easily assembled and opertated, coming with a paper manual and USB flash drive of all the files.
• 【Applicable Engraving Material】CNC 1610 PRO machine can not only engraving wood/plastic/acrylic/ pvc/pcb/carbon fiber/density board and so on, but also soft metal like copper, aluminum and the similar materials. Howerever, harder materials cannot be engraved such as glass, hard metal, jade, ect.

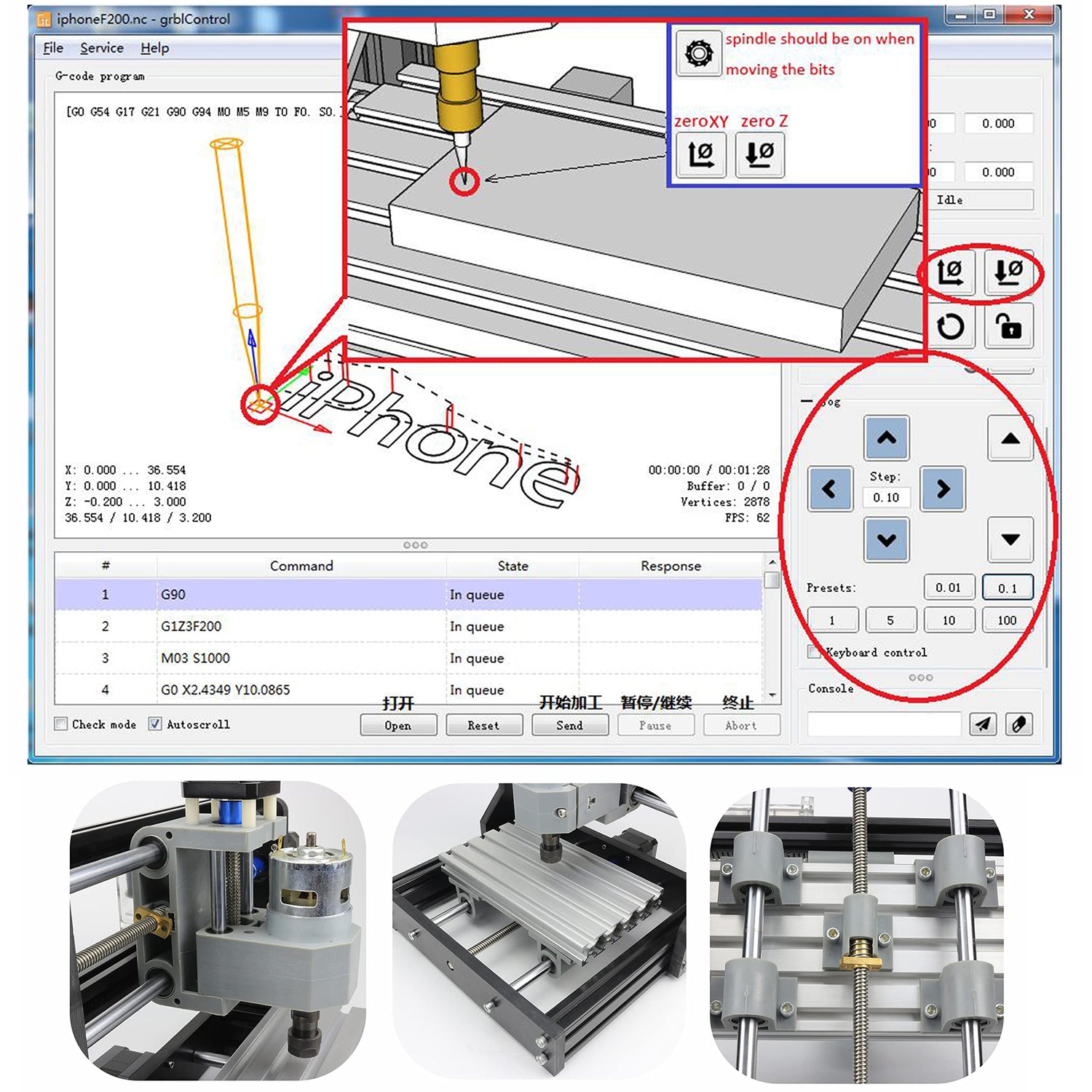

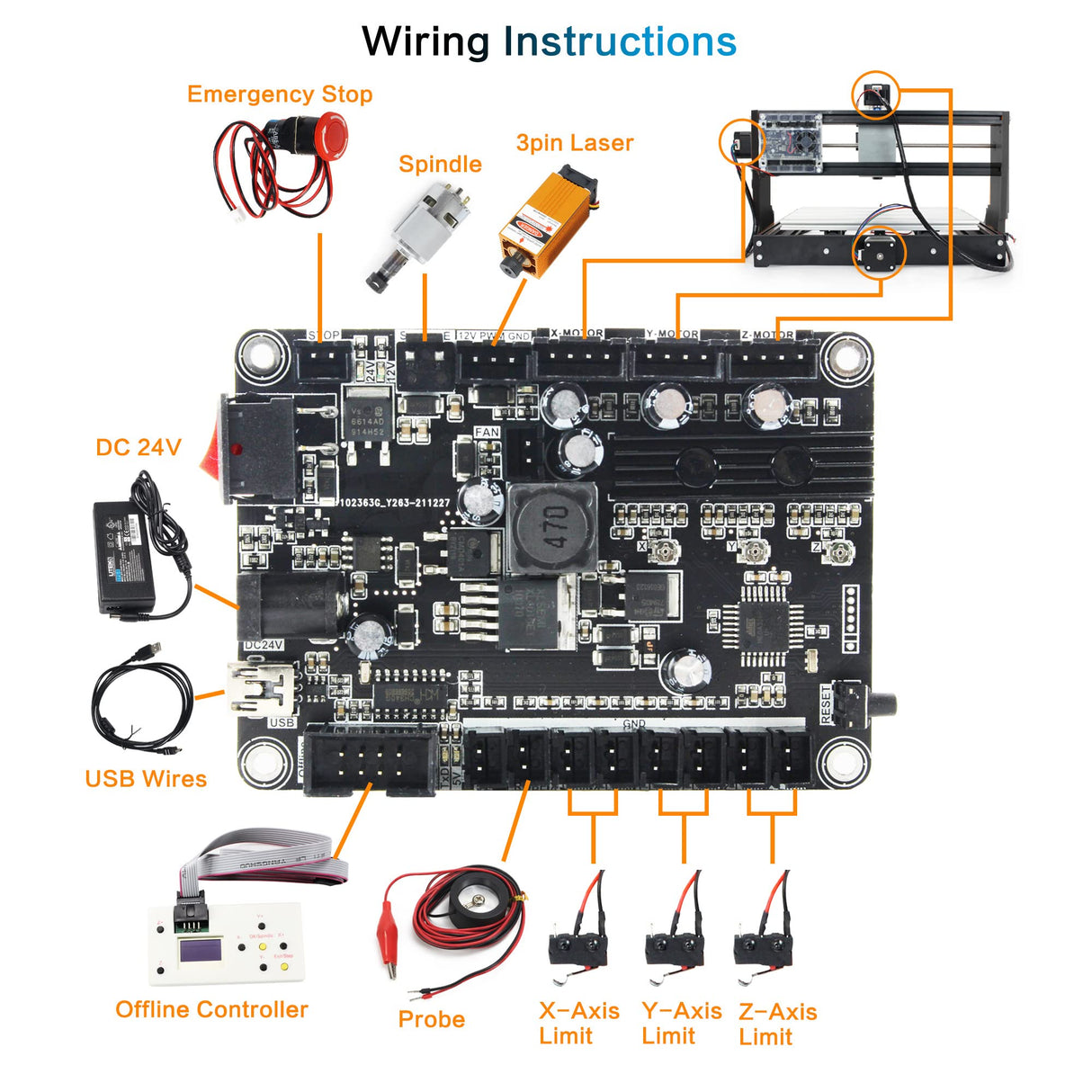

• 【GRBL Control Board/Software】This machine can be controlled by Grblcontrol/Candle software after connecting the control board to a coumpter via USB port. The control board is equipped with a fan to force heat dissipation, also has more fuctions such as support spindle PWM speed, limit switch, tool setting, steering gear.

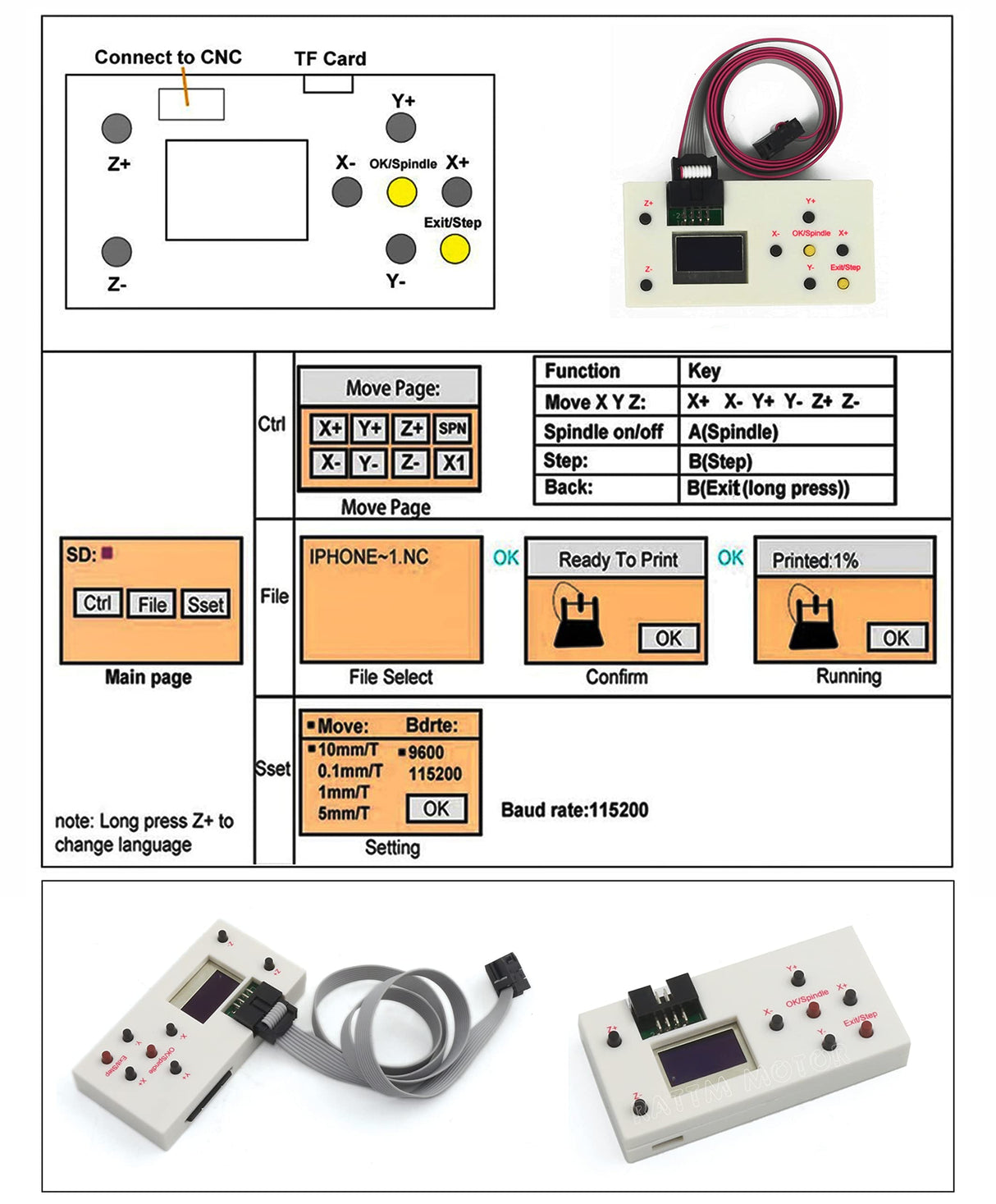

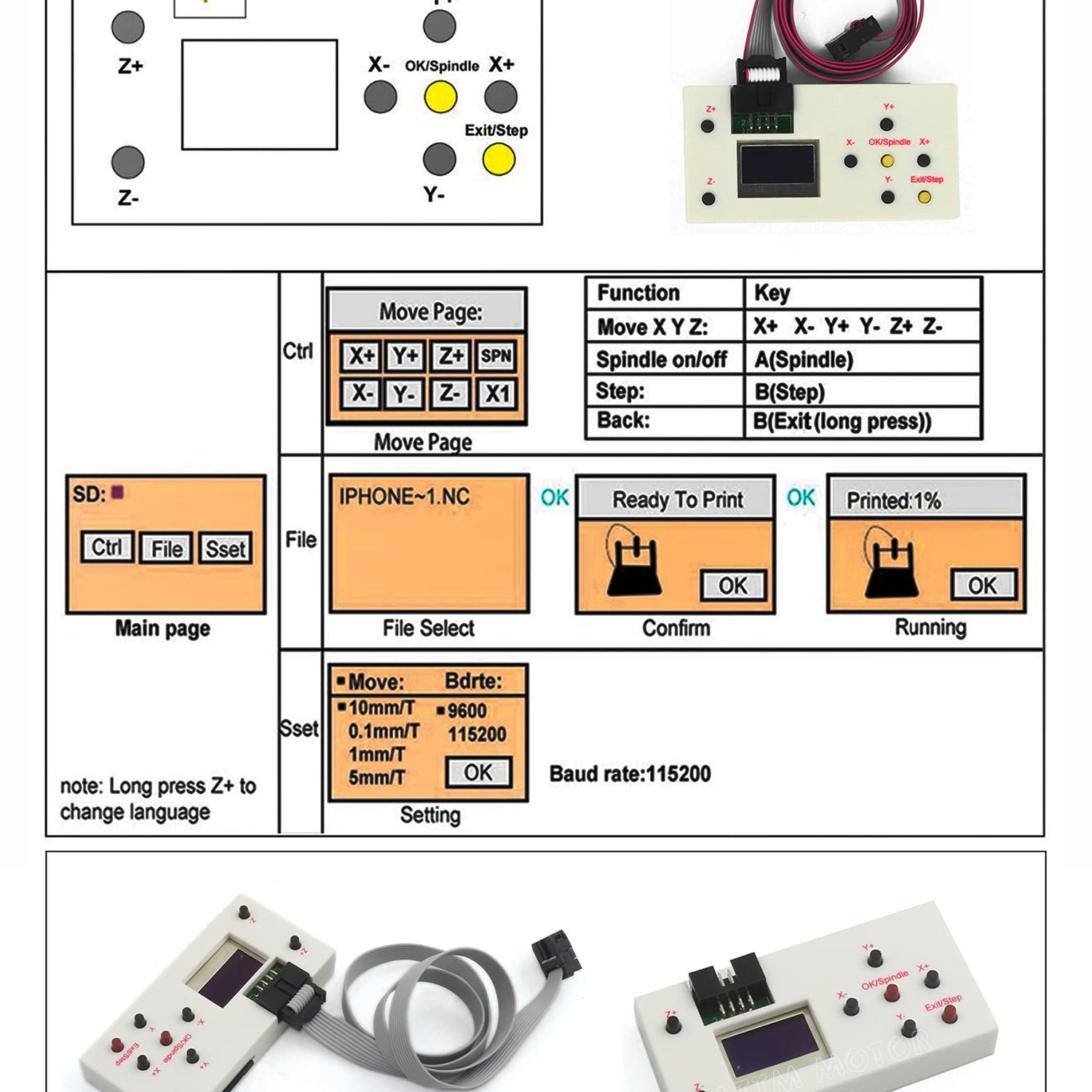

• 【CNC Offline Controller】This machine can be controlled simply by the offline controller without connecting it to a computer. Support SD card and TF card at the same time, standard capacity 1G. After inserting the file into the SD card,the engraving file can be directly identified.

Binding: Tools & Home Improvement

model number: 1610PRO-MJ

Part Number: 1610PRO-MJ

Package Dimensions: 14.1 x 9.3 x 7.2 inches
