RATTMMOTOR CNC Spindle Motor Kit 220V, 2.2KW Air Cooled Spindle Motor Square Spindle Motor ER20+2.2KW VFD Inverter 220V Variable Frequency Drive
Regular price
$265.00
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: RATTMMOTOR
Color: 2.2KW 220V SK-RTM Type
Features:

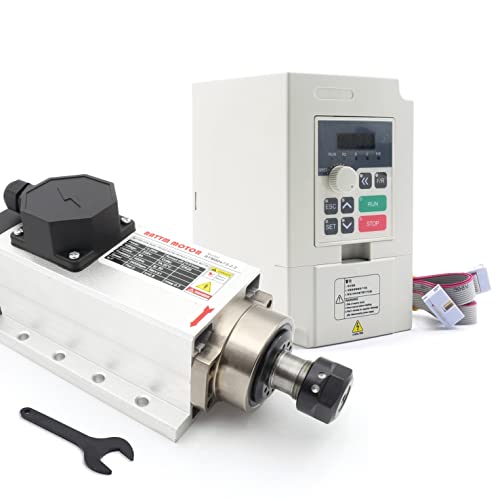

- 【Package Include】: ①1 x 2.2KW Square Air Cooled Spindle Motor ②1 x 2.2KW VFD with cable ③1 x ER20 Wrench

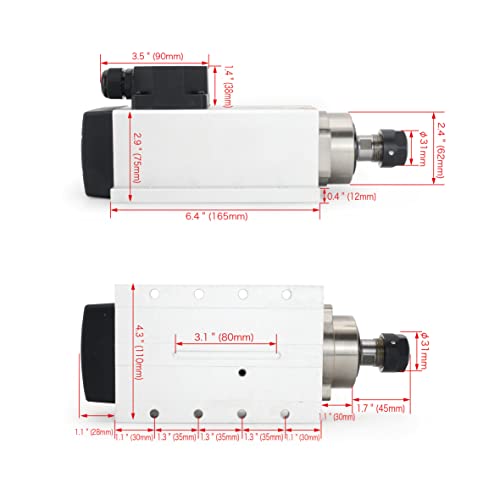

- 【2.2KW Spindle Motor】: ①This is a 220V-2.2KW air-cooled 6A spindle motor come with a ER20 nut and collet. Frequency is 400HZ, precision tapered bore is less than 0.005mm and runout off is Less than 0.01mm. ②Speed of The Spindle Motor : 0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the main shaft cannot only rotate clockwise or counter-clockwise.

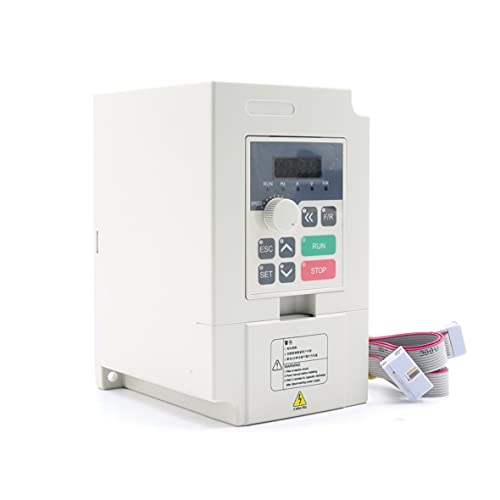

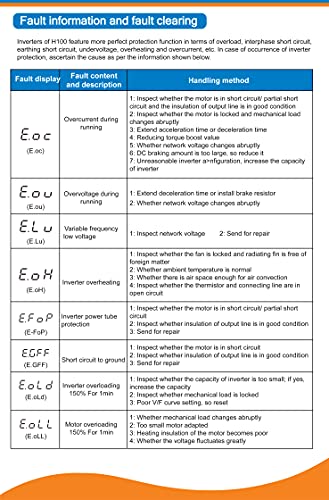

- 【2.2KW VFD】①Parameters: Input Voltage: 220V(+/-15%), Output Voltage: 220VAC, Input Frequency: 50-60 Hz, Output Frequency: 0-1000 Hz, Input Phase: 1 phase, Output Phase: 3 phase, Current: 11A. It provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation.
- ②Other Fuctions: With over torque and under torque detection; With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.It can also avoid the impact of production due to instantaneous power failure because of instantaneous power-down retention function. What's more, it supports multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting,ect.

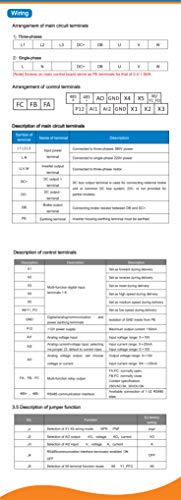

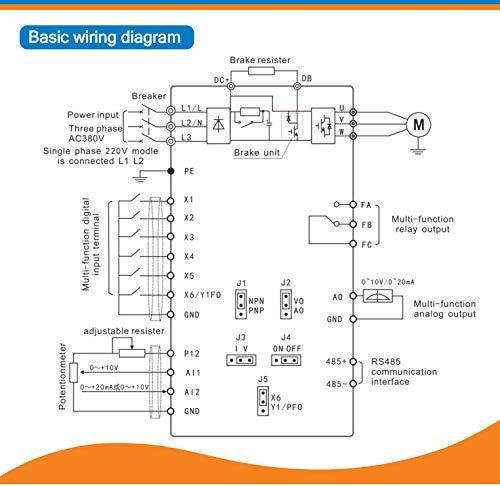

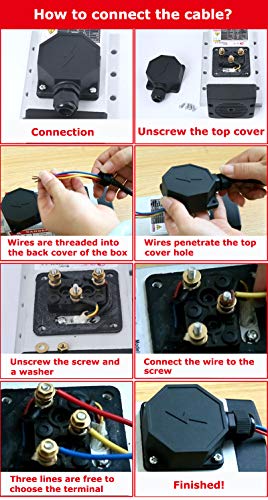

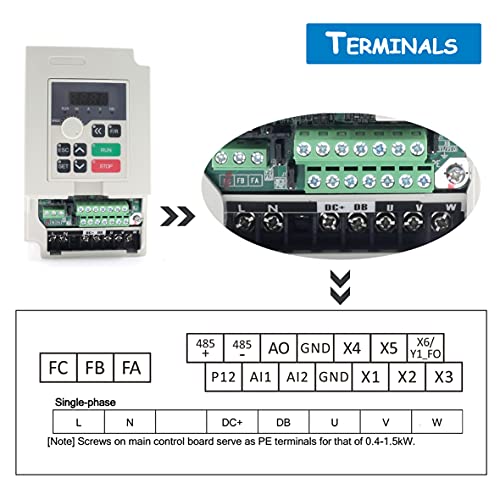

- 【How to Connect Spindle Motor and VFD】The spindle motor's aviation plug marked with number U, V, W. Number U, V, W port are connected with inverter's port U, V, W respectively.
model number: CFFK-2.2RTM
Part Number: CFF2.2KW-3
Package Dimensions: 17.0 x 16.0 x 8.0 inches
