Router Lift Systems for 4.2" Diameter Motors, 9-1/4'' x 11-3/4'' Plate 5-Piece Insert Ring Kit
Regular price
$252.99
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: O'SKOOL
Features:

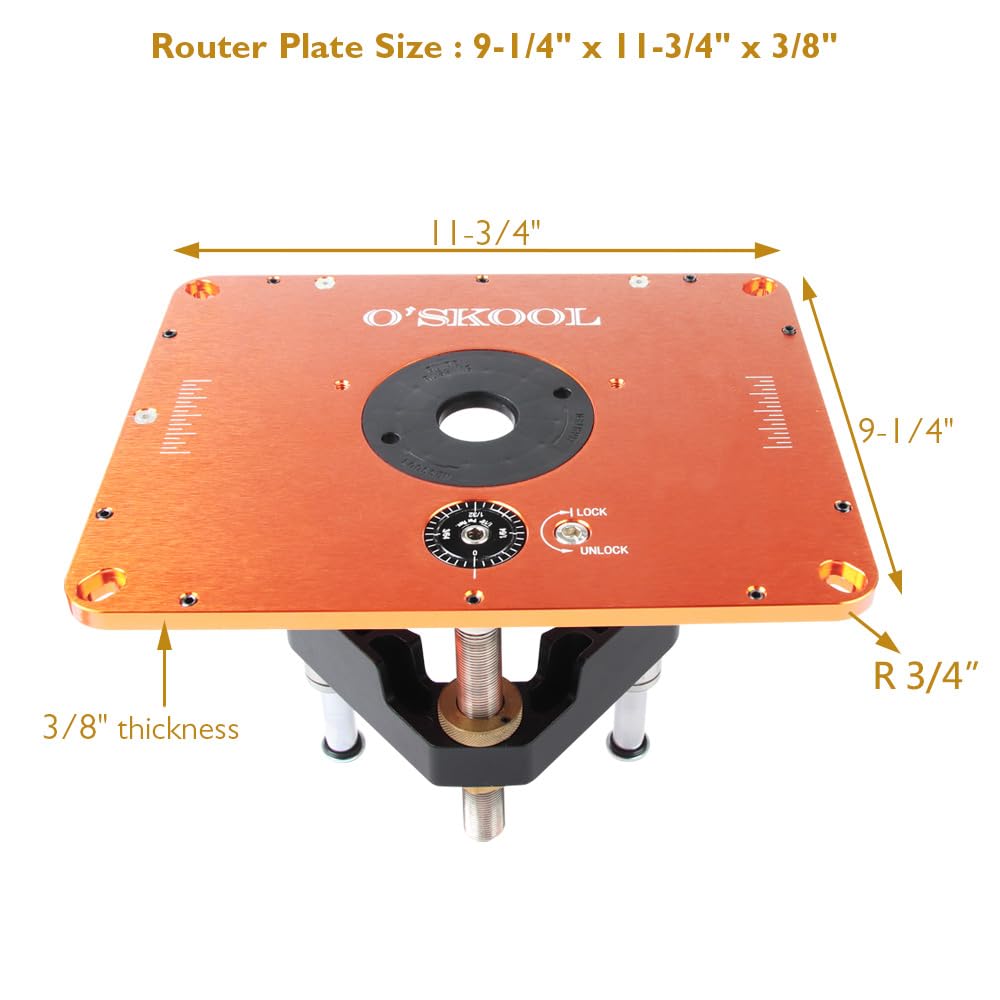

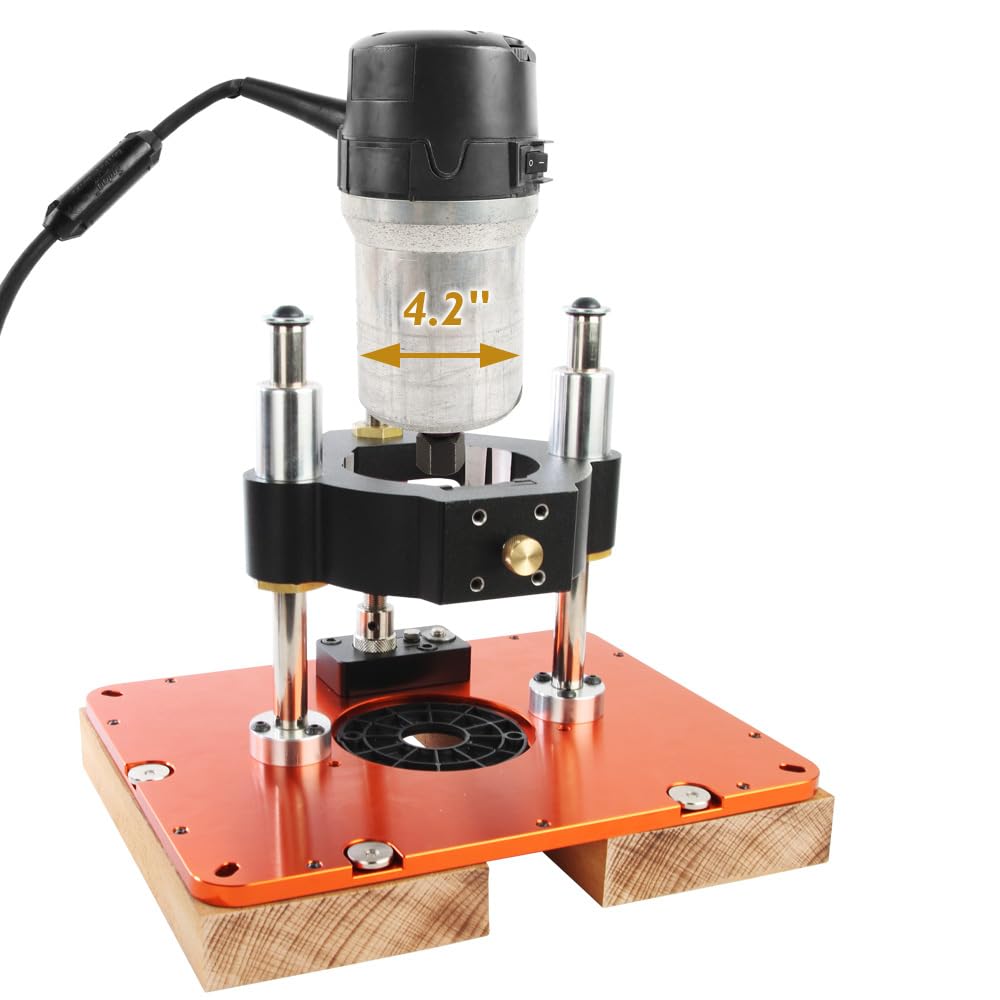

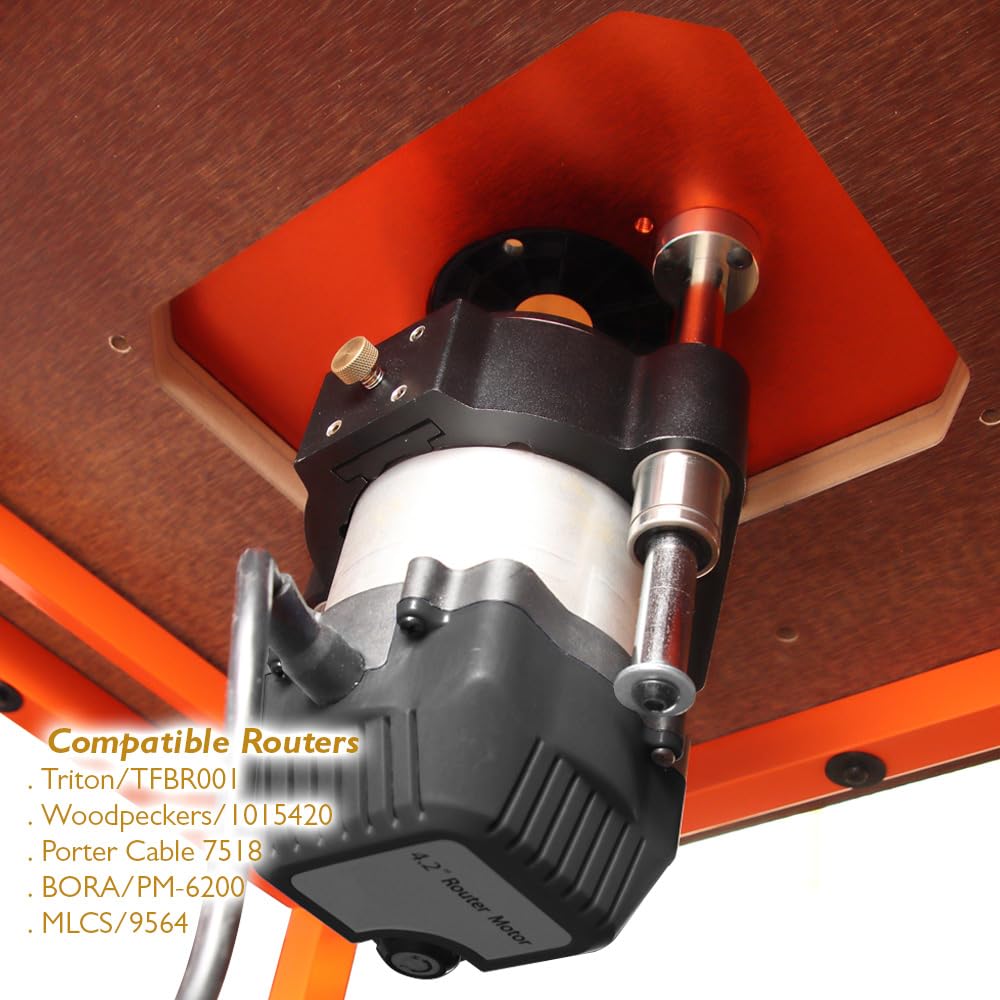

- This router lift features a 4.2" diameter carriage and is compatible with popular 4.2" router models such as Triton/TFBR001,Woodpeckers/1015420, Porter Cable 7518,Bora/PM-6200,Mlcs/9564, ensuring versatility and ease of use. The insert plate size is 11-3/4" X 9-1/4" accommodating most of commercial router tables available in the market.

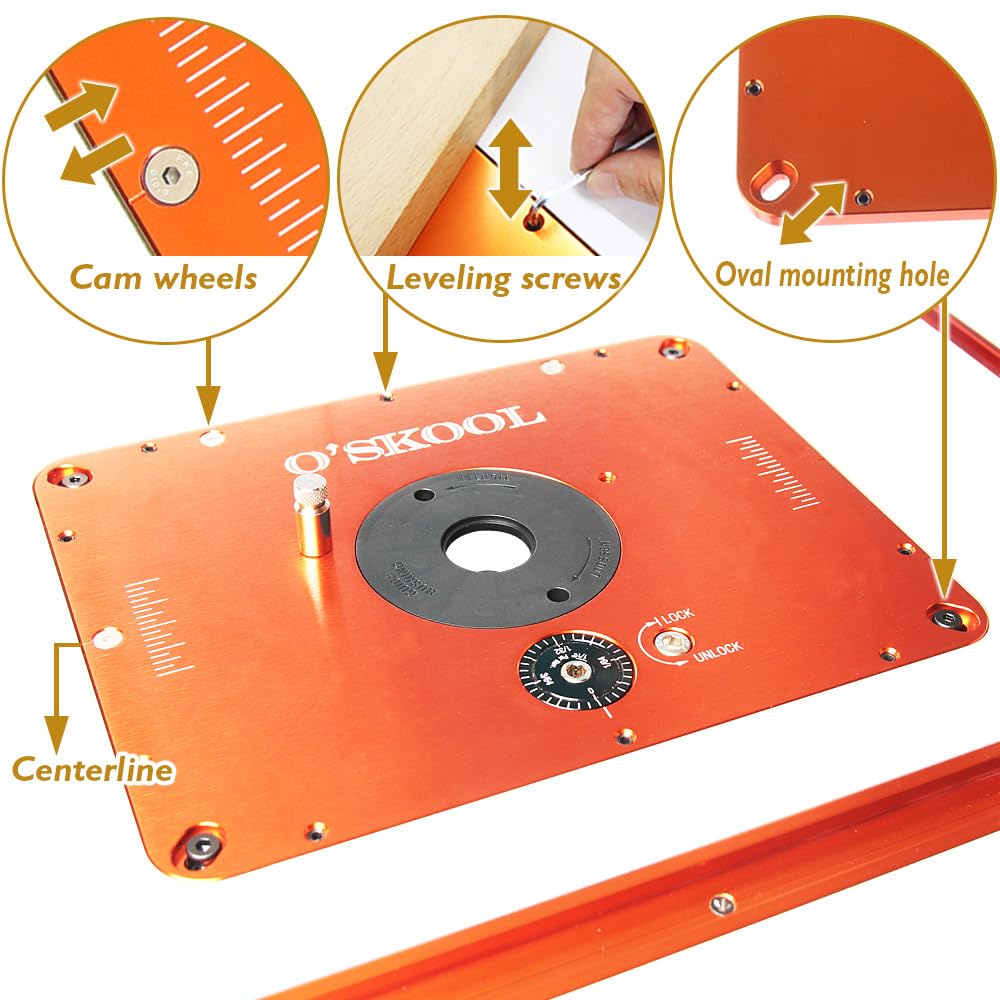

- Crafted from CNC machined 4.2" solid aluminum, the insert plate boasts exceptional flatness. It incorporates 10 set screws for precise leveling adjustments. Additionally, the inclusion of 3 locking cam wheels eliminates any gaps in the router table opening, guaranteeing consistent mounting position during every installation.
- With a height adjustability range of 3 inches, this router lift allows you to effortlessly change router bits without the need to remove the router from the carriage, saving you time and effort.
- The pitch of the lead screw is 16 threads per inch. So a full turn will lift or lower the router by 1/16". There are 32 scales on the Dial, so you get 1/512" of height change when rotating the lead screw by 1 scale.

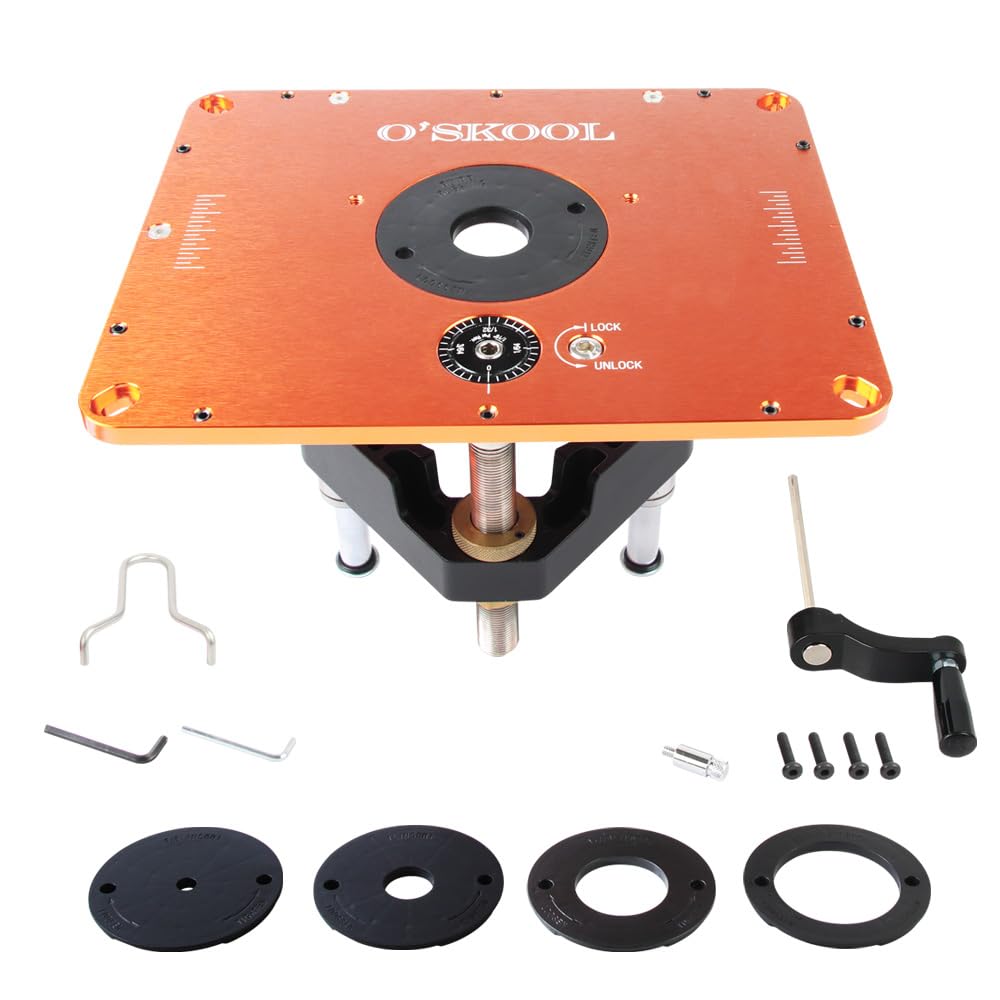

- Included with this router lift are 5 insert rings, offering optimal stock support for the use of various sizes of router bits. The sizes of the insert rings include 3/8", 1", 1-1/4" (compatible with guide bushings), 1-7/8", and 2-5/8", coping with to your diverse routing needs.
model number: RTS013
Part Number: RTS013
Details: This router lift features a 4.2" diameter carriage and is compatible with popular 4.2" router models.
EAN: 4711198631032
Package Dimensions: 13.7 x 12.6 x 11.3 inches
