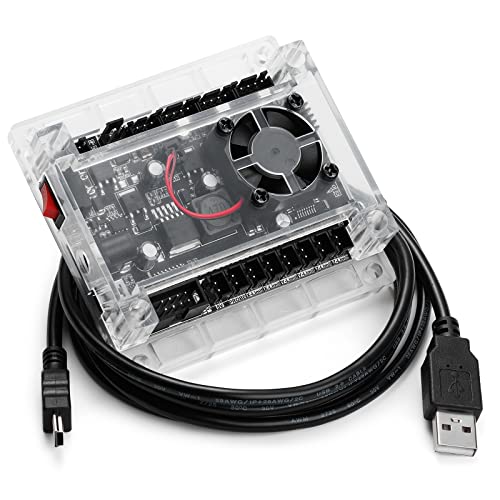

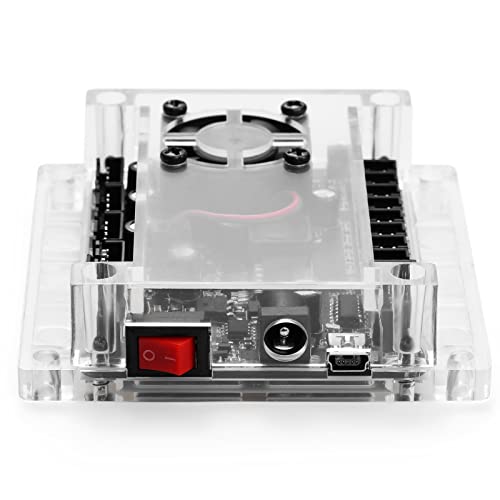

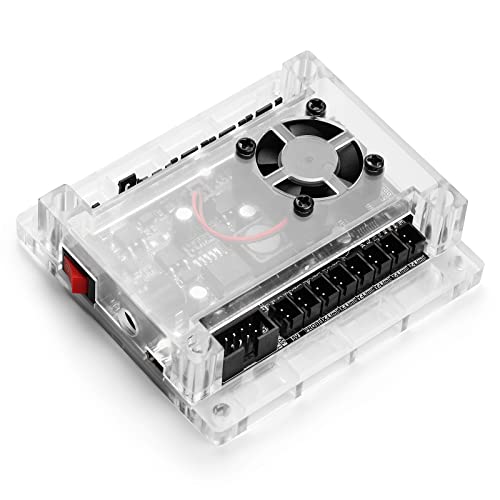

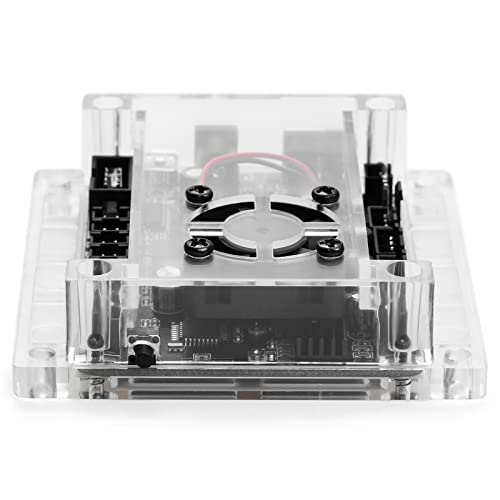

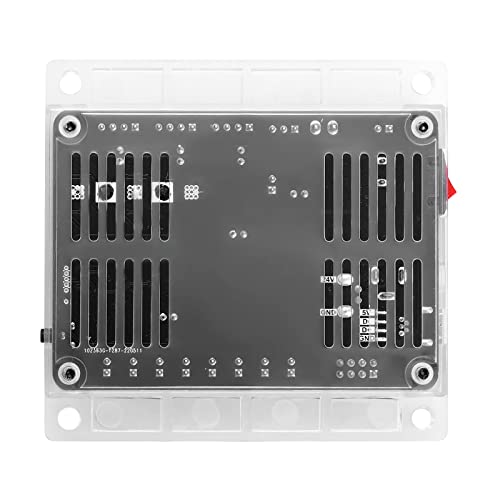

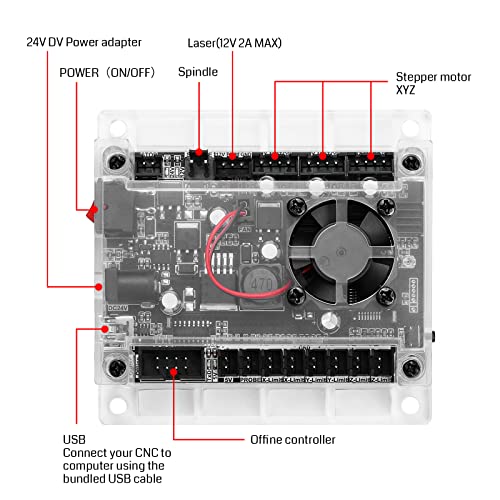

SainSmart Genmitsu CNC Router Machine Controller Board with ABS Case for CNC 1810-PRO/3018/3018-PRO

Brand: SainSmart

Features:

• This controller board is designed for Genmitsu CNC Router 1810-PRO, 3018, and 3018-PRO. It can perfectly compatible with SainSmart Blue Laser Module.
• Software: GRBL controller, UniversalGcodeSender.
• Stepper motor drive: DRV8825; Spindle power: 150W; Input voltage: 24V (12-24V).
• Support XYZ three-axis control, spindle and laser module. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface " + s-").
• Support stepper motor: 12V, the maximum current within 2A, recommended within 1.5A and additional heat. (Any stepper motor 42, 57).

Binding: Personal Computers

model number: 816550022382

Part Number: 816550022382

Details: Parameters:
Support Laser engraving.
Support spindle PWM speed control.
Support XYZ triaxial control, spindle, laser module.

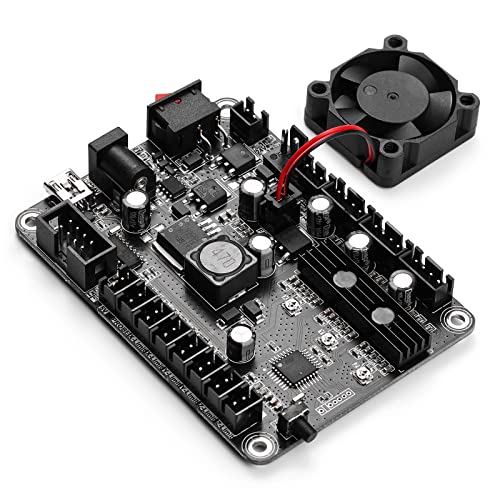

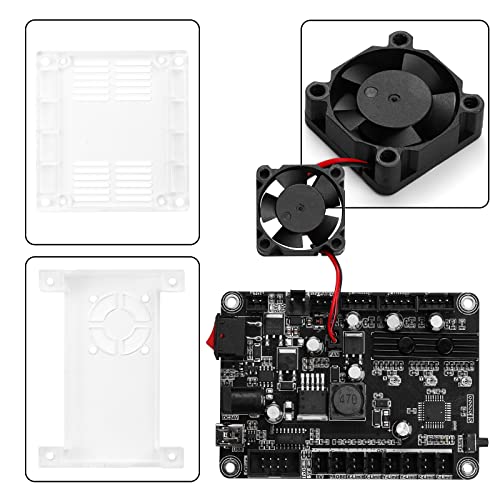

Connection for X-Y-Z end switches, built-in fan.
Connection for optional offline-controller.

Spindle drive chip 1: MOSFET (recommended input voltage within 12-24V, current 10A). It can be connected to a high-power spindle motor or the laser.
Spindle drive chip 2: MOSFET (current maximum 2A !!). Can only be connected within the 2A the laser module, the voltage 0-12V can be adjustable.
User Manual:
https://go.aws/37nvo3E

WHAT'S INCLUDED?
1 x Controller Board
1 x USB Cable
　

EAN: 0816550022382

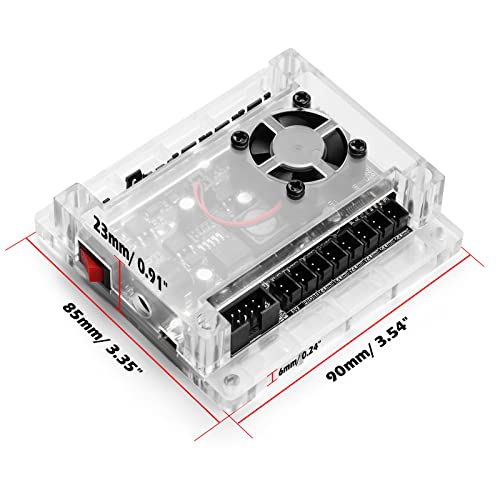

Package Dimensions: 6.3 x 4.4 x 2.1 inches
