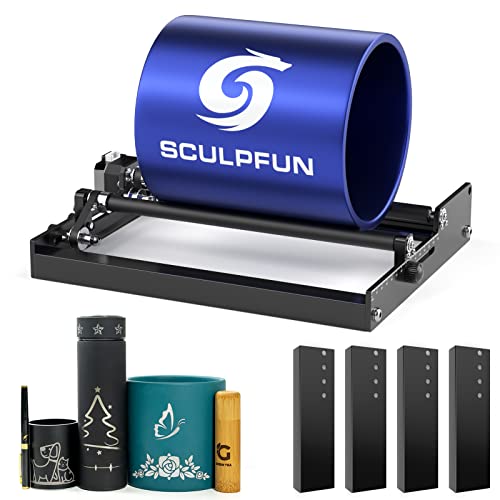

SCULPFUN Laser Rotary Roller, Laser Engraver Y-axis Rotary Roller Engraving Module 360° Rotating for Engraving Different Size Cylindrical Objects

Brand: SCULPFUN

Color: Sculpfun Roller

Features:

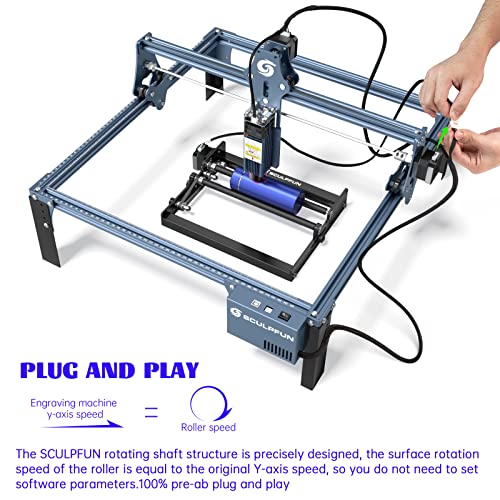

• 100% Pre-installed & Easy to Use: Our SCULPFUN laser rotary roller is already installed for ready to use after unpacking, no tedious installation process. You only need to connect the Y-axis cable port of the laser engraving machine to engrave cylindrical objects, such as pens, water bottle, etc.

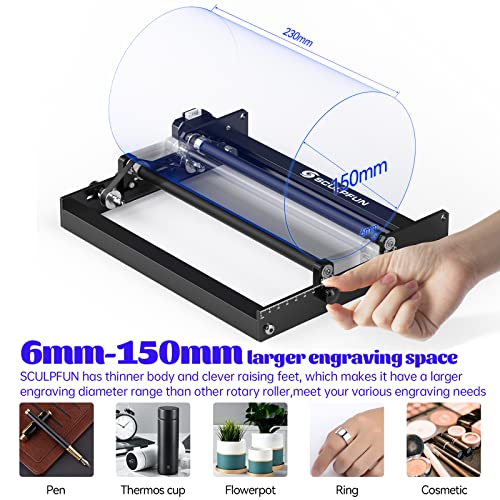

• Huge Engraving Space: The structure is designed to be lower to engrave larger diameter cylinders, while being more stable to ensure accurate engraving. Equipped with 4 sturdy 150 mm metal booster feet, giving it a larger engraving range of 6-150mm to meet more engraving needs. The metal feet are stronger than the plastic feet, making the machine more stable when engraving.

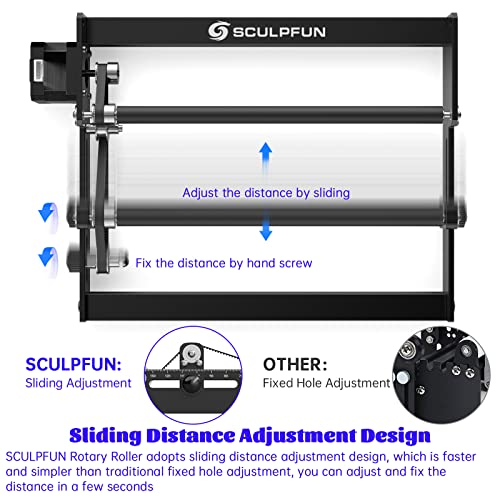

• Easy Sliding Adjustment: SCULPFUN roller adjusts the size of the space between the two shafts by sliding, and fixes them by hand-twisting the knob, which is easier and faster than the traditional multi-stage fixing hole adjustment.

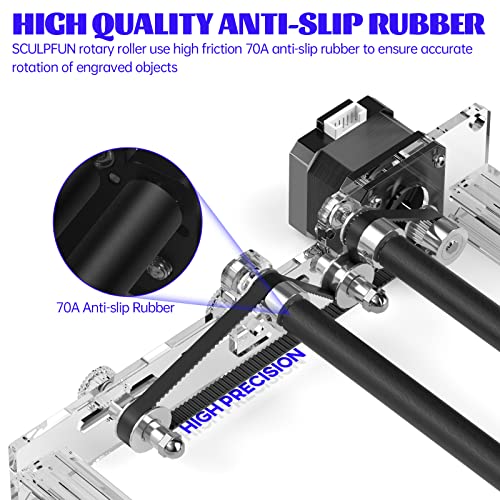

• 100% Original High-Precision Engraving: SCULPFUN roller uses a high-friction 70A rubber shaft to prevent slippage, and the linear speed of the rotating surface has been precisely calculated. Directly insert the engraver cable to engrave the original image at 100% scale. It does not enlarge or reduce the image.

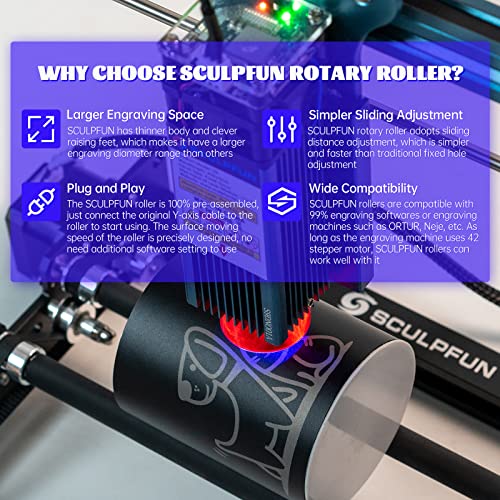

• Extensive Compatibility: Suitable for lightburn or laserGRBL and many other engraving software, supports Windows system, Mac OS. No need to set parameters, directly use. Compatible with SCULPFUN S9, S10, S30, S30 Pro, S30 Pro Max, S30 Ultra 11W, 22W, 33W and other 95% of the engraving machines on the market.

Binding: Tools & Home Improvement

model number: R1

Part Number: R1

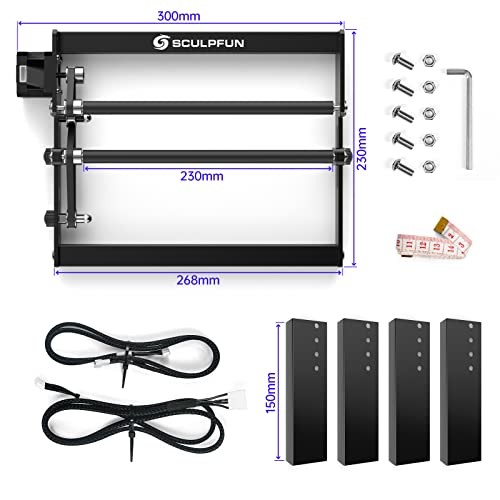

Details: Product model: SCULPFUN Rotary RollerProduct introduction:How to use: Disconnect the Y-axis motor wiring of the laser engraving machine, connect the SCULPFUN Rotary Roller to the Y-axis cable, and you can start using it. There is no need to set parameter in software, because the surface linear speed of the roller is the same as the original Y-axis speed.Available engraving space: cylinder diameter 6-150mm, cylinder length 0-230mmCompatible software: Lightburn, LaserGRBL, Benbox, GrblController, LiteFire, etc. There is no need to set up software because the surface linear velocity of the roller is the same as the original Y-axis velocity.Compatible machines: suitable for all GRBL motherboard types of engraving machines.Adjustment of shaft spacing: The shaft spacing can be adjusted steplessly by sliding, and it can be fixed by hand-tightening screws.Product packaging :Product Size: 27x22x5cmProduct packaging size: 34*25*9cmProduct packaging weight: 1.5KGSCULPFUN Laser Rotary Roller packing list:1× Roller device1× A Type wiring1× B Type wiring4× raise feet1× screw bag1× soft ruler1× user manual

EAN: 0716013988722

Package Dimensions: 14.6 x 10.0 x 3.4 inches
