SCULPFUN RA Pro Max Laser Rotary Roller, 4 in 1 Multi-Function Chuck Rotary with Riser, 180° Adjustable Chuck with 3 Jaws for Engraving Rings, Spherical, Cylindrical Objects, Irregular Items

Brand: SCULPFUN

Color: Black

Features:

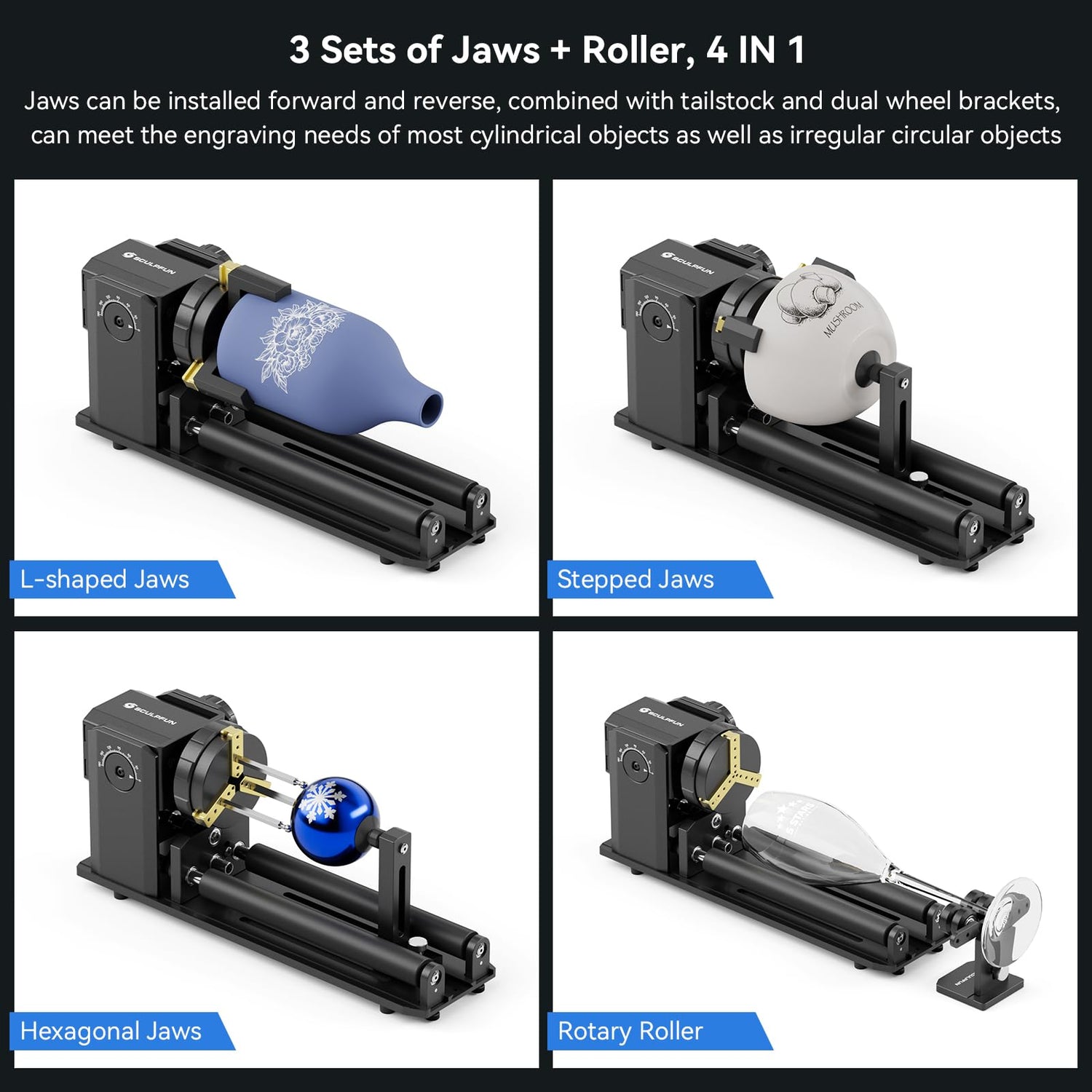

• 【Multi-function 4-in-1】SCULPFUN RA Pro Max is equipped with a roller that offers two width adjustment options, making it suitable for engraving the regular cylindrical objects in various sizes. Additionally, it comes with 3 sets of jaw attachments: stepped jaws, L-shaped jaws and hexagonal jaws. By simply replacing the attachments, it enables the engraving of more objects with irregular shapes such as wine glasses, baseballs, baseball bats, glass cups, and handled mugs.

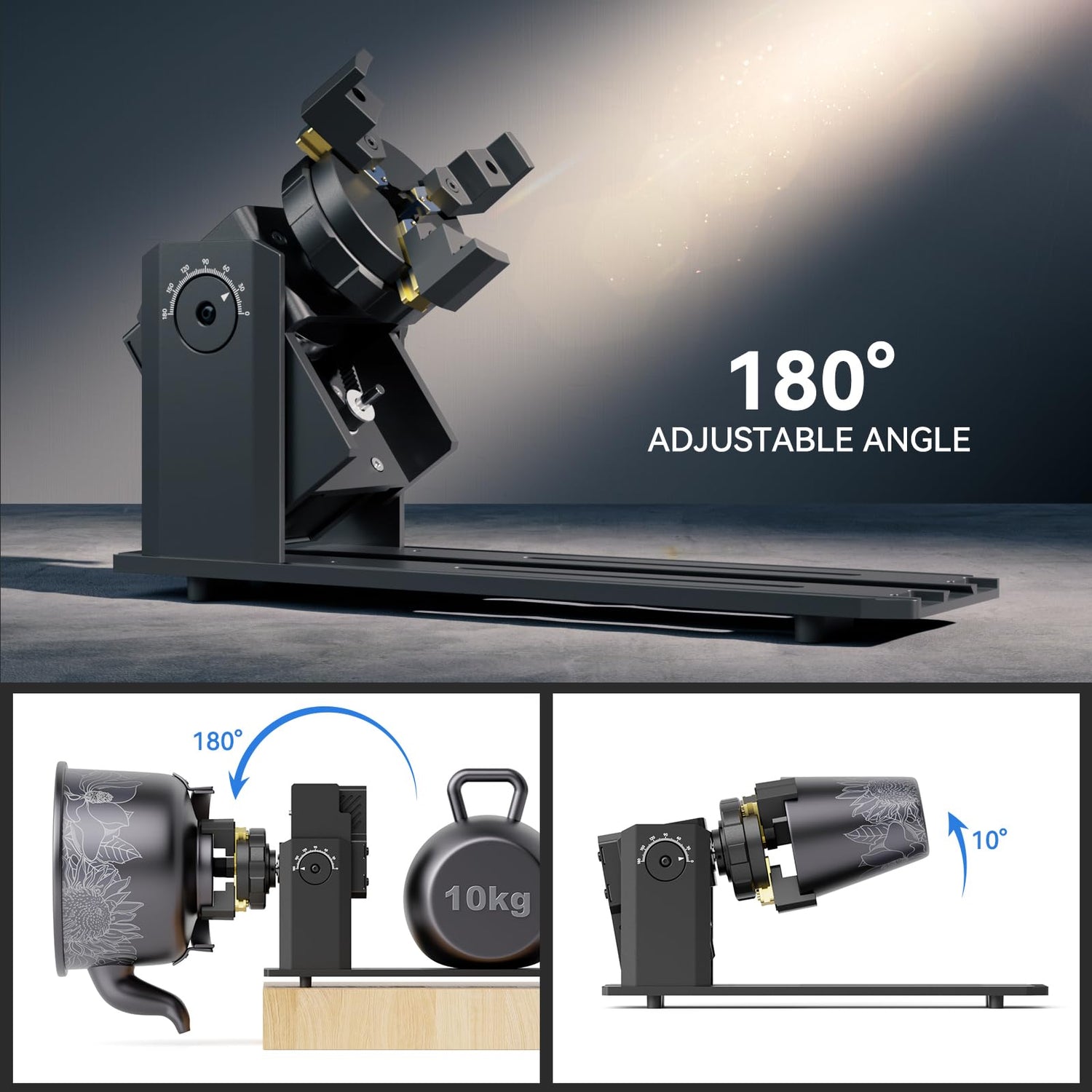

• 【180°Angle Adjustment and Durability】This Y-axis rotary chuck has an adjustable angle of 180 degrees, within which it can be freely adjusted for more space to process large objects. And the side is designed with the angle line, adjustment angle accurate to 3°, which not only allows for flexible positioning, but also can improve engraving accuracy. In addition, the RA Pro Max is made of a metal structure as a whole, which is corrosion-resistant and stable.

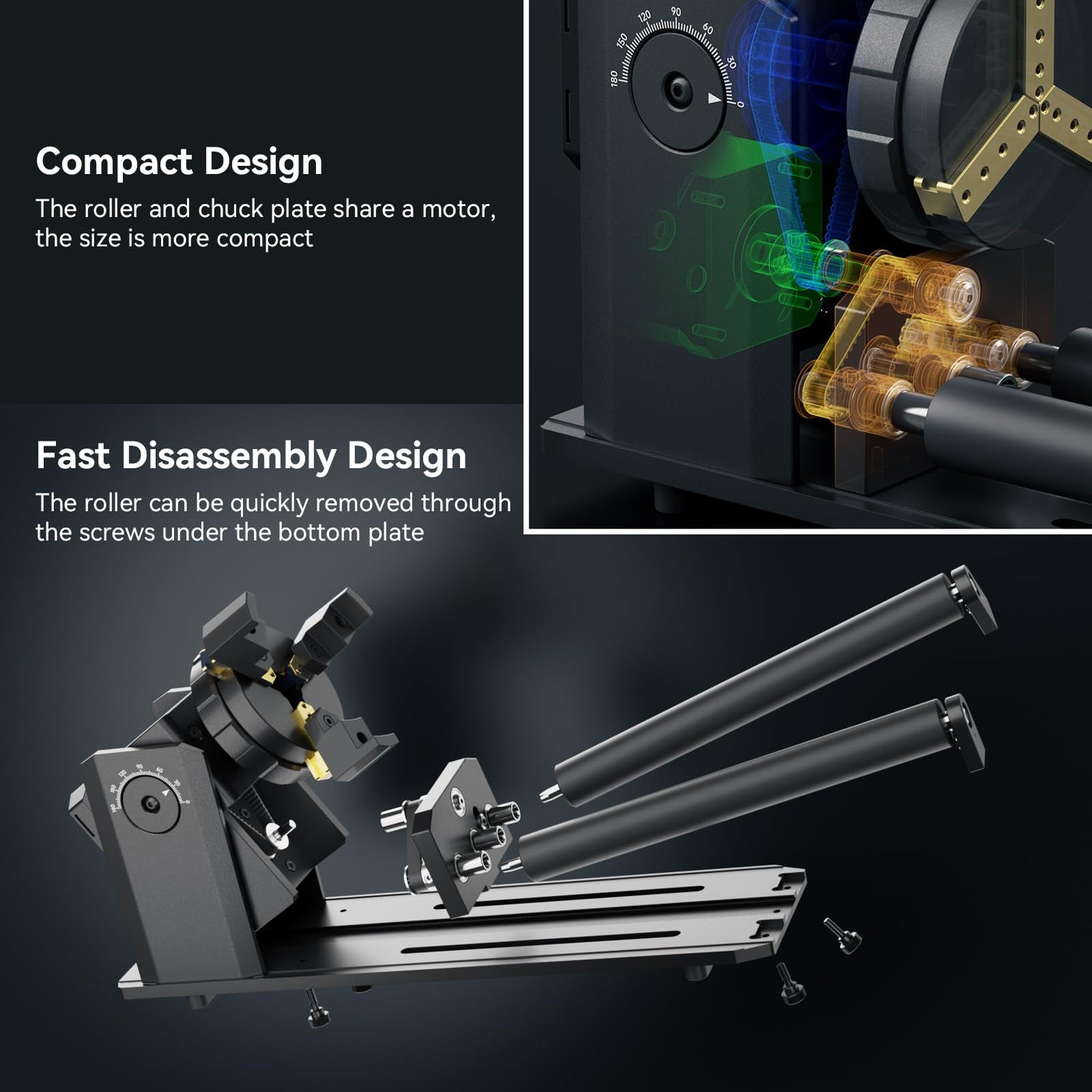

• 【Plug-and-play】SCULPFUN RA Pro Max is specially designed for the laser engraver and cutter machine, the roller and the chuck share a common motor, making it easier and faster to use, and it can be used right out of the box without installation. Comes with adapter cables, simply connect it to the Y-axis stepper motor interface of the laser engravers to use, plug and play. This user-friendly design makes the usage process much easier and more convenient.

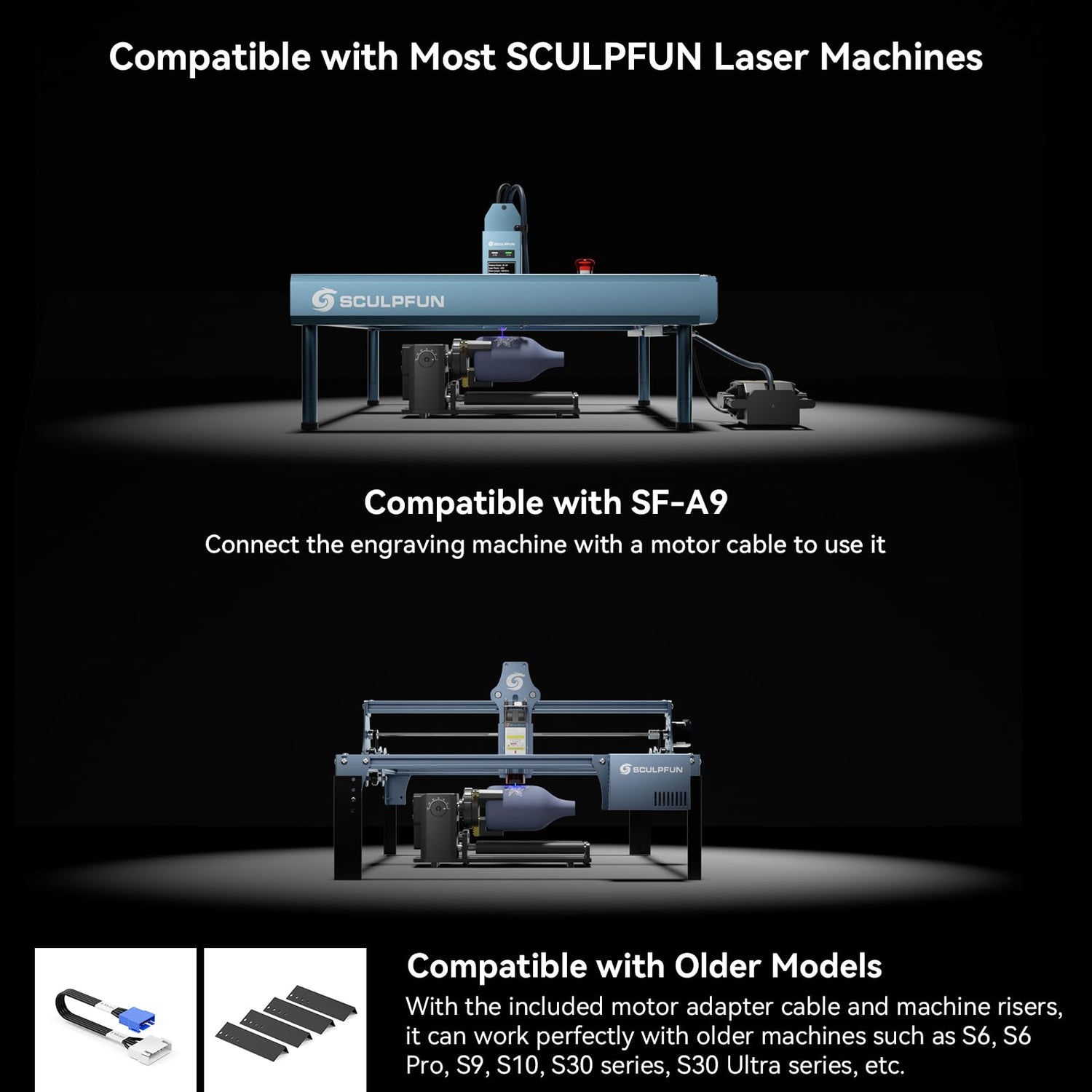

• 【Wide Compatibility & High Adaptability】The Rotary Chuck for Laser Engraver is compatible with a variety of engraving software such as LightBurn or LaserGRBL, and is suitable for most laser engraver and cutter machine, such as S6/S6 Pro/S9/S10/S30 series/S30 Ultra series/SF-A9.
• 【Professional Support】This is the official design of SCULPFUN rotary chuck for laser engraving machine, and we are the official authorized store of SCULPFUN. If you have any problems during the shopping process, feel free to ask us, our professional customer service team will provide professional and technical support, and do their best to solve the problem for you.

Binding: Office Product

model number: SCULPFUN RA Pro Max

Part Number: SCULPFUN RA Pro Max

Details: Product Model: RA Pro Max
Compatible Machines: S6/S6 Pro/S9/S10/S30 Series/S30 Ultra Series/SF-A9
Note: For other models, please check with us
Software: LightBurn/LaserGRBL (LightBurn is recommended)

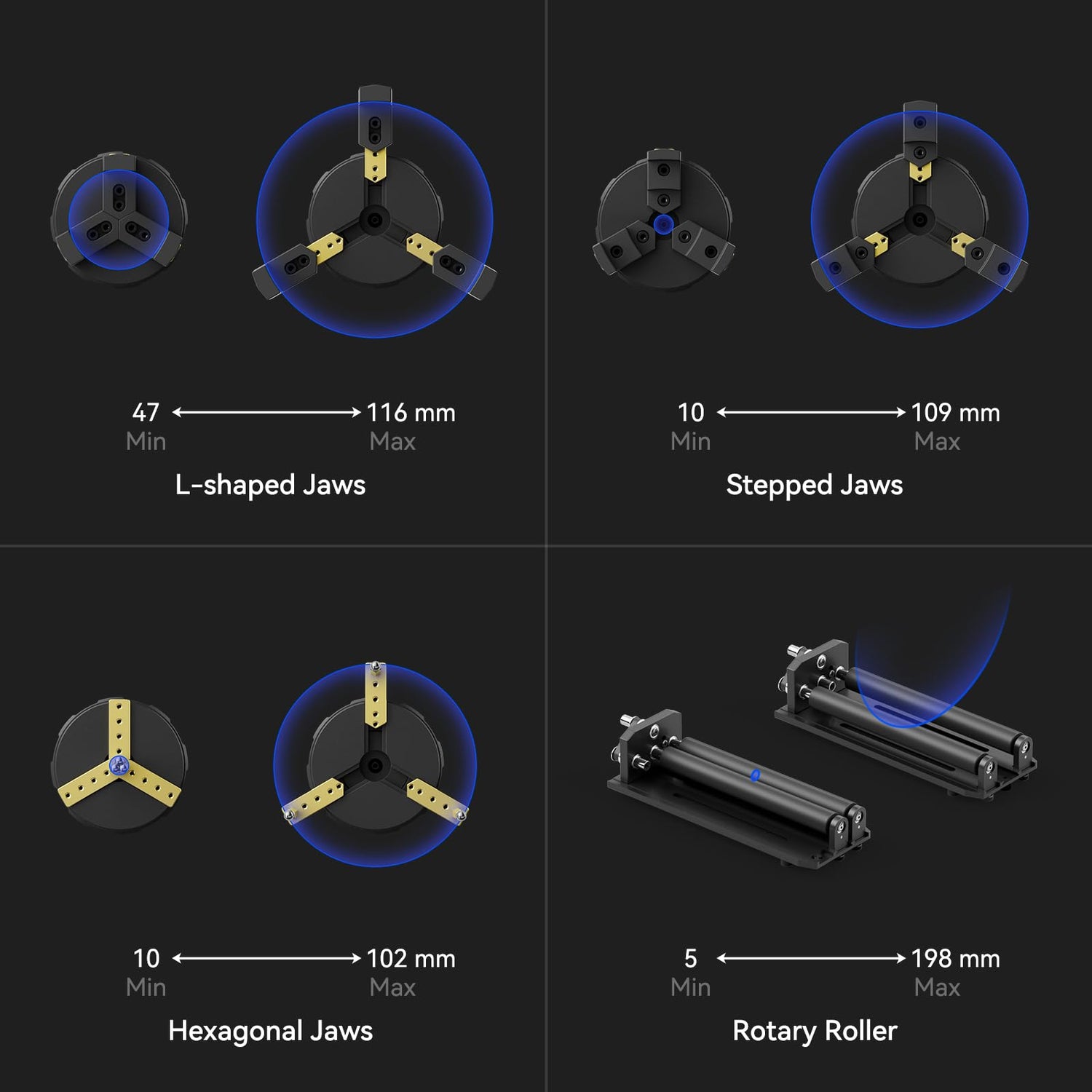

Diameter Range of Engraving:
Ring: 10-102mm
Sphere: 4-130mm

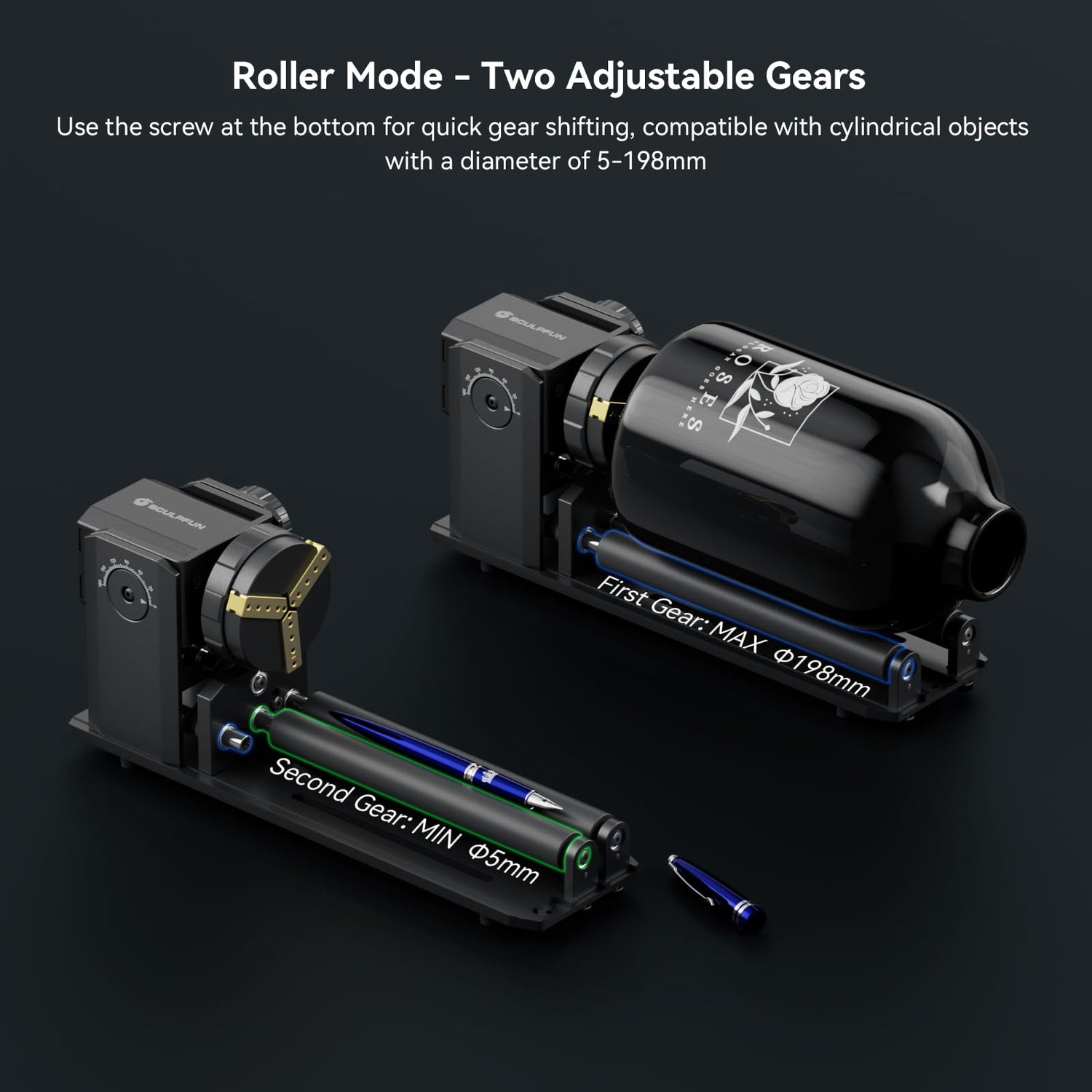

Roller: 5-198mm
Maximum Engraving Speed: 6000mm/min
Engraving Precision: 0.1mm
Rotation Angle: 0-180°
Product Size: 300*100*140mm
Product Weight: 1.78KG
Package Size: 350*180*160mm
Package Weight: 2.6KG

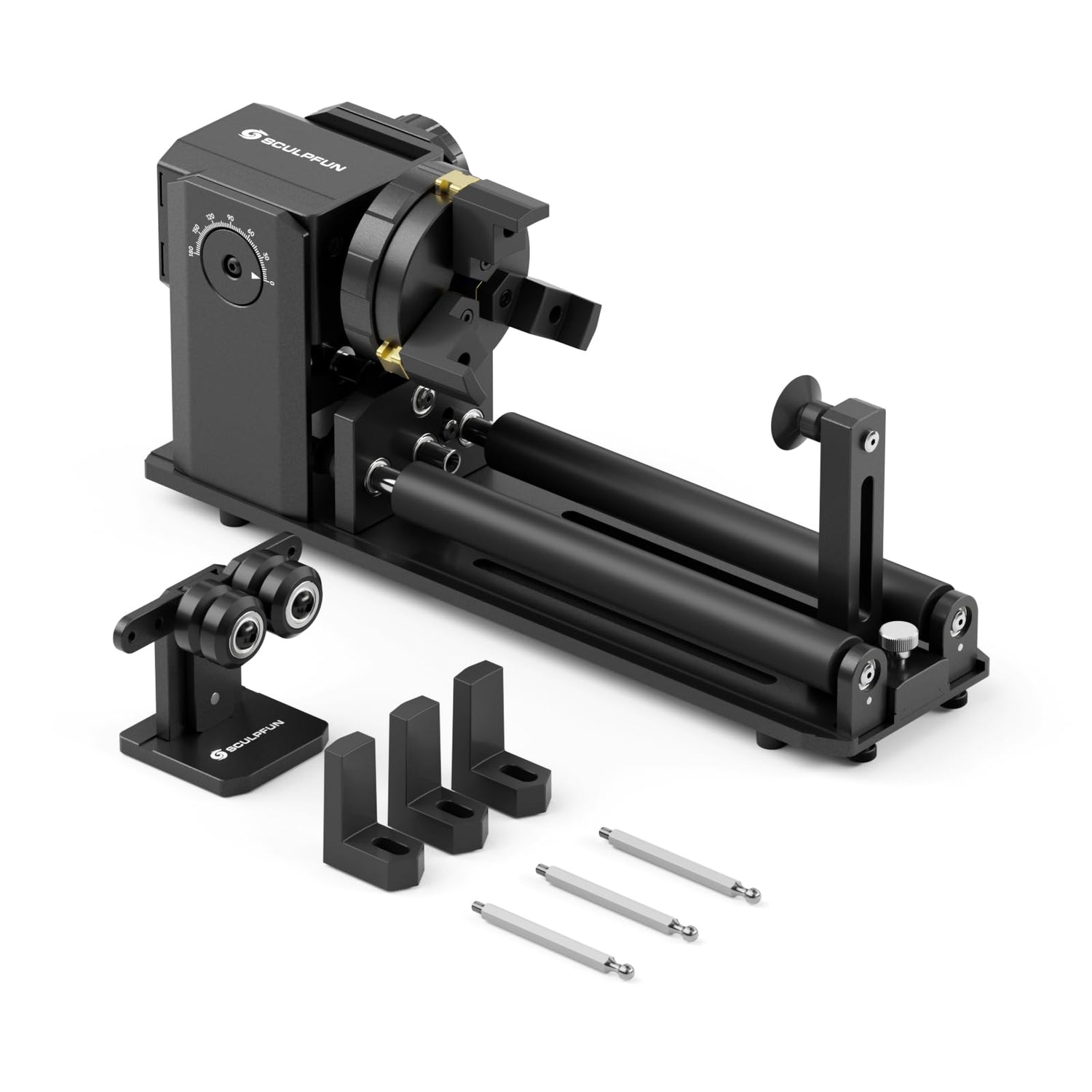

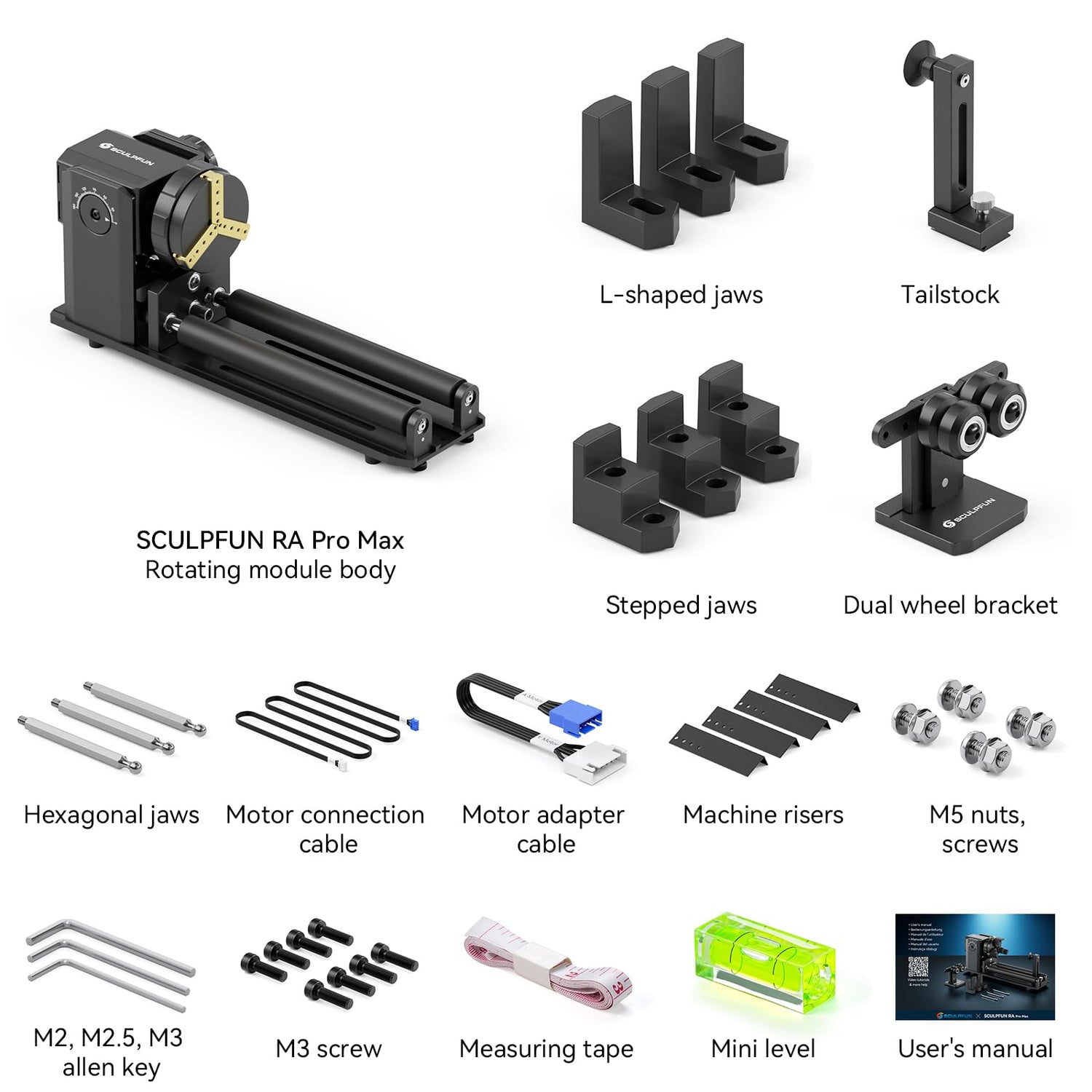

Packing List:
1 x RA Pro Max Rotary Chuck (Including roller)
3 Sets of Jaws
1* stepped jaws
1* L-shaped jaws
1* hexagonal jaws
1 x Cable + Measuring Tape Kit
1 x Screw Kit
1 x Mini Level
1 x Tailstock

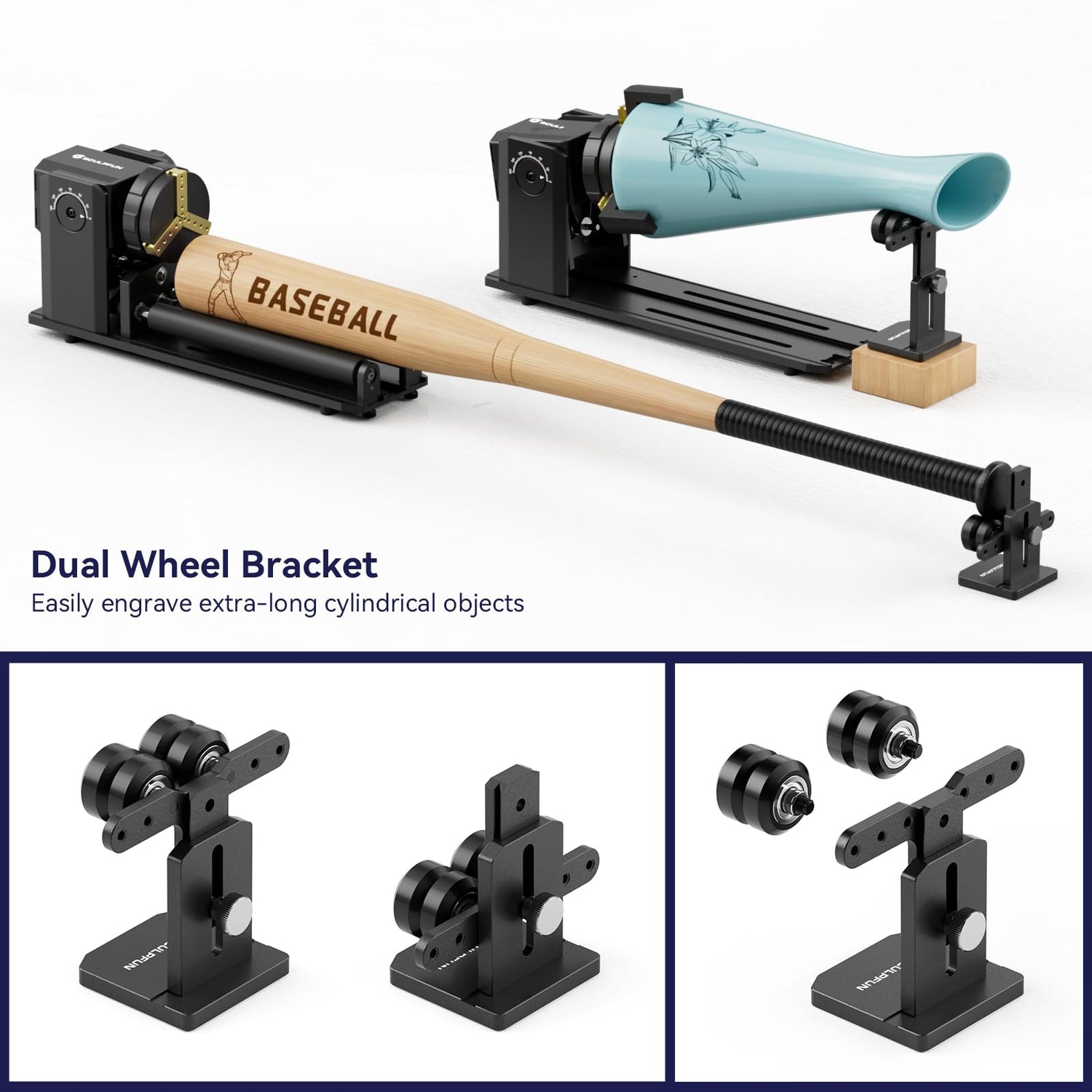

1 x Dual Wheel Bracket
4 x Machine Risers
1 x User Manual
