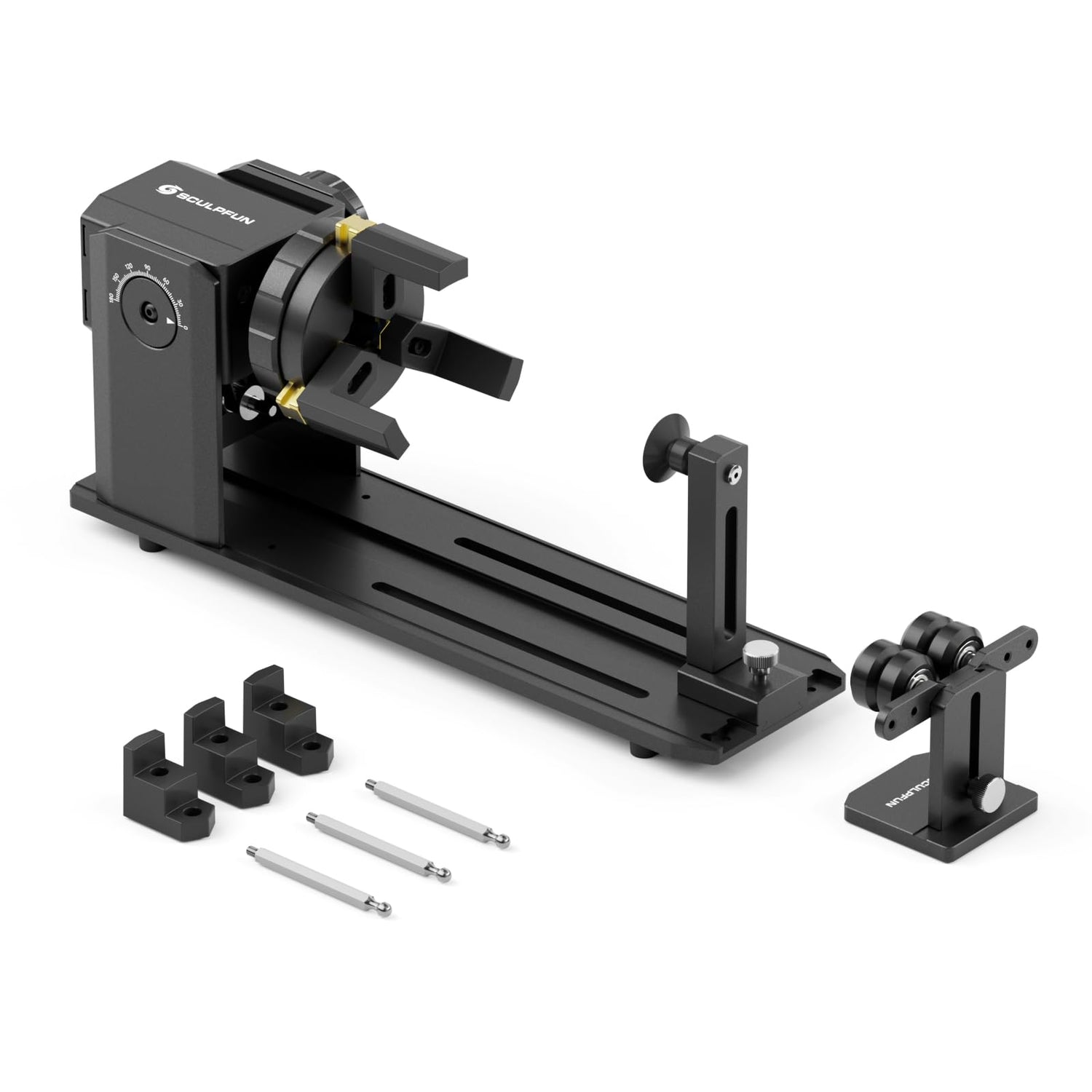

SCULPFUN RA Pro Rotary Chuck for Laser Engraver, 3 in 1 Multi-Function Laser Rotary Module with 180° Adjustable Angle, Y-axis Jaw Chuck Rotary for Engraving Cylindrical Objects,Tumbler, Ring

Brand: SCULPFUN

Color: Black

Features:

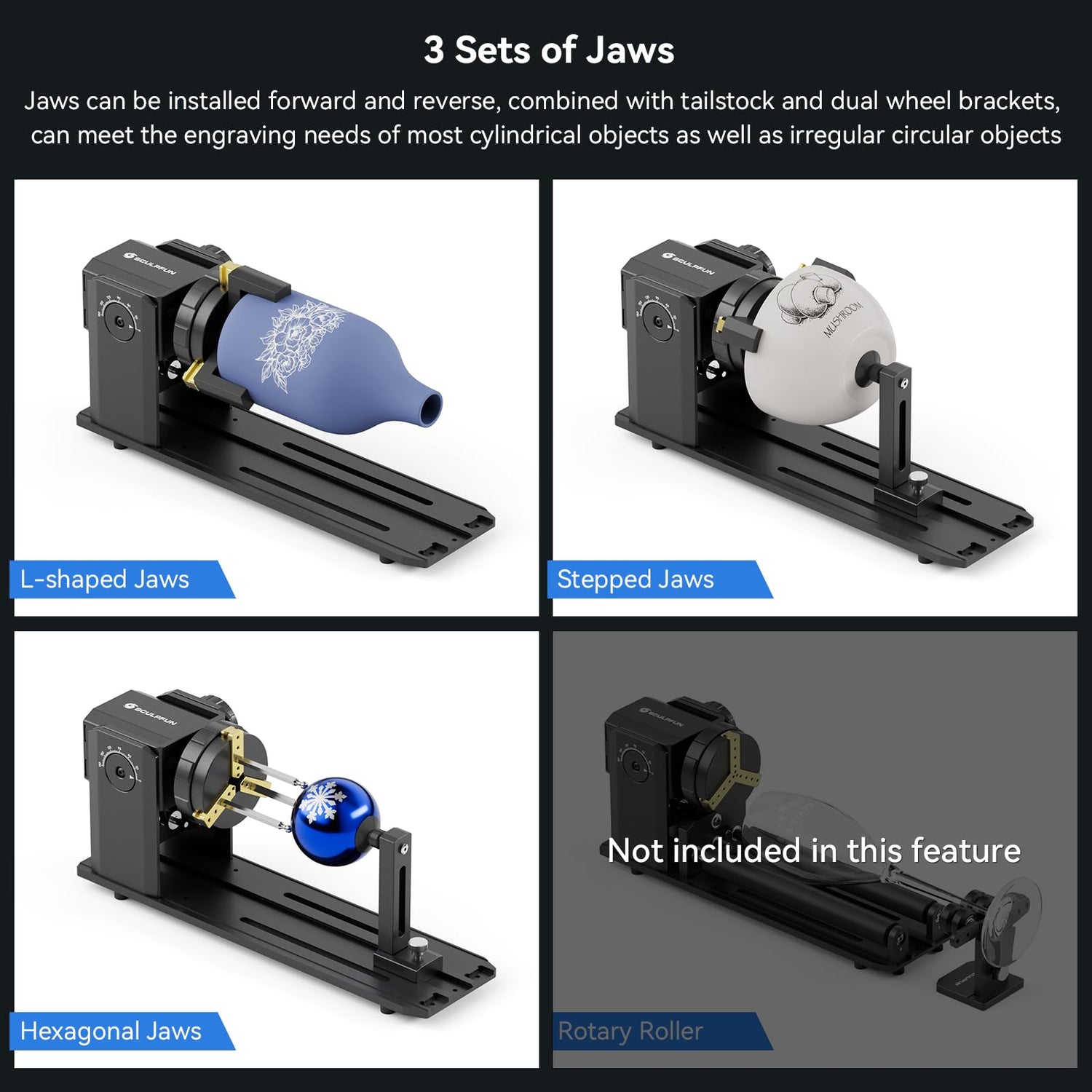

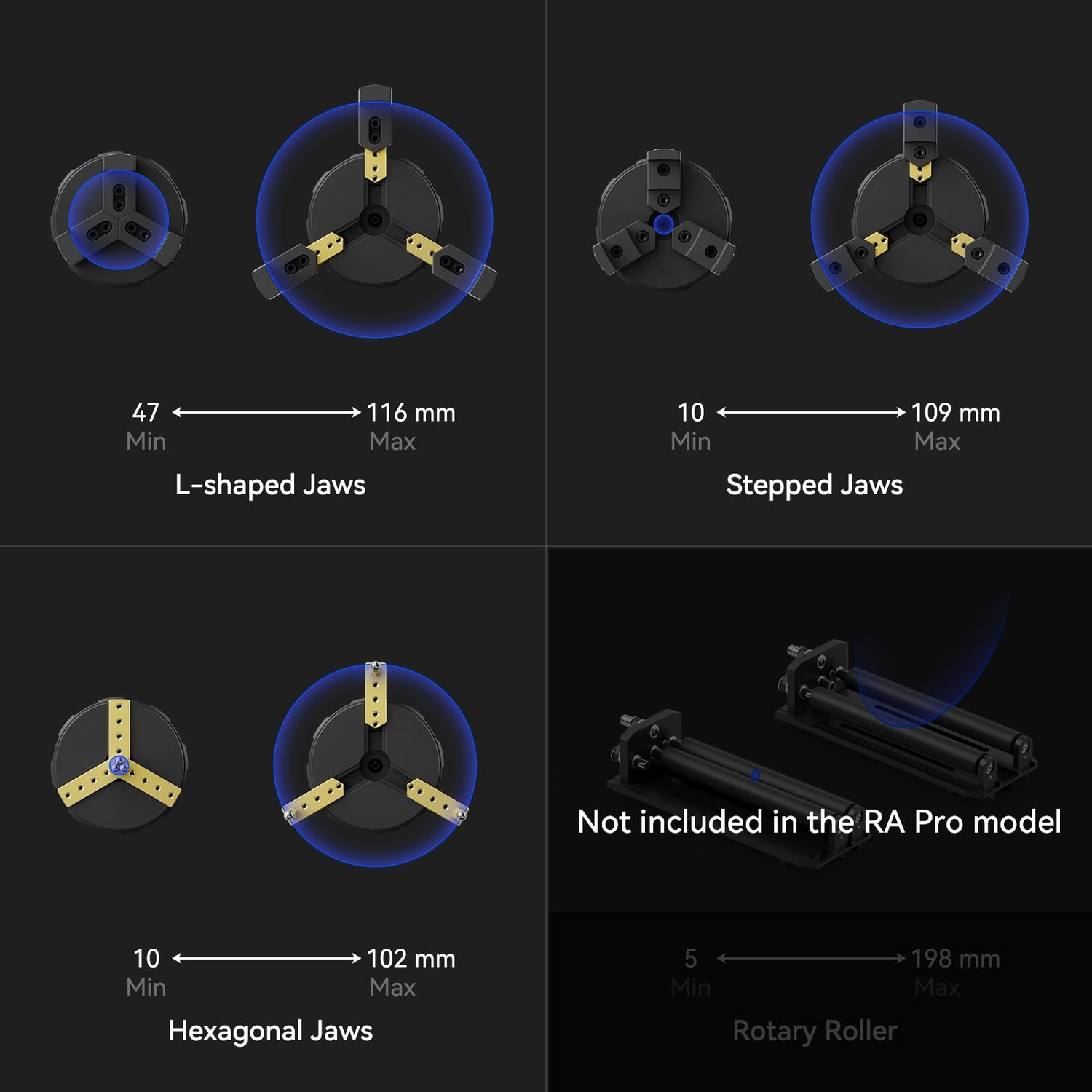

• 【3 in 1 Multi-function Chuck Rotary】The SCULPFUN RA Pro rotary chuck is equipped with 3 sets of jaw attachments: stepped jaws, L-shaped jaws and hexagonal jaws. By simply replacing the attachments, it enables the engraving of more objects with irregular shapes such as wine glasses, baseballs, baseball bats, glass cups, and handled mugs. This significantly expands your creative possibilities and meets the needs of engraving more heteromorphic object.(Rotary roller not included)

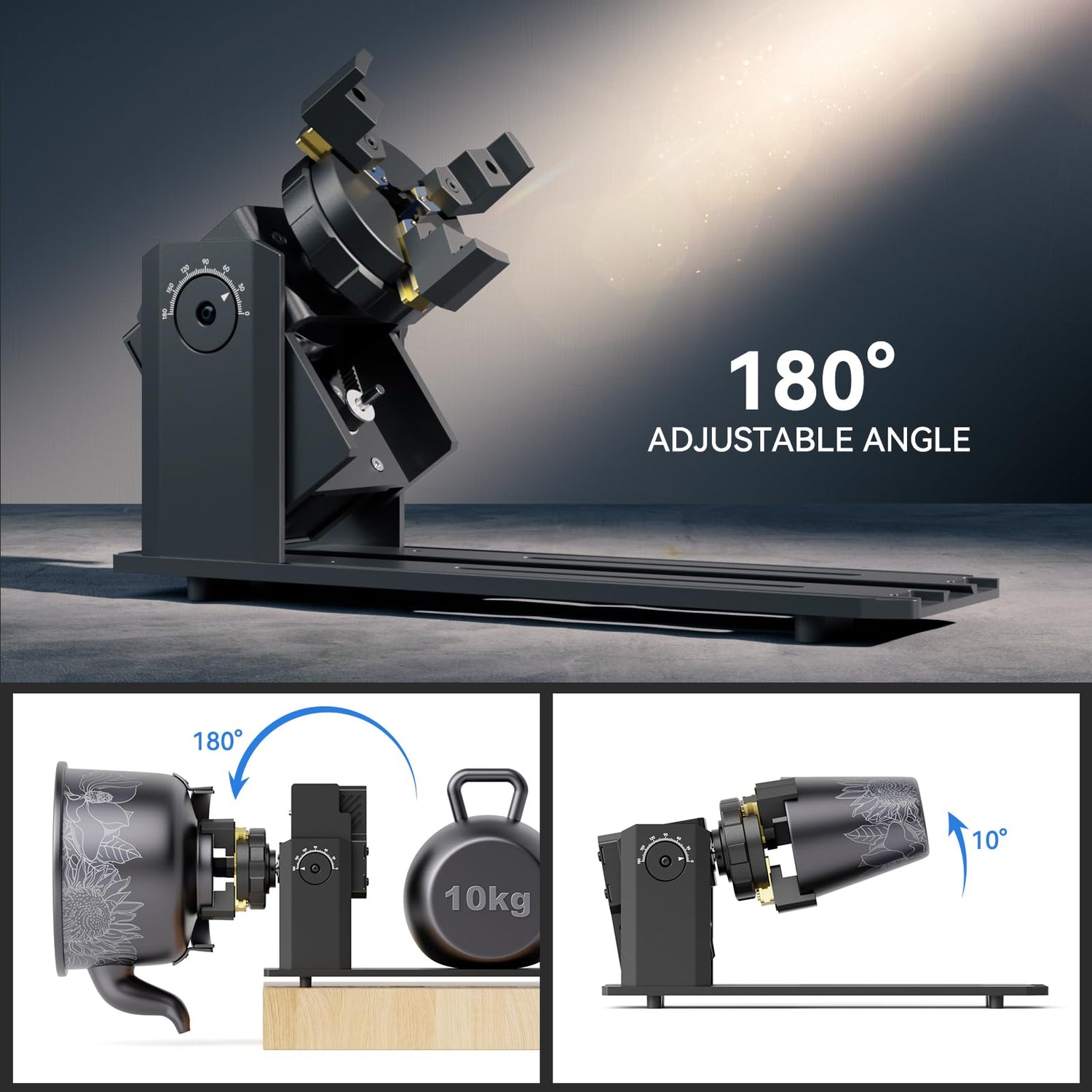

• 【180° Angle Adjustment and Durability】This jaw chuck rotary has an adjustable angle of 180 degrees, within which it can be freely adjusted for more space to process large objects. And the side is designed with the angle line for easy viewing, which not only allows for flexible positioning, but also can improve engraving accuracy. In addition, the Y-axis jaw chuck rotary is made of a metal structure as a whole, which is corrosion-resistant and stable.

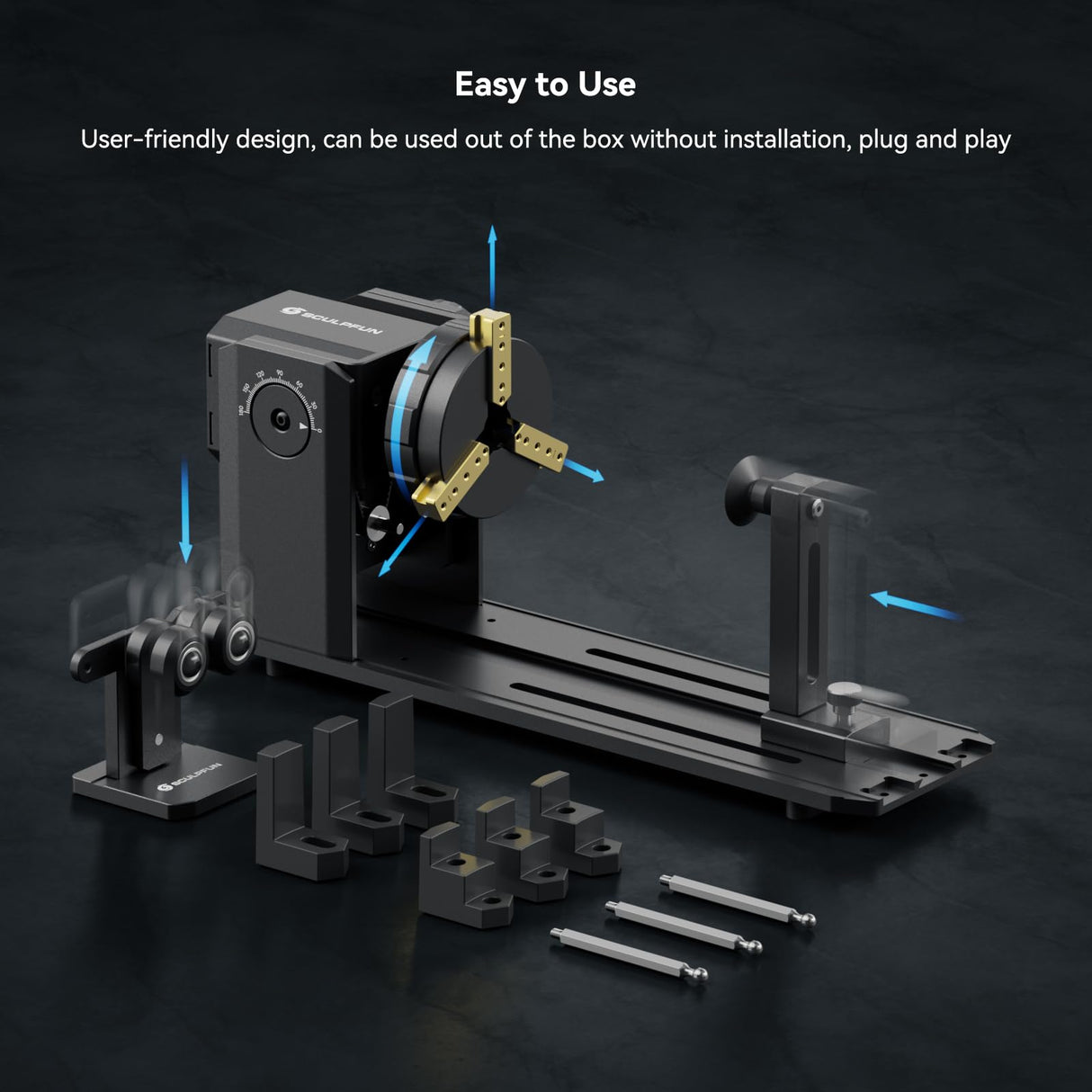

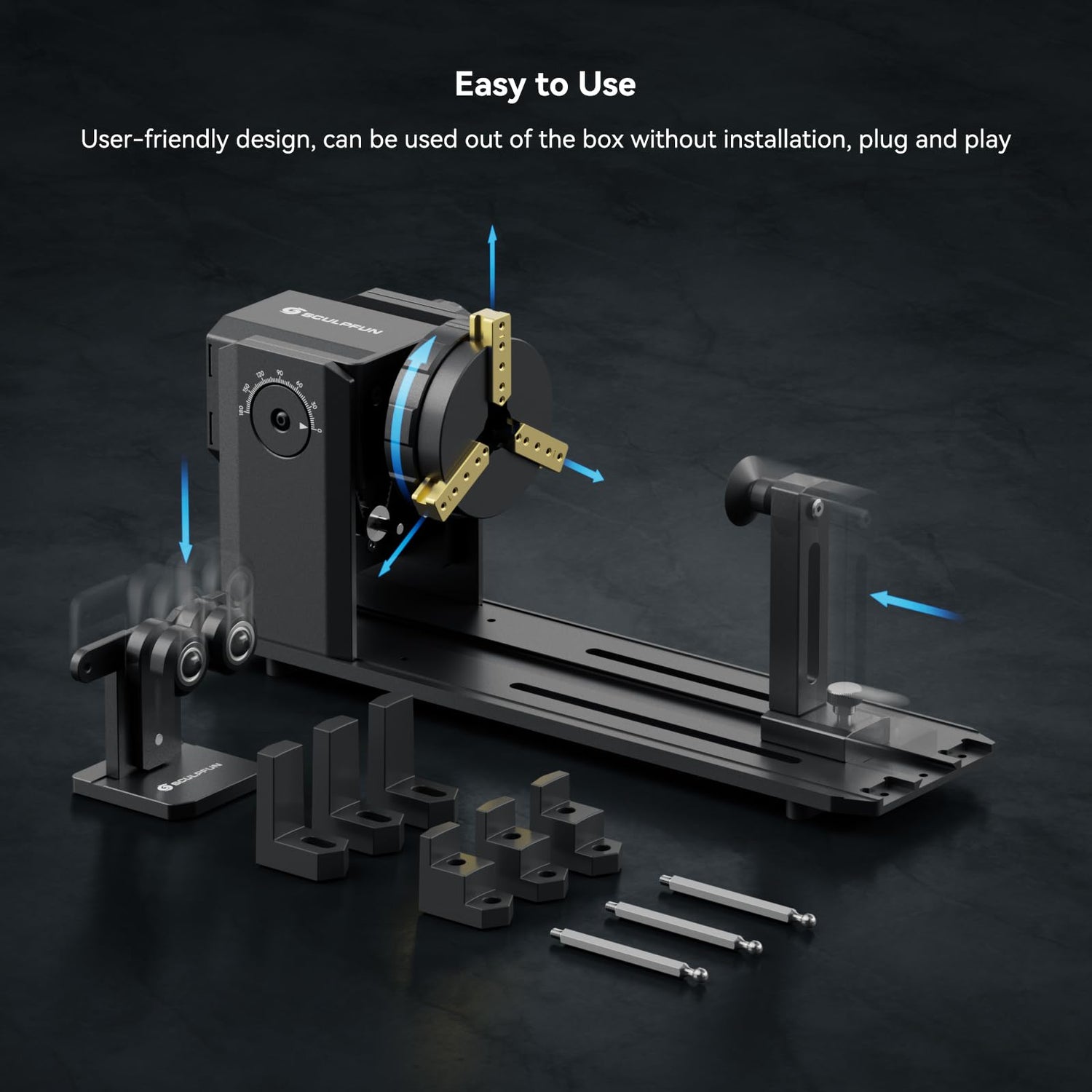

• 【Plug-and-play】SCULPFUN RA Pro is specially designed for the laser engraving machines, and it can be used right out of the box without installation. Comes with adapter cables, simply connect it to the Y-axis stepper motor interface of the laser engravers to use, plug and play. This user-friendly design makes the usage process much easier and more convenient.

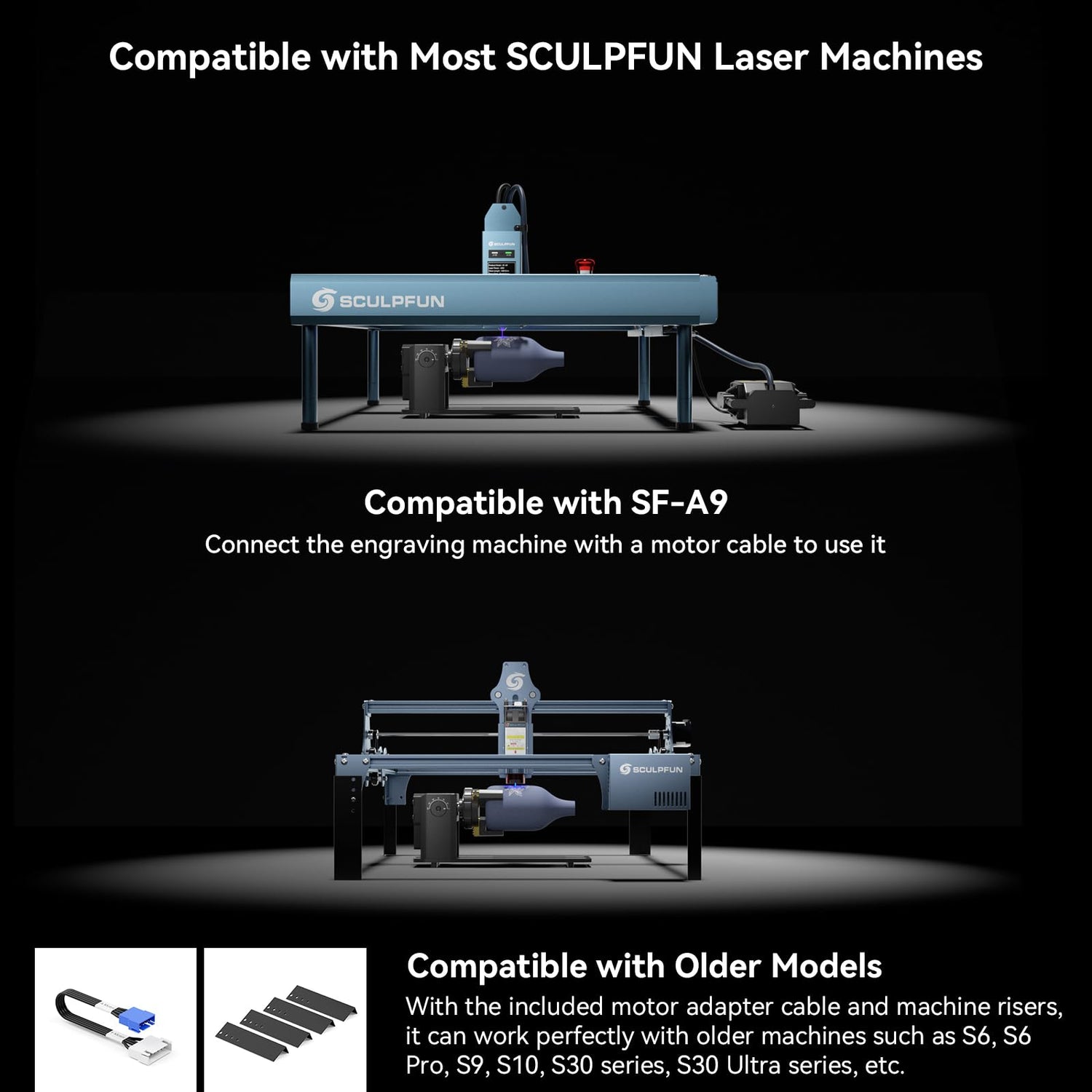

• 【Wide Compatibility & High Adaptability】The Y-axis Rotary Chuck is compatible with a variety of engraving software such as LightBurn or LaserGRBL, and is suitable for most laser engraver and cutter machine, such as S6/S6 Pro/S9/S10/S30 series/S30 Ultra series/SF-A9.
• 【Professional Support】This is the official design of SCULPFUN rotary chuck for laser engraving machine, and we are the official authorized store of SCULPFUN. If you have any problems during the shopping process, feel free to ask us, our professional customer service team will provide professional and technical support, and do their best to solve the problem for you.

Binding: Office Product

model number: SCULPFUN RA Pro

Part Number: SCULPFUN RA Pro

Details: Product Model: RA Pro
Compatible Machines: S6/S6 Pro/S9/S10/S30 Series/S30 Ultra Series/SF-A9
Note: For other models, please check with us
Software: LightBurn/LaserGRBL (LightBurn is recommended)

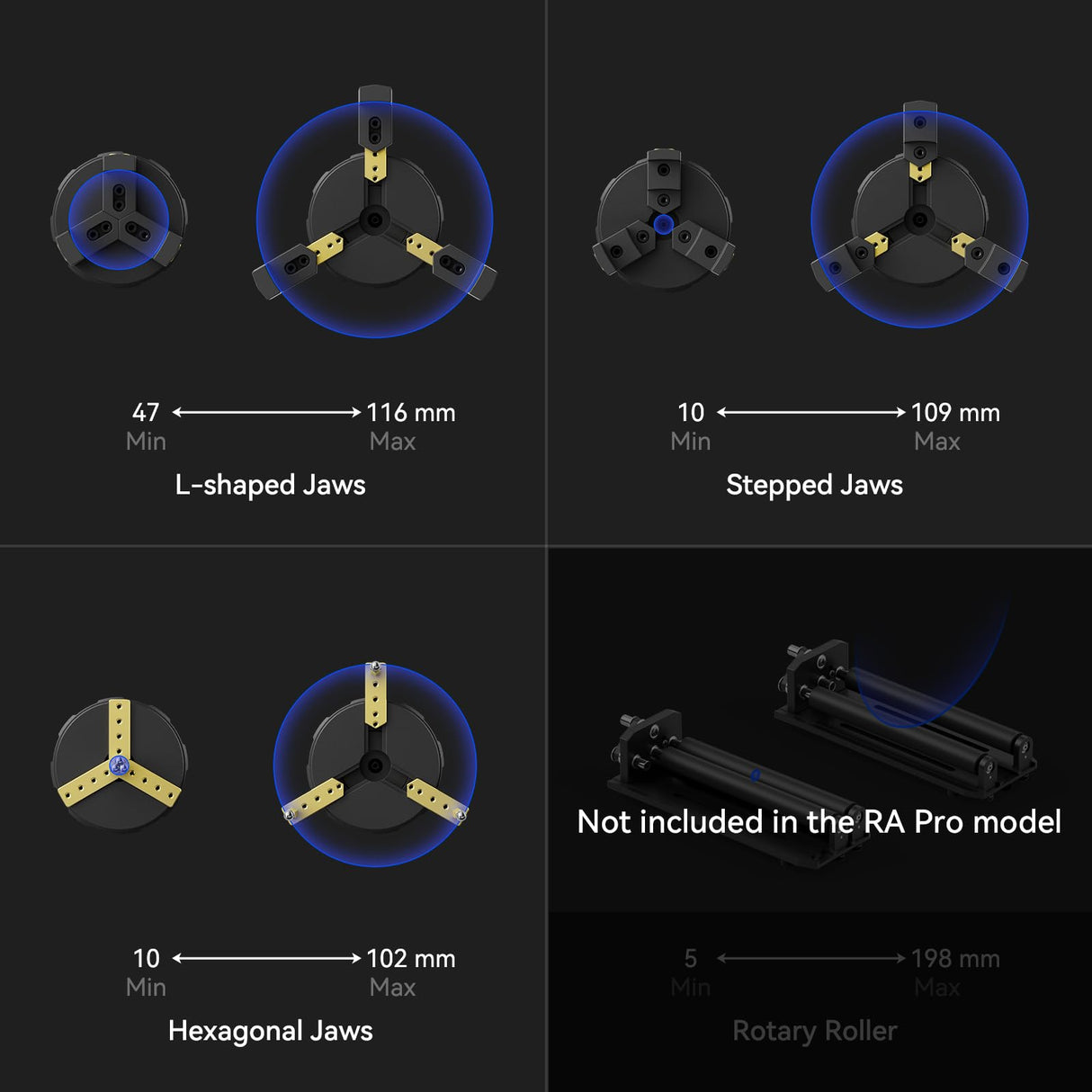

Diameter Range of Engraving:
Ring: 10-102mm
Sphere: 4-130mm
Maximum Engraving Speed: 6000mm/min
Engraving Precision: 0.1mm
Rotation Angle: 0-180°

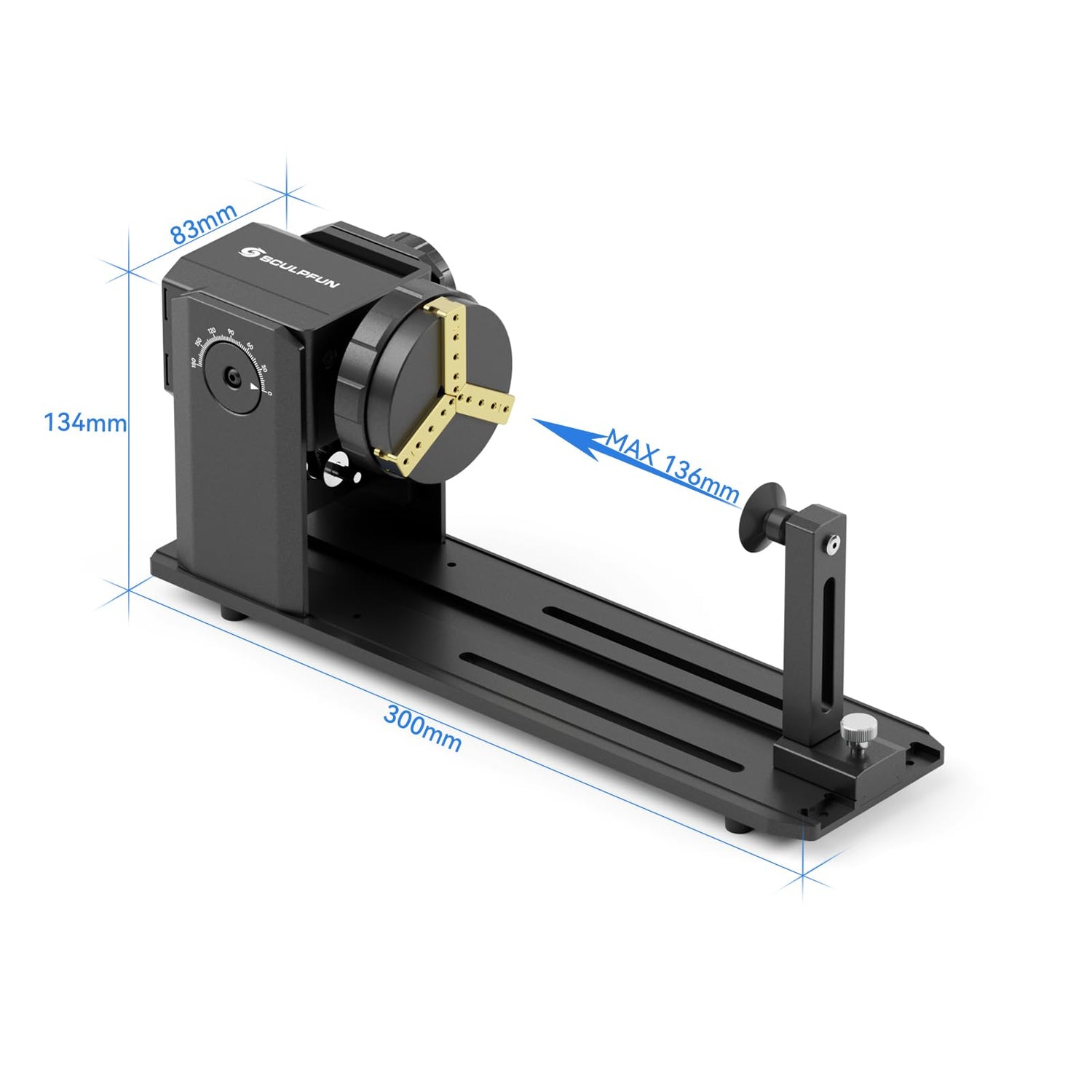

Product Size: 300*100*140mm
Product Weight:1.35KG
Package Size: 350*180*160mm
Package Weight: 2.2KG

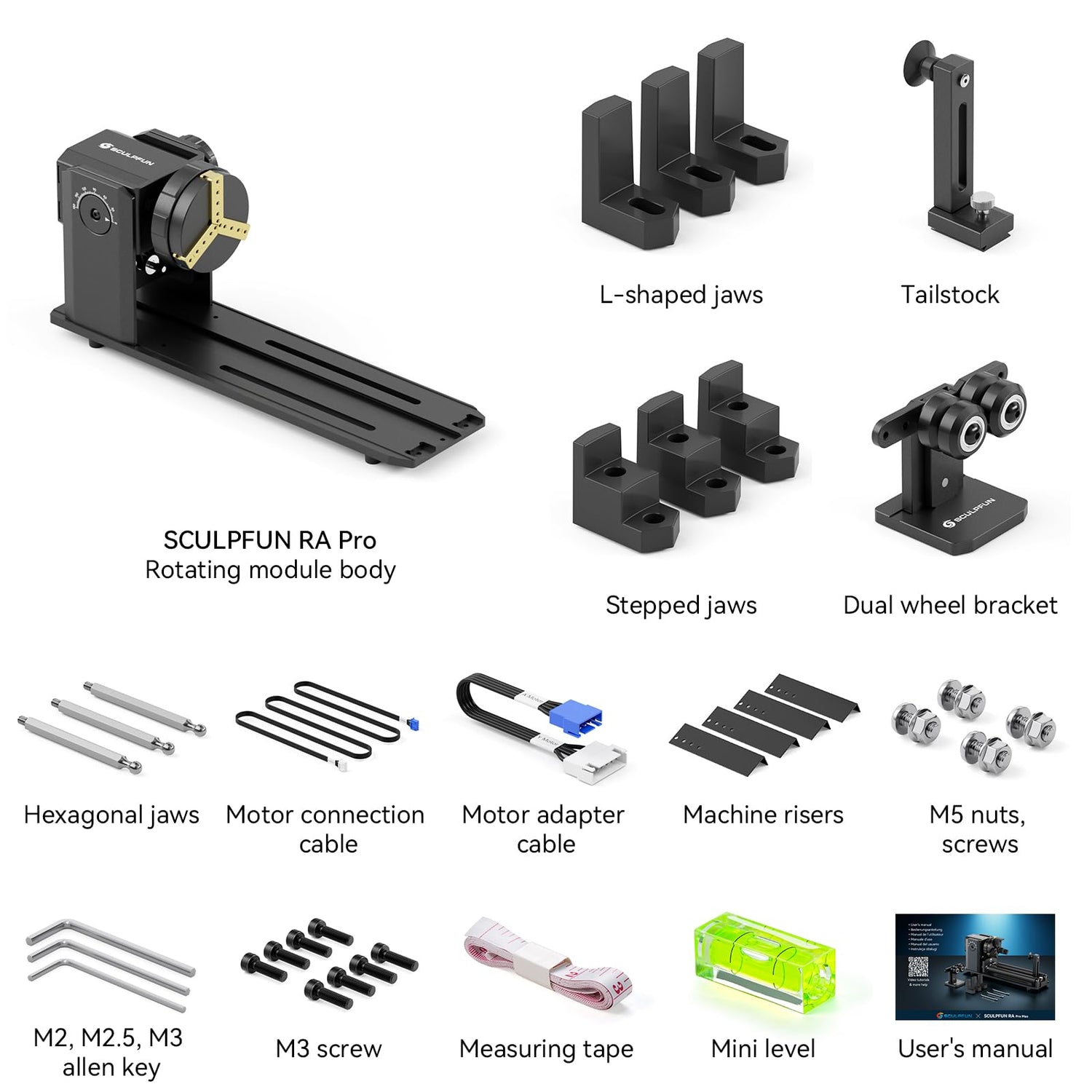

Packing List:
1 x RA Pro Rotary Chuck (roller is not included)
3 Sets of Jaws
1* stepped jaws
1* L-shaped jaws
1* hexagonal jaws
1 x Cable + Measuring Tape Kit
1 x Screw Kit
1 x Mini Level
1 x Tailstock

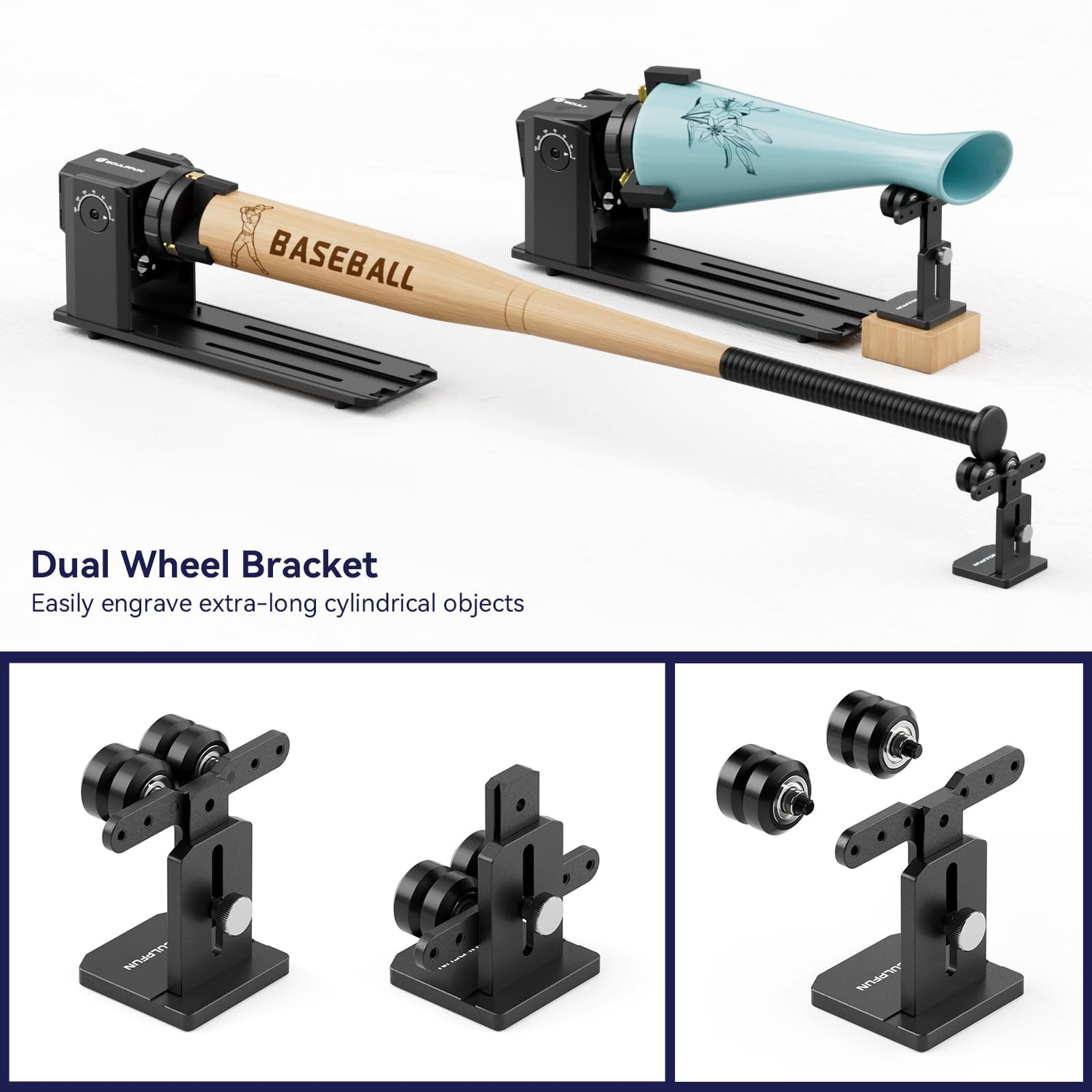

1 x Dual Wheel Bracket
4 x Machine Risers
1 x User Manual

EAN: 9054248975898
