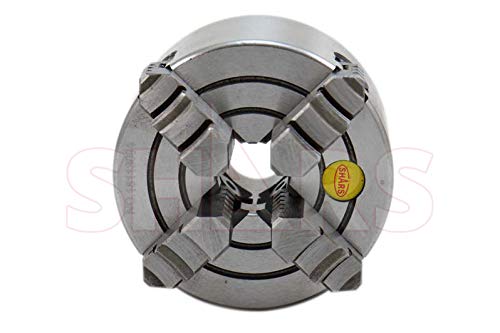

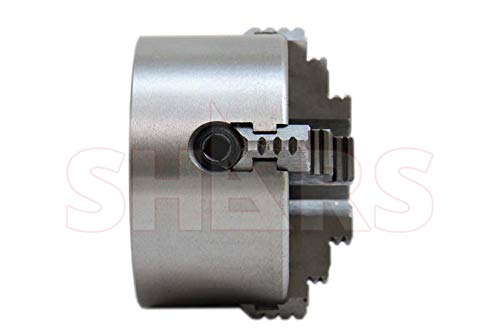

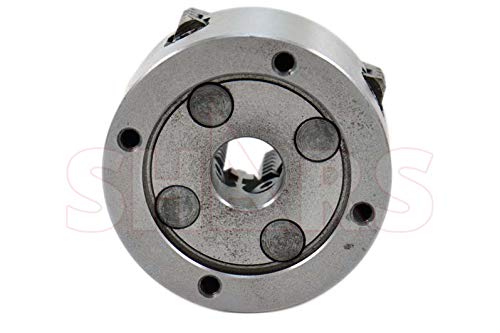

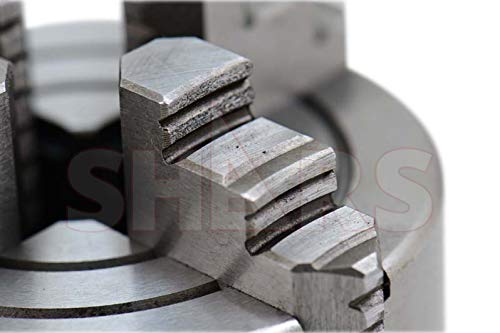

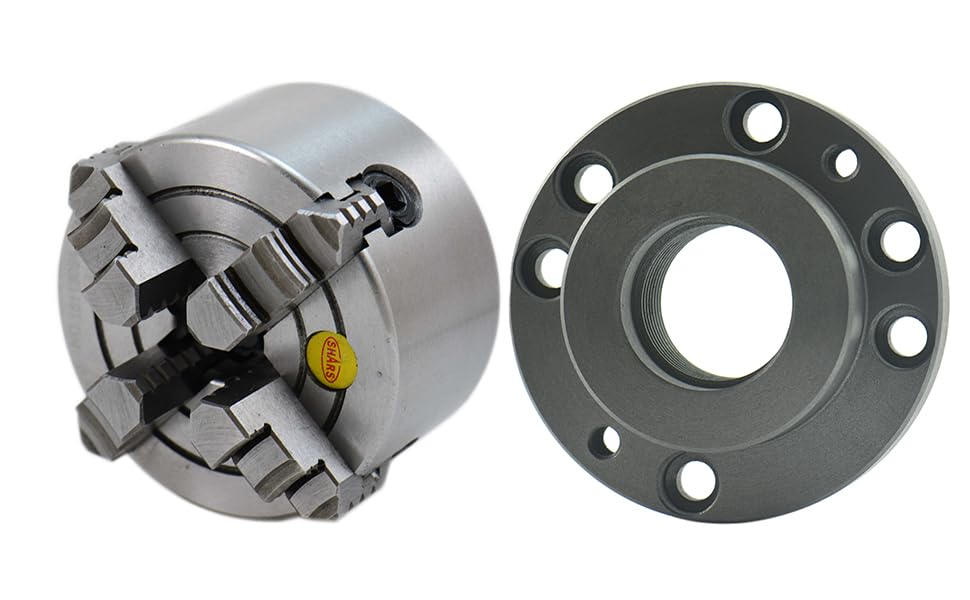

Shars 4" 4 Jaw Independent Chuck Solid Hard Jaws with 1-1/2-8 3.93" Semi-Machined Threaded Back Plate, Machining Required 202-5419+202-6108-6 L[
35% off
35% off
Sale price
$120.95
Regular price
$185.80
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Shars
Features:

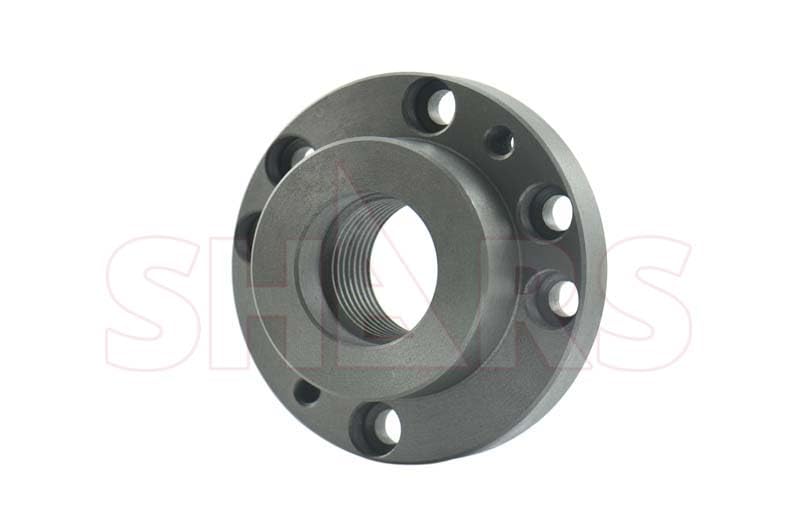

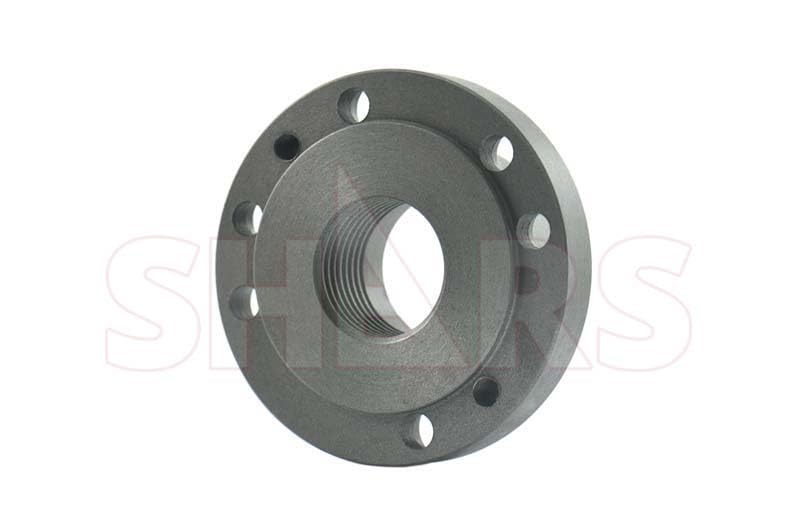

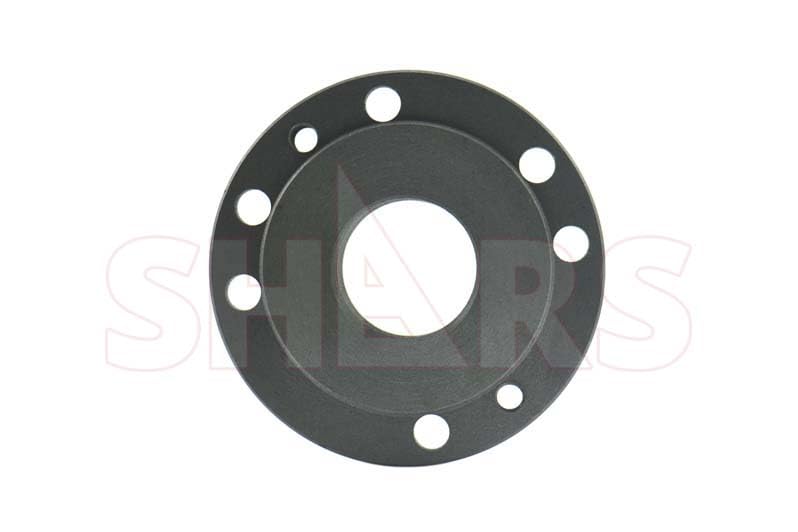

- Back plate needs to be machined in order to fit the lathe chuck

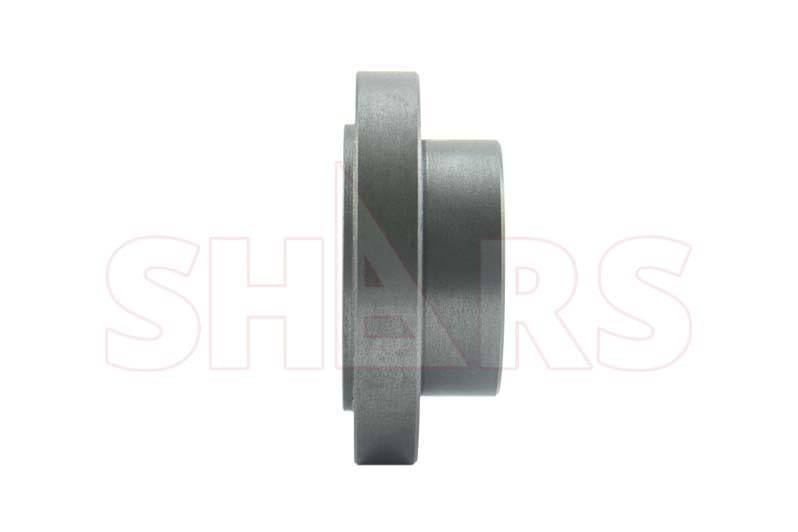

- You would not need to drill any mounting holes but you will need to turn the shoulder down .050" to match the back of the lathe chuck to make the chuck & back plate more concentric with the lathe spindle. When turning the shoulder of the backing plate, ONLY TURN THE SHOULDER OF THE BACKING PLATE WHEN ATTACHED TO THE LATHE SPINDLE.
- If you use a chuck to clamp the backing plate and then turn it, the backing plate will not be true to the lathe spindle and will have more runout than specified when the chuck and back plate are put together.
- Back Plate Diameter:3.93"; Spindle Nose Type: Threaded; Compatible chuck diameter: 4; Mounting: 1-1/2 - 8; Bolt Circle Diameter: 3.307"
- Product Included: -1 pc of 4" 4 jaw Independent Chuck (p/n 202-5419); -1 pc of 3.93" Fully Machined Threaded Back Plate (p/n 202-6108-6)
EAN: 0000541961082
Part Number: 202-5419+202-6108-6
