Description
Description
Brand: Sherline
Features:
- Includes Sherline's 2000 Mill with a 14" base
- Mill goes in 8 directions
- The headstock can pivot up to 90° in either direction
- The column bed can be rotated side-to-side up to 90° in either direction for angled drilling
- A Package includes most used tools and holding fixtures
Binding: Misc.
Part Number: sher-8020A
Details: Sherline 14 Inch Deluxe 8-direction CNC Mill Package A 8020A

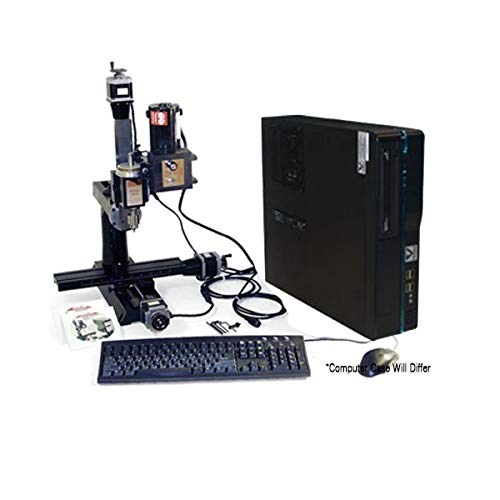

8-direction CNC Mill with Computer
The CNC Package Includes:
8-direction mill fitted with saddle oiler, stepper motor mounts and couplers on X-, Y- and Z-axes
A computer with Ubuntu Linux-based OS with linux cnc 4-axis CNC software preinstalled
Keyboard and mouse
4-axis driver board and power supply
Computer cables to the X-, Y-, and Z-axes are 69? in length
You supply only a monitor
Complete instructions available on our website.

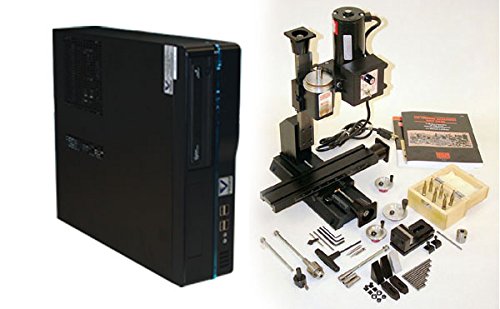

8-direction CNC Mill A Package Accessories Include:
Step block hold-down set
5/32? Sherline hex T-driver
3-piece center drill set
Fly cutter w/carbide bit
3-piece mill collet set w/drawbolt
6-piece 3/8? 2-flute double-ended end mill set
(4-flute set may be substituted depending on availability)
3/8? end mill holder
Milling vise
Sherline Accessories Shop Guide book
Standard equipment for the mill includes:
A powerful 90V DC motor with electronic speed controller
14? base
2? (51mm) adjustable ?zero? handwheels are mounted on each of the stepper motors
2.75? (70 mm) x 13.0? (330 mm) table with two T-slots
¼? Drill Chuck w/ key, #1 Morse arbor with drawbolt
2? column riser block
Laser-engraved scales on the base and table
Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
NOTE: Depending upon availability, actual computer supplied with the system may look different than shown above. If you are working with brass or wood, we suggest you use the toggle switch dust cover to protect the life of your motor & speed control.
Want to UPGRADE to a Windows CNC Controller?
Introducing MASSO CNC!!
Upgrade any of your current Sherline CNC machines with Sherline's new controller powered
