Description
Description
Brand: bibny
Features:
- Table Size 2.75" x 13.00" (70 x 330 mm)
- Travel "X" Axis:8.68" (229 mm)(9" w/o stop screw),"Y" Axis:7.00" (178 mm),"Z" Axis: 5.38" (137 mm)
- Motor:90V DC with electronic speed control that converts from 100VAC to 240VAC, 50 or 60Hz.
- Max clearance, table to spindle: 9.00" (229 mm)
- Made in the USA
Binding: Misc.
Part Number: 2000-CNC

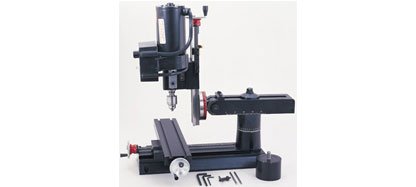

Details: The deluxe 8-direction milling machine offers the most versatility of any Sherline mill. In addition to X-axis, Y-axis and Z-axis travels, there are five additional directions that the headstock spindle can be positioned to do drilling or milling on your part from virtually any angle. The headstock can pivot up to 90° in either direction. The column bed can be rotated side-to-side up to 90° in either direction for angled drilling. A special knuckle allows the column to be pivoted front to rear. The "ram" design of the column base also allows the entire ram to be pivoted up to 90° side-to-side. Loosening the column cap allows the ram to be moved in and out with over 5.5" of travel. With this many directions of movement, the machining possibilities are virtually limitless withing the size capabilities of the machine. The 14" long base also increases Y-axis travel by an additional 2" compared to the Model 5400 mill. This is the mill for those who want to take their miniature machining abilities to the extremes. Stepper motor mounts are factory installed in place of the handwheels and ready for the application of stepper motors and computer numeric controls (CNC).
EAN: 0608729752721
