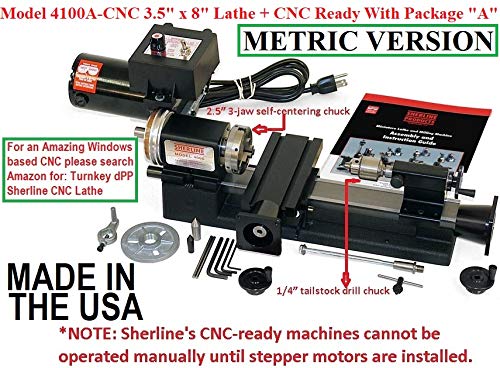

Sherline 4100A-CNC 3.5" X 8" CNC Lathe (Metric) +"A" Package (Intended for Computerized CNC)
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Computerized Sherline CNC control (Windows OS)
Features:
- CNC ready Lathe
Binding: Office Product
Part Number: 4100A CNC
Details: Standard equipment for the model 4000C-CNC INCH lathe includes:
A powerful 90V DC motor with electronic speed controller
2.75″ (70mm) x 6.0″ (152mm) crosslide
15″ (381mm) steel bed to allow 8″ (203mm) between centers
The handwheels are included and can be mounted to the end of the stepper motors to maintain manual control when needed.
Three standard 1-5/8″ (41mm) laser engraved aluminum handwheels. Each handwheel has laser engraved aluminum handwheel collars
*NOTE: CNC-ready machines cannot be operated manually until stepper motors are installed.
Pulleys, drive belt, faceplate, lathe dog, two dead centers, three hexagonal keys, tool post, sharpened high-speed steel cutting tool, eight-foot three-wire power cord, and instruction manual
The C Package Includes:
Model 4000 3.5″ x 8″ lathe CNC ready and standard accessories PLUS:
2.5″ 3-jaw self-centering chuck
1/4″ tailstock drill chuck w/ key, #0 Morse arbor, #1 Morse arbor with drawbolt
Steady rest
Live Center
Compound Slide
Cutoff Tool and Holder
3-pc 1/4″ HSS Cutting Tool Set (LH, RH, Boring)
5/32″ T-driver
3-pc Center Drill Set
Sherline Accessories Shop Guide Book (224 pages, B/W)
Thread Cutting Attachment
