Sherline 4400-DRO INCH 17" Lathe with Factory Installed DRO (CNC Upgrade not Included but can be Purchase Separately.)
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Computerized Sherline CNC control (Windows OS)
Features:

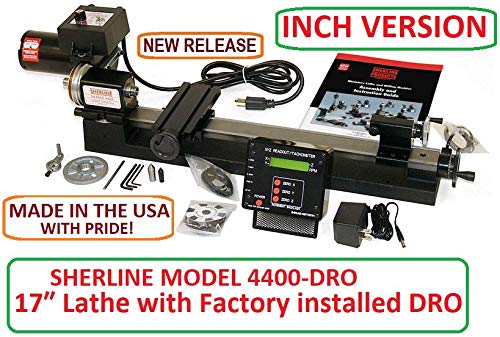

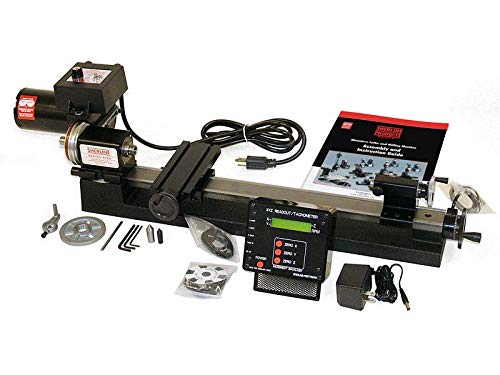

- Sherline 4400 INCH Lathe with DRO Factory installed
Binding: Toy
Part Number: 4400-DRO
Details: Any Sherline lathe can be ordered with a digital readout installed. Special handwheels with built-in encoders are installed in place of the standard handwheels on the crosslide and leadscrew. These handwheels are connected to a display box that translates handwheel rotation into a readout of table position to within .0005″ (or .01 mm). In addition, a constant readout of spindle RPM is displayed. The advantage of a digital readout is that you no longer need to count handwheel rotations when moving distances longer than a single revolution. This helps eliminate math errors. The large, easy-to-read display reads out to 3 and a half decimal places to give accuracy to within .0005″. The display for each axis can be reset to zero at any time with the push of a button.
Backlash values can be set for each axis in the programming so that backlash is electronically eliminated when changing the direction of handwheel rotation. A third axis is available on the display box should you later decide to add a vertical milling column or use it on a Sherline 3-axis mill. The readout can function with inch or metric lathes. In the metric mode, the position reads out to 1/100 of a millimeter.
Standard equipment for the lathe includes:
A powerful 90V DC motor with electronic speed controller*
2.75″ (70mm) x 6.0″ (152mm) crosslide
24″ (610mm) steel bed that has 17″ (431mm) between centers
Special handwheels are supplied with DRO machines. These handwheels can be reset to zero electronically with the push of a button on the DRO display box. Sherline DRO lathes are outfitted with the special DRO 2″ (51mm) handwheels on the leadscrew and crosslide feed screw, and a 2″ (51mm) resettable “zero” handwheel on the tailstock. Each handwheel has laser engraved aluminum handwheel collars
Rocker tool post substituted for the standard tool po
