Sherline 4400C - CNC-ready 3.5" x 17" Lathe Package
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: bibny
Features:
- 3.5" x 17" lathe (with adjustable "zero" handwheels and rocker toolpost)
- CNC-Ready with two stepper motor mounts installed
- Spindle speed range: 70-2800 RPM continuously variable by electronic speed control
- Speed Control:Electronic- voltage from 100VAC to 240VAC, 50 or 60Hz, converts to 90VDC for motor
- Made In the USA
Binding: Misc.
model number: 4000C-CNC
Part Number: 4000C-CNC

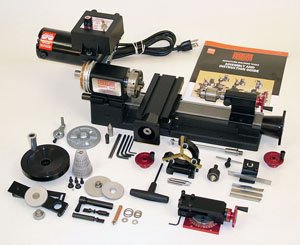

Details: Standard equipment 90 VDC motor with electronic speed controller, a 2.75" (70mm) x 6.0" (152mm) crosslide, pulleys, belt, faceplate, lathe dog, two dead centers, three hexagonal keys, sharpened high-speed steel cutting tool, eight-foot, three-wire power cord and instruction booklet. In addition, the model 4400 lathe has a 24" (610mm) bed that has 17" (431mm) between centers, a 2.5" (63mm) resettable “zero” handwheel on the leadscrew, two 2" (51mm) resettable “zero” handwheels on the crosslide and feed screw and a rocker tool post (P/N 3057) substituted for the standard tool post used on the shortbed lathes. The electronic speed control allows continuously variable speed control from 70 to 2800 RPM without belt changes. There is a second pulley position available that offers extra torque at low RPM if needed. Also included: 1040 3.1" 3-jaw self-centering chuck 1069 3/8" tailstock drill chuck w/ key #0 Morse arbor #1 Morse arbor with drawbolt 1074 Steady rest 1191 Live center 1270 compound slide 3002 Cutoff tool and holder 3007 1/4" HSS 3-piece tool set (RH, LH, boring) 3020 Sherline 5/32" T-driver 3021 3-piece center drill set 3100 Thread cutting attachment
EAN: 0608729753087
