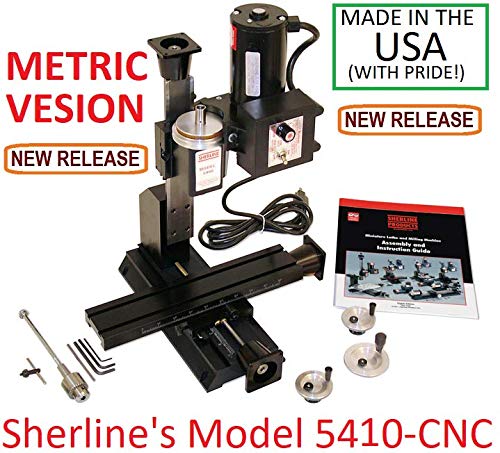

Sherline 5410-CNC Metric Version 12" Milling Machine CNC Ready
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Computerized Sherline CNC control (Windows OS)
Features:
- Sherline 5410-CNC Factory installed CNC couplers METRIC
Part Number: 5410-CNC
Details: Standard equipment for the 5410-CNC METRIC mill includes:
New Release: Oil reservoirs on the X/Y axes and the Z-axis to help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well.
Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew
A powerful 90V DC motor with electronic speed controller
12″ base

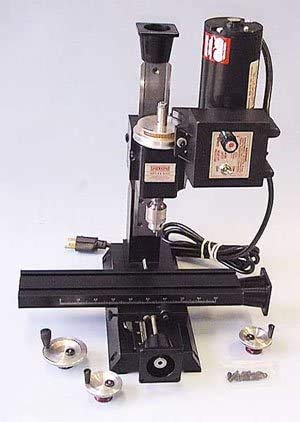

The handwheels are included and can be mounted to the end of the stepper motors to maintain manual control when needed.
* 2-1/2″ (63mm) adjustable “zero” handwheel on the Z-axis and 2″ (51mm) adjustable “zero” handwheels on the X- and Y-axes. Each handwheel has laser engraved aluminum handwheel collars
*NOTE: CNC-ready machines cannot be operated manually until stepper motors are installed. 2.75″ (70 mm) x 13.0″ (330 mm) table with two T-slots Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual Headstock spacer block ¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt
