Description
Description
Brand: Computerized Sherline CNC control (Windows OS)
Features:
- Sherline 5410-CNC Factory installed CNC couplers + "A" Package. Metric
Binding: Electronics
Part Number: 5410A-CNC

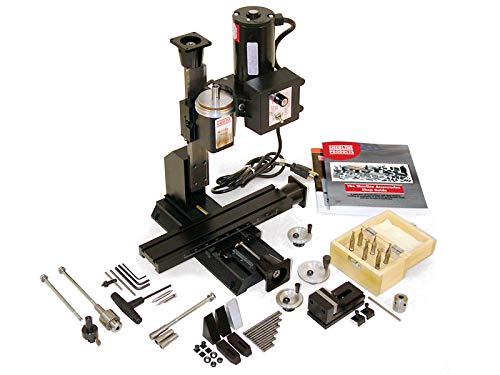

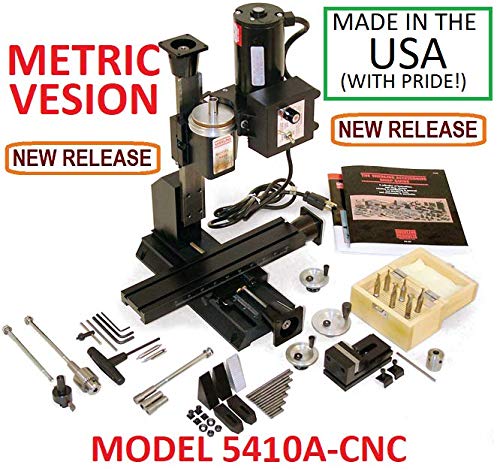

Details: Standard equipment for the 5410A-CNC METRIC mill includes:
New Release: Oil reservoirs on the X/Y axes and the Z-axis to help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well.
Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew
A powerful 90V DC motor with electronic speed controller
12″ base
The handwheels are included and can be mounted to the end of the stepper motors to maintain manual control when needed.* 2-1/2″ (63mm) adjustable “zero” handwheel on the Z-axis and 2″ (51mm) adjustable “zero” handwheels on the X- and Y-axes. Each handwheel has laser engraved aluminum handwheel collars
*NOTE: CNC-ready machines cannot be operated manually until stepper motors are installed.
2.75″ (70 mm) x 13.0″ (330 mm) table with two T-slots
Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
Headstock spacer block
¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt
The A Package Includes: Step block hold-down set
5/32″ Sherline hex T-driver
3-piece center drill set
Fly cutter w/carbide bit
3-piece mill collet set w/drawbolt
6-piece 3/8″ 2-flute double-ended end mill set (4-flute set may be substituted depending on availability)
3/8″ end mill holder
Milling vise
Sherline Accessories Shop Guide book
