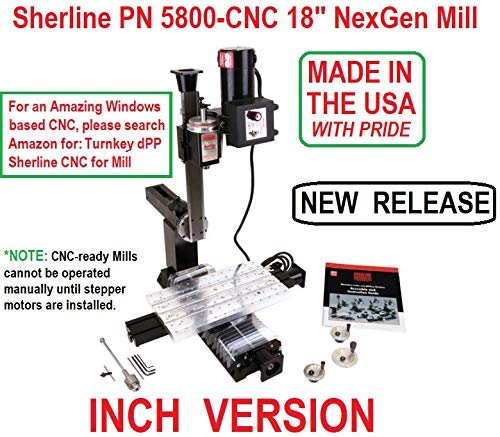

Sherline 5800-CNC INCH Version 18" NexGen Milling Machine CNC Ready (Intended for Computerized CNC)
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Computerized Sherline CNC control (Windows OS)
Features:
- Sherline 5800-CNC . Nexgen Mill CNC ready
Details: Introducing the New NexGen Mill
Sherline Products introduces its latest Vertical Milling machine. With the increase of popularity of Sherline mills in industrial, laboratory and school training environments, the need to produce larger parts has led to the development of an extended capacity milling machine. Sherline’s NexGen Mills are available in Manual, CNC-Ready, and full CNC configurations.

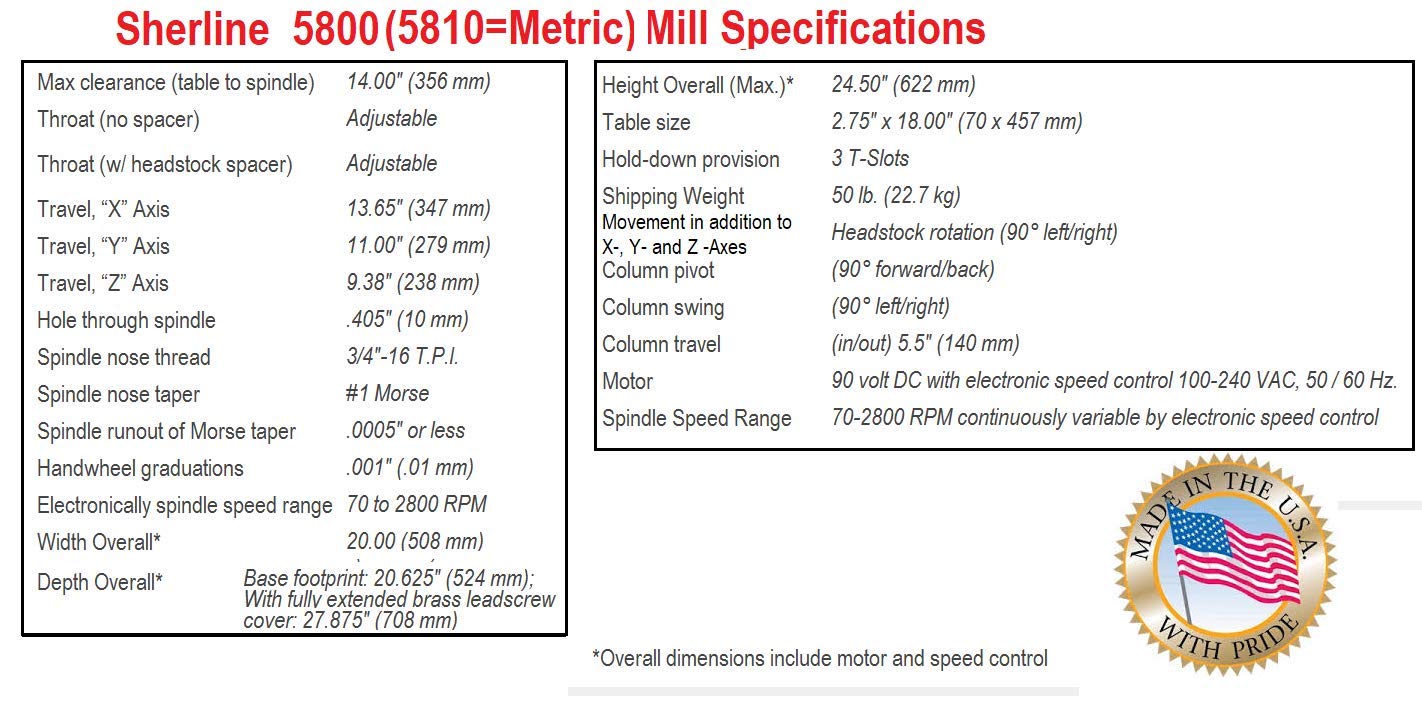

Standard features for the model 5800-CNC (5810-CNC for metric) mill includes:

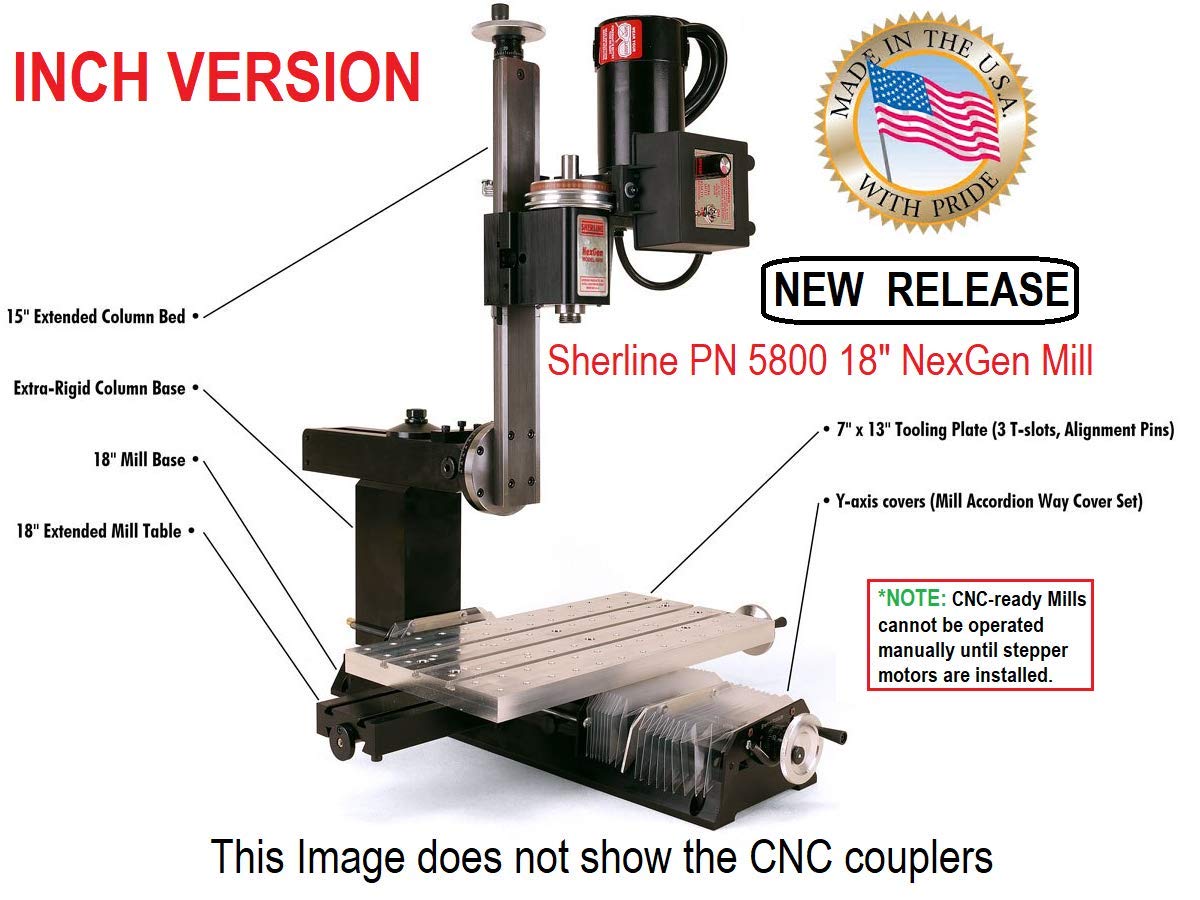

A powerful 90V DC motor with electronic speed controller
18″ mill base with Y-axis leadscrew protection
2.75″ (70 mm) x 18.0″ (457 mm) extended mill table with two T-slots
7″ x 13″ tooling plate
15″ (63mm) extended column bed
Extra-rigid column base
The handwheels are included and can be mounted to the end of the stepper motors to maintain manual control when needed.* 2-1/2″ (63mm) adjustable “zero” handwheel on the Z-axis and 2″ (51mm) adjustable “zero” handwheels on the X- and Y-axes. Each handwheel has laser engraved aluminum handwheel collars
*NOTE: CNC-ready machines cannot be operated manually until stepper motors are installed.
¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt
Oil reservoirs on the X-, Y- and Z-axes

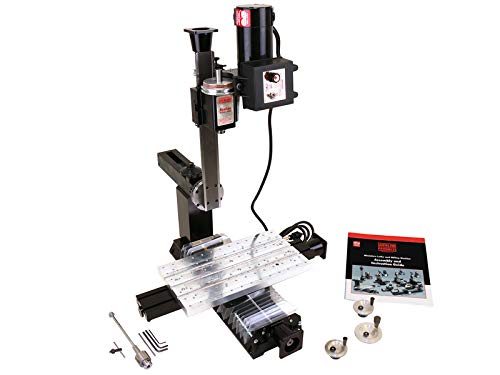

Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
