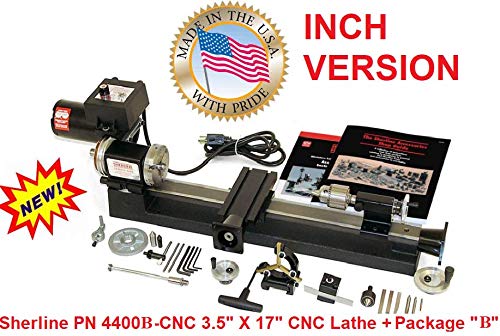

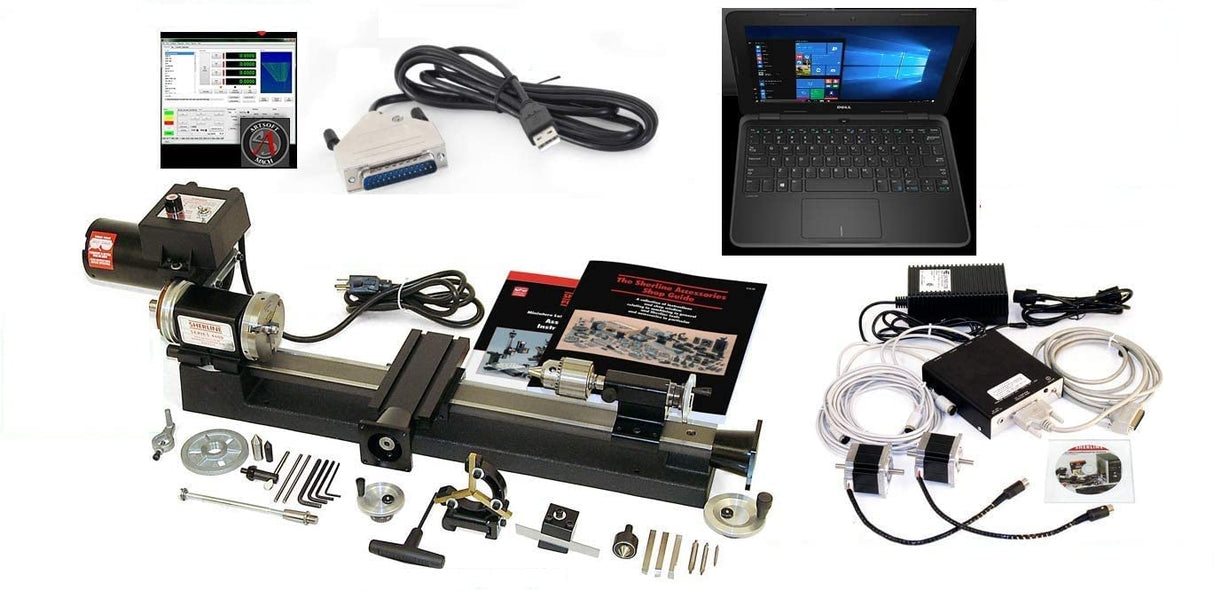

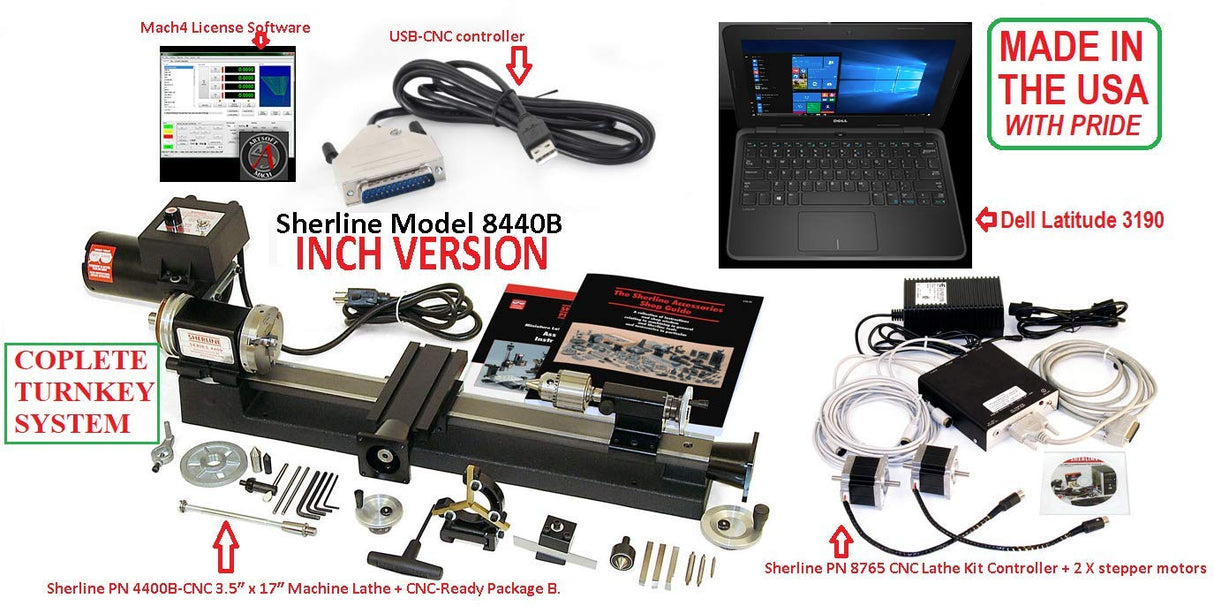

Sherline 8440B Windows 3.5″ x 17″ Inch Lathe. A Complete CNC System +USB Controller + Package"B" + Dell Latitude Laptop
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Computerized Sherline CNC control (Windows OS)
Features:
- Sherline 8400B INCH
Binding: Office Product
Part Number: 8440B-Windows

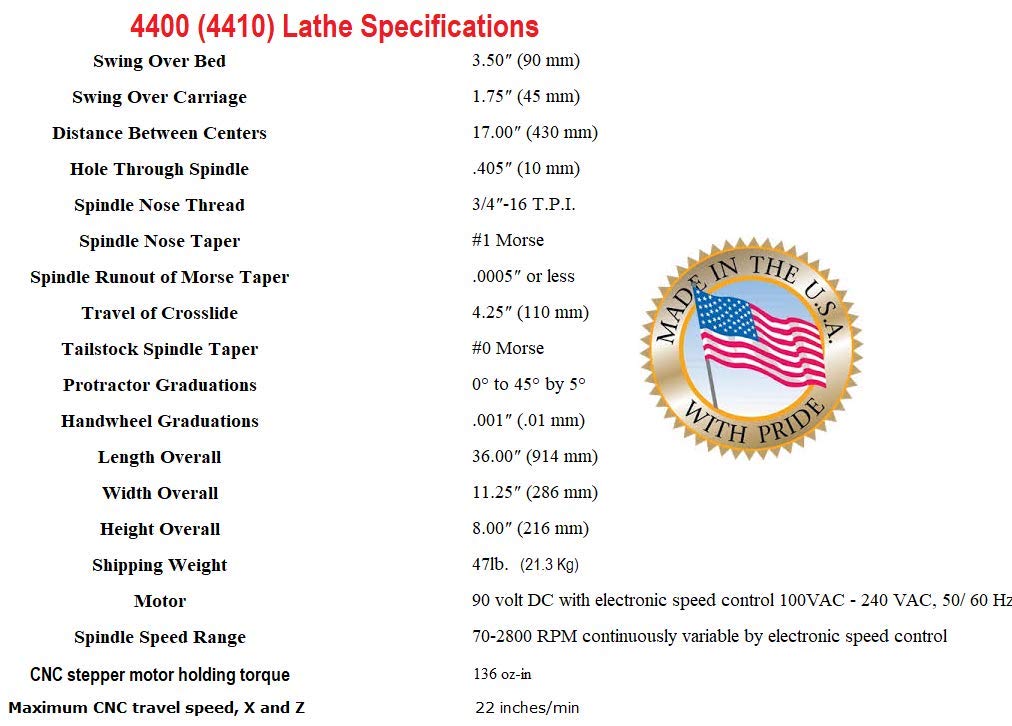

Details: 4400 Inch version lathe with two stepper motors fitted to stepper motor mounts on the leadscrew and crosslide axes.

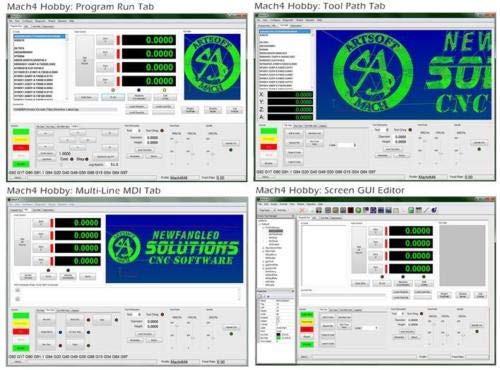

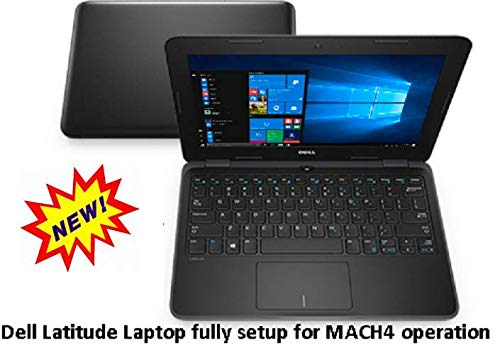

A Dell Latitude model 3190 Laptop With Licensed MACH4 preinstalled for a Lathe Setup.

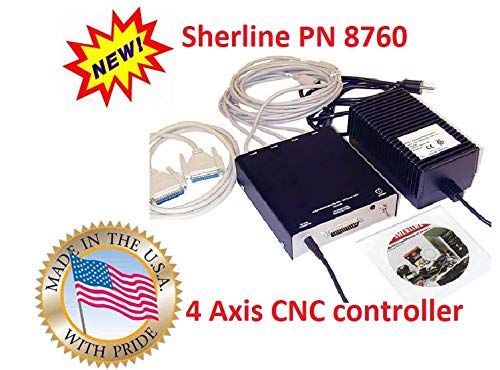

Sherline PN 8670 4-axis external CNC controller

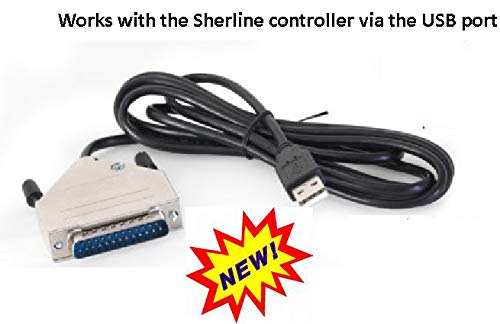

USB-CNC controller for the Sherline 8760
A blank USB flash drive with Backup software is also included
A powerful 90V DC motor with electronic speed controller
2.75″ (70mm) x 6.0″ (152mm) crosslide
24″ (610mm) steel bed that has 17″ (431mm) between centers
The handwheels are included and can be mounted to the end of the stepper motors to maintain manual control when needed.
2.5″ (63mm) resettable “zero” handwheel for the leadscrew, one 2″ (51mm) resettable “zero” handwheels for the crosslide feed screw, and a 2″ (51mm) resettable “zero” handwheel on the tailstock. Each handwheel has laser engraved aluminum handwheel collars
*NOTE: CNC-ready machines cannot be operated manually until stepper motors are installed.
Rocker tool post substituted for the standard tool post used on the short bed lathes
Pulleys, drive belt, faceplate, lathe dog, two dead centers, three hexagonal keys, tool post, sharpened high-speed steel cutting tool, eight-foot three-wire power cord, and instruction manual.
THE "B" PACKAGE INCLUDES:
3.1″ 3-jaw self-centering chuck
3/8″ tailstock drill chuck w/ key, #0 Morse arbor, #1 Morse arbor with drawbolt
Steady rest
Live Center
Rear Mount Cutoff Tool and Holder
3-pc 1/4″ HSS Cutting Tool Set (LH, RH, Boring)
5/32″ T-driver
3-pc Center Drill Set
Sherline Accessories Shop Guide Book (224 pages, B/W)
ONE YEAR WARRANTY ON ALL MECHANICAL PARTS 90 DAYS MANUFACTURER WARRANTY ON ALL CNC AND ELECTRONICS PARTS
