Sherline 8710 - CNC Rotary Indexer Riser Plate
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: bibny
Features:
- On rotary tables,bottom of the stepper motor mount extends a bit below the bottom surface of table
- On Sherline mills, the mount overhangs the side of the table so this is not a problem.
- Made in the USA
model number: 8710
Part Number: 8710

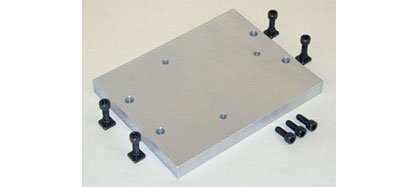

Details: When using the P/N 8700 CNC rotary indexer on a Sherline mill, a riser plate is not necessary. However, because the bottom of the stepper motor mount extends slightly below the bottom surface of the rotary table, when mounting the table on a full size mill or large, flat fixture, it will be necessary to raise the table slightly to provide clearance for the mount and stepper motor. This plate is pre-drilled to allow mounting of the CNC rotary table and has four mounting holes to attach it to a Sherline mill table or to any fixture. Since it is made from cast tooling plate, it is free of internal stresses and can be drilled with additional mounting holes without fear of warping. Included are three screws for attaching the table to the plate and four screws for attaching the plate to your fixture. Also included are four T-nuts should you wish to mount it to a Sherline mill table or industrial slide with T-slots sized for Sherline T-nuts.
EAN: 0608729753285
