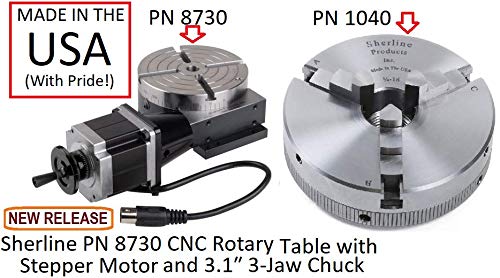

Sherline 8730 CNC Rotary Table with Stepper Motor and 1040 Chuck
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Computerized Sherline CNC control (Windows OS)
Features:
- CNC Rotary Table with Stepper Motor + PN 1040 3.1" 3 Jaws Chuck
Binding: Office Product
Part Number: 8730-S-1040

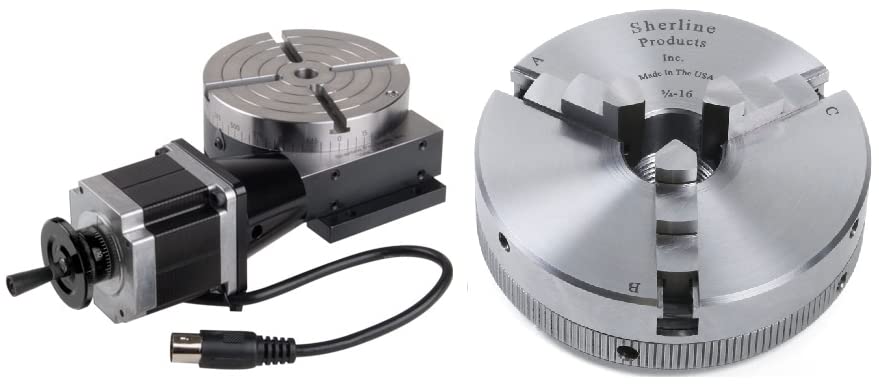

Details: This combo consist of the followings:
1. Sherline PN 8730 CNC rotary table
2. Sherline PN 1040 3.1" 3-Jaw Chuck
This rotary table is all you need to turn your Sherline CNC mill into a 4-axis machine. Just plug the A-axis cable from the external driver box or the built-in driver box in your Sherline computer into the matching plug on the stepper motor.
Rotary Indexer Specifications
Table Size:4″ diameter by 2″ height
Part mounting Provisions:Center thread including chuck adapter and 4 T-slots
Rotation Speed:1°/ sec to 50°/sec maximum
Resolution:28,800 steps per revolution (±.006° per step)
Backlash Compensation:Programmable
Stepper Motor:120 oz-in, 2 Amp, NEMA 23 Frame size, 400 steps per revolution
NOTE: Sherline is stating the following weight limits for our rotary tables for continual use. Click on the Video tab above to see examples of different weights and uses for our rotary tables.
Horizontal orientation—50 lbs.
Vertical orientation—30 lbs.
Vertical rotational torque—6 foot/lbs. (meaning it can lift a 6 lb. weight when suspended 12″ away from the center of the rotary table)
The rotary tables can hold more weight when they are not under a continual load.
