Description
Description
Brand: Sherline
Binding: Misc.
Part Number: sher-6610
Details: Sherline Industrial CNC Chucker Lathe 6610

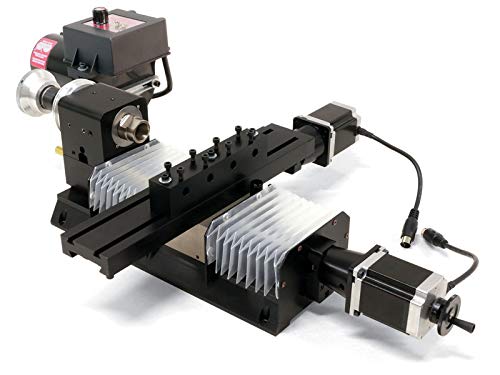

Industrial CNC Chucker Lathe
Sherline designed their CNC chucker lathe for their industrial customers who want the convenience of using multiple tools in a single set-up. The lathe has a 13" cross slide that accommodates the 3/8" gang-tooling tool post and two, optional tool posts that can be used for boring and parting tools (tools not included).
Standard Features Include:
Ball Lead Screw: Rolled Ball Screw with BSH Nut .10mm Diameter, 2mm Lead. C7 Accuracy, P1 Preload. The linear accuracy is 50 micrometers/300mm

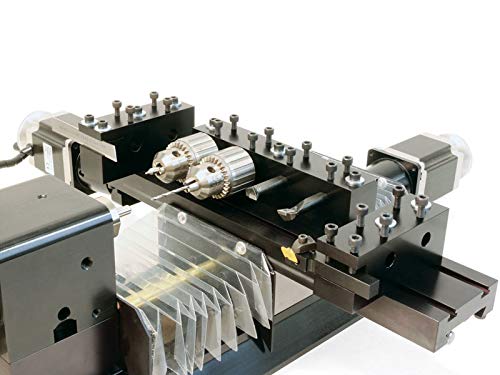

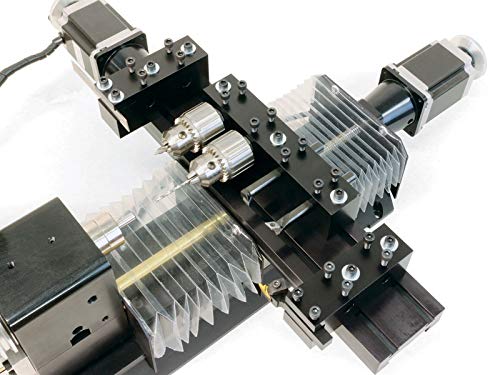

3/8" Gang-tooling tool post, which holds up to four tools
14" Base
13" Mill table
Mill Saddle: Has electroless nickel coating with Teflon. This offers a hard surface that is rustproof. The Teflon offers a friction coefficient of .1-.2u for smoother movement of the saddle and the table.

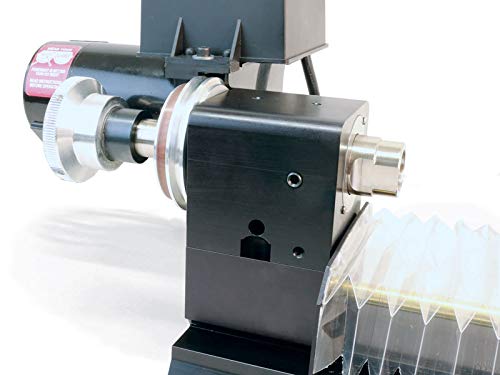

3C Collet headstock: TIR (total indicator runout) is rated at .0005, or less on the 3C headstock. In addition, the 3C spindle is electroless nickel plated to aid in rust prevention and to increase the surface hardness of the spindle for durability.
Powerful 90V DC motor with electronic speed controller

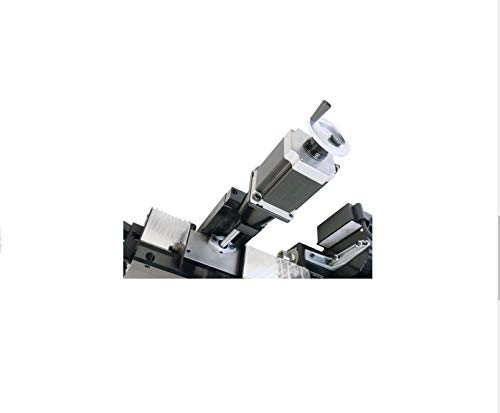

Two, 2-amp high-torque stepper motors

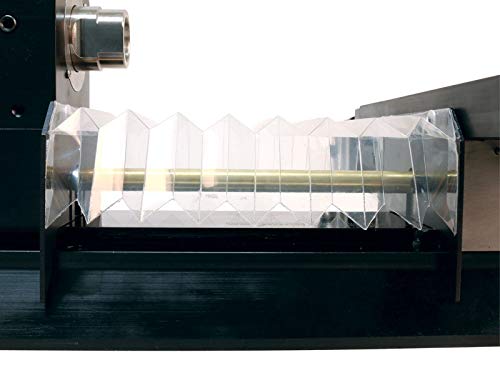

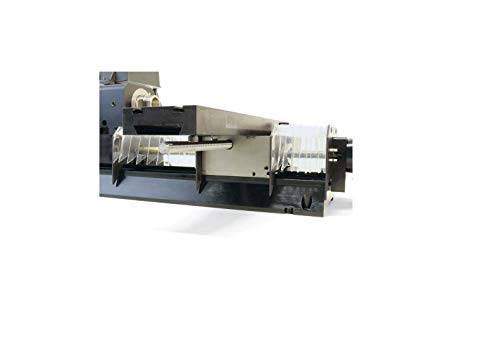

Accordion way cover and brass-tube leadscrew cover
Maximum feed rate is 32 in/min.
Largest diameter through the collet is ½" (13mm). NOTE: collets are not available through Sherline Products.

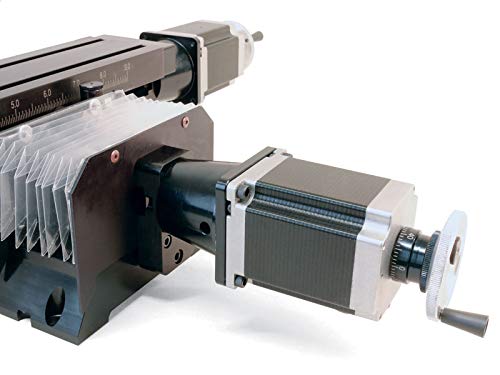

Stepper Motor Specifications
Frame size
NEMA #23
Shaft
1/4? diameter, dual shafts
Holding Torque
1.35 N.m (Newton meters)
13.756 kg-cm (kilogram centimeter)
191.17 oz/in (ounce inch)
11.948 in/lb (inch pound)
Axial-Force
Fa=15 N Max., or 3.37 lbf Max.
Radial-Force
Fr=75 N Max., or 16.86 lbf Max.
Rotor inertia
480 g-cm2
Voltage
4.5 V DC
EAN: 0713289052553
