Description
Description
Brand: Sherline
Features:
- CNC-Ready Deluxe Mill 14″ XYZ Base
Part Number: sher-5625/17848

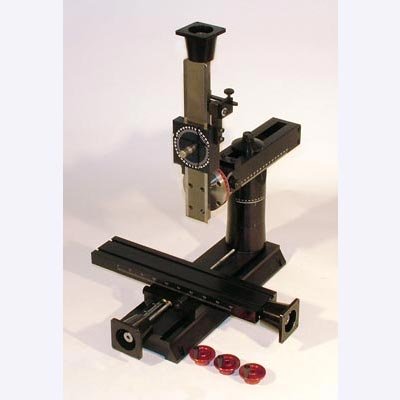

Details: The Sherline vertical mill can be purchased without the headstock and motor/speed control. This allows lathe owners to swap the headstock and motor/speed control from their lathe to the mill in approximately 60 seconds. The XYZ base is the same base used in our 2000-series 8-direction mill. It has a 14″ base with stepper motor mounts installed on the X-, Y- and Z-axes ready for the installation of stepper motors, and laser engraved table and base. (Stepper motors not included). Travel: X=8.65″ (220 mm), Y= 7.0″ (178 mm), Z=5.38″ (137 mm).NC-Ready XY Bases Any Sherline mill XYZ base can be ordered with stepper motor mounts installed on the X-, Y- and Z-axes ready for the installation of stepper motors. (Stepper motors not included, see the STEPPER MOTOR page.) Included with the CNC-ready XYZ bases are three low mass 1-5/8″ handwheels. If using Sherline or other dual shaft stepper motors, the handwheels can be mounted to the rear shaft to provide manual control in addition to CNC control. (NOTE: Manual control is not possible on CNC-ready bases until a dual shaft stepper motor has been installed. Handwheels cannot be installed directly onto the stepper motor mounts.) These slides have been popular items in the industry to control movement in small production line processes, and the addition of computer control extends the possibilities for automation. Travels of each of these CNC-ready bases are the same as for the manually controlled versions shown above. NOTE: CNC-ready machines cannot be operated manually until stepper motors are installed.
EAN: 0731882165838
