South Bend Lathe Rebuild Kit - Model 10L or 10R "Heavy 10"
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: ILION Industrial Services LLC
Color: White
Features:

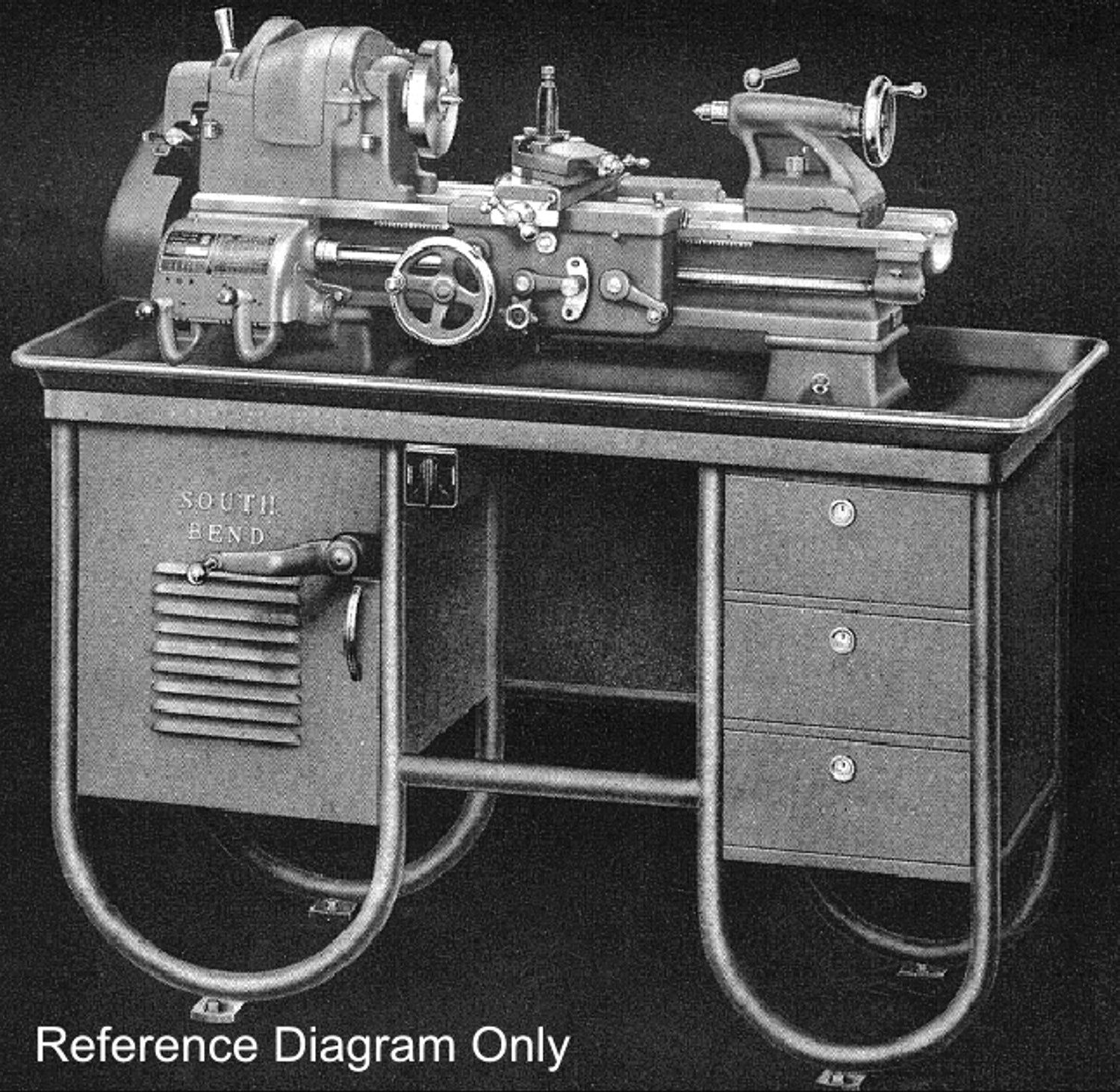

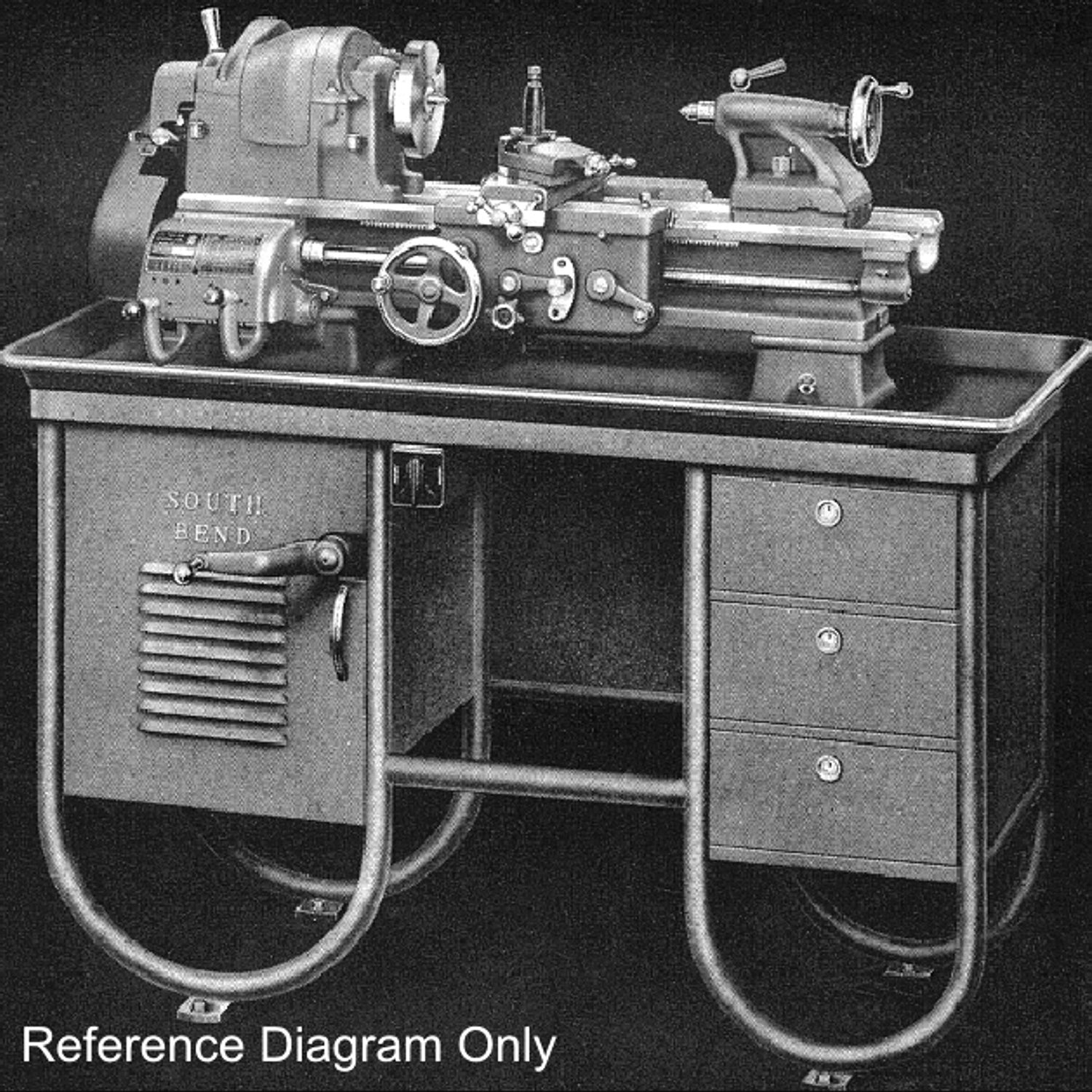

- Rebuild Kit for South Bend Lathe Heavy 10 (Model 10L or 10R) produced from ~1939 to 1988 (See Lathe Reference Photos)

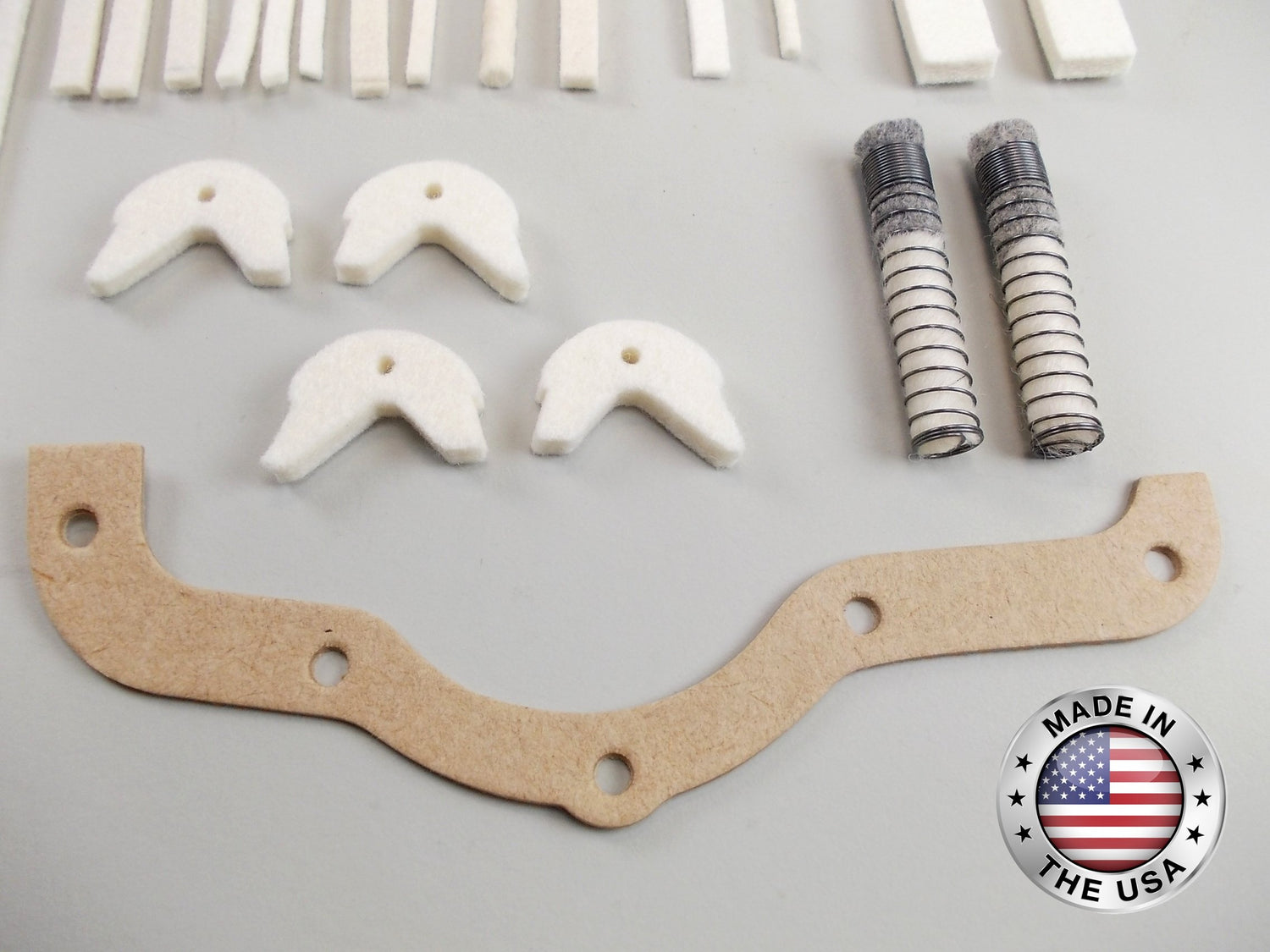

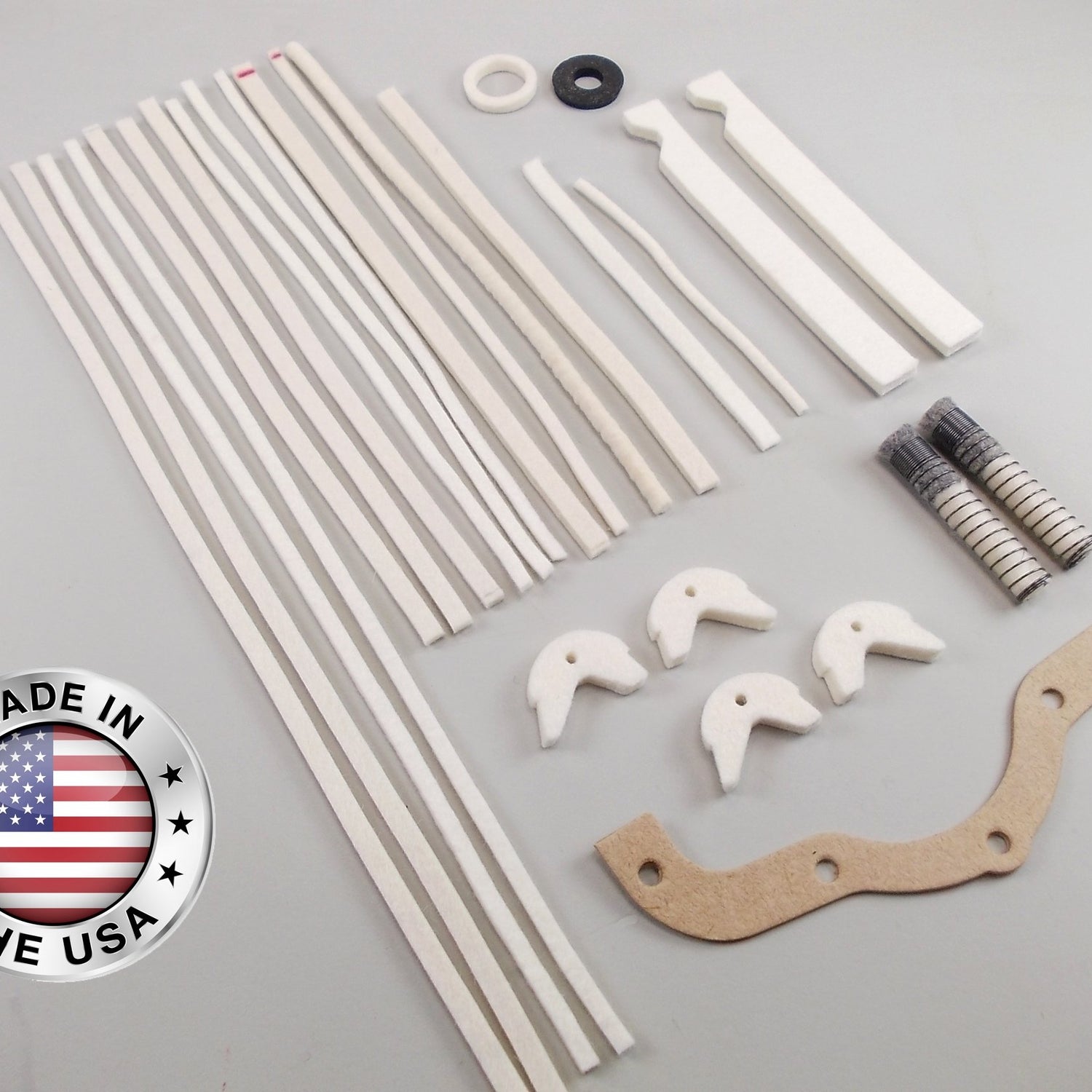

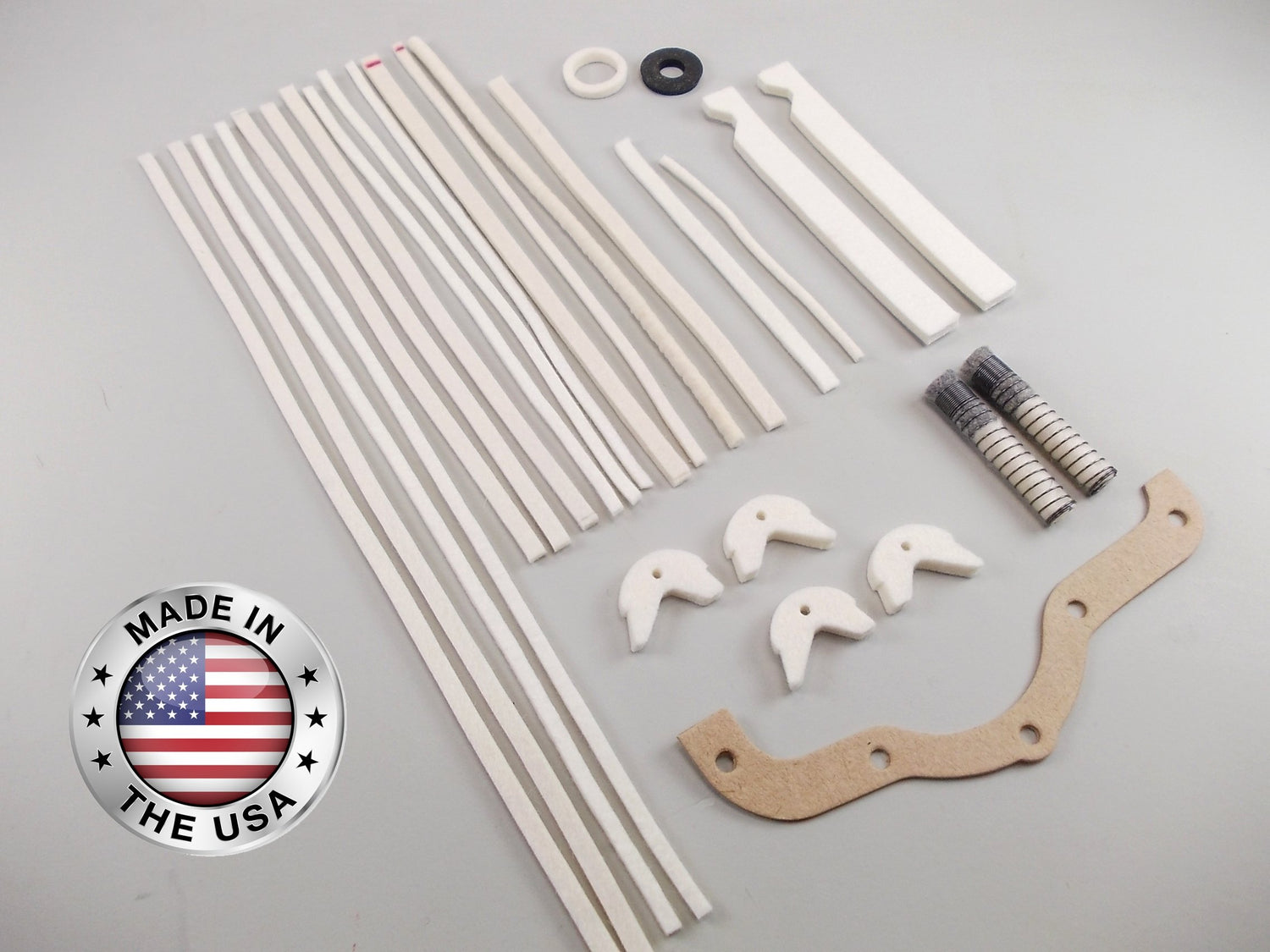

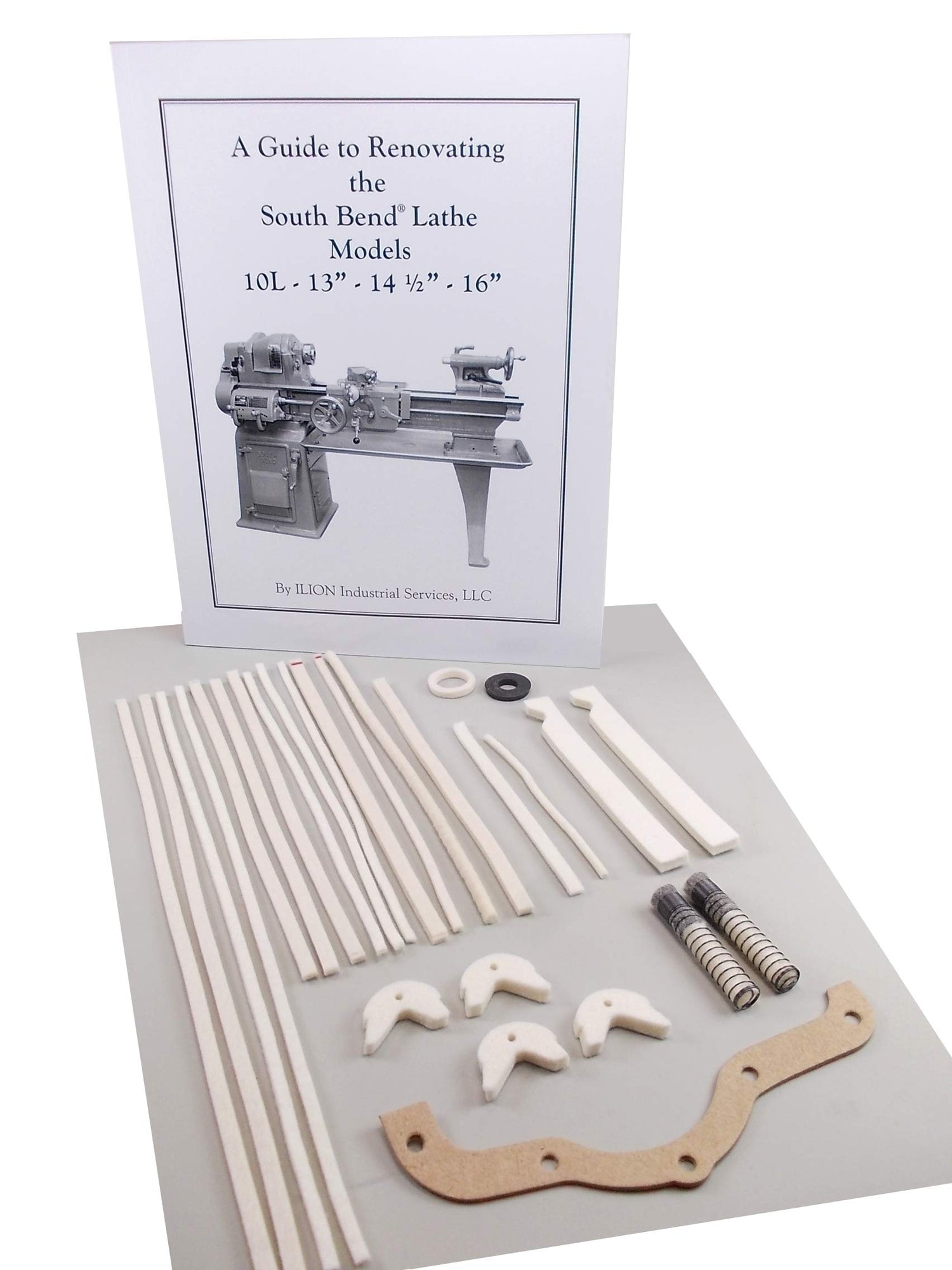

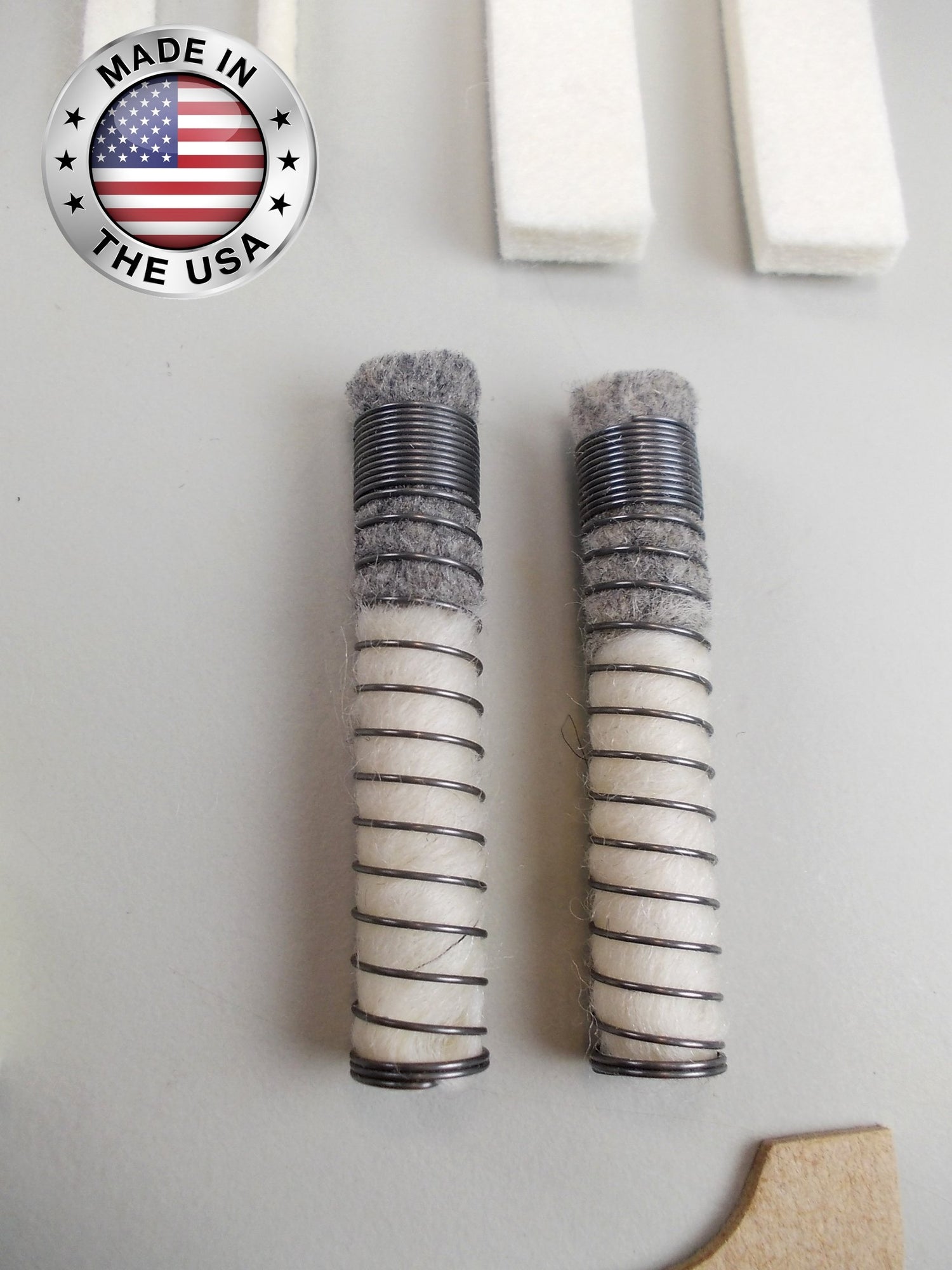

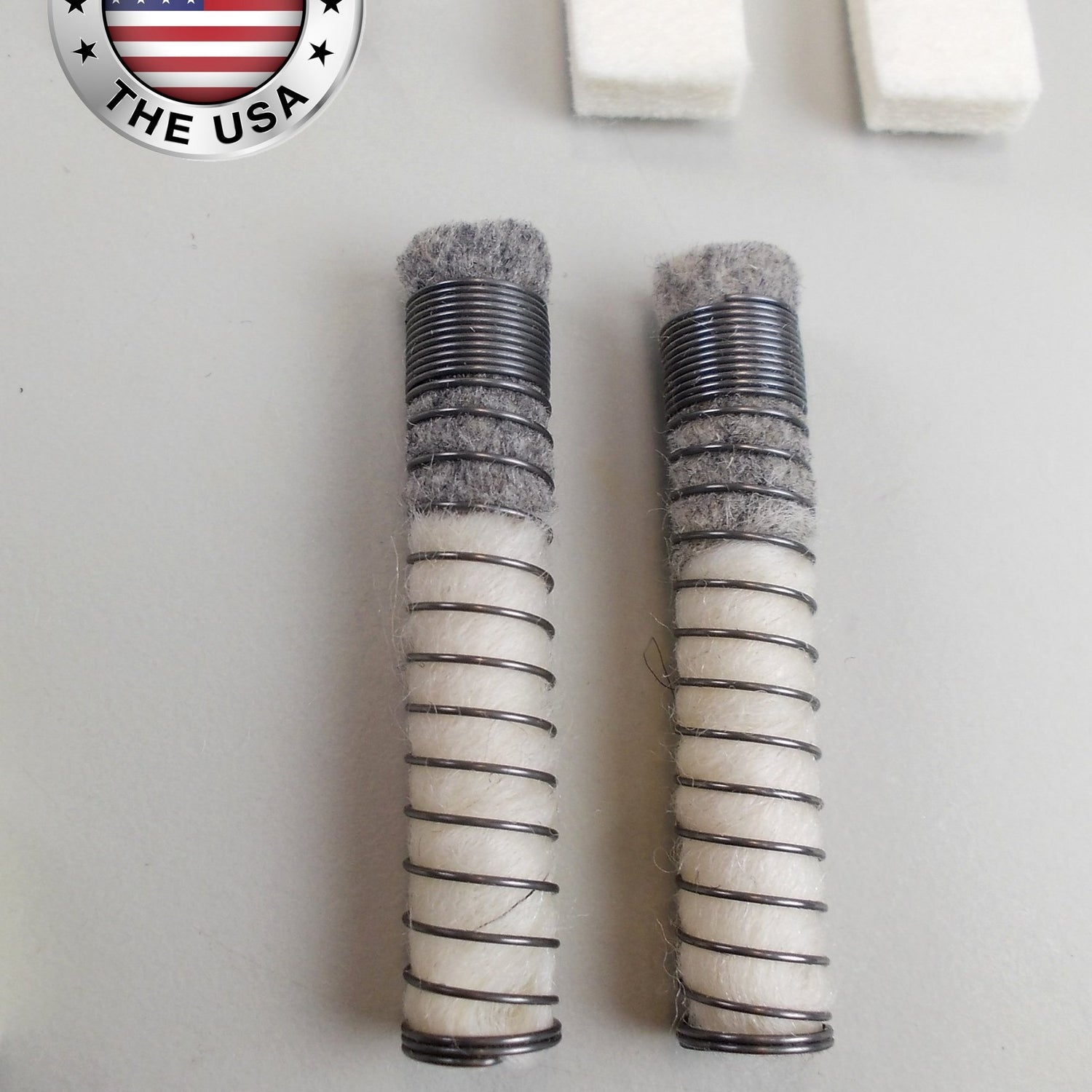

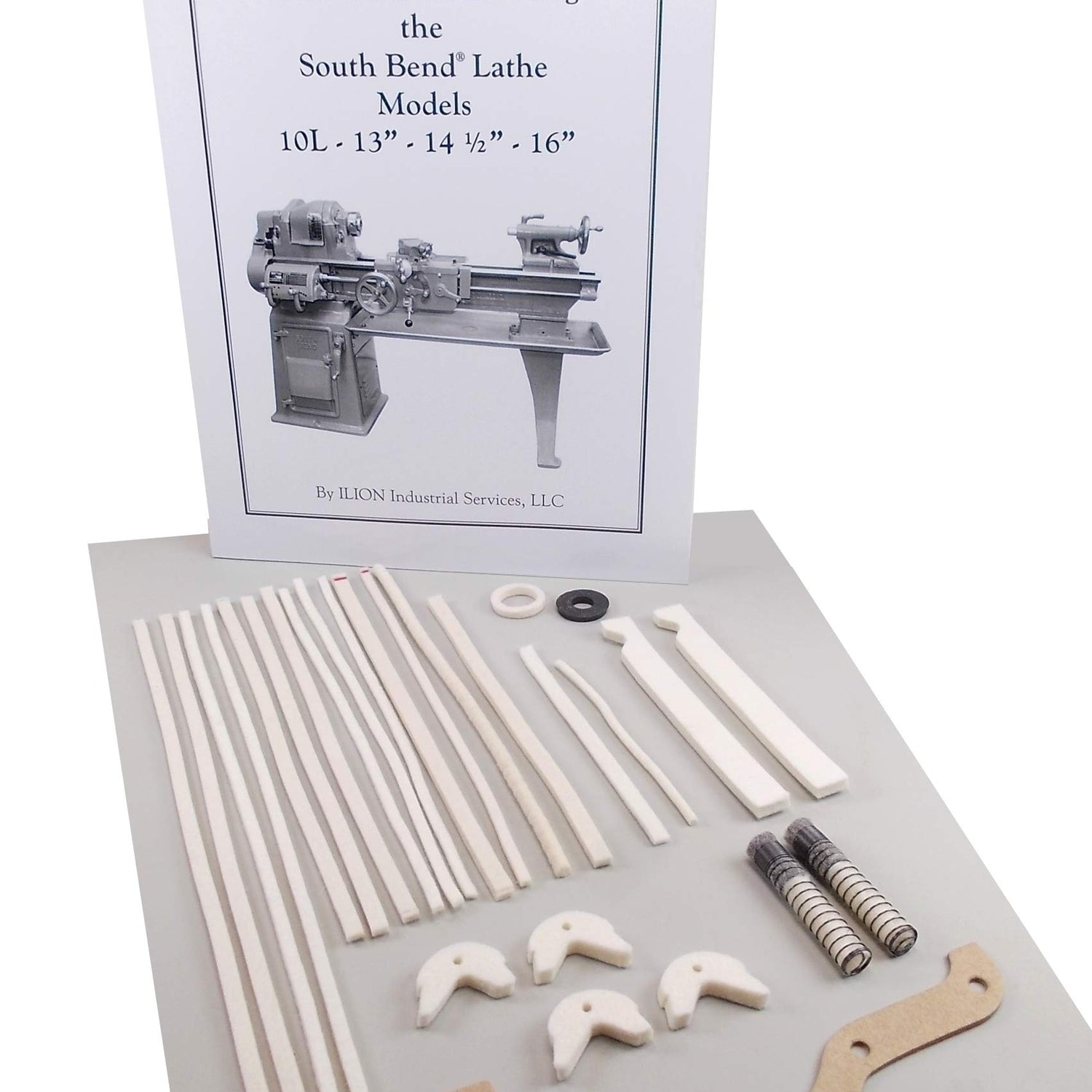

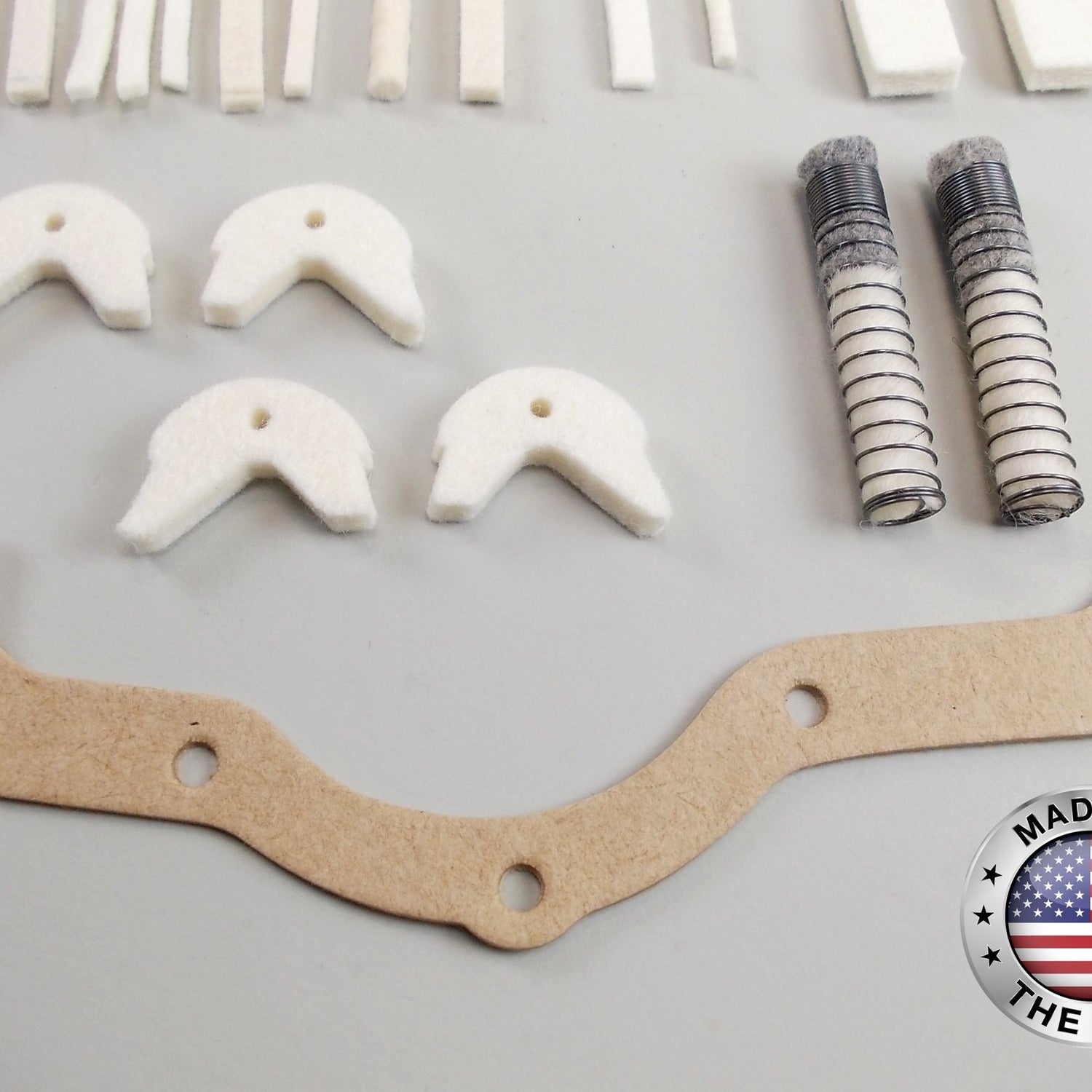

- All consumable parts including felt wicks, gaskets, wipers and spindle capillary oilers necessary for rebuild are included in the kit.

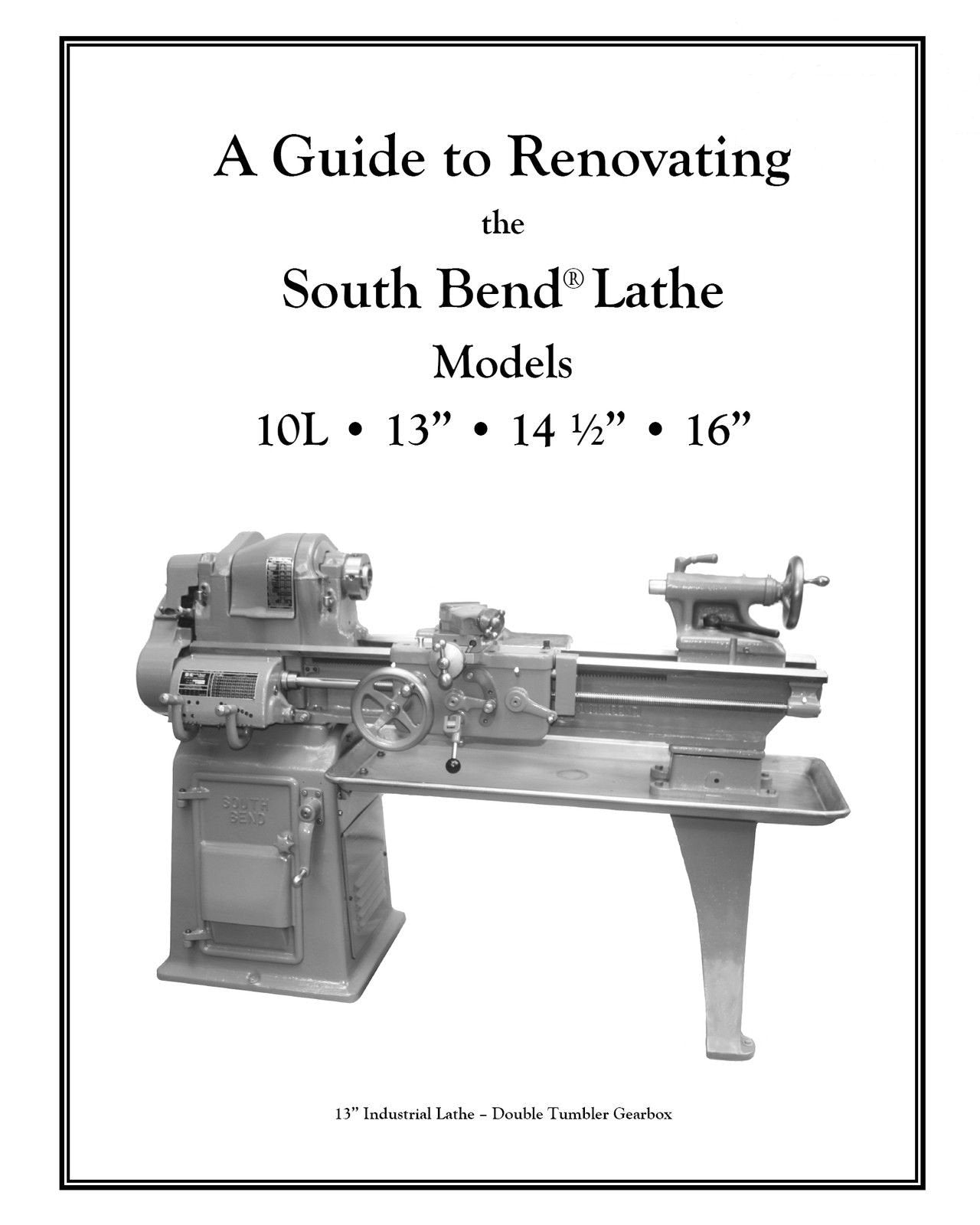

- Fully illustrated: A Guide to Renovating the South Bend Lathe, No prior machinery experience necessary.
- 100% Made in the USA by ILION Industrial Services LLC.

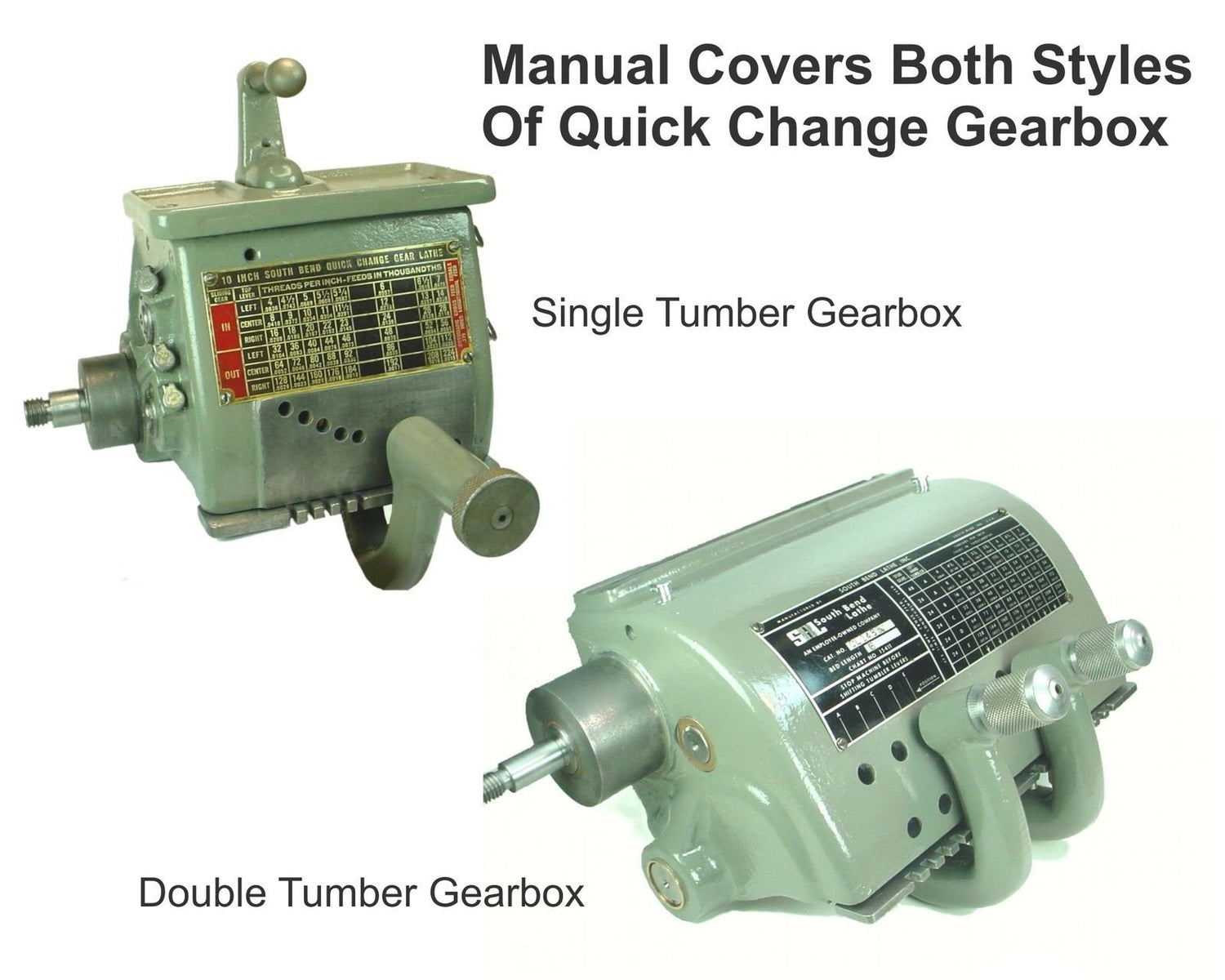

- For both single tumbler or double tumbler (1 lever or 2 levers) Quick Change Gearboxes plus extended range models (See Diagram).
Binding: Apparel
model number: SB - C10L
Part Number: SB - C10L
Details: Introducing a new publication and parts kit for vintage South Bend Lathe owners who need to overhaul or clean up their Heavy Ten lathe (model 10L or 10R). Our comprehensive rebuild package provides all that is required to help put your lathe back into its original operating condition. Our manual was painstakingly produced over two years specifically with the South Bend Lathe owner in mind and it addresses the most commonly asked questions and methods for how to renovate a used lathe. Even though South Bend ceased production of these fine quality machines years ago, there are still thousands of serviceable lathes sitting out there in home shops, small businesses, schools and machinery dealers. If you are in the market for a good used South Bend, our book provides information on all of the different models that were made and how to evaluate the condition of a lathe before purchasing. The 156 page instruction manual included with this kit is fully illustrated with almost 450 photographs, and step-by-step instructions for disassembly, cleaning, reassembly and adjustment. The manual provides an illustrated refinishing guide and a lubrication chart, plus sources where vintage SBL owners can find other help and documentation. The manual text is printed in a font that is two points larger than normal so that it is easy to read at the bench. Included in the package: The Manual: "A Guide to Renovating the South Bend Lathe Models 10L, 13" 14 1/2", 16" 2 Precision Spring Loaded Capillary oil wicks Die Cut Apron Gasket Die Cut Tailstock Washers 4 Die Cut Way Wipers for the Saddle 2 Die Cut tailstock wipers Round felt wicks for the Reversing Gears Square felts for shaft lubrication Set of Felts for the Quick Change Gear Box (Shafts & Oil Passages) ***DISCLAIMER: ILION Industrial Services, LLC is neither affiliated with South Bend Lathe, Inc. nor successor companies. Products are not sanctioned by South Bend Lathe, Inc. as OEM information, parts or products.
EAN: 0791511529578
Package Dimensions: 11.2 x 8.7 x 1.4 inches
