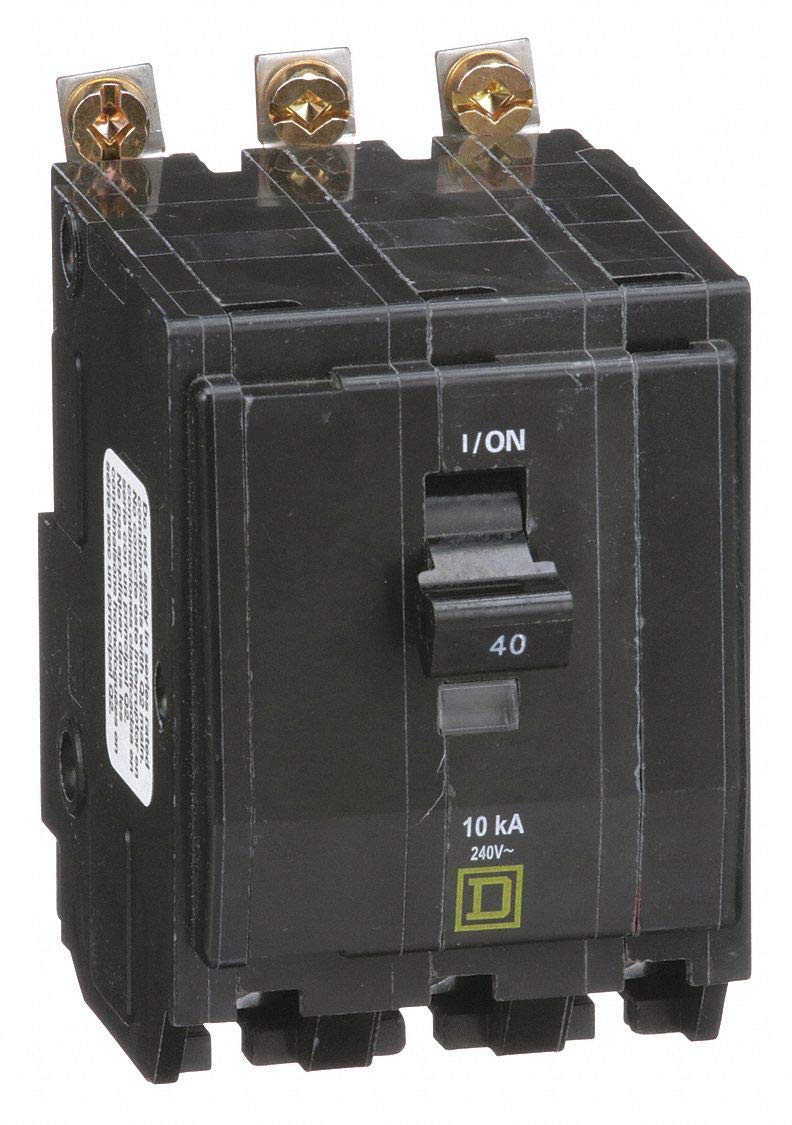

Square D Bolt On Circuit Breaker, 40 Amps, Number of Poles: 3, 240VAC AC Voltage Rating
Square D Bolt On Circuit Breaker, 40 Amps, Number of Poles: 3, 240VAC AC Voltage Rating
- Hand Chosen Products
- All Items are Highly Rated
- Top Quality is Assured!
Couldn't load pickup availability
Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Brand: Square D
Details: This bolt-on circuit breaker features a Visi-Trip indicator and is designed for use with NQ or NQOD panelboards.
Item: Bolt On Circuit Breaker
Amps: 40
Number of Poles: 3
Circuit Breaker Type: Standard
AC Voltage Rating: 240VAC
DC Voltage Rating: 48VDC
For Use With: Square D NQOD Panelboards
Series: QOB
Terminal Connection: Lug
Max. AIR Rating: 10 kA
Frame Size: 100A/QO
Min. Wire Size: 8 AWG
Max. Wire Size: 2 AWG
Length: 3.00"
Width: 2.25"
Depth: 2.91"
Standards: UL Listed, CSA Certified
EAN: 0696333959223
Part Number: QOB340
