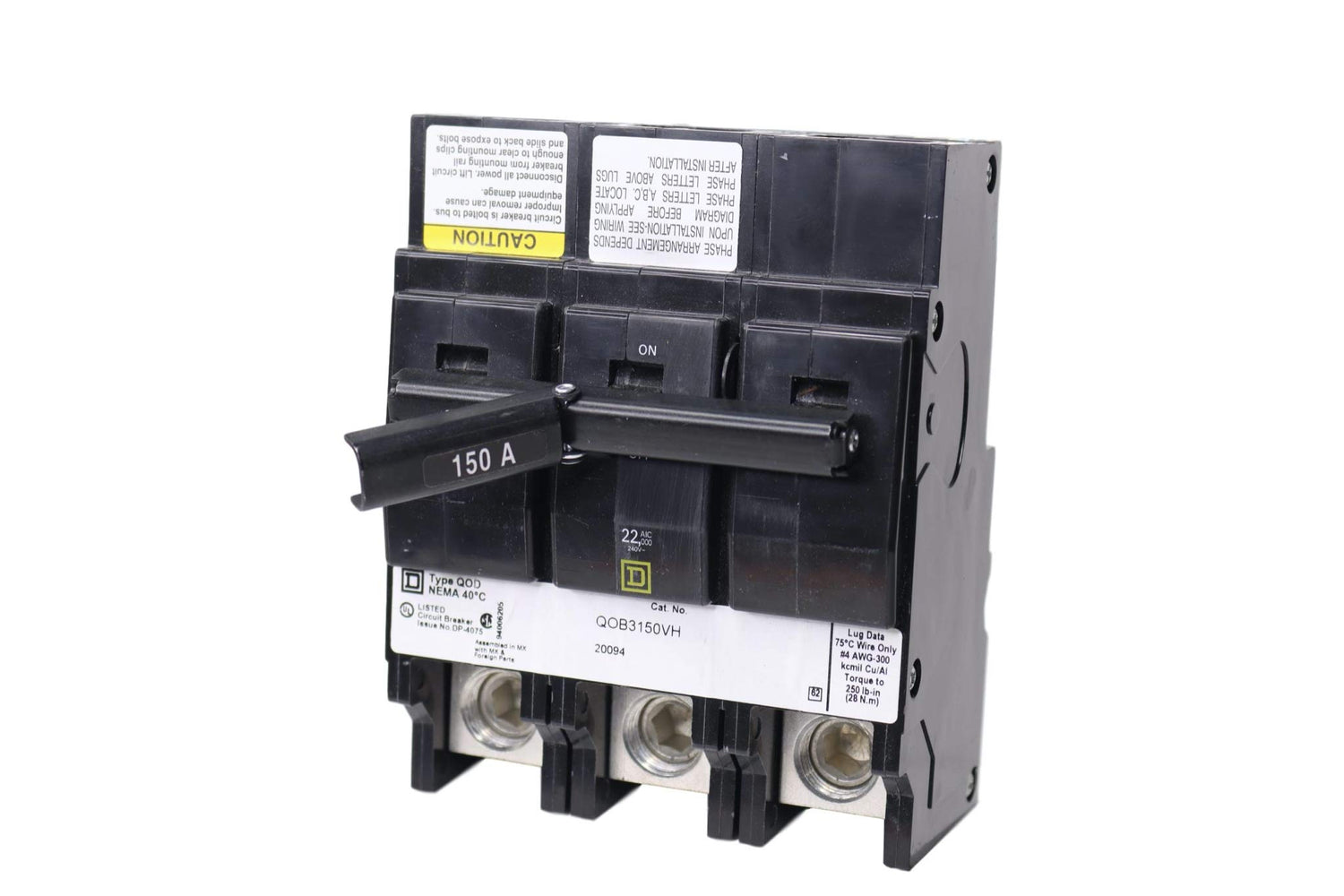

Square D QOB3150VH Circuit Breaker,150A,Bolt On,120/240V,3P
Square D QOB3150VH Circuit Breaker,150A,Bolt On,120/240V,3P
- Hand Chosen Products
- All Items are Highly Rated
- Top Quality is Assured!
Couldn't load pickup availability
Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Brand: Square D
Features:
- Circuit Breaker,150A,Bolt On,120/240V,3P
Details: Miniature Circuit Breaker, Amps 150 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series QO, Phase Three, Series QOB, Max. AIR Rating 22kA at 120/240V AC, For Use With Square D NQOD Panelboards, Terminal Connection Lug, Frame Size 100A/QO, Length 5.72 in, Width 4.5 in, Depth 4.9 in
EAN: 0785901065517
Part Number: QOB3150VH
model number: QOB3150VH
