Steel Dragon Tools MD50 Magnetic Drill Press with 13pc 1in. HSS Annular Cutter Kit

Brand: Steel Dragon Tools

Features:

• Suitable for drilling on any metal surface.
• Rack and pinion gear system for exact drilling depth.

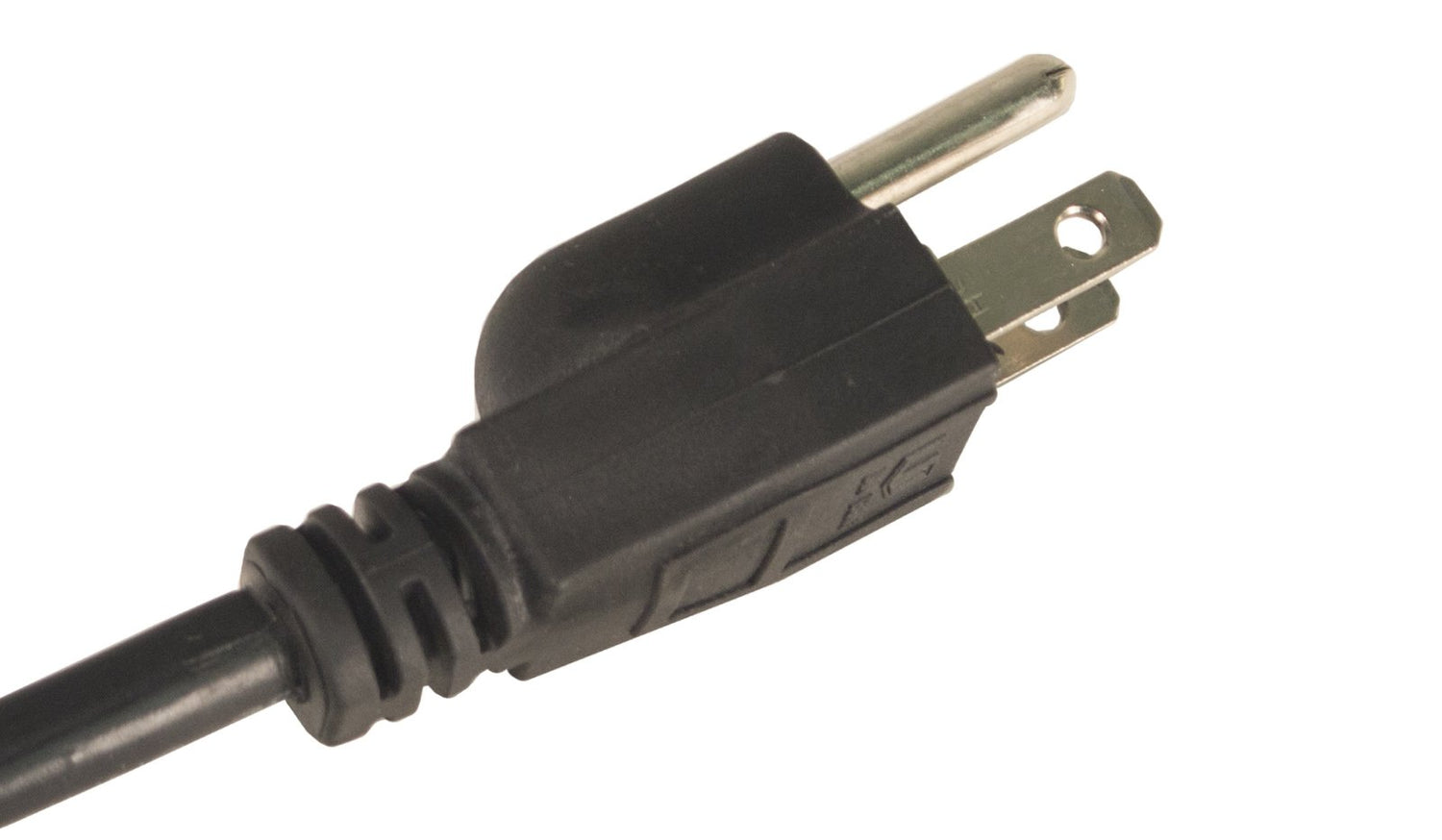

• Motor: High-Speed Series, Induction, 1850 W, 110 V, 60 Hz, 15 A
• Kit includes 11 high speed steel annular cutters and two (2) pilot pins.
• Bits: 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., 3/4 in., 13/16 in., 7/8 in., 15/16 in., 1 in.

model number: 28C

Part Number: SDT-MD-JIC-28C-AC113

Details: Steel Dragon Tools MD50 Magnetic Drill Press with 13pc 1in. HSS Annular Cutter Kit

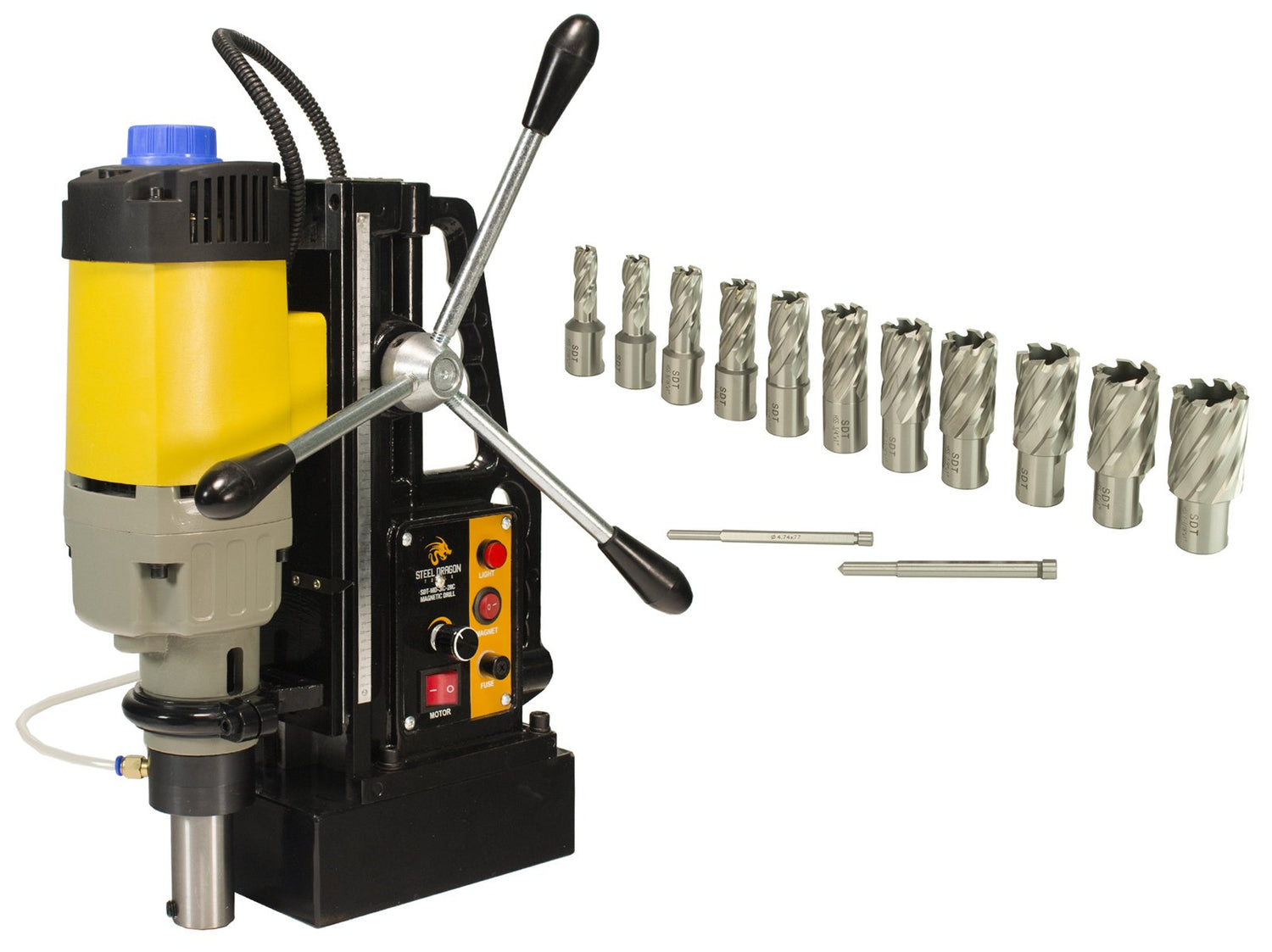

This package includes the Steel Dragon Tools MD50 Magnetic Drill Press and the Steel Dragon Tools 13-piece, 1-inch cut depth high-speed steel annular cutter kit.

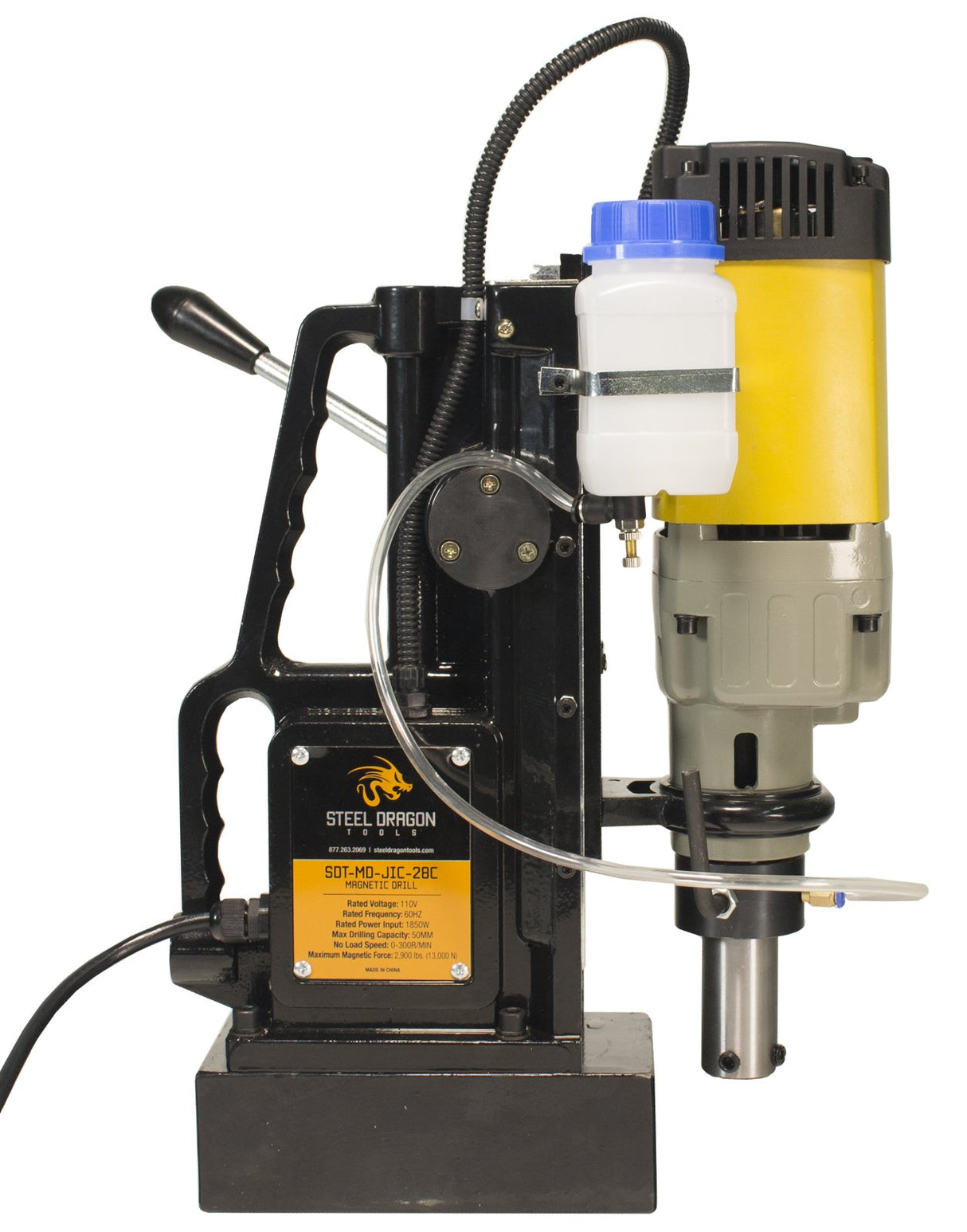

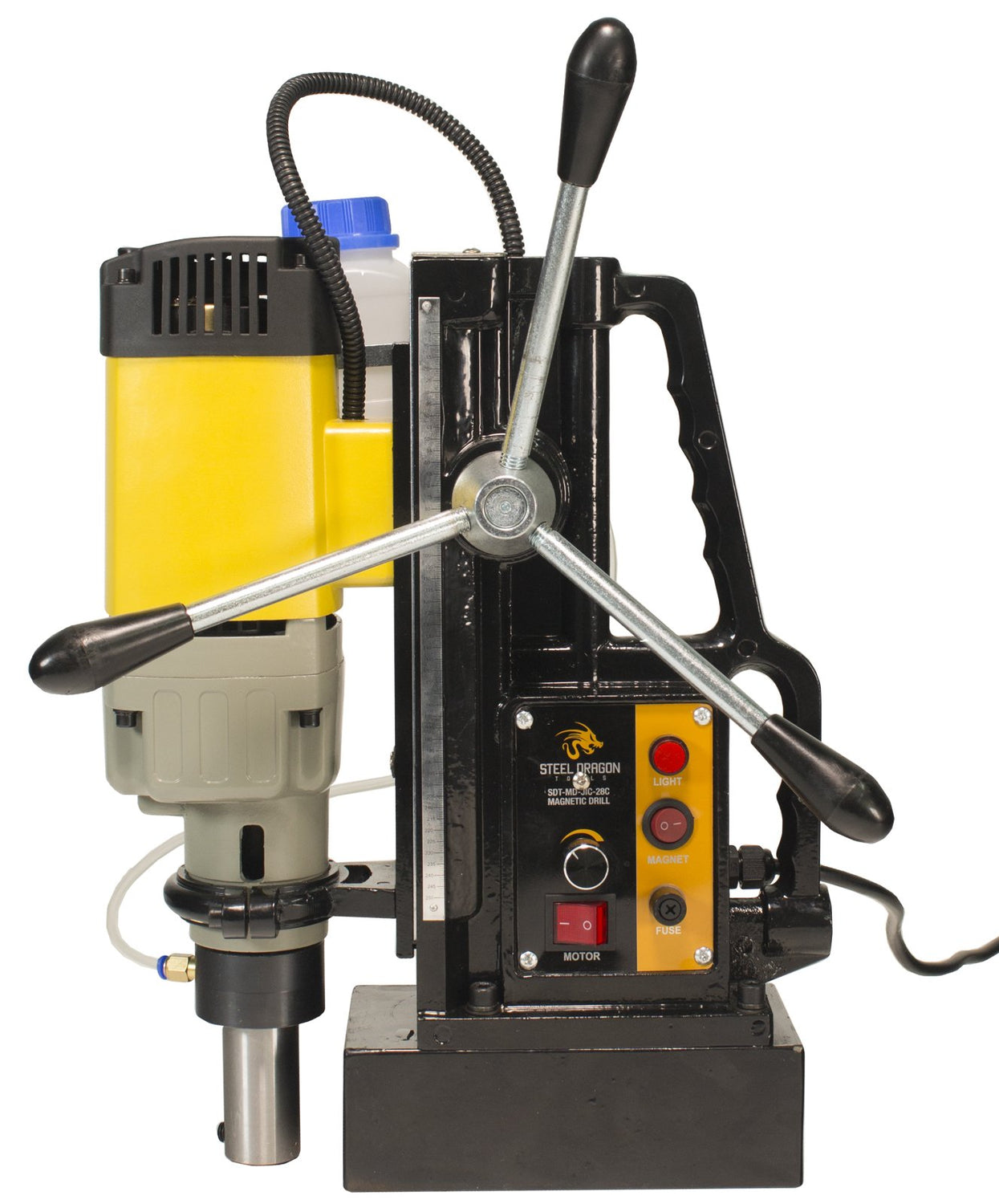

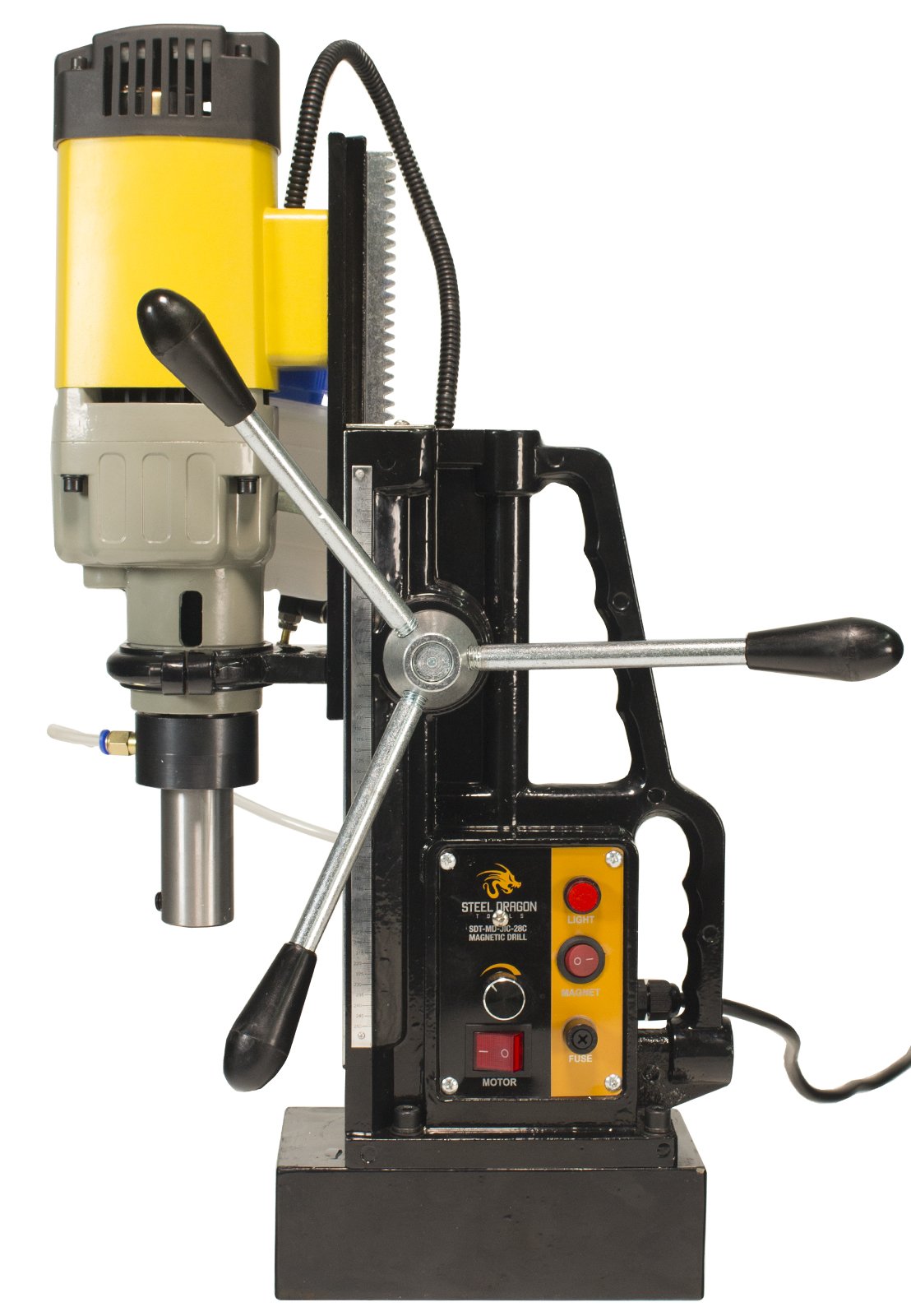

The Steel Dragon Tools MD50 Magnetic Drill Press will accept up to 2-inch, high-speed steel annular cutters with a maximum boring diameter of 2 in. (50 mm). This magnetic drill press will attach directly to the metal drilling surface with a powerful electromagnet. The electromagnet has 2,900 lbs. of max force and ensures the machine will not move during the drilling process.

A secured magnetic drill press provides more leverage than a hand drill, allowing the operator to cut even, consistent holes. The magnet also allows the drill to operate upside down.

A full line of 1-inch and 2-inch HSS annular cutters by Steel Dragon Tools are available.

28C Specifications:

Motor: High-Speed Series, Induction, 1850 W, 110 V, 60 Hz, 15 A

Max Magnetic Force: 2,900 lbs. (13,000 N). Thinner metal will result in less force.

Maximum Boring Diameter: 2 in. (50 mm)

Maximum Boring Depth: 8-1/2 in.

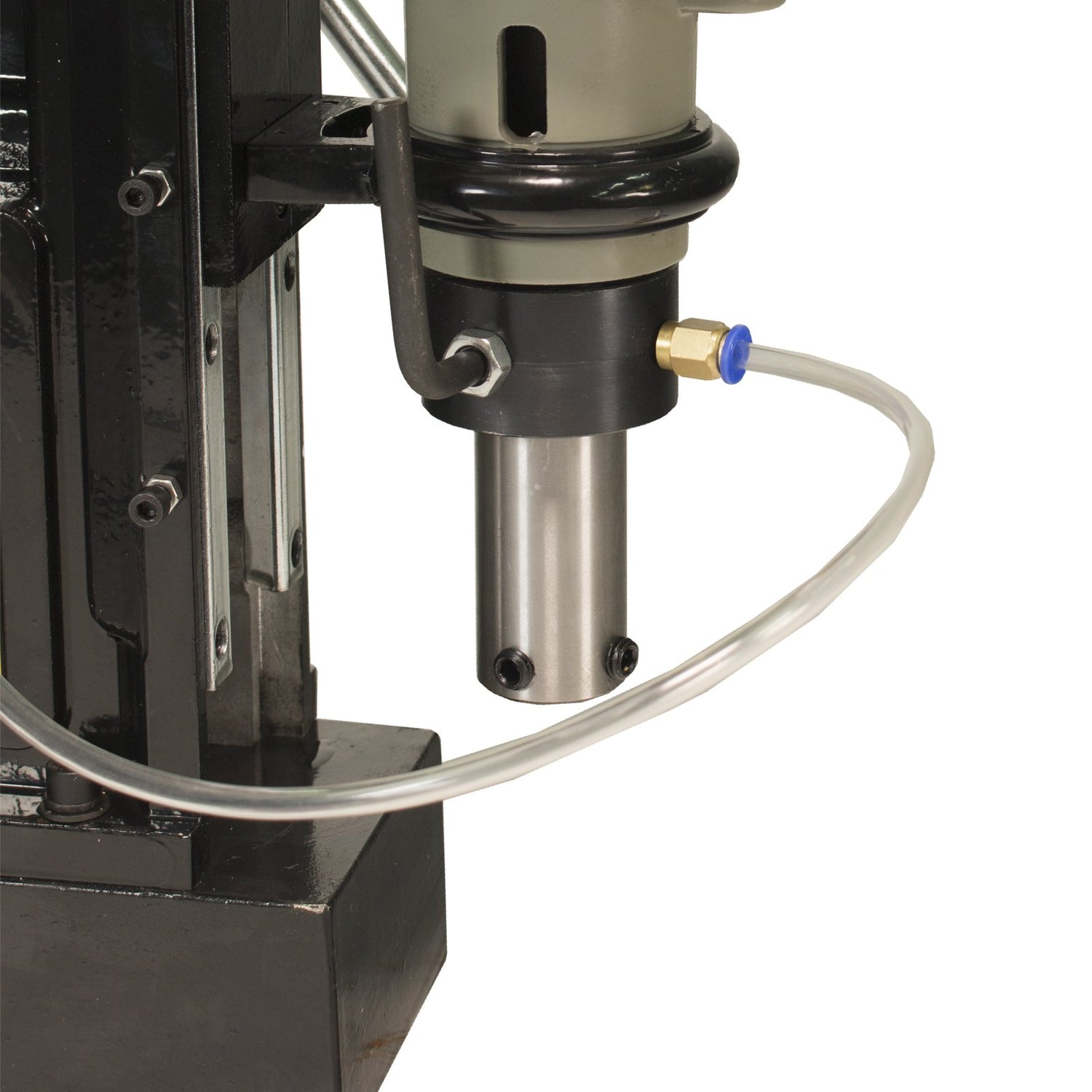

Tool Holder: 3/4-inch Weldon Shank

Spindle Speed: 300 RPM

Overall Weight: 52 lbs.

Annular Cutter Specifications:

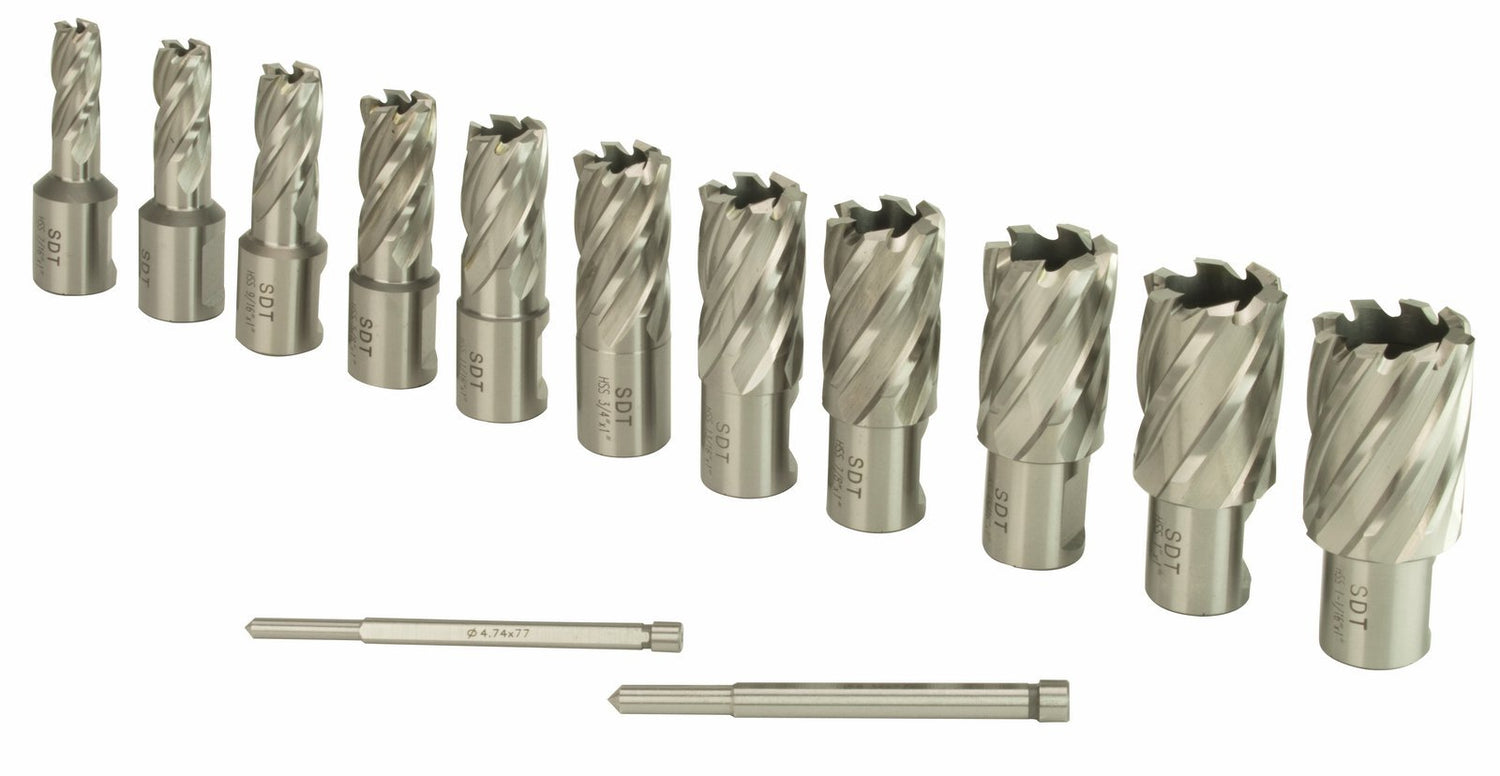

Kit includes 11 high-speed steel annular cutters and two (2) pilot pins.

Bit sizes included: 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., 3/4 in., 13/16 in., 7/8 in., 15/16 in., 1 in., 1-1/16 in.

Cutting Depth: 1 in.

3/4 in. Weldon Shank

EAN: 0817482026813

Package Dimensions: 24.0 x 17.0 x 11.6 inches
