STEPPERONLINE 1 Axis CNC Kit 3Nm(425oz.in) Nema 23 Stepper Motor & Driver CNC Mill Router Lathe Robot
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: STEPPERONLINE
Features:
- 1 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor
- 1 x Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires CNC Stepper Motor
Part Number: 1-DM542T-23HS45

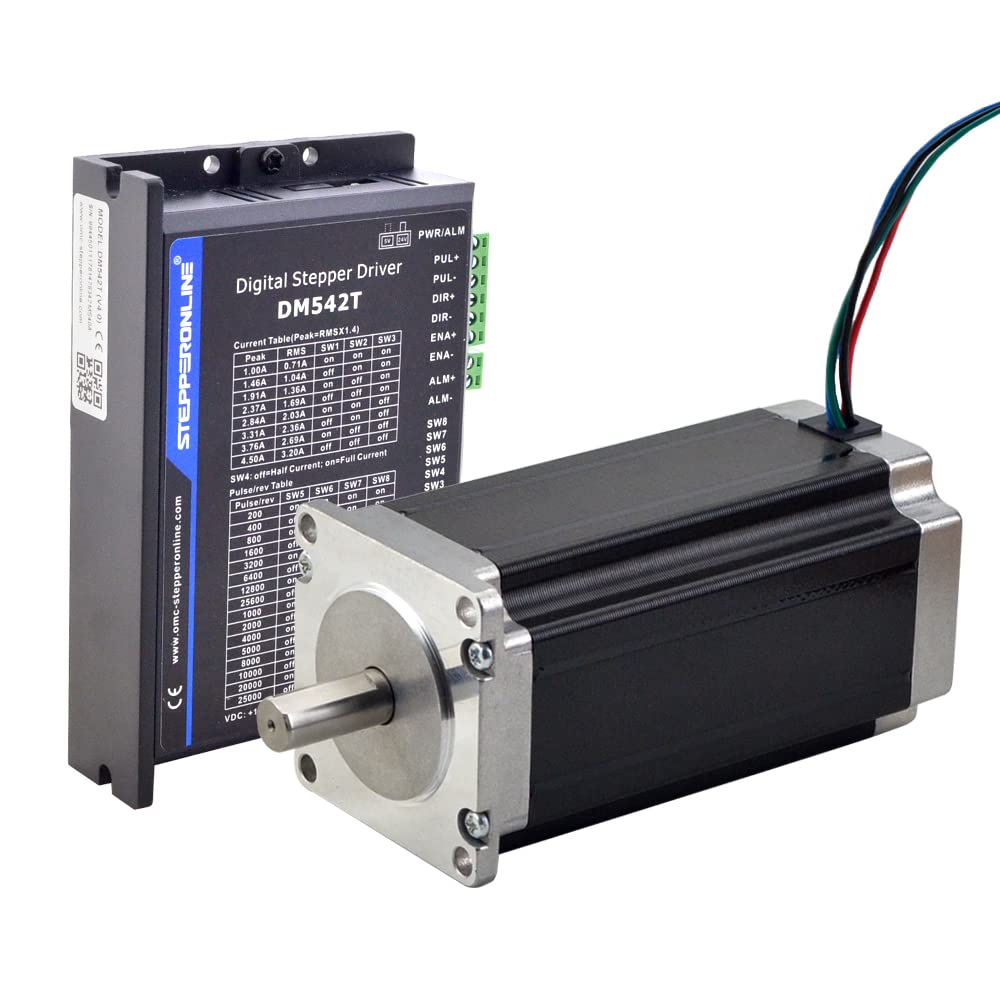

Details: This CNC kit included:
* 1 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor
* 1 x Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires CNC Stepper Motor

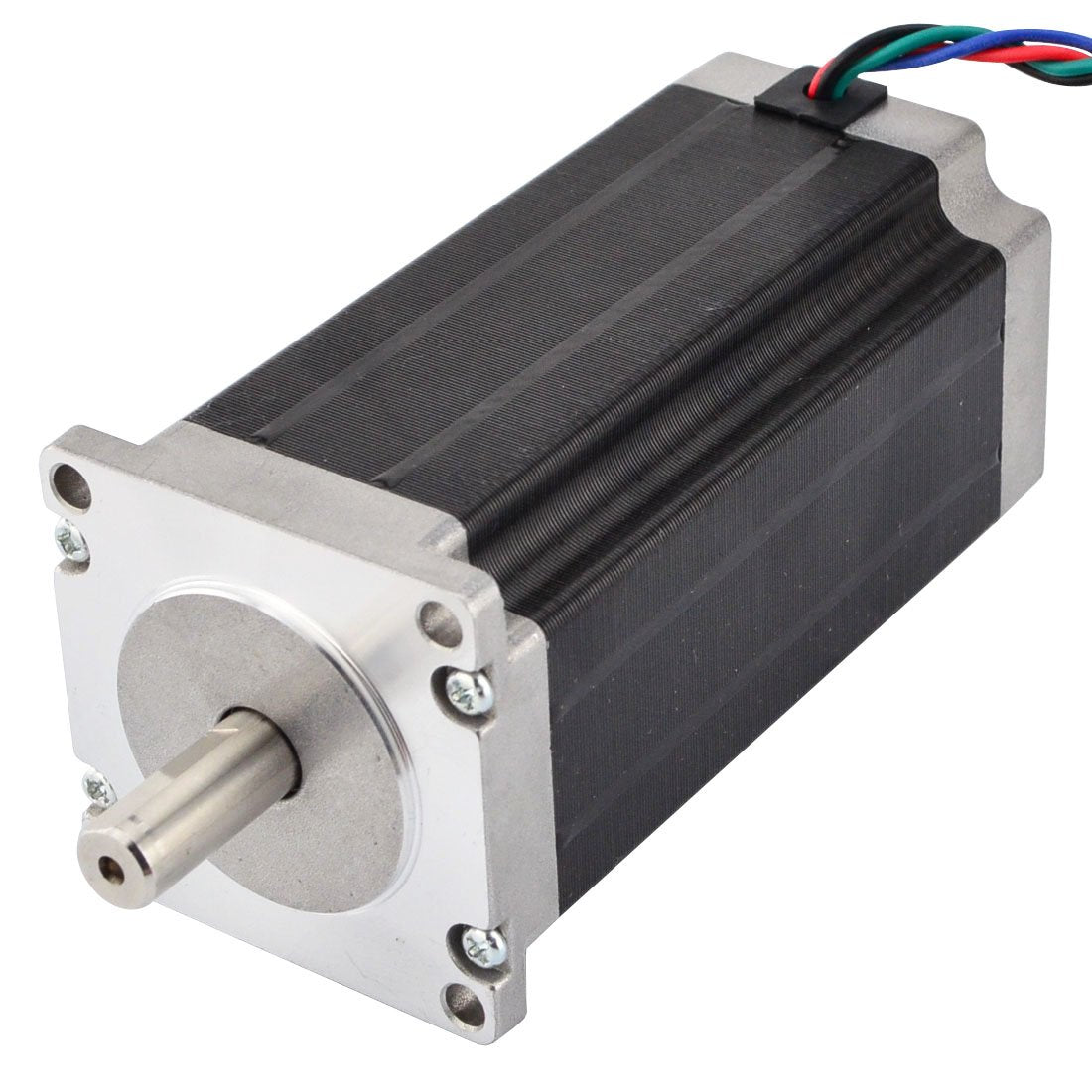

Stepper Motor 23HS45-4204S:
* Manufacturer Part Number: 23HS45-4204S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg
* Holding Torque: 3Nm(425oz.in)
* Rated Current/phase: 4.2A
* Voltage: 3.78V
* Phase Resistance: 0.9ohms
* Inductance: 3.8mH ± 20%(1KHz)
* Frame Size: 57 x 57mm
* Body Length: 113mm
* Shaft Diameter: Φ10mm
* Shaft Length: 24mm
* Number of Leads: 4
* Lead Length: 400mm
* Weight: 1.8kg

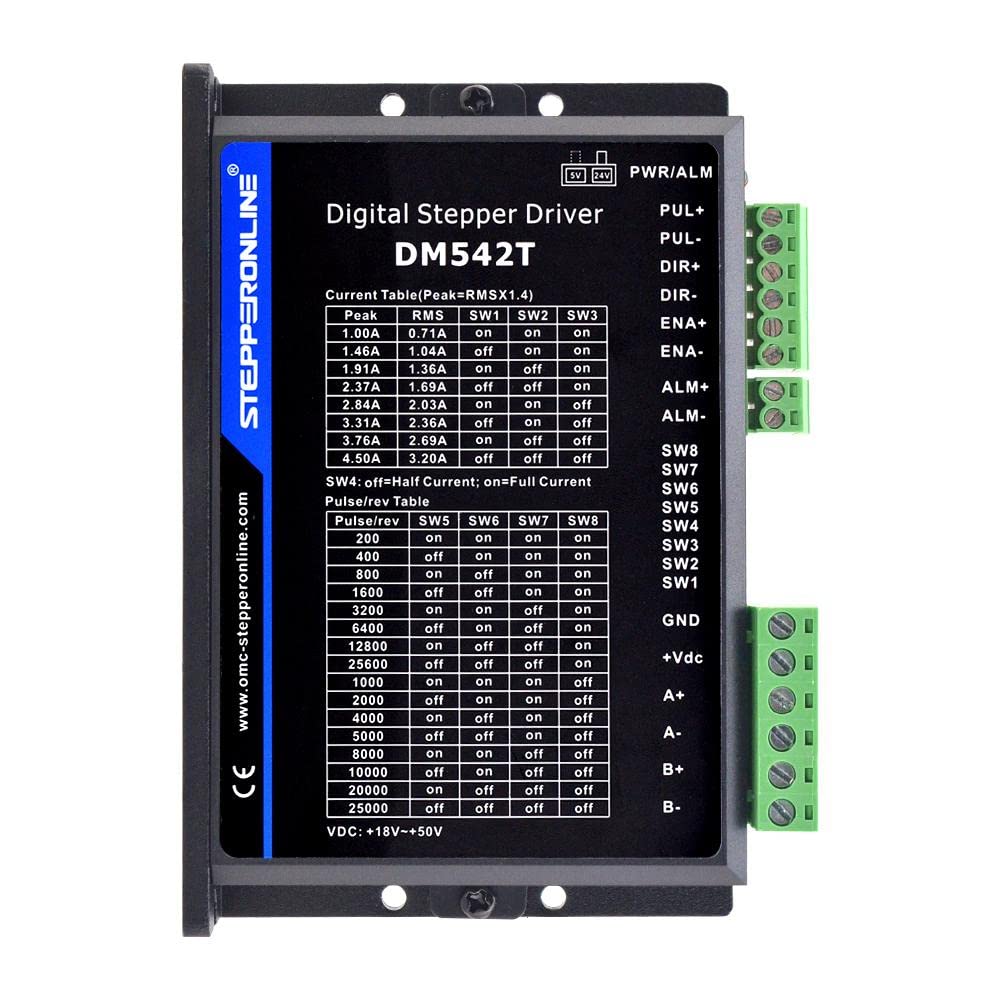

Stepper Driver DM542T:
* Input voltage 20-50VDC
* Anti-Resonance provides optimal torque and nulls mid-range instability
* Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
* Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
* 15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
* Soft-start with no "jump" when powered on
* 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
* Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
* Automatic idle-current reduction
* Suitable for 2-phase and 4-phase motors
* Support PUL/DIR mode
* Over-voltage and over-current protections
EAN: 0712322851917
Package Dimensions: 10.1 x 7.2 x 3.7 inches
