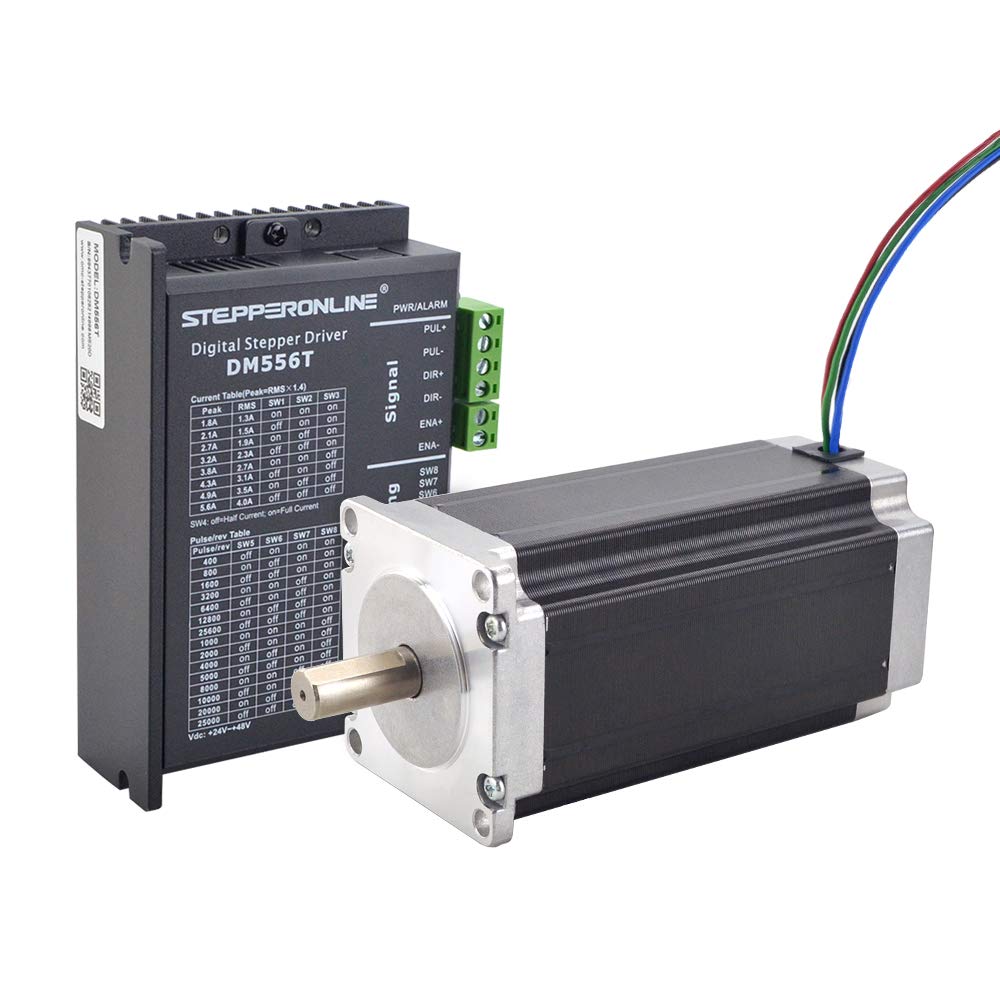

STEPPERONLINE 1 Axis Stepper Motor CNC Kit 3.0 Nm(425oz.in) Nema 23 Stepper Motor & Digital Stepper Driver 1.8-5.6A 20-50VDC
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: STEPPERONLINE
Features:
- This CNC kit included
- 1 x Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires CNC Stepper Motor
- 1x Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
Binding: Unknown Binding
Details: This CNC kit included:
*1x Digital Stepper Driver 1.8~5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
* 1 x Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires CNC Stepper Motor

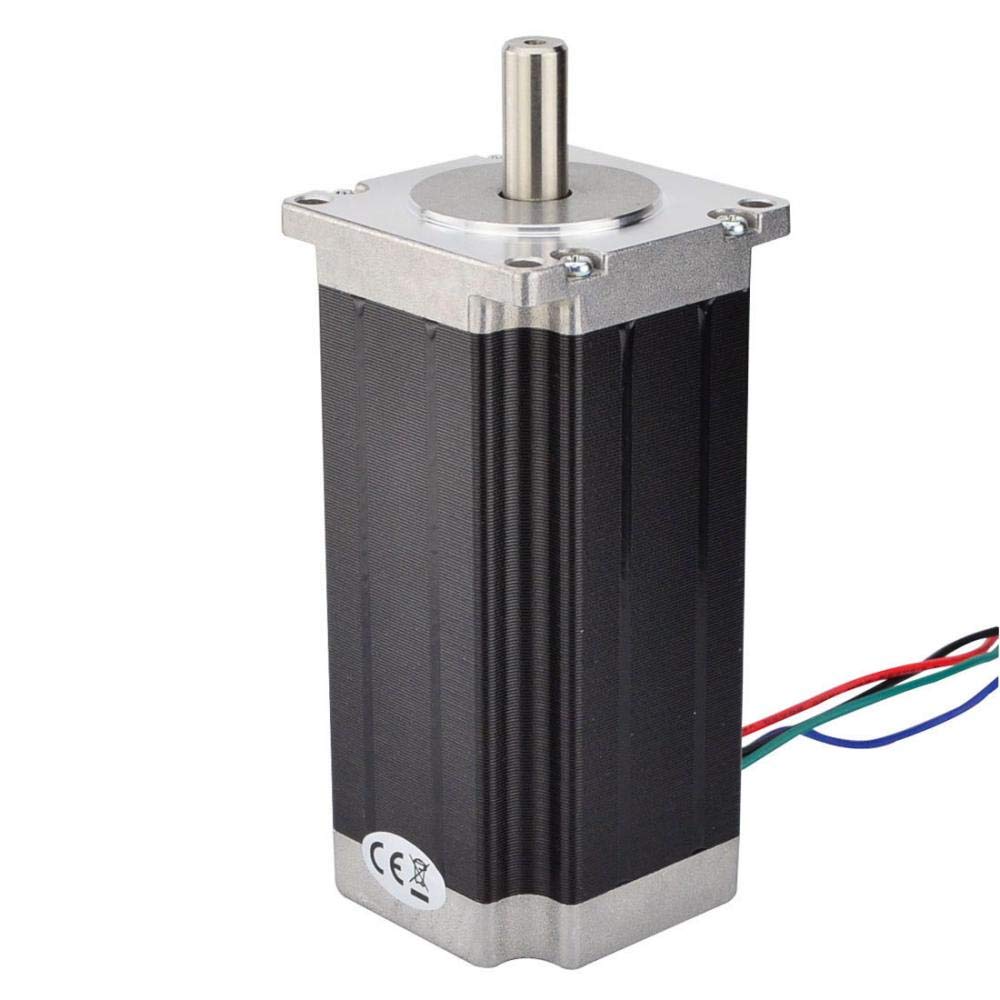

Stepper Motor 23HS45-4204S:
* Manufacturer Part Number: 23HS45-4204S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg
* Holding Torque: 3Nm(425oz.in)
* Rated Current/phase: 4.2A
* Voltage: 3.78V
* Phase Resistance: 0.9ohms
* Inductance: 3.8mH ± 20%(1KHz)
* Frame Size: 57 x 57mm
* Body Length: 113mm
* Shaft Diameter: Φ10mm
* Shaft Length: 24mm
* Number of Leads: 4
* Lead Length: 400mm
* Weight: 1.8kg

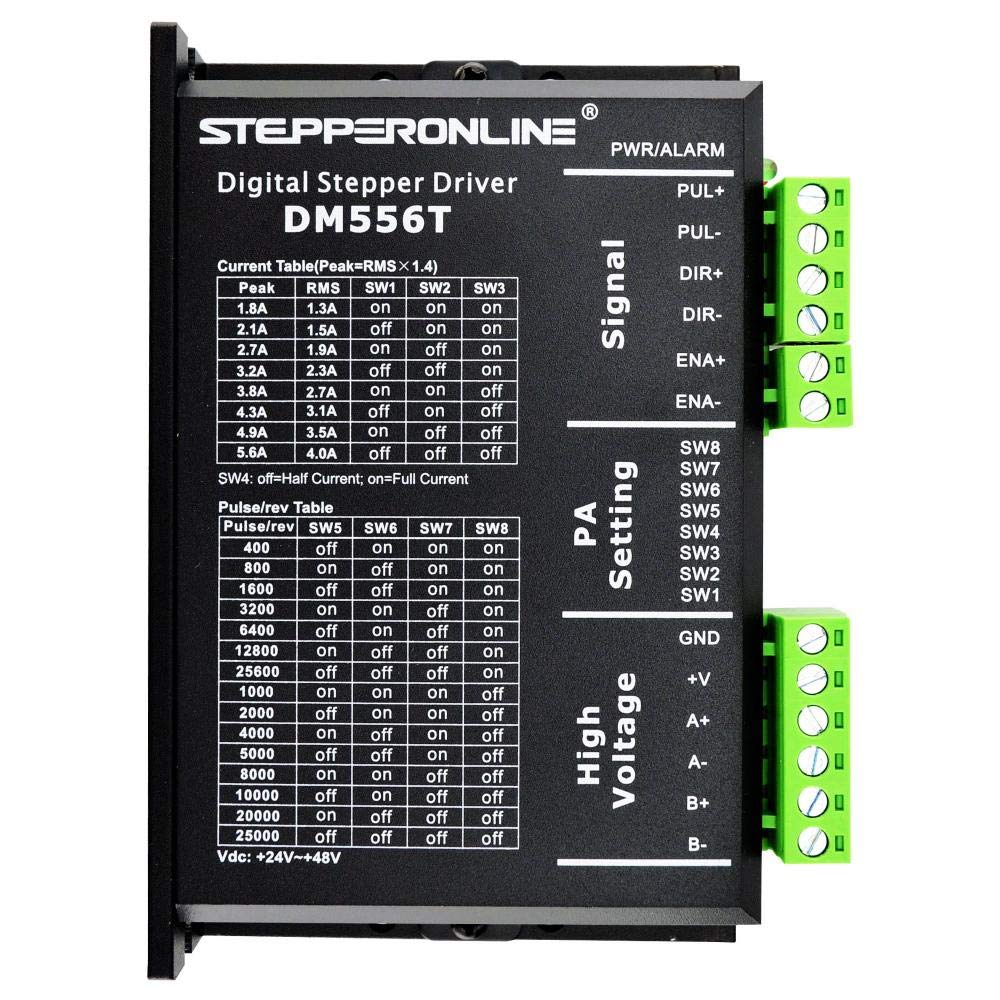

Stepper Driver DM556T:
* Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
* Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
* Step and direction (PUL/DIR) control
* Multi-Stepping for smooth motor movement
* TTL compatible and optically isolated inputsto 5.6A
* Input voltage 20-50VDC
* 16 selectable micro-step resolutions of 400-25,600 via DIP switches
* 8 selectable output current settings of 1.8A to 5.6A via DIP switches
* Soft-start with no "jump" when powered on
* Pulse input frequency up to 200 KHz
* Automatic idle-current reduction
* Protections for over-voltage and over-current
Electrical Specifications:
* Output Peak Current: 1.8~5.6A (4.0 RMS)
* Input Voltage: +20~50VDC (Typical 24-48VDC)
* Logic Signal Current: 7~16mA (Typical 10mA)
* Pulse Input Frequency: 0~200kHz
* Pulse Width: 2.5μS
* Isolation Resistance: 500MΩ
* Weight: Approx.300g (10.6oz)
EAN: 0750226819435
Package Dimensions: 10.0 x 7.2 x 3.7 inches
