STEPPERONLINE Closed Loop Stepper Motor 1 Axis CNC KIT 3.0 Nm/424.92oz.in Nema 24 Stepper Motor & 0-8.0A 24-48VDC Closed Loop Stepper Driver CL57T

Brand: STEPPERONLINE

Features:

• Items in Kit
• 1 x 24HS34-5004D-E1000: 3.0Nm Closed loop stepper motor
• 1 x CL57T: Nema 23/Nema 24 Closed loop stepper motor driver V4.1
• 1 x RS232 Debugging Cable
• 1 x CE2-M2-20: 1.7m motor and encoder extenstion cables
• PLEASE NOTE: The thick black wire can be used for shielding, but it is not required, so you can leave it unconnected
• Suit for 3D printer/CNC machine/Carving Machine/Dispenser/Automation Application
• 100% service satisfactory. We provided this stepper motor kit with 30 days free replacement or refund, 1 year warranty and whole life customer service from the date of purchasing.

Part Number: 1-CL57T-S30-V41

Details: The CL57T in this kit is the latest 4.1 version, which compared to the 4.0 version, opens up the RS232 interface and provides a debugging cable for free, making it more convenient to configure parameters.

Motor Specification

*Part Number: 24HS34-5004D-E1000
*Number of phase: 2
*Holding Torque: 3.0Nm(424.92 oz.in)
*Rated Current/phase: 5.0A
*Phase Resistance: 0.45ohms
*Inductance: 1.8mH ± 20%(1KHz)
*Frame Size: 60 x 60mm
*Body Length: 111mm
*Shaft Diameter: Φ10mm
*Shaft Length: 21mm
*D-Cut Shaft Length: 15mm
*Lead Length: 300mm

Encoder Specification

*Output Circuit Type: Differential type
*Encoder Type: Optical Incremental
*Encoder Resolution: 1000PPR(4000CPR)
*Output Signal Channels: 2 channels
*Supply Voltage Min: 4V
*Supply Voltage Max: 5V
*Output Current: 100mA
*Output High Voltage: 5V
*Output Low Voltage: 4.5V
*Output Frequency Max: 60kHZ

Driver Specification

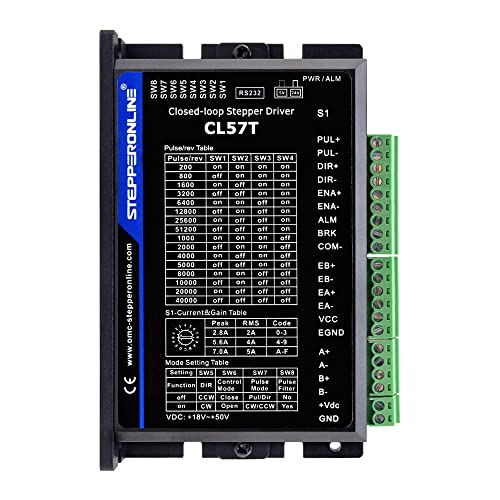

*Part Number: CL57T
*Output Peak Current: 0~8A
*Input Voltage: +24~48VDC (Typical 36VDC)
*Logic Signal Current: 7~16mA (Typical 10mA)
*Pulse Input Frequency: 0~200kHz
*Pulse Width: 2.5μS
*RS232 debugging interface available
*Broader operating speed range
*Reduced motor heating and more efficient
*Smooth motion and super-low motor noise
*Protections for over-voltage, over-current and position following error

Package Dimensions: 10.2 x 7.0 x 5.5 inches
