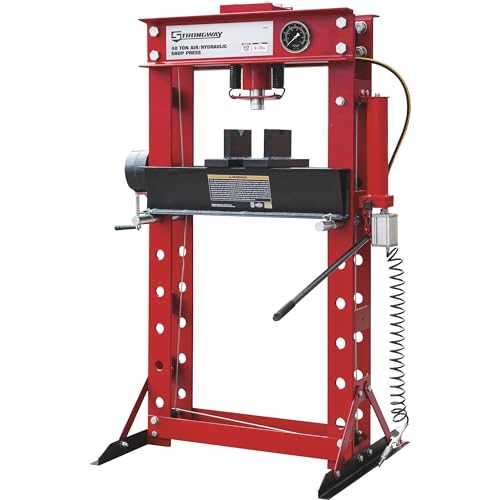

Strongway 40-Ton Pneumatic Shop Press with Gauge and Winch

Author: Strongway

Brand: Strongway

Features:

• Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability
• Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
• Paint is oil, grease and dirt-resistant for easy cleanup

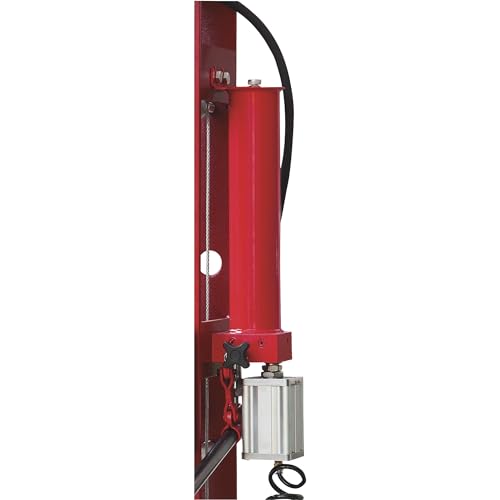

• High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
• Piston-ram is treated and polished to resist skiving

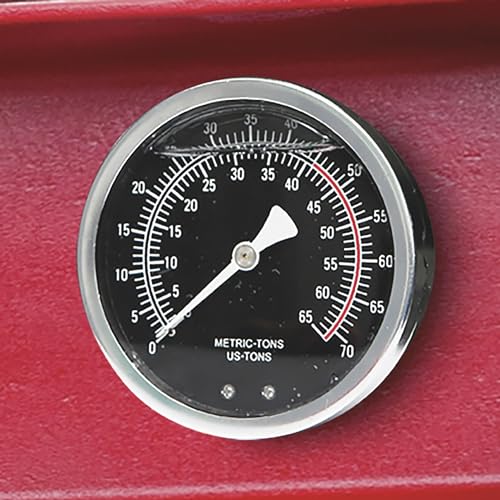

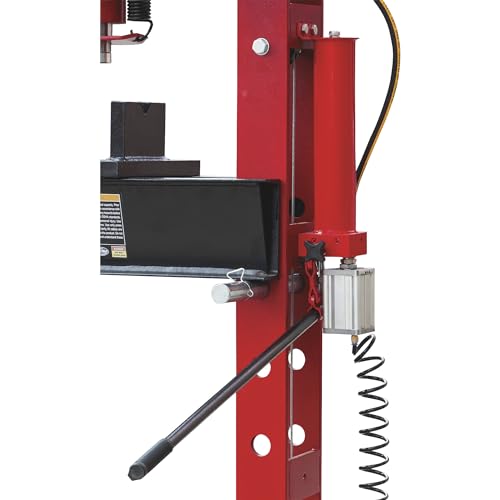

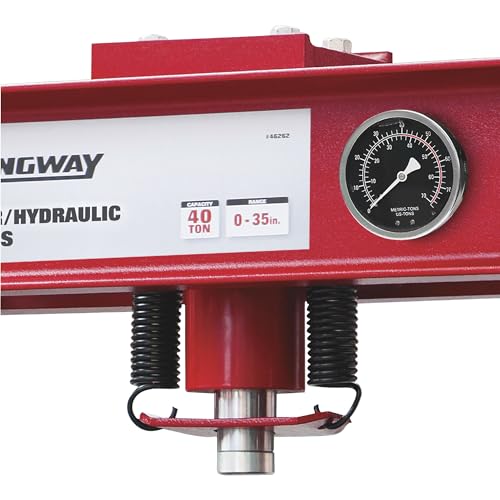

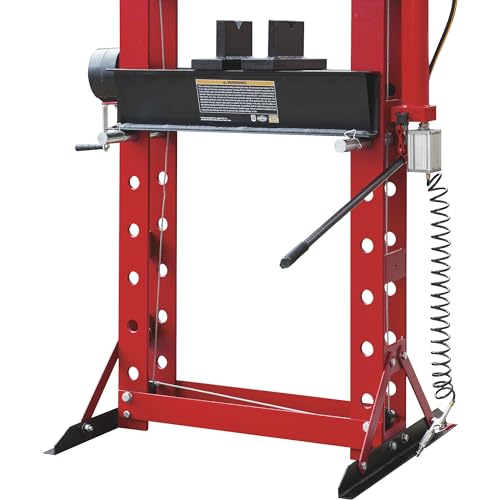

Details: This 40-Ton Capacity Strongway Air/Hydraulic Shop Press is great for straightening, stamping, bending and pressing any component that is hard to handle. Polished inner cylinder walls extend the life of the hydraulic seals to minimize abrasion and wear, while the cylinder ram and pistons are also polished and chromed, guided by high performance seals, wear rings and dust seals. Includes a dial gauge for dual metric/tons pressure readings. Equipped with a hand winch for easy adjustment of press bed height. Adjustable lower bolster. Some assembly required. Meets ASME ASP 2010 safety standards. Dimensions L x W x H (in.): 26 3/4 x 33 1/2 x 75, Inside Bed Dimensions L x W (in.): 27 1/8 x 6 7/8, Max. PSI: 120, Winch Included: Yes, Foot Switch Included: No, Continuous Force (Tons): 40, Working Range (in.): 0-35, Air Inlet Size (in. NPT): 1/4, Stroke Length (in.): 6 7/8, Working Pressure (PSI): 80-120

Part Number: 3077126

model number: NTRD54003
