TECHTONGDA Hinge Boring Drill Press Machine Woodworking Wood Hole Puncher Cutter Adjustable Drilling Depth 3Z-45-9.5

Brand: TECHTONGDA

Color: Onecolor

Features:

• 【Application】This is a Hinge Boring Machine. Three holes in the vertical position can be processed at one time, including one big hole for hinge head hole and two for assembly screw hole.

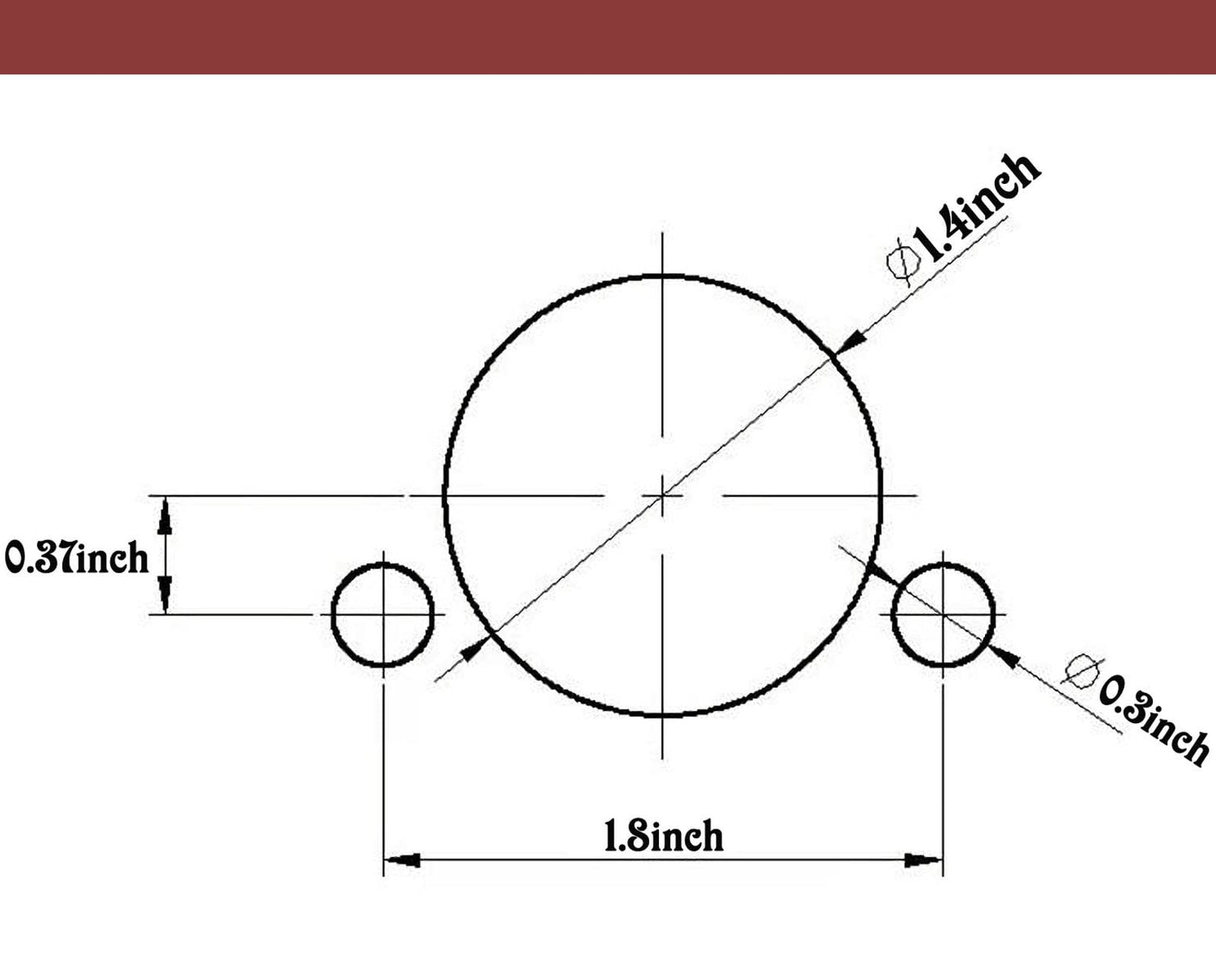

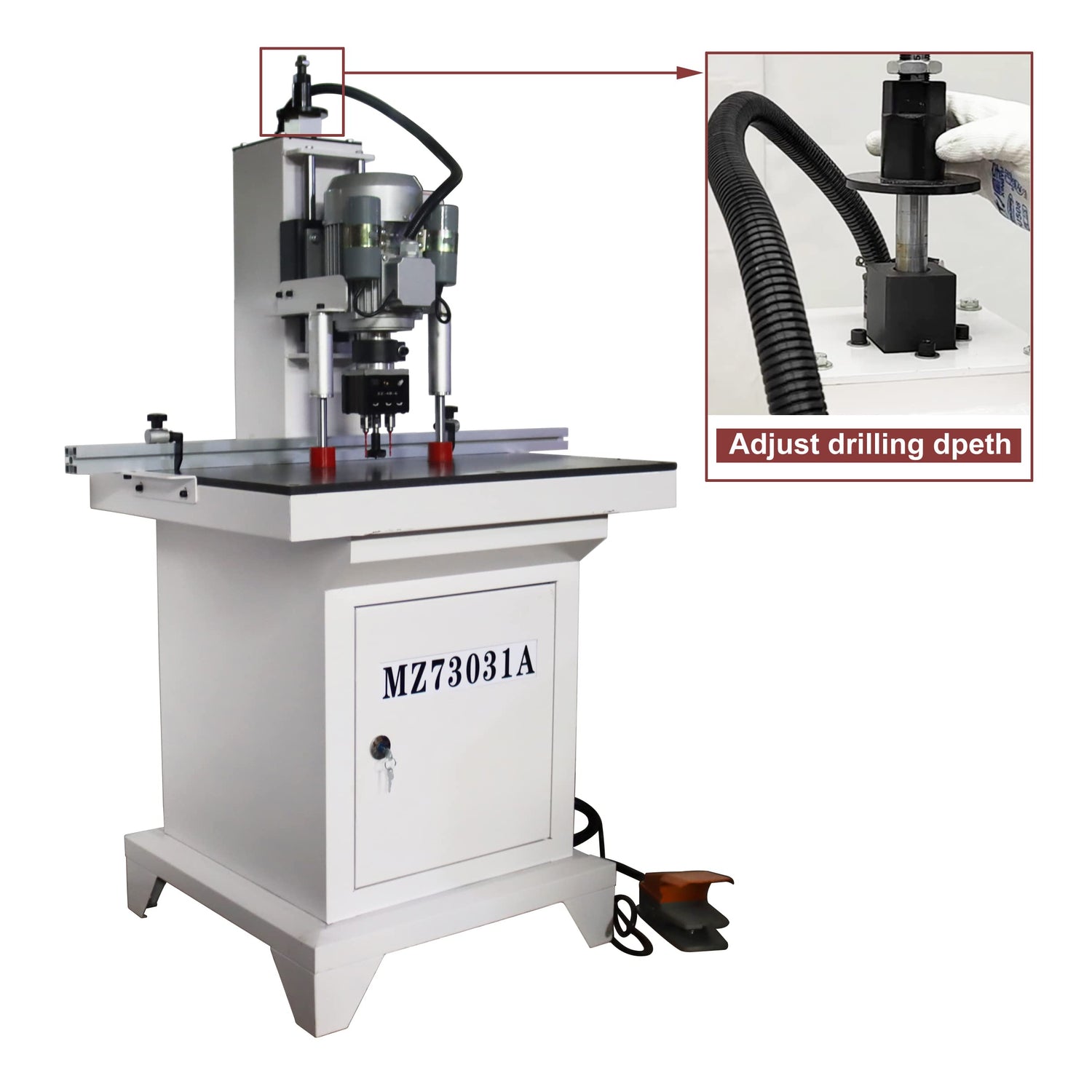

• 【Parameters】The distance between the centers of the two small holes is 1.8inch(45mm). The dia of the big hole is 1.4inch(35mm). The dia of the small hole is 0.3inch(8mm).The depth of the hole is adjustable and the max. depth of hole is 2inch(50mm). The drilling sets can be replaced for holes of other sizes.

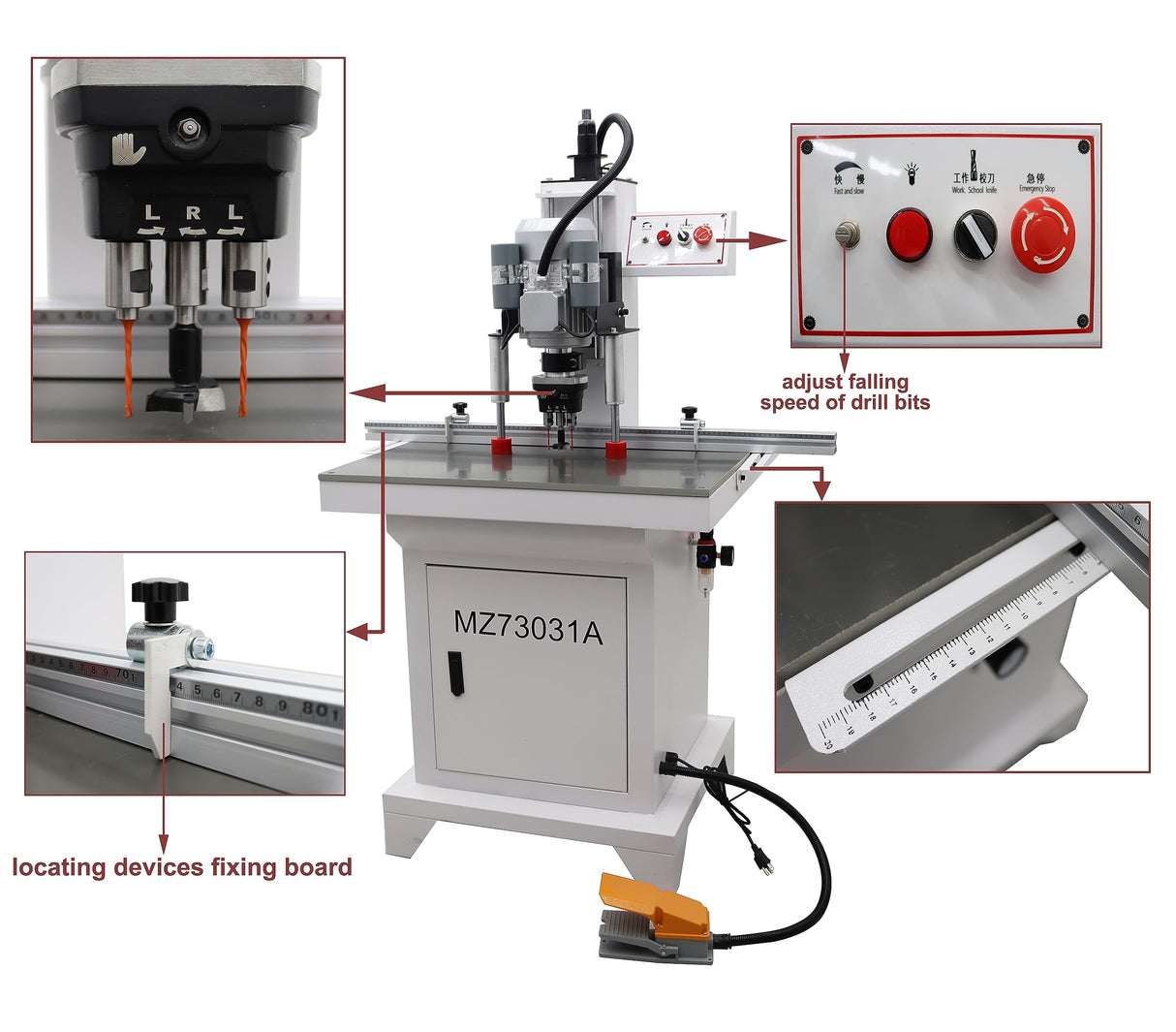

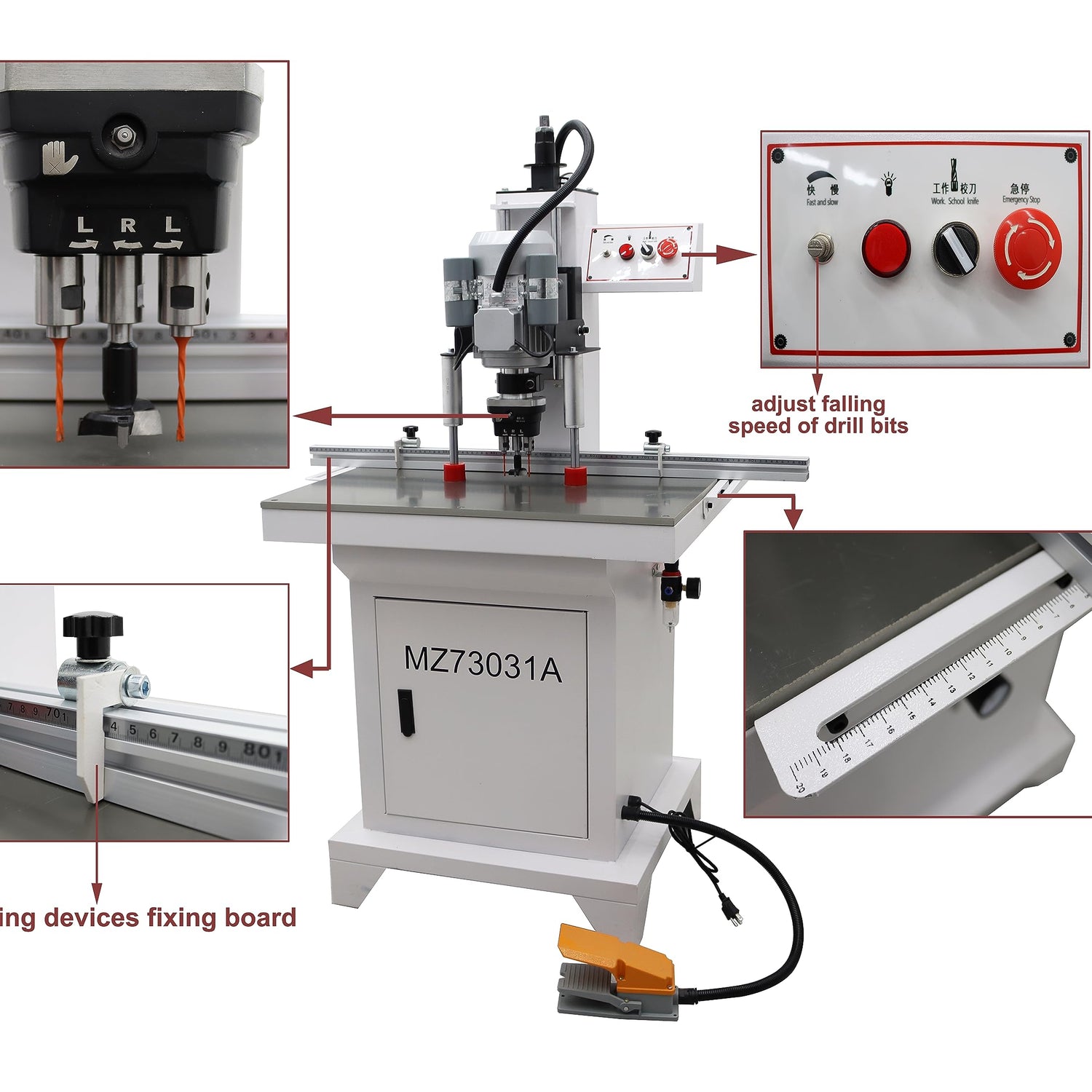

• 【Special Design】1.5KW copper motor with rotating speed of 2880RPM, which will be powerful and durable. Simple control panel for easy operation. With emergency stop switch for safety.
• 【Precise and Stable】Ruler is equipped on the working table so that the drilling can be presice and convenient.There are also 2 locating devices on the ruler for fixing the board when drilling for stability. With 2 spring-loaded rubber feet to press the board firmly when drilling.
• 【Easy Operation】This machine need electric source and air source. A foot pedal is equipped for easy control. The thickened enlarged base make the machine stable in operation.

Part Number: L027304

Details: Parameter Maximum drilling diameter: 1.4inch(35mm) Dia of the small hole:0.3inch(8mm) Maximum depth of hole: 2inch(50mm) Maximum work piece length: 39inch(1000mm) Speed of main shaft: 2880R/min Air pressure: 0.6-0.8MPA Power Supply: AC110V Motor power: 1.1KW Item Number 027304

EAN: 0785869940918
