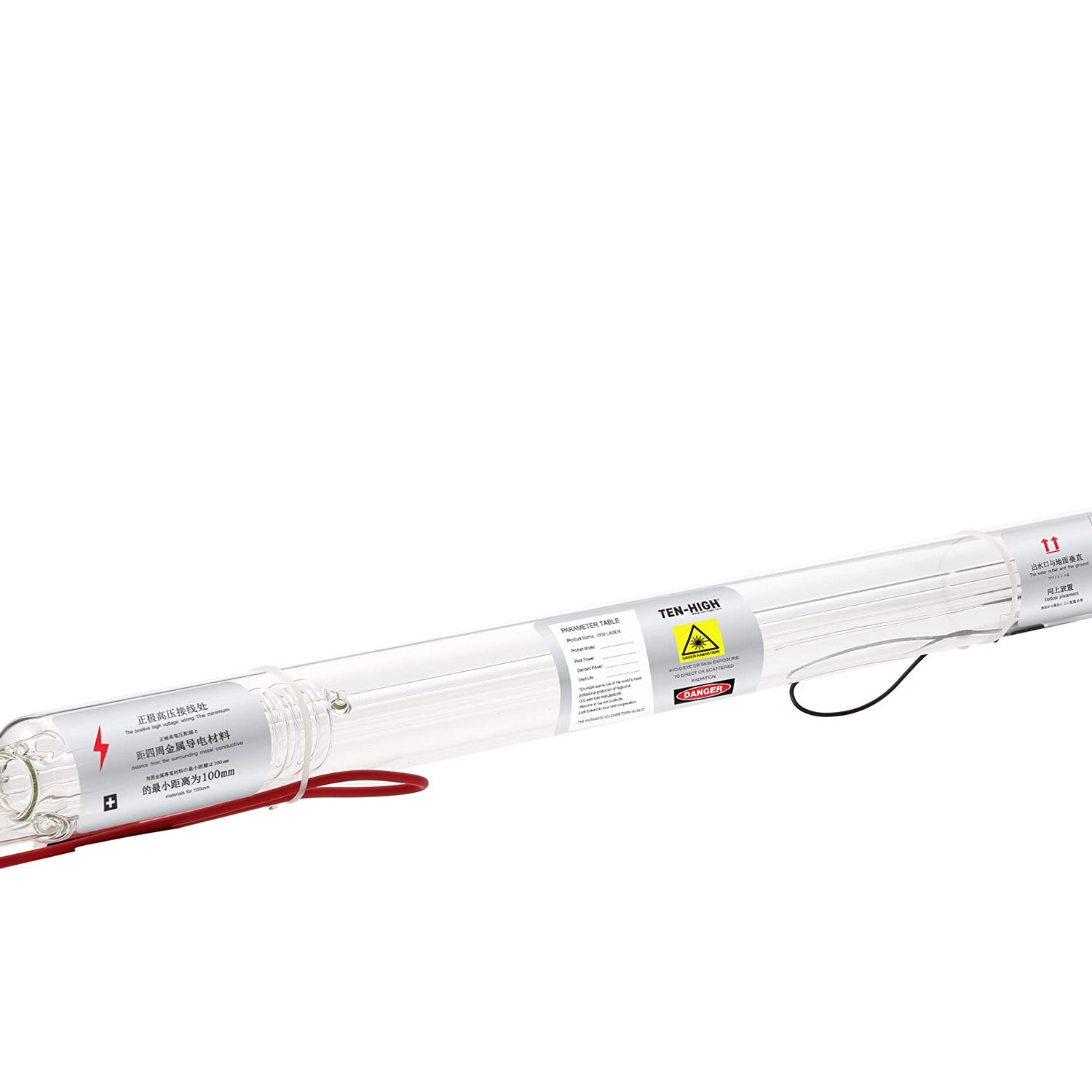

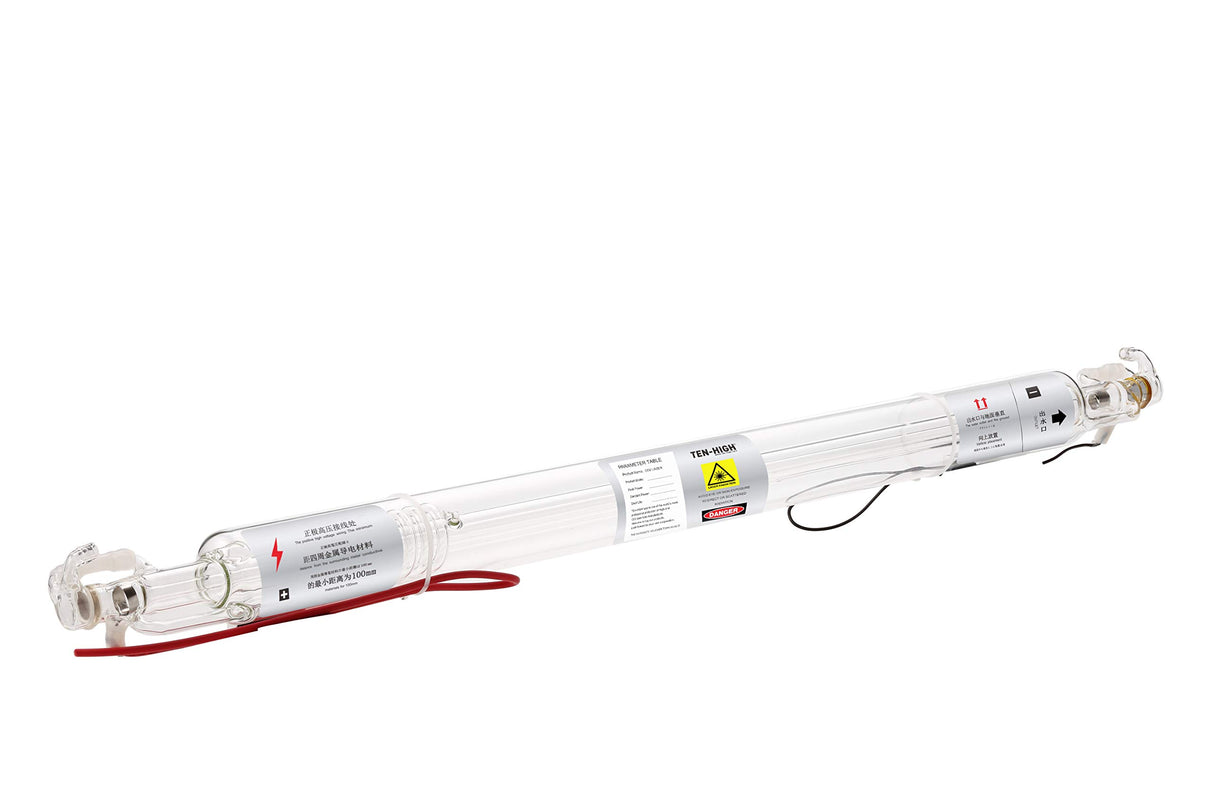

TEN-HIGH 50W CO2 Laser Tube 800mm D50mm, Wires Preconnected with Coating, for Laser Cutter Laser Engraving Cutting Machine
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: TEN-HIGH
Features:
- ★ Power: 50W; Length: 800mm; Diameter: 50mm; Item includes: 1 x tube.

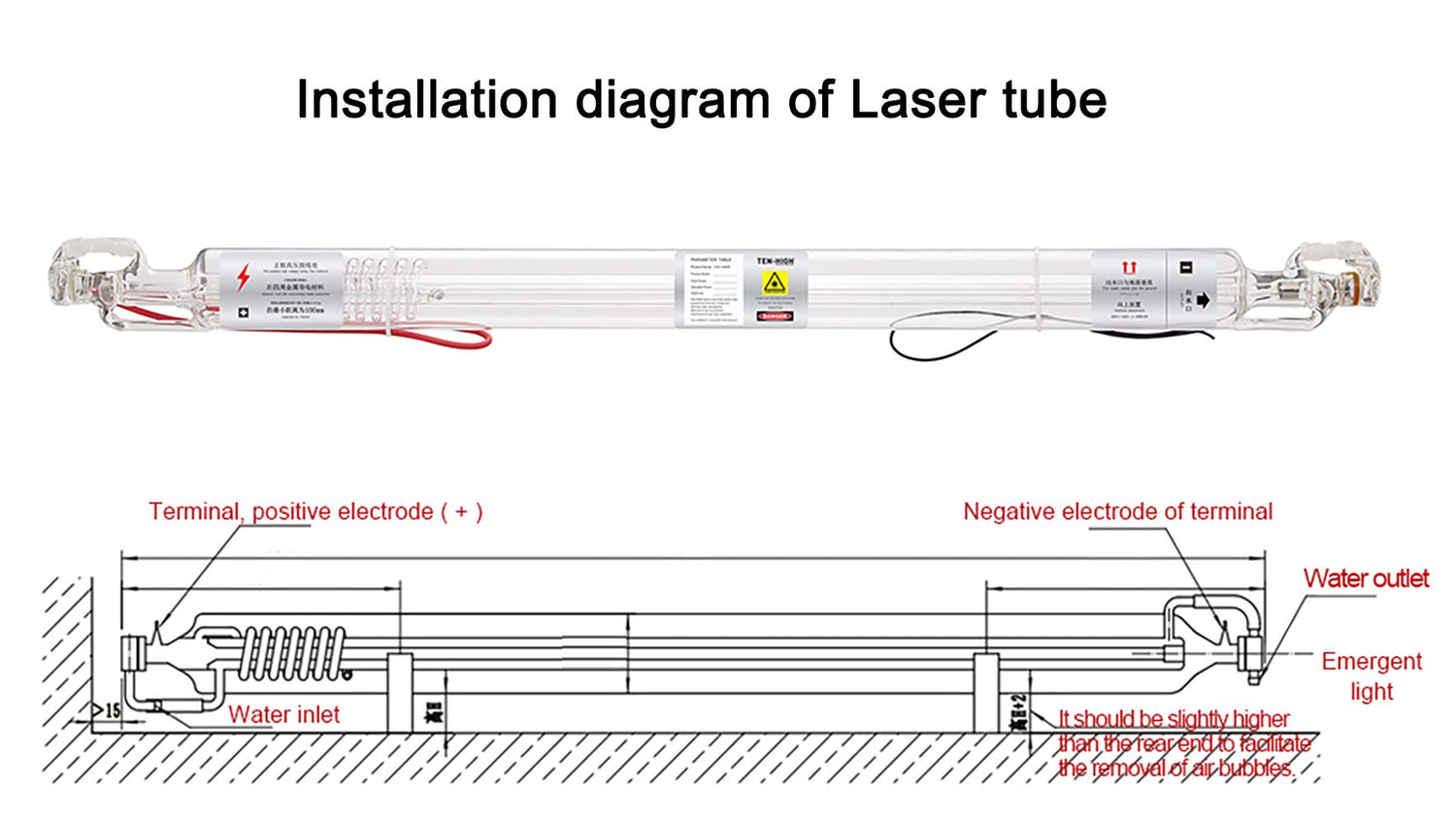

- 【Wires Pre-Connected】For easy installation, the high voltage end and low voltage port have been connected in advance. If any support needed when installing, feel free to contact us.
- 【Quality Assurance】Each tube is tested before shipping and we will provide a safe packaging. If any problem after receives the tube, do let us know. We are willing to provide the best services and will provide 3 months warranty (except man-made damage).
- 【Advantages】All of our tubes are coated with nano gold catalyst, compared to non-coating one, its power increase about 7-20W. Uses TEMOO mode for output, high spot concentration, higher energy and more stable power. Apply unique glass metal sealing technology, and ensure a longer service life.
- 【Application】This CO2 laser tube is mainly used for laser cutter or laser engraving machine, which can carve and cut acrylic, cloth, leather, bamboo, wood, engraving, etc.
Binding: Office Product
model number: TH-50WCO2LT800-N
Part Number: TH-50WCO2LT800-N
Details: Notice:1.Here is the laser engraver with this laser tube for your reference:https://www.amazon.com/dp/B01D2PJ4VUhttps://www.amazon.com/dp/B00BKWP5X4 2.To purchase a laser tube,please confirm your machine's installation space,like the diameter and length,all should be a little bigger than laser tube's size Introduction

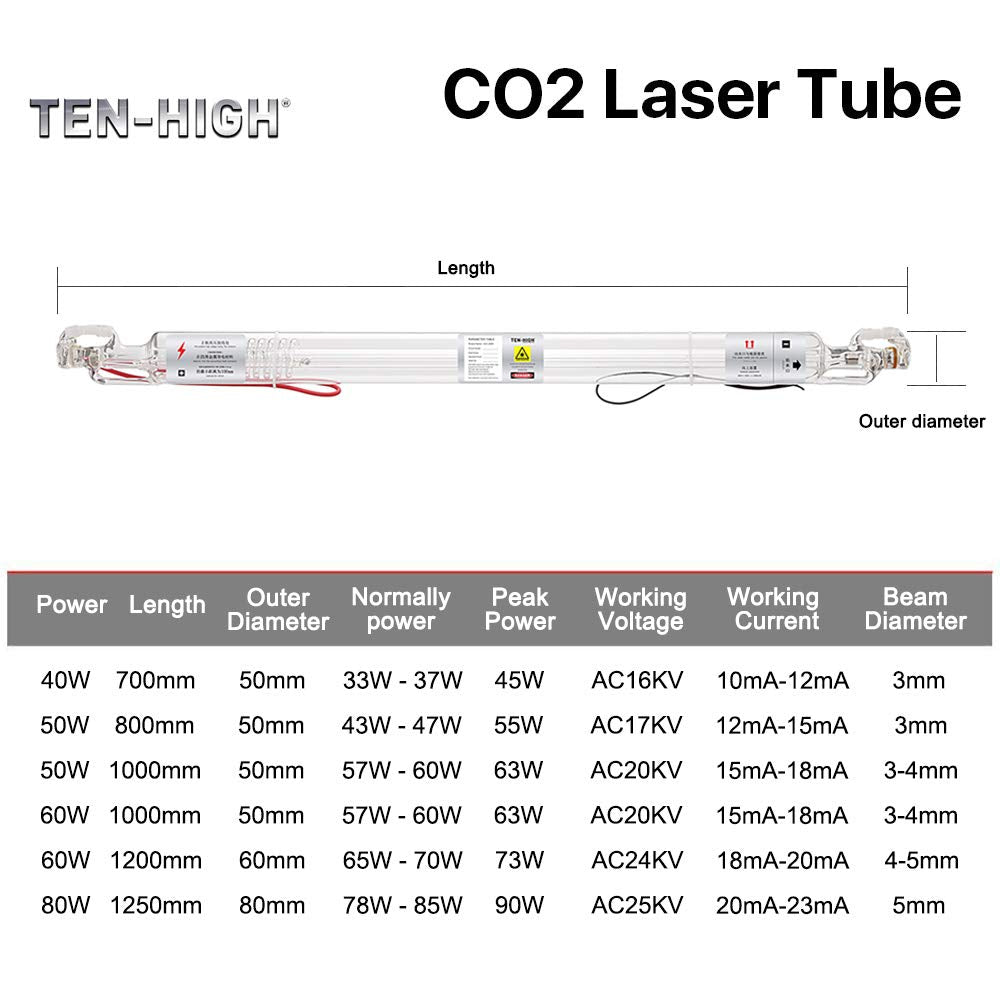

Model:CO2-TUBE-50W-80CM
Output Power:50W
Wavelength:10600nm
Working Voltage:15KV (Trigging Voltage=22KV)
Working Current:18mA
Divergence:1.95(beam diameter)
Dimensions:Length 800mm
Input voltage: AC 220V+30 or AC 110V+20 (to be specified when placing order).
Maximum output voltage:DC25KV (40W;50W) / DC28KV (60W) / DC35KV (80W)
Maximum output current: DC20mA (40W;50W)/ DC23mA (60W) / DC28mA (80W)
Isolation Withstand voltage: Input-output, input-enclosure: AC2000V- 10mA-60s; negative pole of output connected to enclosure.
Protection: with well-grounded enclosure, output circuit of power supply can be open for short time (but arc between positive pole and enclosure should be avoided).
Response time (from time of input being available to the output current being up to nominal value)<1ms
TTL voltage level control: effective voltage level can be high or low through setting.
Protection switch: for detection of cooling water, to protect laser device; or activate with enclosure is opened.
Laser power adjustment: (1) by adjusting the output current of power supply through resistor; (2) through PWM control (magnitude being TTL voltage level).
Environmental requirements: temperature (-10 to 40 centidegree), relative humidity<85%.
Package Dimensions: 35.5 x 6.0 x 6.0 inches
