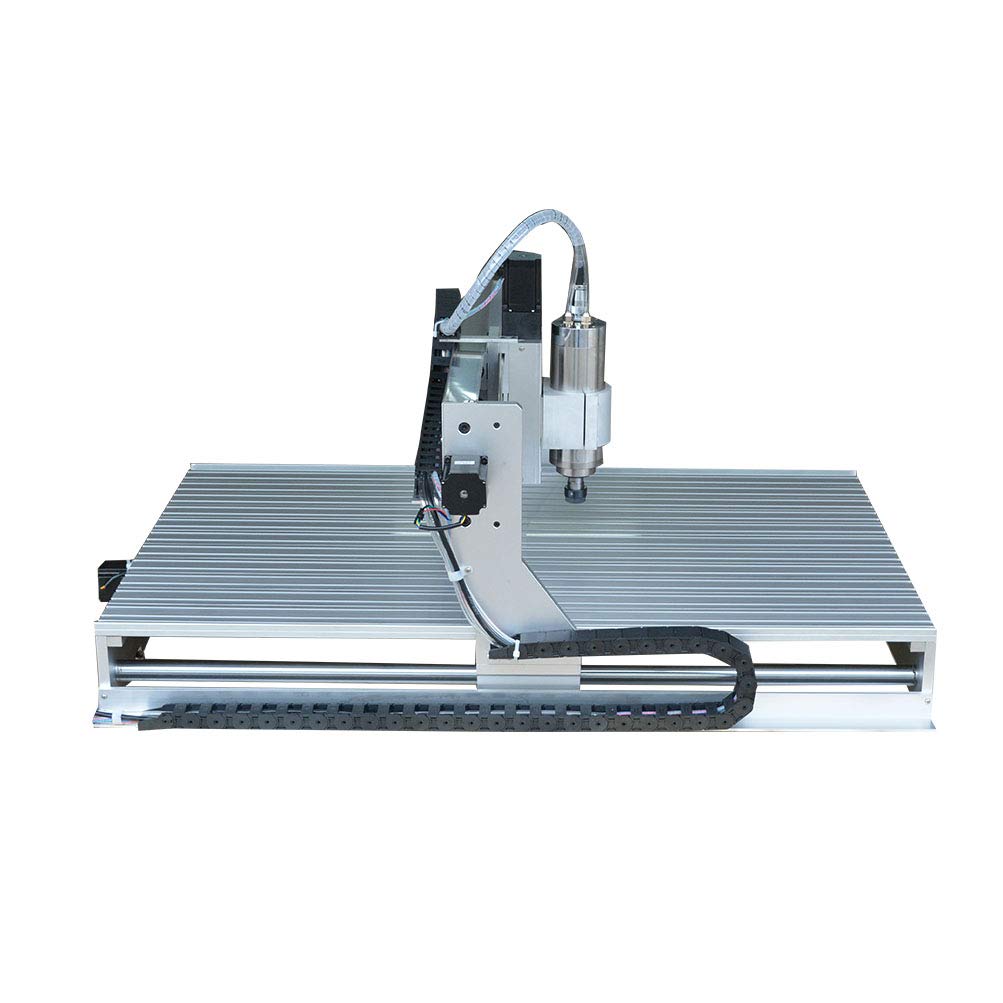

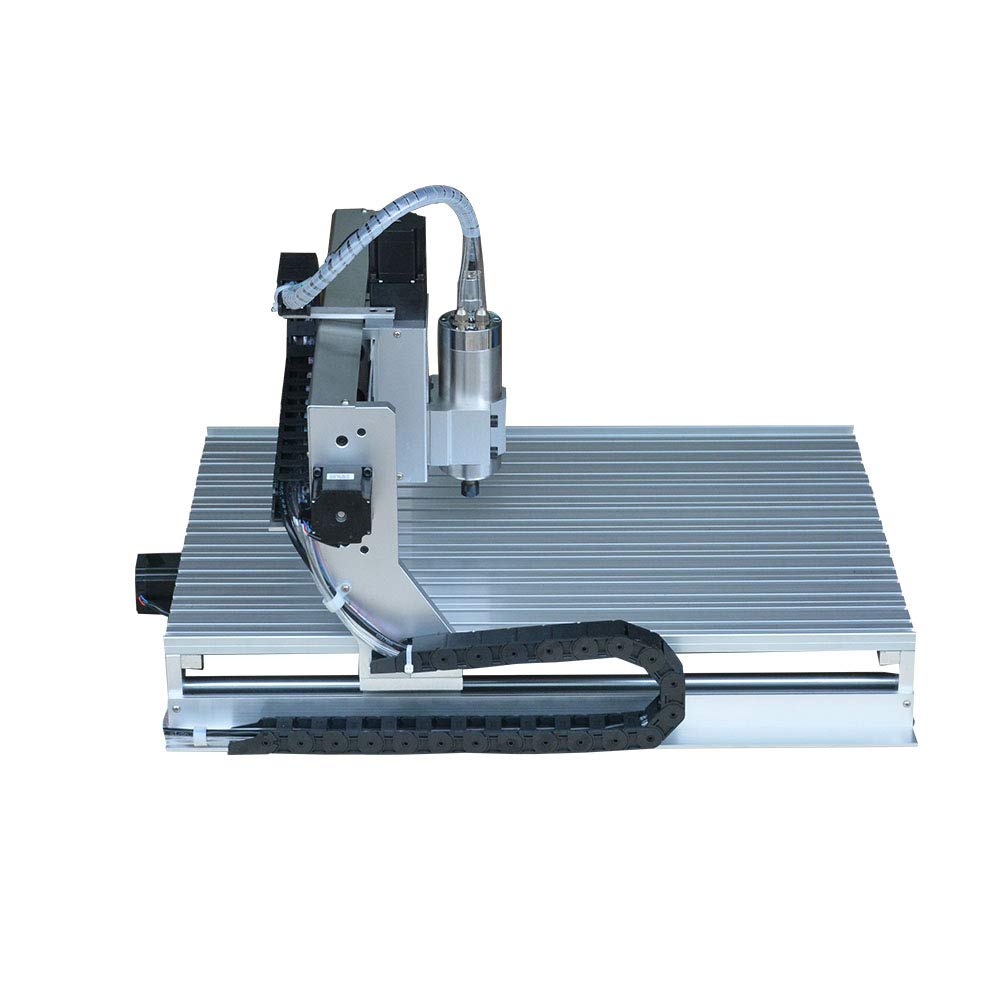

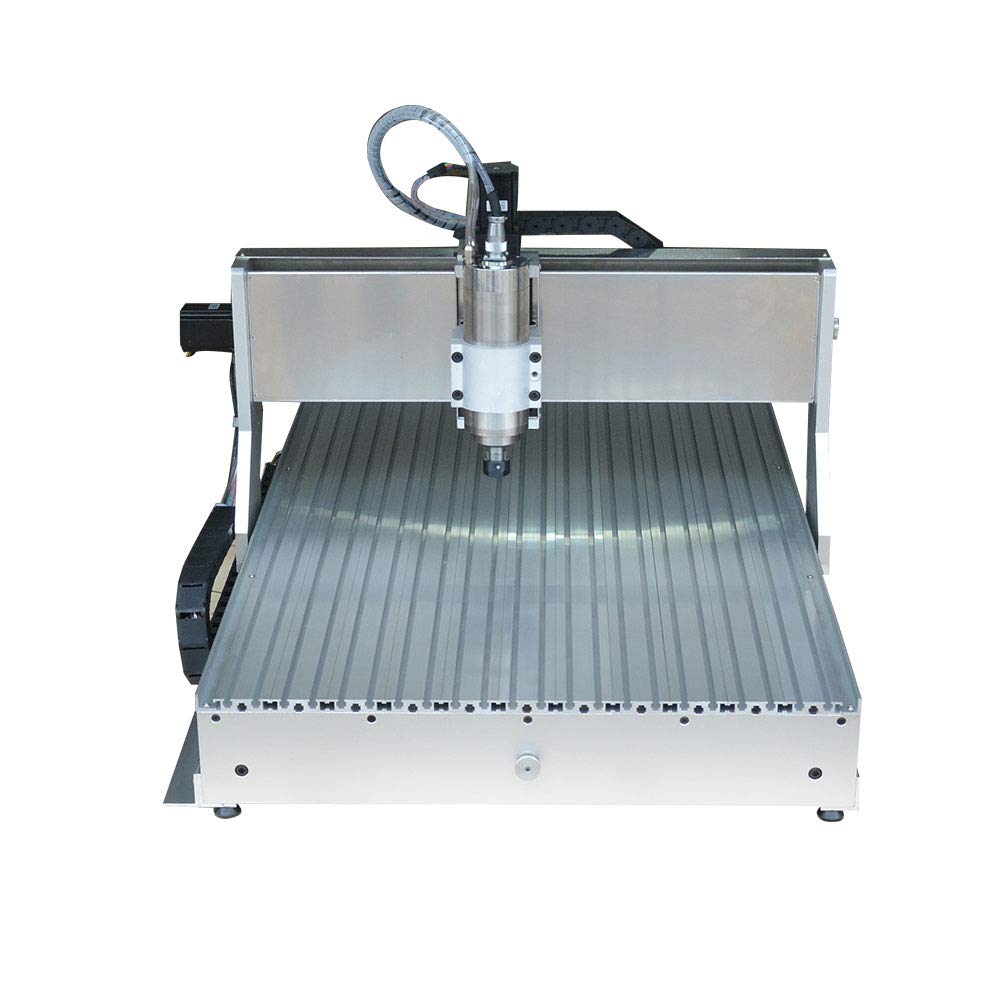

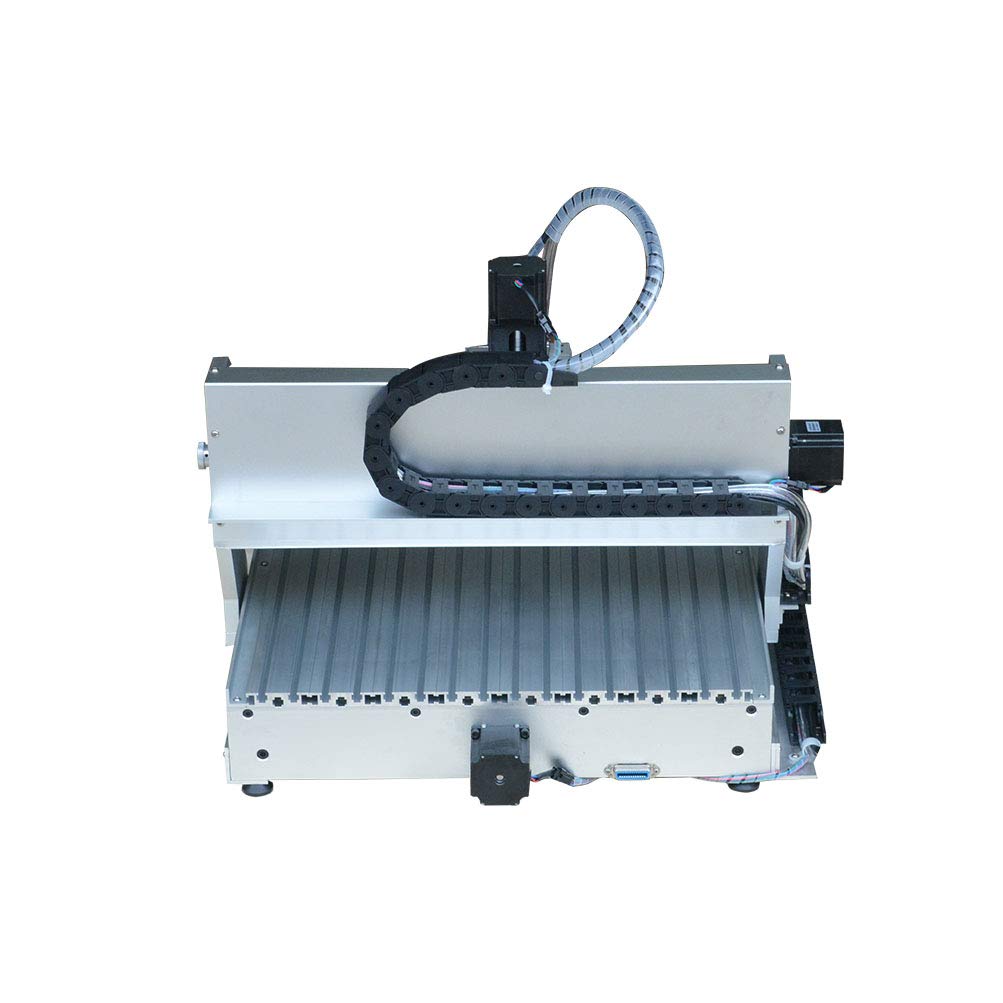

TEN-HIGH 6090 1500W CNC Router Engraving Drilling Milling Machine,usb port.

Brand: TEN-HIGH

Color: 1500w

Features:

• 【THREE-AXIS】: Suitable for engraving plane, embossing, hollowing, drilling, milling, cutting.Effective Working Travel:600(X) * 900(Y) * 125(Z) mm
• 【WITH USB PORT】This one is equiped with USB port, support different kind of systems (32bit and 64bit, both computer and laptop).
• 【APPLICATION】: Suitable for PVC, acrylic, two-color board, engineering plastics, Bakelite, solid wood, MDF board,bones,stone,graphite and other processing engraving.

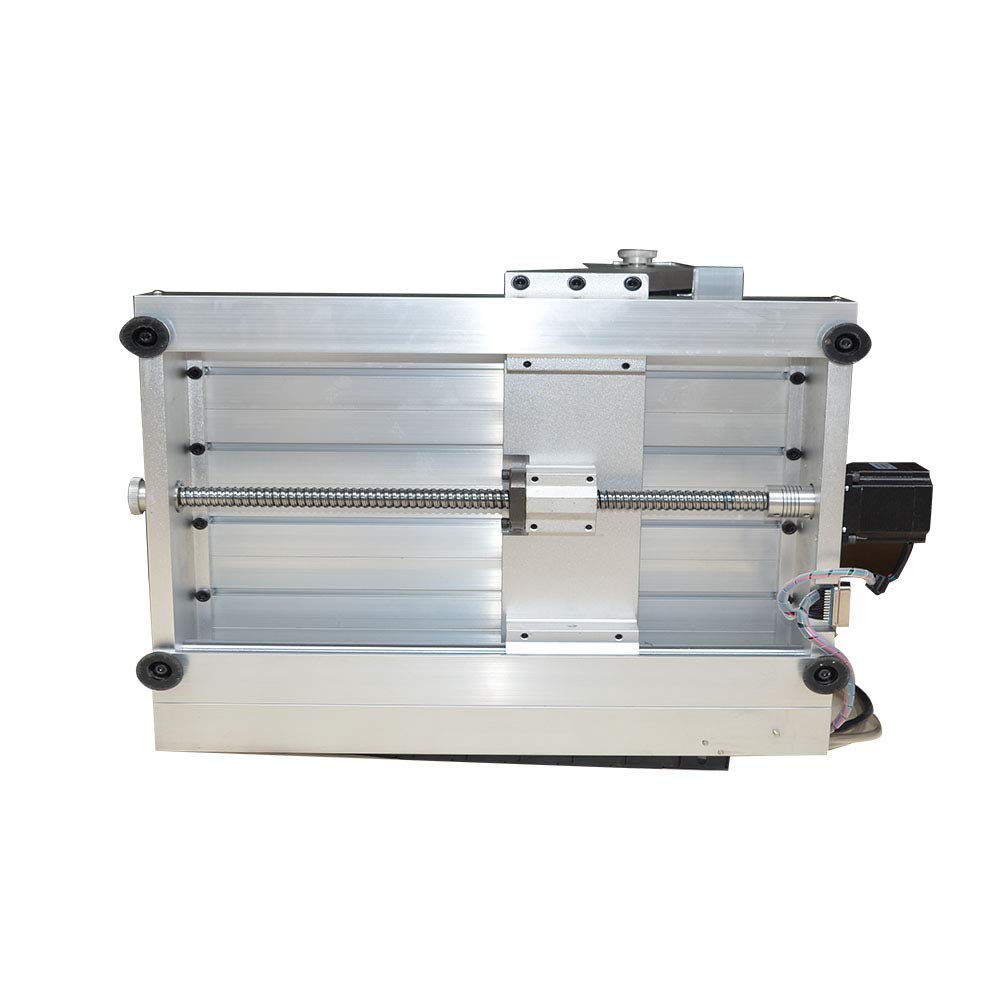

• 【BALL SCREW】: Upgraded ball screw to make the machine more accurate and stable during operation, with reversibility, high efficiency and low frictional resistance.

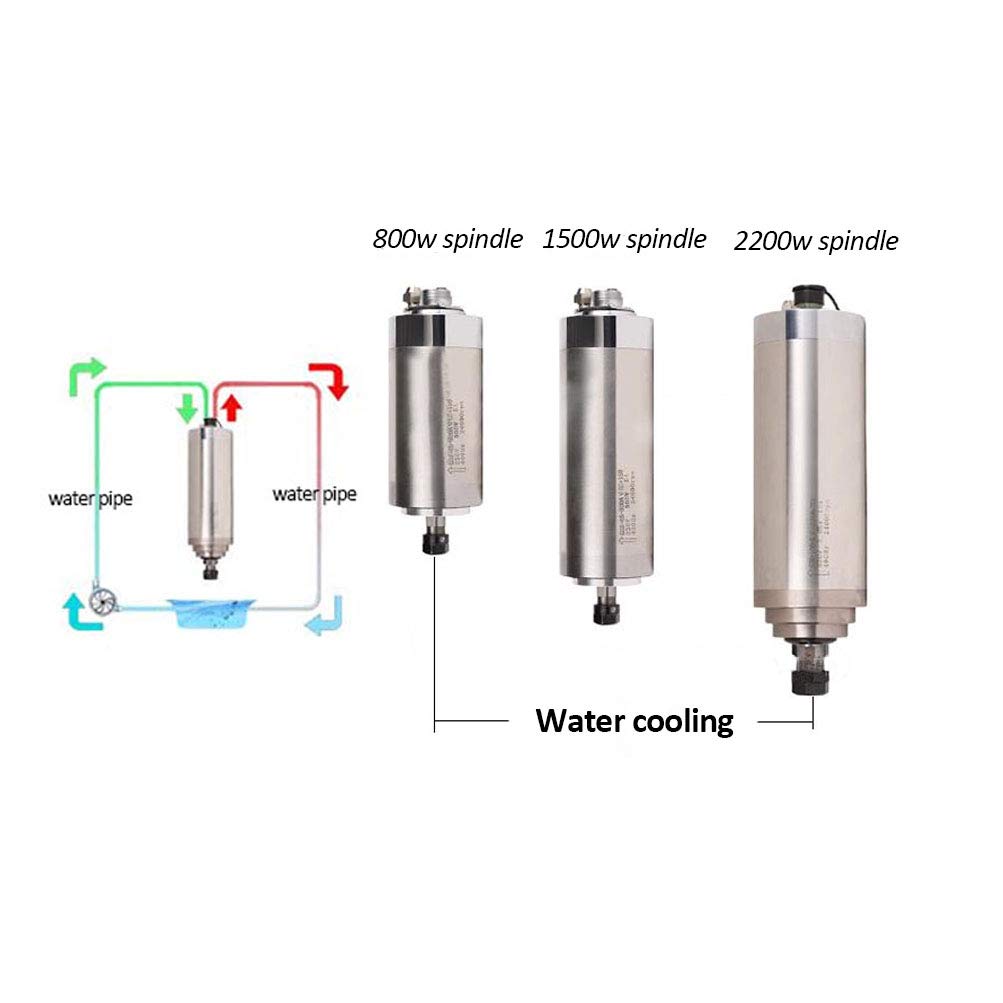

• 【WATER COOLING】: The main shaft adopts water-cooled motor, which has low noise and water circulation cooling. It can work for a long time without affecting performance, and the machining accuracy is higher.

Binding: Office Product

Part Number: TH-6090CNC-1500-USB

Details: Features:
This machine can only do plane relief sculpture.Please choose the one with 4th Axis if you want to do 3D engraving.
Suitable materials: wood, plastic, agate, jade, beeswax, shells, amber, stone, tooth, bamboo, acrylic, plexiglass, PVC, double color plate, all kinds of bones, etc.
Soft metal(such as: aluminum, copper, gold, silver) and jade need to add sink.

Specifications:
Model: 6090CNC-1500-USB
Dimension: 1200×780×580mm
Working Travel: 600*900*125mm
Workpieces height: ≤ 125mm
Working table: T-slot aluminum alloy(1135×700mm)
Structure Material: 6061-T6 Aluminum Alloy
Screw: Import 1605 ball screw
X guid: Diameter 20mm round guid
Y guid: Diameter 30mm round guid
Z guid: Diameter 12mm round guid
Spindle power: 1500W Spindle
Spindle control: 1.5KW VFD
Spindle speed: 0-24000r/min
Spindle cooling way: water cooling
Spindle collet :ER11-3.175mm
Stepper: 57BYGH56-401A
Stepper driver: 8 division driver
NC code: Standard G code、nc、tab、mmg、PLt、eng、dxf
Engraving Precision: 0.03mm
repeated positioning accuracy: 0.02mm
Control software: Mach3
Communication port: USB
Software running system: universal
Voltage: AC220V/AC110V Optional

Packing list:
1* engraving machine

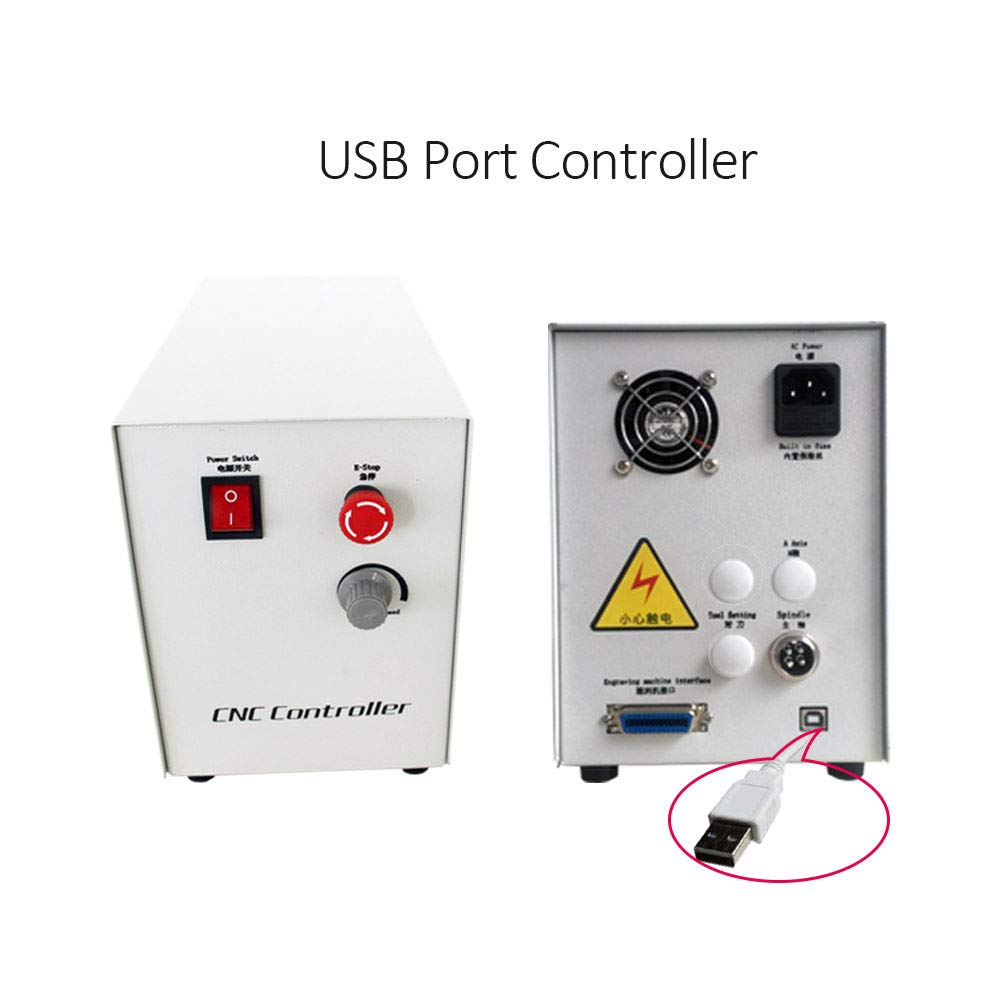

1* control box
5* engraving tools
1* spindle wrench
1* usb cable
1* power cord
1* machine connecting line
4* pressure plate
1* water pump
