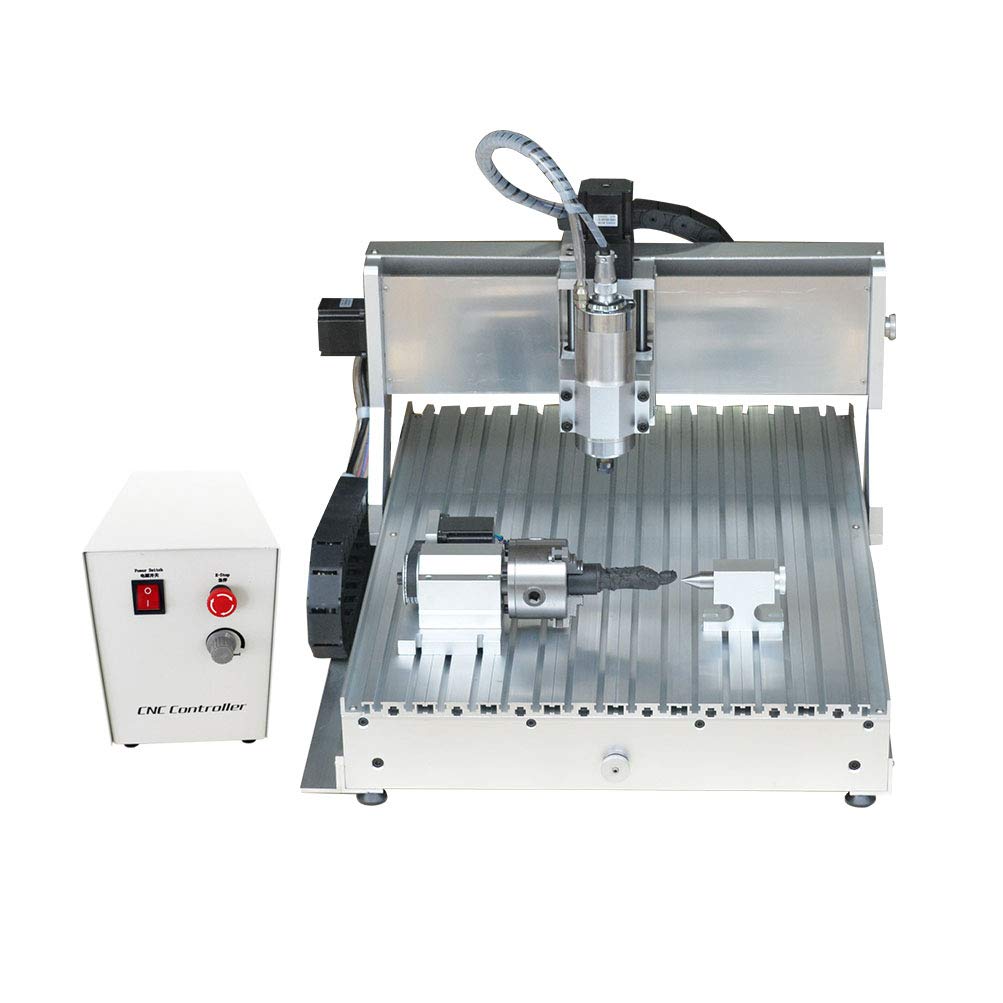

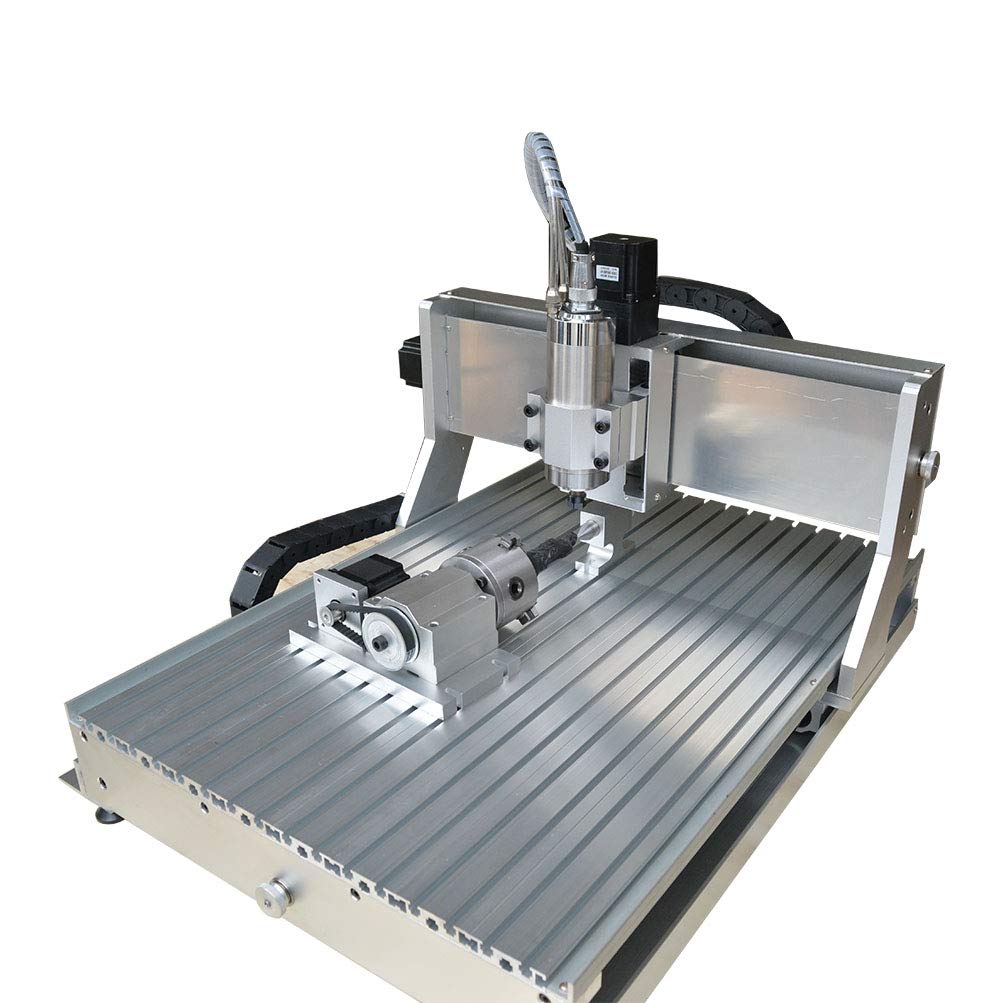

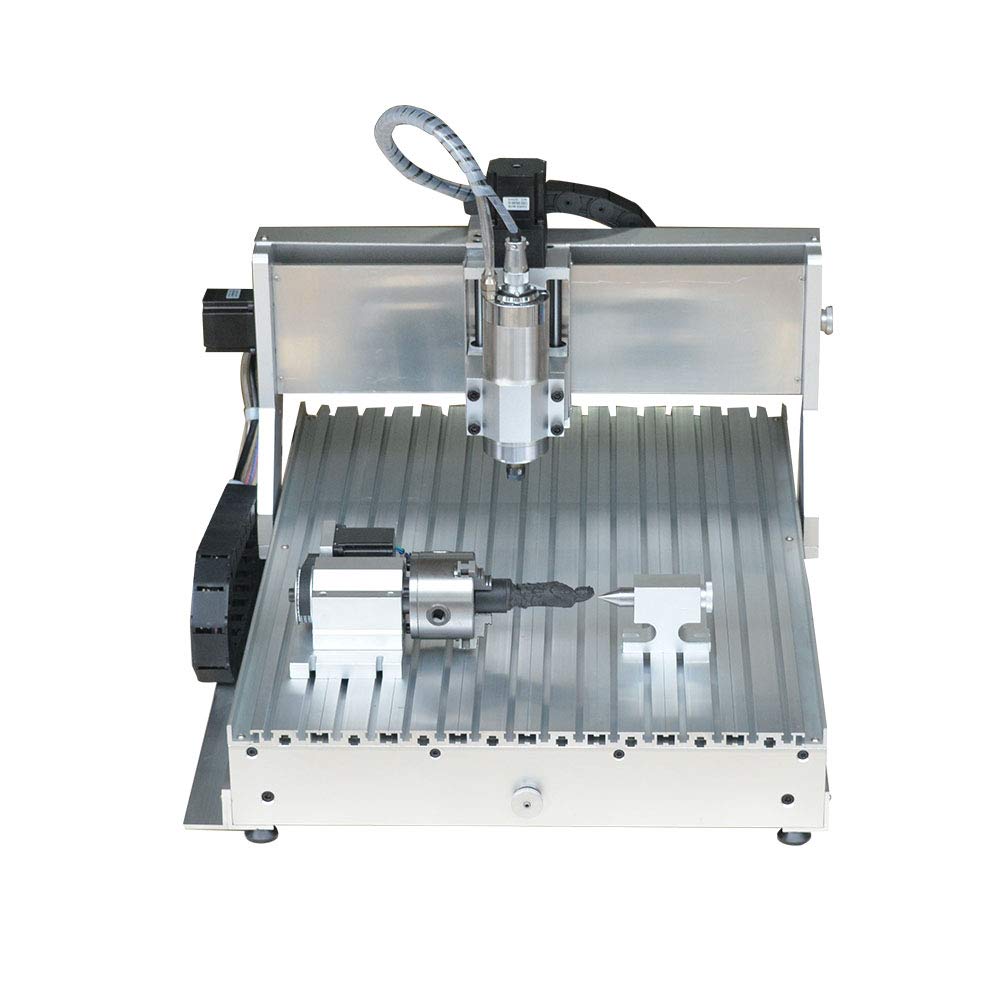

TEN-HIGH 6090 2200W CNC Router Engraving Drilling Milling Machine,usb port with 4th Axis.

Brand: TEN-HIGH

Color: 2200w

Features:

• 【UPGRADED FOURTH AXIS】: Compared with the three-axis machine, the four-axis is not only suitable for plane engraving, but also for three-dimensional engraving and round carving. The jade and wood can be engraved 360°, and the power and clamping force are very stable.

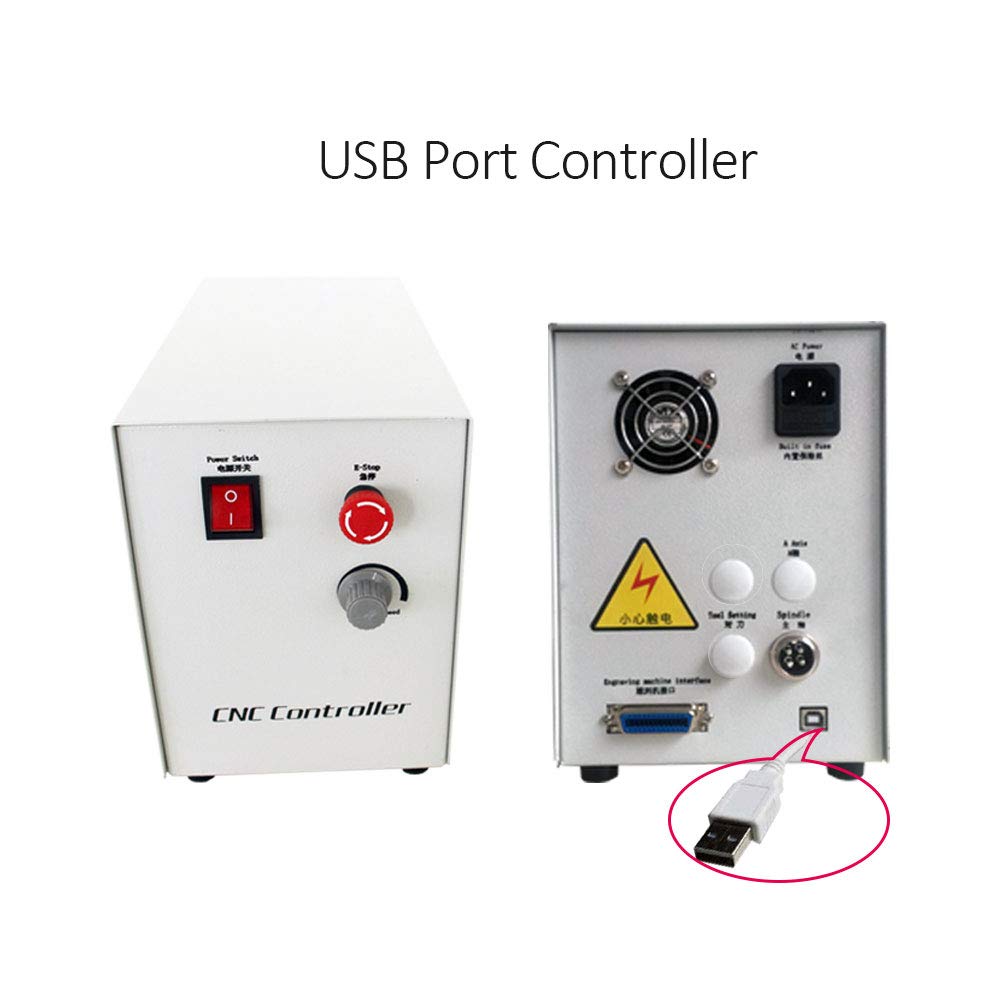

• 【WITH USB PORT】This one is equiped with USB port, support different kind of systems (32bit and 64bit, both computer and laptop).
• 【APPLICATION】: Suitable for PVC, acrylic, two-color board, engineering plastics, Bakelite, solid wood, MDF board,bones,stone,graphite and other processing engraving.
• 【BALL SCREW】: Upgraded ball screw to make the machine more accurate and stable during operation, with reversibility, high efficiency and low frictional resistance.
• 【WATER COOLING】: The main shaft adopts water-cooled motor, which has low noise and water circulation cooling. It can work for a long time without affecting performance, and the machining accuracy is higher.

Binding: Unknown Binding

Part Number: TH-6090CNCCNC4AXIS-2200-USB

Details: Features:

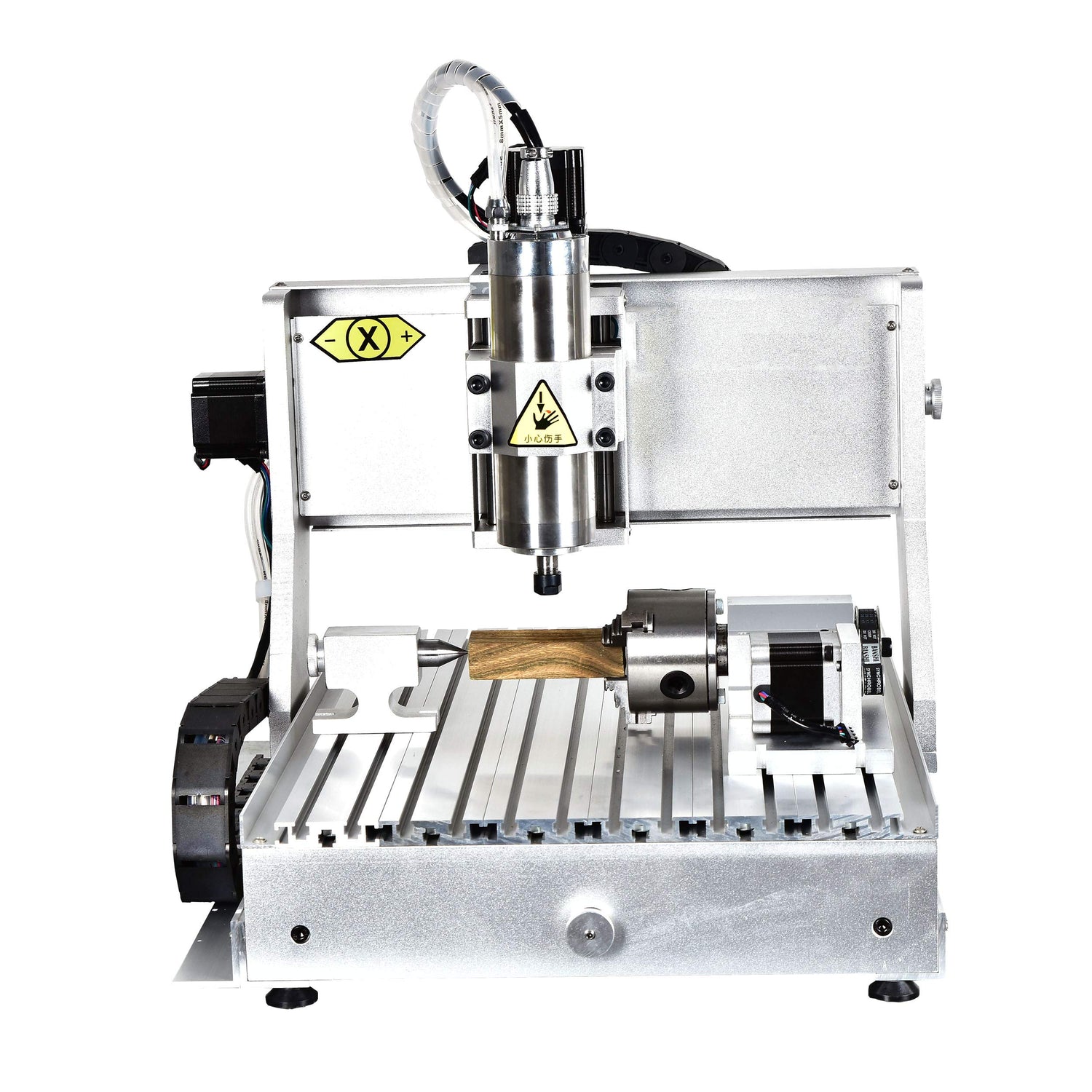

This machine is equipped with 4th Axis, 3D engraving can be achieved.
Suitable materials: wood, plastic, agate, jade, beeswax, shells, amber, stone, tooth, bamboo, acrylic, plexiglass, PVC, double color plate, all kinds of bones, etc.
Soft metal(such as: aluminum, copper, gold, silver) and jade need to add sink.

Specifications:
Model: 6090CNC-2200-USB-4AXIS
Dimension: 1200×780×580mm
Working Travel: 600*900*125mm
Workpieces height: ≤ 125mm
Working table: T-slot aluminum alloy(1135×700mm)
Structure Material: 6061-T6 Aluminum Alloy
Screw: Import 1605 ball screw
X guid: Diameter 20mm round guid
Y guid: Diameter 30mm round guid
Z guid: Diameter 12mm round guid
Spindle power: 2200W Spindle
Spindle control: 2.2KW VFD
Spindle speed: 0-24000r/min
Spindle cooling way: water cooling
Spindle collet :ER11-3.175mm
Stepper: 57BYGH56-401A
Stepper driver: 8 division driver
NC code: Standard G code、nc、tab、mmg、PLt、eng、dxf
Engraving Precision: 0.03mm
repeated positioning accuracy: 0.02mm
Control software: Mach3
Communication port: USB
Software running system: universal
Voltage: AC220V/AC110V Optional

Packing list: 1* engraving machine
1* control box
5* engraving tools
1* spindle wrench
1* usb cable
1* power cord
1* machine connecting line
4* pressure plate
1* water pump

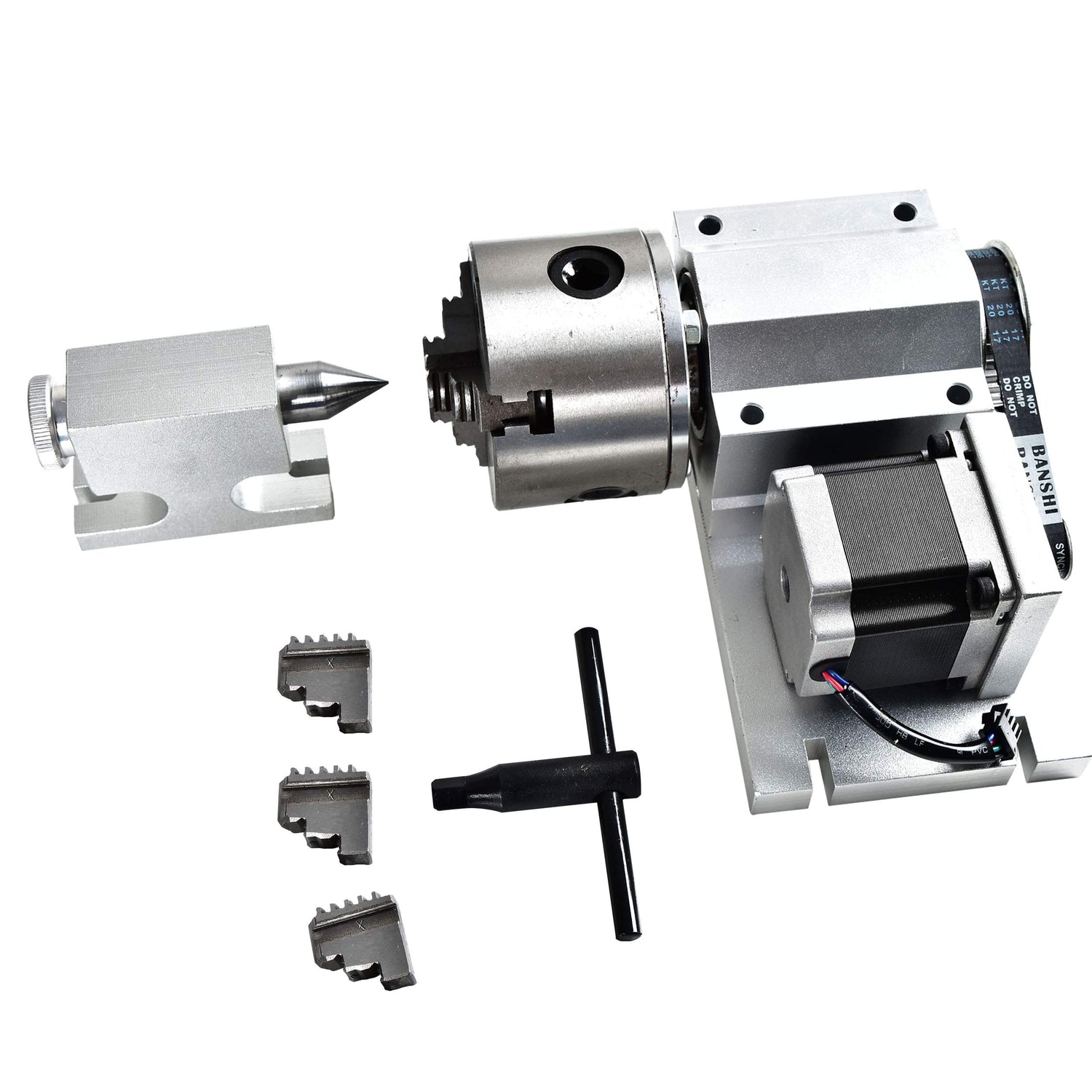

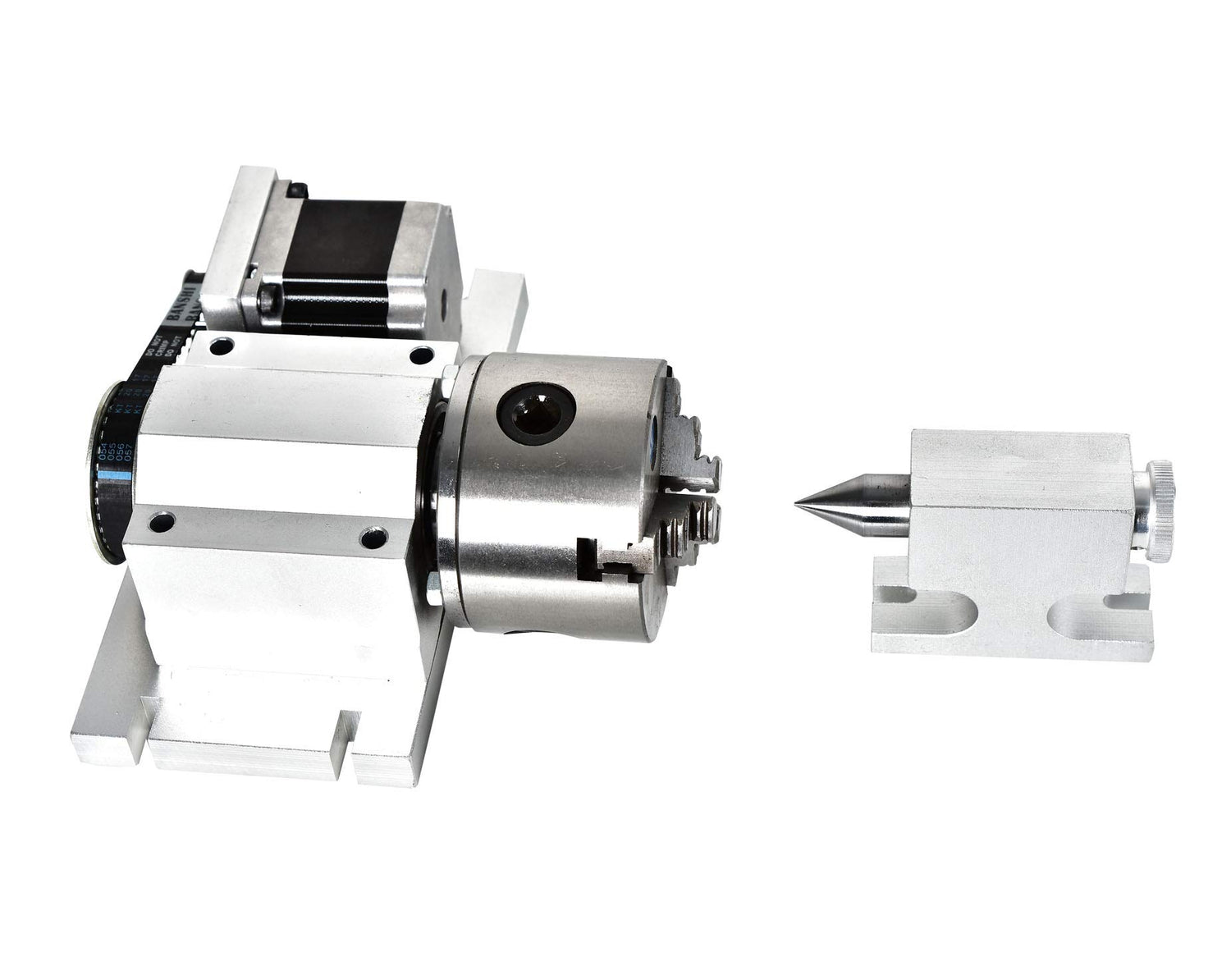

1* 4th Axis (one rotation axis, one connecting wire, one tailstock, six screws and nuts, one set of wrench and claw)
