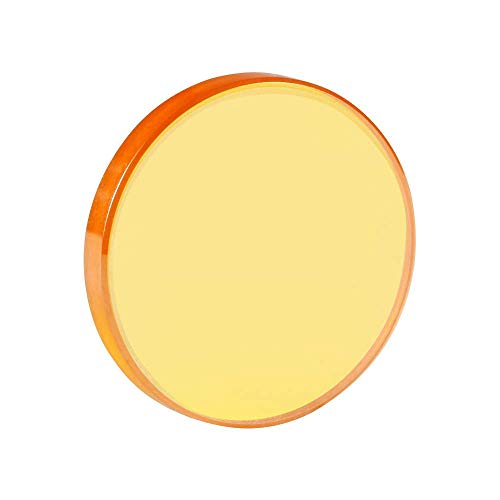

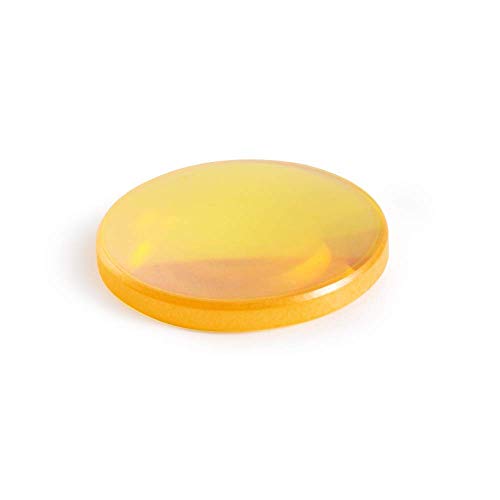

TEN-HIGH CO2 Laser Lens 19.05mm Laser Mirror CO2 Laser Focal Lens Laser Focus Lens, ZnSe for CO2 Laser Engraving Cutting Machine, Dia19.05mm FL50.8mm
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: TEN-HIGH
Features:
- Diameter: 19.05mm/0.75"; Focal Length: 50.8mm/2"; Thickness: 2mm/0.09"; Weight: 0.1KG
- Shape: Meniscus; Transmittance: ≥99.5%
- Material: PVD Znse; Compatible power: 30W-100W
- 【High Quality】Superb double-sided solid coating. Precision slicing, polishing, grinding. Resistant to high temperature, excellent optical properties; long working life, high working efficiency.

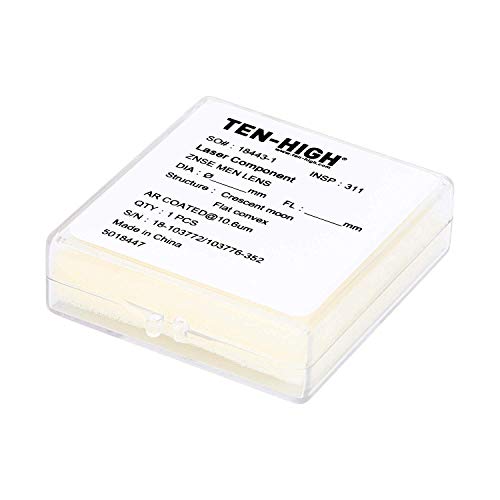

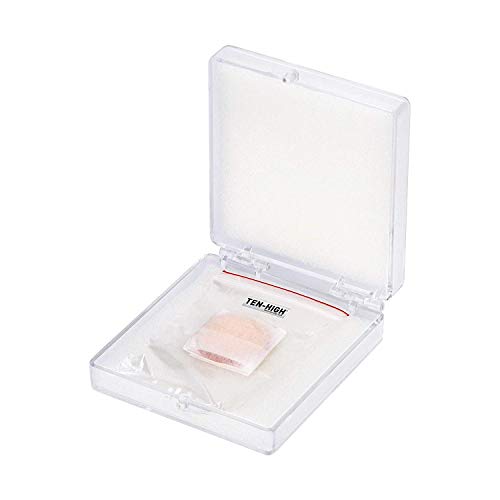

- Package includes: 1 x Lens
model number: ABCD
Part Number: FP-D19-F50-G

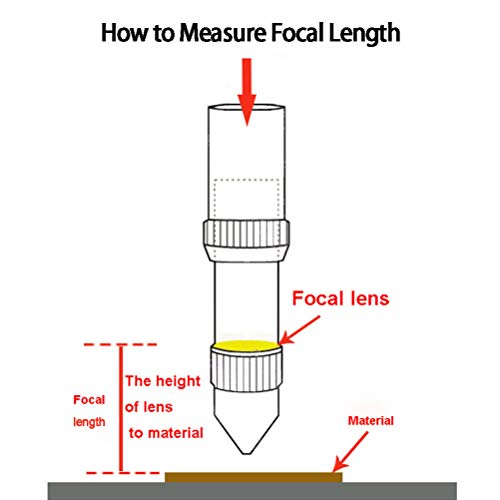

Details: How to Determine Focal Length?
The Focal Length is the Distance Between the Focal Lens and the Cutting/Engrave Material.
When install the Lens, Make Sure the Focusing Lens: Convex Face to Laser, Concave Face to Material.
How to Clean Laser Lens and Mirrors?
Step 1 Cleaning for Light Contamination (dust, lint particles)
Use an air bulb to blow off any loose contaminants from the optic surface before proceeding to the cleaning steps.
Step 2 Cleaning for Light Contamination (smudges, fingerprints)
Lay the lens tissue on the optic's surface. Using an eyedropper, squeeze a few drops of acetone onto the lens tissue, wetting the complete optic's diameter. Without lifting the lens tissue, drag the lens tissue across the optic just fast enough so that the liquid evaporates behind the tissue. This should leave no streaks.
Step 3 Cleaning for Moderate Contamination (spittle, oils)
Dampen an unused cotton swab or cotton ball with white distilled vinegar. Using light pressure, wipe the optic's surface with the damp cotton. Wipe excess distilled vinegar with a clean dry cotton swab. Immediately dampen a cotton swab or cotton ball with acetone. Gengly wipe the optic's surface to remove any acetic acid.
EAN: 6046575038318
Package Dimensions: 2.6 x 2.4 x 0.6 inches
