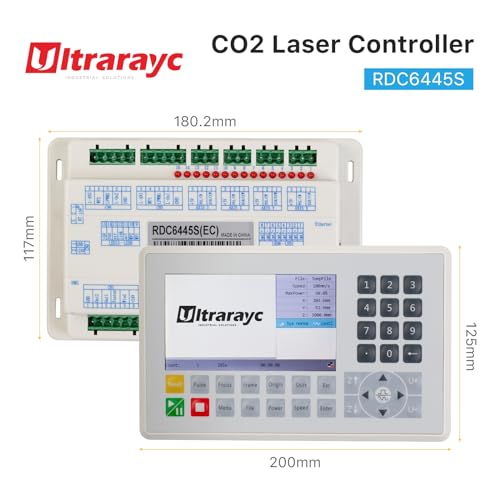

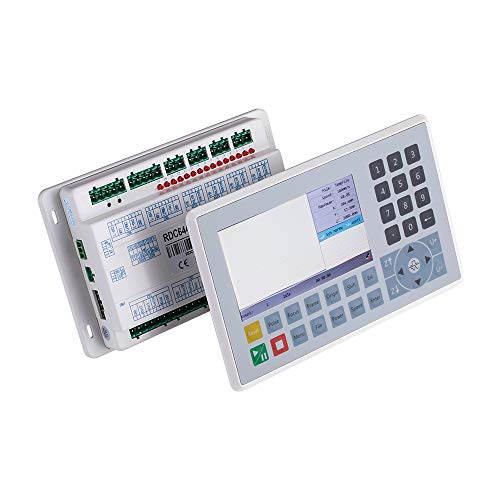

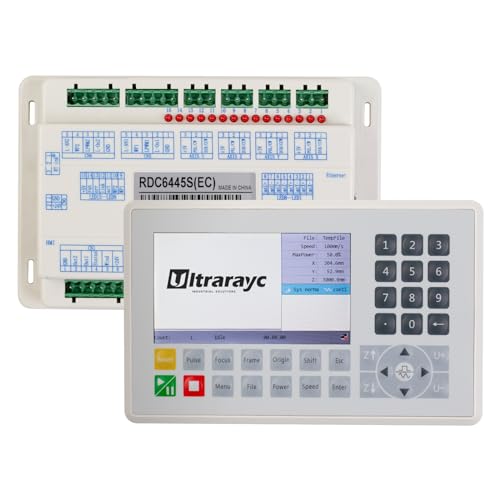

Ultrarayc Ruida CO2 Laser Controller Board RDC6445S Support LightBurn for CO2 Laser Engraving Cutting Machine
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Color: Gray
Features:

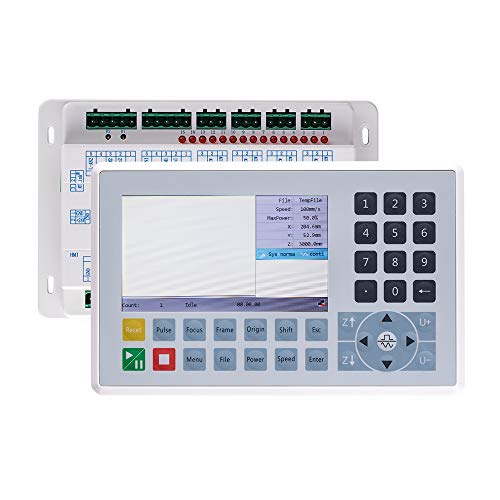

- 【HIGH-DEFINITION DISPLAY】: Our 5-inch TFT display provides a clear visual experience for your CO2 laser controller, making it easy to manage and navigate the setup, enabling precise 4-axis laser engraving capabilities to bring your creative designs to life.
- 【Multiple Connectivity Options】: The laser controller connects via high speed 10/100MHZ Ethernet and USB 2.0 to ensure seamless communication with the Ruida laser controller. Auto-detect mode simplifies the setup process and provides efficient data transfer for your engraving projects.
- 【Multi-Language Interface】: Laser controllers support multi-language interfaces including English, French, German, Russian, Spanish, Portuguese, Korean and Turkish, ensuring that our devices are accessible to users worldwide.
- 【Dual Laser Head Synchronization Technology】: The machine is equipped with dual laser heads that can be easily synchronized to handle complex arrangements of graphics. The adjustable digital laser power control interface for glass tube laser and RF laser applications increases the versatility of the machine.
- 【CUSTOMER-FRIENDLY SERVICE】: We offer a 30-day free return policy so you can buy with confidence. We also offer message answering and remote technical support that responds within 24 hours, ensuring that you always have help for your Ruida controller needs.
Binding: Office Product
Part Number: 08XR6445GZ-FBA
Details: It supports LightBurn software.Popular in 6090 1390 laser engraving cutting machine.
We will ship it from our two USA warehouses in Dayton or Ontario City
Features:
1.Ruida RDC6445G system is a 2019 generation system for 4-Axis control of laser engraving and cutting.
Digital Laser Control Signals:
(1) TTL level output, 50 mA, Drive Capability
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V

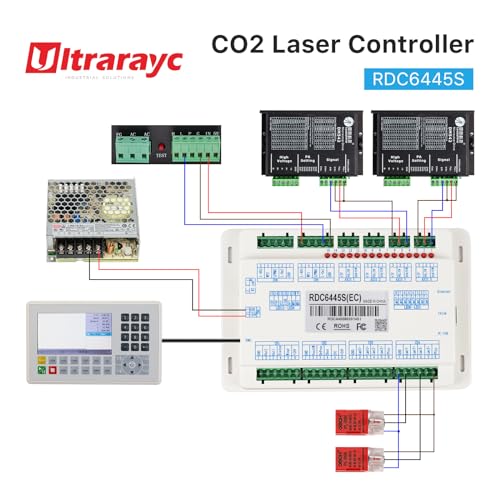

One-Way 24V Power Supply, >2A
Motor Control Signal: Common-anode Output, Drive Capability 20 mA. Motor control pulse frequency: Max.500KHZ
10/100M Ethernet + USB 2.0 Control.
Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse
Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
Input: 4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level
Package list:
1pcs 6445G Mainboard, 1pcs 6445G Panel, 1pcs HMI Cable, 1pcs U-Disc Cable I, 1pcs U-Disc Cable II , Adapter & Screws, 1pcs Network Cable II , 1pcs Network Cable I ,1pcs USB Cable
EAN: 0053554514615
Package Dimensions: 10.5 x 7.5 x 6.3 inches
