Description
Description
Brand: Jianyana
Color: 24w Milling
Features:

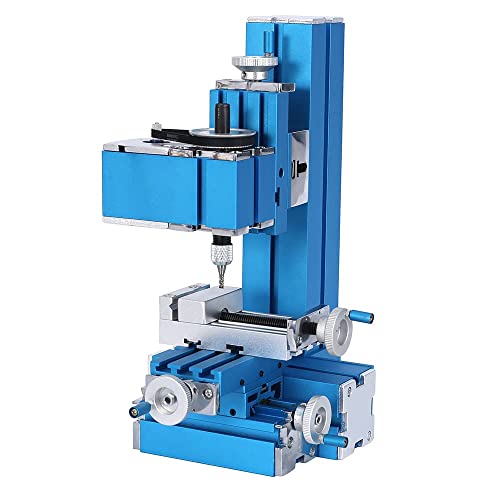

- 【Purpose】- This is a MINI metal lathe/milling driven by a 12V safe DC transformer, which can be used for turning, drilling, boring, threading and other processing. It takes up very little space in your workshop or lab, making it perfect for small projects or hobbyists and also a great teaching tool for kids.
- 【Processing】- It can be used to form and cut a wide variety of materials including wood, plastic and soft metals (pure copper and pure aluminum), but not alloys. When processing harder materials, the feed rate should be smaller, which is slower than processing wood. we offer several shims for you to adjust the height of the turning tool.
- 【Application】- The machine defaults to use high speed motor. If you need a low speed motor, please contact us. Ideal for use in juvenile activity centers, school technical rooms, science and technology activity rooms, DIY hobbyist workshops, and student science and technology creation in science museums.
- 【Durable】- Made of advanced aluminum alloy, durable and non-deformable for usage. The Milling is suitable for mini drill and drill bracket series. It can withstand regular use without showing signs of wear and tear.
- 【Main Parts of the Machine】- Main components, such as the headstock, intermediate block, connecting block, vice, sliders, and hand wheel, are made of metal, resulting in improved product quality, precision, and longevity.
Part Number: CNC708
Details: Description:
JIANYANA power tools: It is driven by 12V safe direct current transformer. It is helpful for improving manual ability and independent thinking, thus effectively improving intelligence of children. So as to be a good didactical tool for children. It is also an ideal tool for DIY hobbyist and modelmaker to make various craft. Wear goggles when using. Children need to be guided by adults.
Characteristic:
The machine defaults to end milling, you also can make it horizontal milling. One machine used in two ways, machines is cost-effective. It can help you more arbitrary processing.
Technical Parameters:
Input voltage: AC100V~240V / 50/60HZ
Output voltage: DC12V 2A
Motor rated power: 24W
Motor speed: 18000r/min±15% of high speed motor
Low speed motor: 10000r/min ± 15%
Spindle speed: high speed motor 3000r/min±15%
Low speed motor: 1600r/min ± 15%
Spindle jump: <0.1mm
Large slider stroke（X axis）: 45mm
Small slider stroke（Y, Z axis）: 35mm

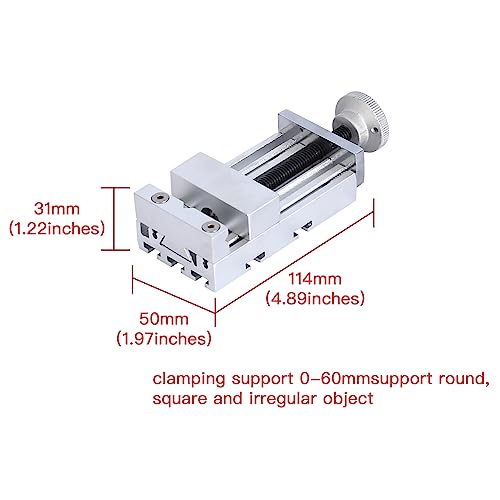

Vise clamp size: 50mm*60mm
Chuck specifications: ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6
Milling cutter size: φ3, φ4, φ5, φ6
Handle scale: 0.1mm/division
Packing size: 325mm*200mm*240mm
Weight: 3KG
Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum).

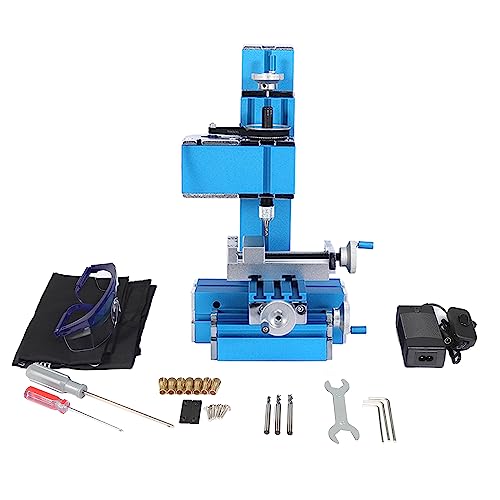

Package included:
1 set of Milling Machine
1 set of apron
1 set of goggles
1 set of Accessories:
3 x inner hexagon spanner(S=2\2.5\3)
1 x double-headed wrench(S=14\17)
1 x cross screwdriver
4x milling cutter(φ3, φ4, φ5, φ6), the φ3 one is on machine
8 x chuck(ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6)the ф6 one is on machine
2 x two hole clamping plate
2 x screw(M4*16)
Package Dimensions: 13.2 x 11.4 x 8.0 inches
