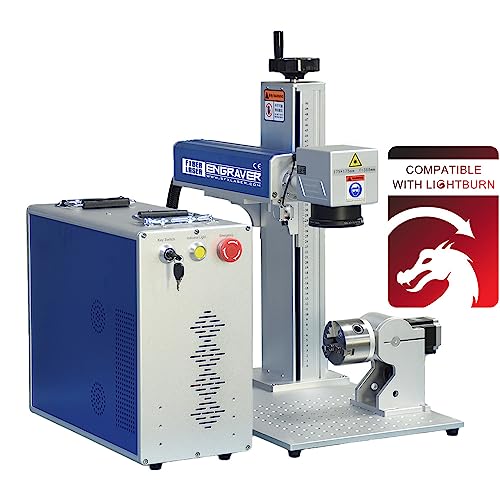

US Stock 50W JPT Fiber Laser Marking Machine Fiber Laser Engraver with 175×175mm Lens and D80 Rotary Axis
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: SFX
Features:

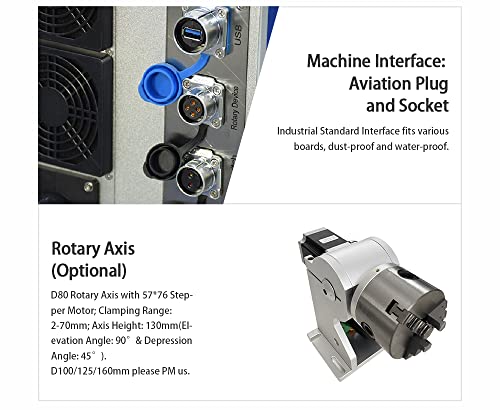

- Laser Power: 50W+Marking Area(Lens): 175*175mm+Engraving Depth:≤1.0mm+80mm Rotary Axis+EZCAD2.0(Lightburn Compatible)

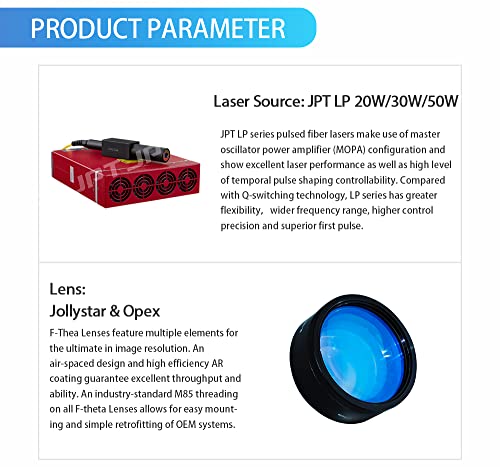

- Laser Source: JPT; Repetition Rate Frequency : 1-600kHZ; Pulse Duration: 200ns; Central Emission Wavelength: 1064nm; Maximum Pulse Energy: 1.25mJ.
- Output power adjustment range 10%-100%; High-Rate of Electrical-Optical Conversion: up to 70%; Imported laser scanning system makes the marking speed up to 7m/s. Re-position precision is 0.002mm
- Application Advantages: Silicone Keypad Marking; Metal Deep Engraving; Metal Surface Processing; High Frequency Line Processing; The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported.

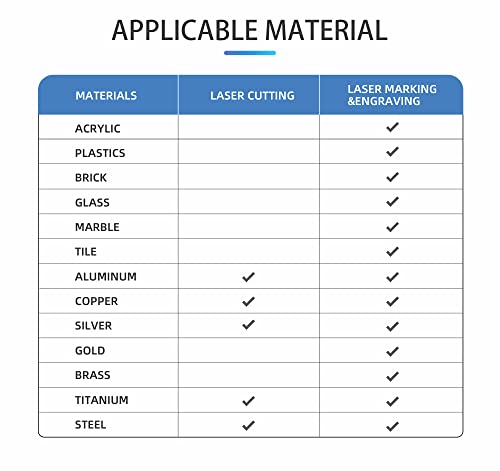

- Applicable Material: Gold, Silver, Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
Binding: Office Product
Part Number: SFX-GS-JPT

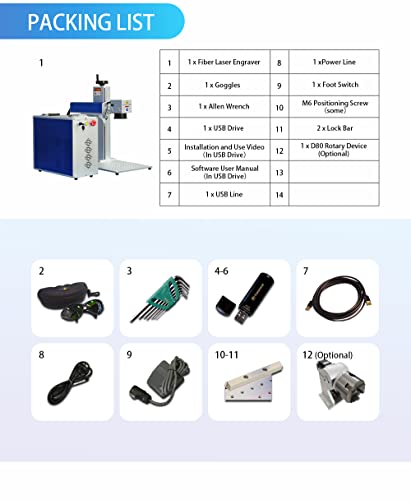

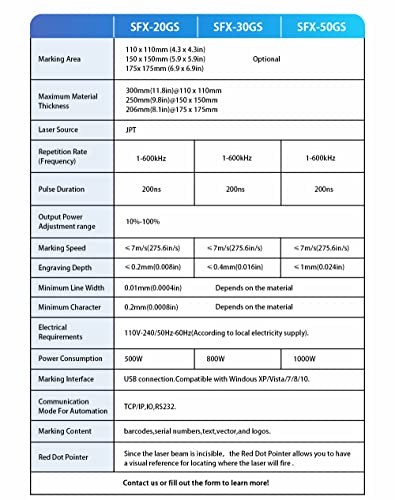

Details: Packing Details: 50W Fiber Laser Engraver 175×175mm Lens 80mm Rotary Axis Technical Parameters: Laser Power: 50W Marking Area: 175*175mm Max. Material Thinkness: 206mm Laster Source: JPT LP E Repetition Rate Frequency : 1-600kHZ@JPT LP E Pulse Duration: 200ns Output power adjustment range 10%-100% Marking Speed: 7m/s Engraving Depth:≤1.0mm Min. Line Width: ≤0.01mm（Depends on the material) Min. Character: 0.2mm（Depends on the material) Input Voltage: 110V-240V/50-60Hz Complete Power Consumption: 1000W Communication Mode for Automation TCP/IP, IO,RS232 Application Advantages: Silicone Keypad Marking Metal Deep Engraving Metal Surface Processing High Frequency Line Processing Communication Mode for Automation TCP/IP, IO,RS232 The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported. Applicable Material: Carbon Steel, Aluminum, Stainless Steel, Brass, Copper,Gold, Silver, etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
EAN: 0782902058753
Package Dimensions: 30.7 x 27.5 x 19.0 inches
