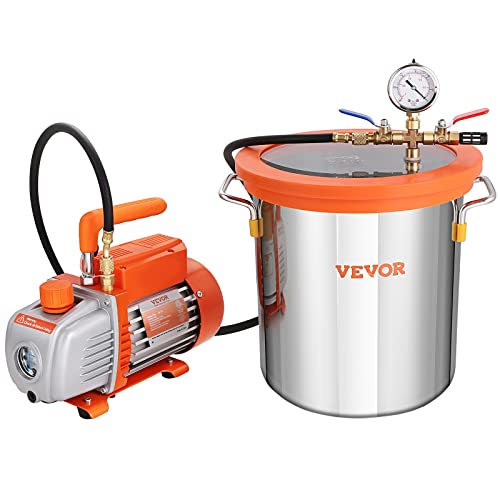

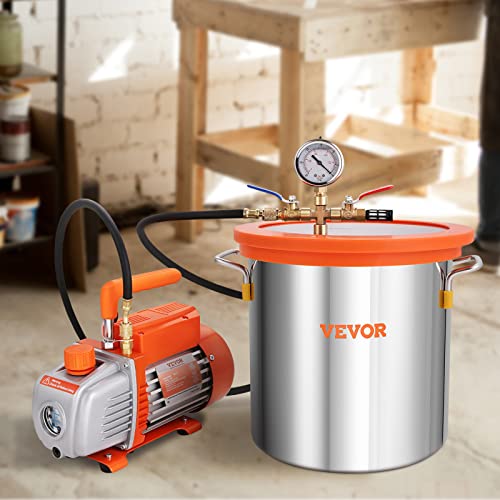

VEVOR 5 Gallon Vacuum Chamber and 3.5 CFM Pump Kit, Tempered Glass Lid Vacuum Degassing Chamber Kit, Single Stage Vacuum Pump with 250 ml Oil Bottle, for Stabilizing Wood, Degassing Silicones, Epoxies

Brand: VEVOR

Features:

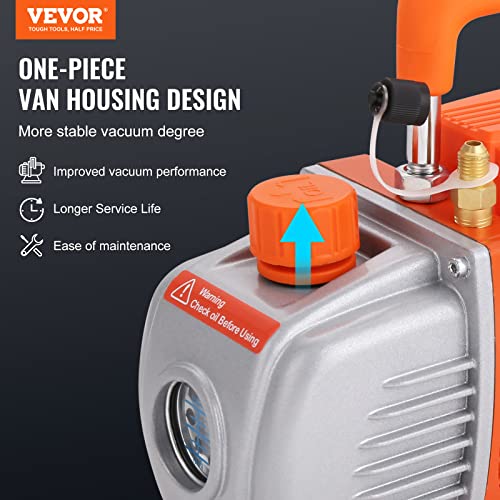

• Heavy Duty Vacuum Pump: Single-stage pump design for the higher and more stable ultimate vacuum! Free Air Displacement: 3.5 CFM, Vacuum Level: 40 microns, Intake Fitting: 1/4"SAE Male, Voltage: AC120V/60 Hz, Oil Capacity: 250ML. Pump oil type: vg100 (kinematic viscosity 46 mm2/s, viscosity 100mm2/s). Ideal for wood stabilization and resin degassing (i.e. cactus juice, crocodile venom, Minwax, etc.)

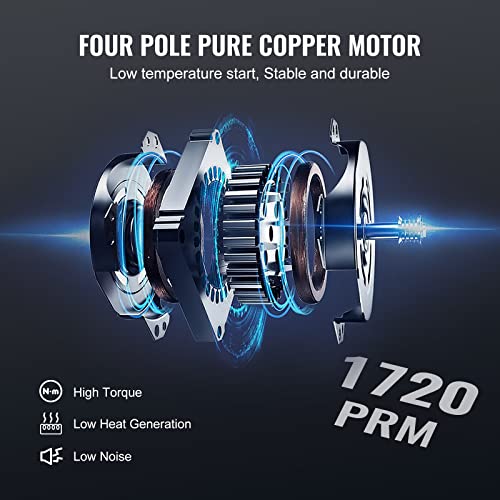

• 4-Pole Pure Copper Motor: The motor has high torque for more efficient operation. The T-shaped heat sink and cooling fan help the pure copper motor to effectively dissipate heat, allowing it to work continuously for over 2 hours. And with added overheat protection, you can enjoy the stabilized performance and longer service life for your motor.
• User-Friendly Design: Get ready to experience complete comfort! Designed with comfort in mind, the ergonomic handle is shaped to fit your hand and features a rubber-clad iron handle structure for easy lifting and holding. With the bonus of a sight glass and oil level scale, you can easily monitor the status of your oil level and lubricating oil, ensuring timely maintenance.

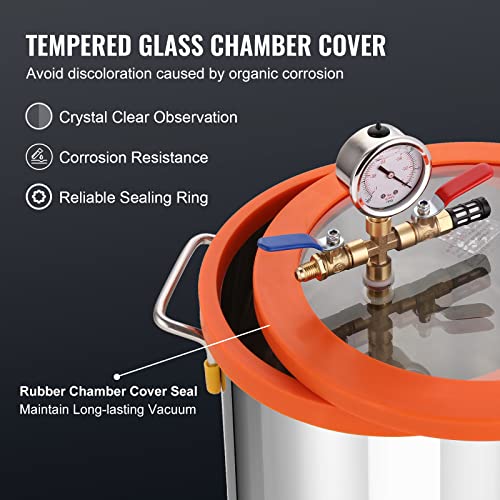

• High-Quality Vacuum Chamber: The 5-gallon vacuum chamber is equipped with a tempered glass top and rubber seal to avoid organic discoloration and damage and ensure the airtightness of the entire vacuum system. The one-piece stainless steel body with a handle is durable and easy to carry. Extra two silencers reduce noise and make the pump run more quietly.

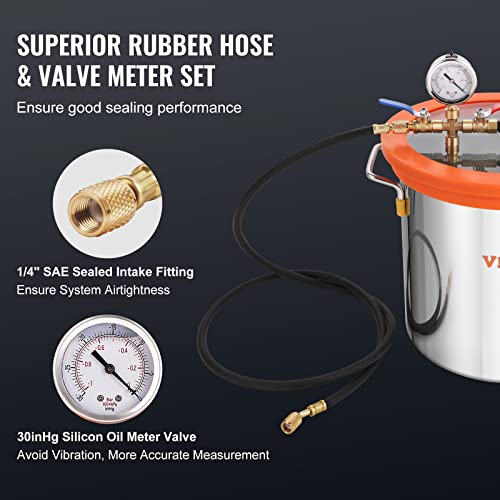

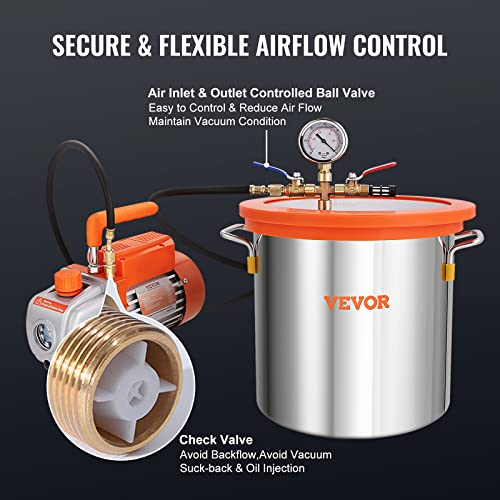

• Everything You Need: We provide a Vacuum Chamber, Toughened Glass Bucket Lid, Vacuum Gauge, Red & Blue Manual Shut-off Valve, Sealed Intake Fitting, Open Hole Pre-filled Barrel Lid, Vacuum Gauge Ball Valve, Vacuum Gauge Air Intake Filter, Connection Hose(1.5 m rubber hose, 1/4 inch SAE female at both ends), Silicone Pad(20 x 20 cm), 250ml Bottle of Vacuum Pump Oil.
• Quality control: The vacuum pump has undergone 100% quality testing before leaving the factory to ensure the complete performance of each product. Friendly Note: A small amount of oil which is injected in the machine during the factory quality test may leak out in transit, which do not affect usage effect.
• Method for checking the leakage of the vacuum pump: Method 1: Connect the vacuum pump inlet port with a vacuum gauge. Method 2: Tighten all three air intakes, turn on the machine, and after a few minutes, check for oil mist. If there is no oil mist, it indicates that the vacuum pump is in good condition. If there is continuous smoke, it indicates that the vacuum pump is leaking. P. S. The refrigerant meter cannot detect vacuum. Please repeatedly check whether the external interface is tightened.

model number: TW-1K

Part Number: 5 Gallon Vacuum Chamber Kit

Details: Specifications
Item Model Number: TW-1K
Free Air Displacement: 3.5 CFM
Ultimate Vacuum: 40 microns
Intake Fitting: 1/4"SAE male
Speed: 1720PRM
Voltage/Frequency: 120V/60 Hz
Power: 150W, 1/5HP
Oil Capacity: 250 ml
Net Weight: 25.4 lbs/11.54 kg
Vacuum Chamber Dimensions(Dia. x H): 11.8 x 12 in/300 x 305 mm
Vacuum Pump Dimensions: 11.4 x 4.7 x 8.7 in/290 x 120 x 220 mm

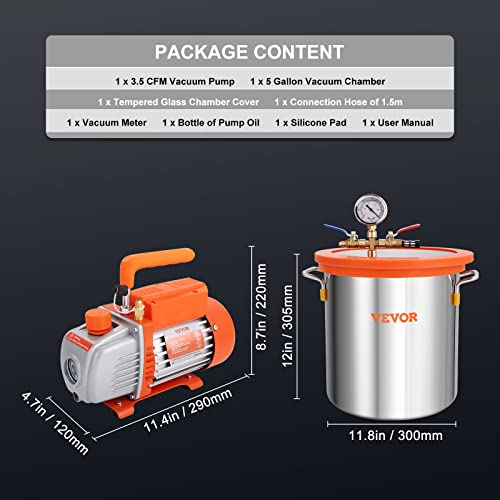

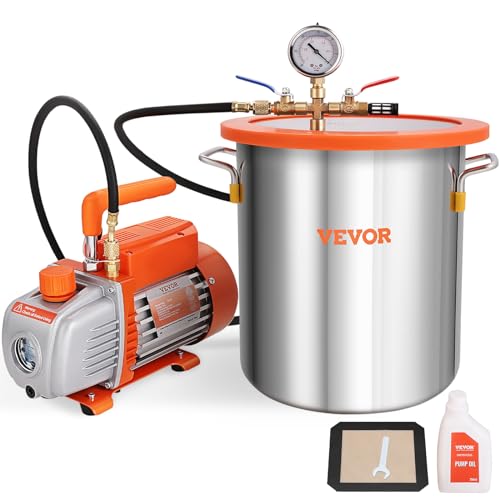

Package Content
1 x Vacuum Pump
1 x 5 Gallon Vacuum Chamber
1 x Toughened Glass Bucket Lid
1 x Vacuum Gauge
1 x Connection Hose(1.5 m rubber hose, 1/4 inch SAE female at both ends)
1 x Silicone Pad(20 x 20 cm)
1 x 250ml Bottle of Vacuum Pump Oil
1 x Red & Blue Manual Shut-off Valve
1 x Sealed Intake Fitting
1 x Open Hole Pre-filled Barrel Lid
1 x Vacuum Gauge Ball Valve
1 x Vacuum Gauge Air Intake Filter
1 x User Manual

EAN: 0840281509454

Package Dimensions: 15.7 x 14.4 x 13.8 inches
