waltyotur 4 x 4-1/8 Precision Mill Vise Anti-Jaw Lifting W/Swivel Base, Lockdown CNC Milling Machine Vise With Base Clamp Vise for Milling Shaping
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: waltyotur
Features:
- Premium Quality Structure: The whole bench clamp is made of high-quality material with high hardness and stiffness. 4 screws from the top through the jaw reduce keys side force and make the vise body not easy to broke, extend vise life.
- High Accuracy Screw: The screw rod is made of high strength material which is not easy to deform, wear resistance, and achieves smooth rotation. Accurate to 0.002In on parallelism and squareness.
- Powerful Clamping Force: After fine grinding treatment, the surface of the clamp is smooth and flat. Clamping the workpiece without shaking, and the machining accuracy is higher. Jaw Width: 4.
- Reinforced & Adjustable: The solid base and swivel handle make the use more stable and convenient. 360-degree Swiveling base increases flexibility when in use. K type angle lock nut is made from the highest quality ductile Iron, firm and durable.
- Wide Application: It is an essential tool for fitters. Most work of the fitters is completed by using the clamping vise such as sawing, filing, chiseling, and some assembly and removal jobs.
Binding: Tools & Home Improvement
model number: WAUSF8-010590
Part Number: 1-1066519-166203
Details: 4 x 4-1/8" Precision Mill Vise

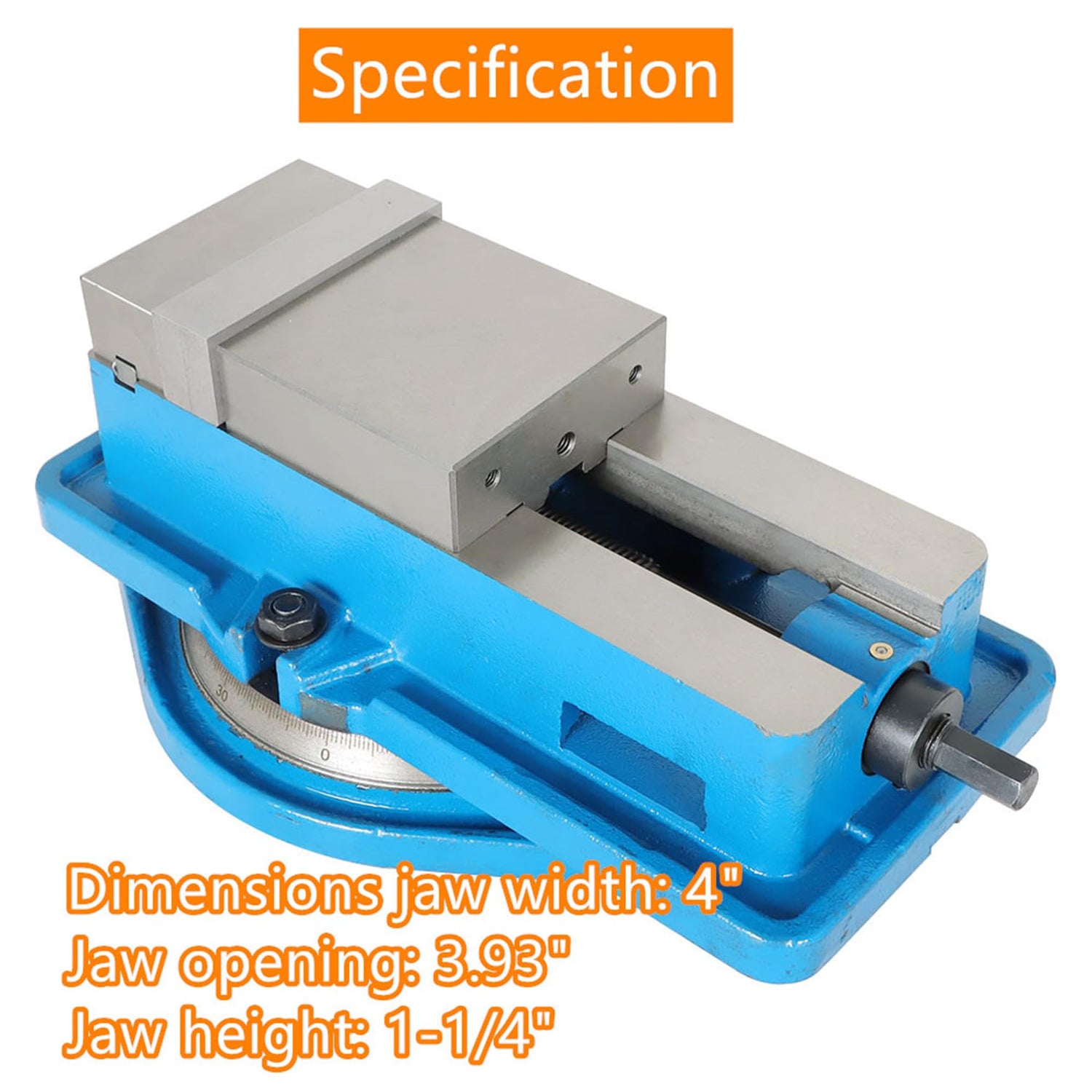

Specification:
Dimensions Jaw Width: 4"
Jaw Opening: 3.93"
Jaw Height: 1-1/4"
Accurate to 0.002" per 4" on squareness and 0.006" per 4" on parallelism without base and 0.008" per 4" on parallelism with base
Vise Key: 11.11mm table slot width, 14.00mm base width

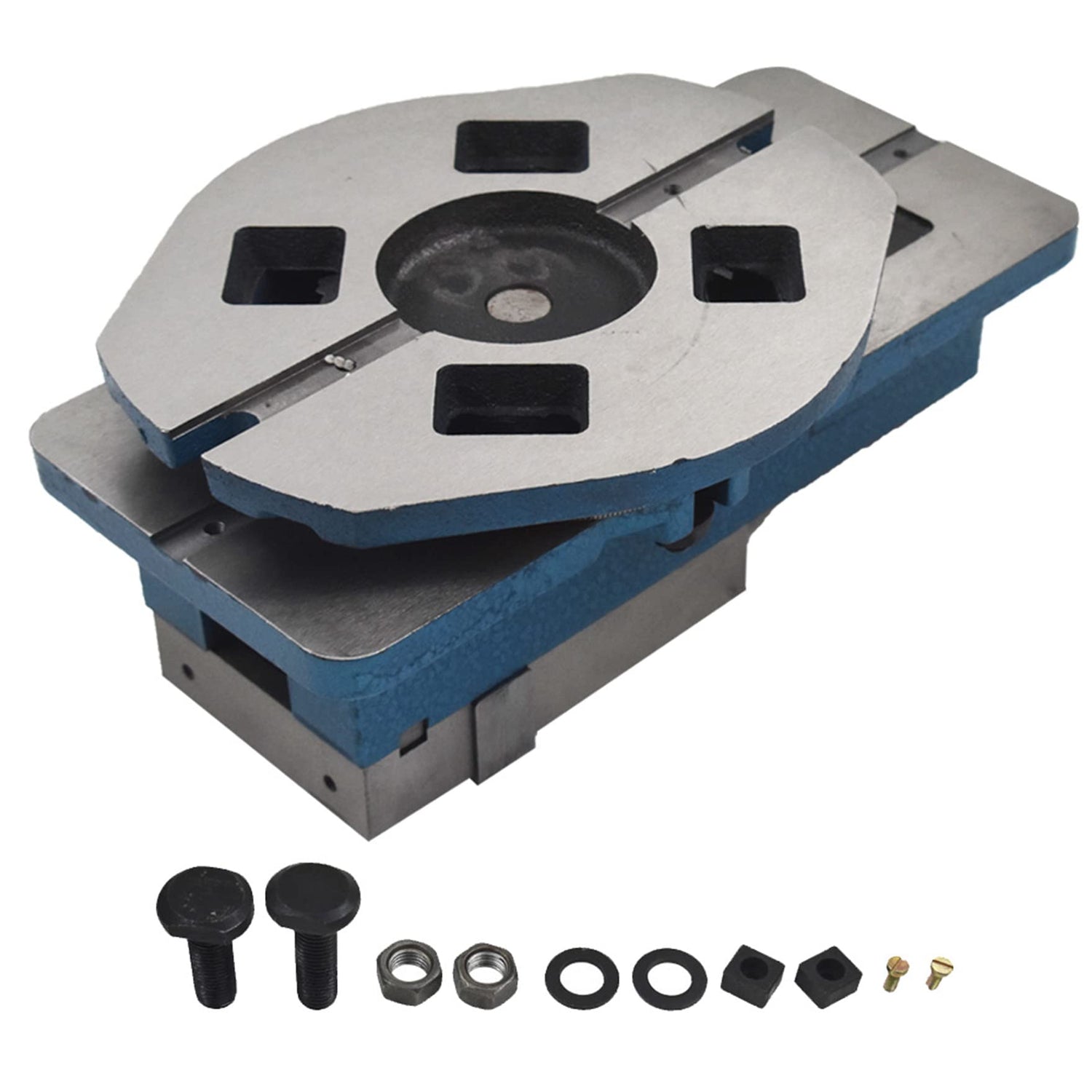

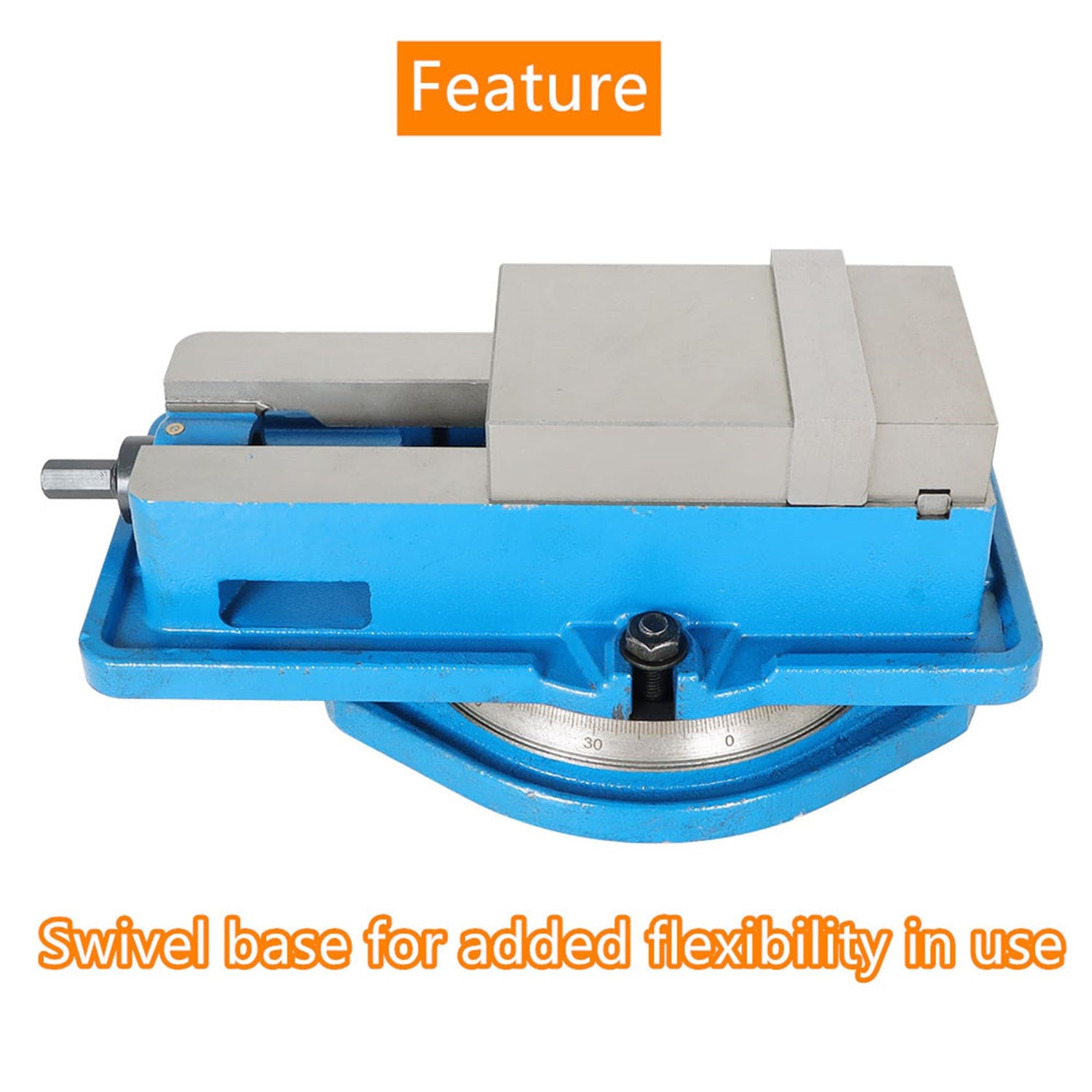

Base Swivel: 360-degree
Features:
-Each pound of force in horizontal induces 1/2 lb of downward force, eliminating jaw tilt. This Vise is so designed that the horizontal force generated by tightening the handle pushes the semi-sphere within the movable jaw and thus thrusts the movable jaw downward. The workplace does not move up, even if it is held at the top of the jaw plates.
-The precise 360-degree scale help to adjust any position as you need. Greatly increased flexibility of use.
-Highest clamping power. It's very accurate and durable.
-Sliding surface of the vise bed is flame hardened and ground.
-Vise bed is made from grey cast iron and the maximum tensile strength of the vise bed is 28,000 PSI
With anti-jaw lifting mechanism. K type angle lock nut is made from the highest quality ductile Iron, firm and durable.

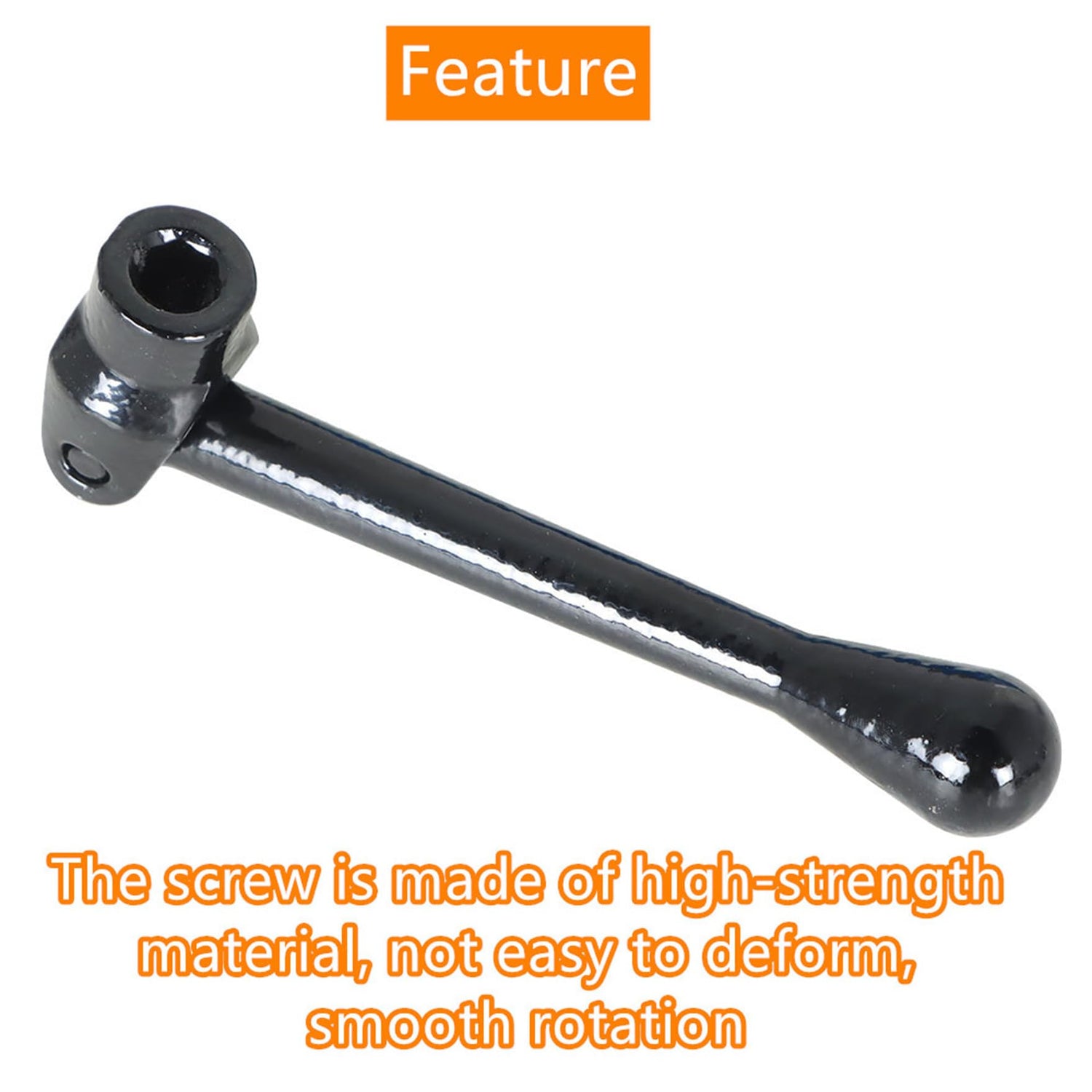

- The adjustable handle with a comfortable grip makes it easy to operate and improves efficiency.
-Acme screws and easy to read 0-360 deg scales.
-4 screws from the top through the jaw reduce key's side force and make the vise body not easy to broke, extend vise life.

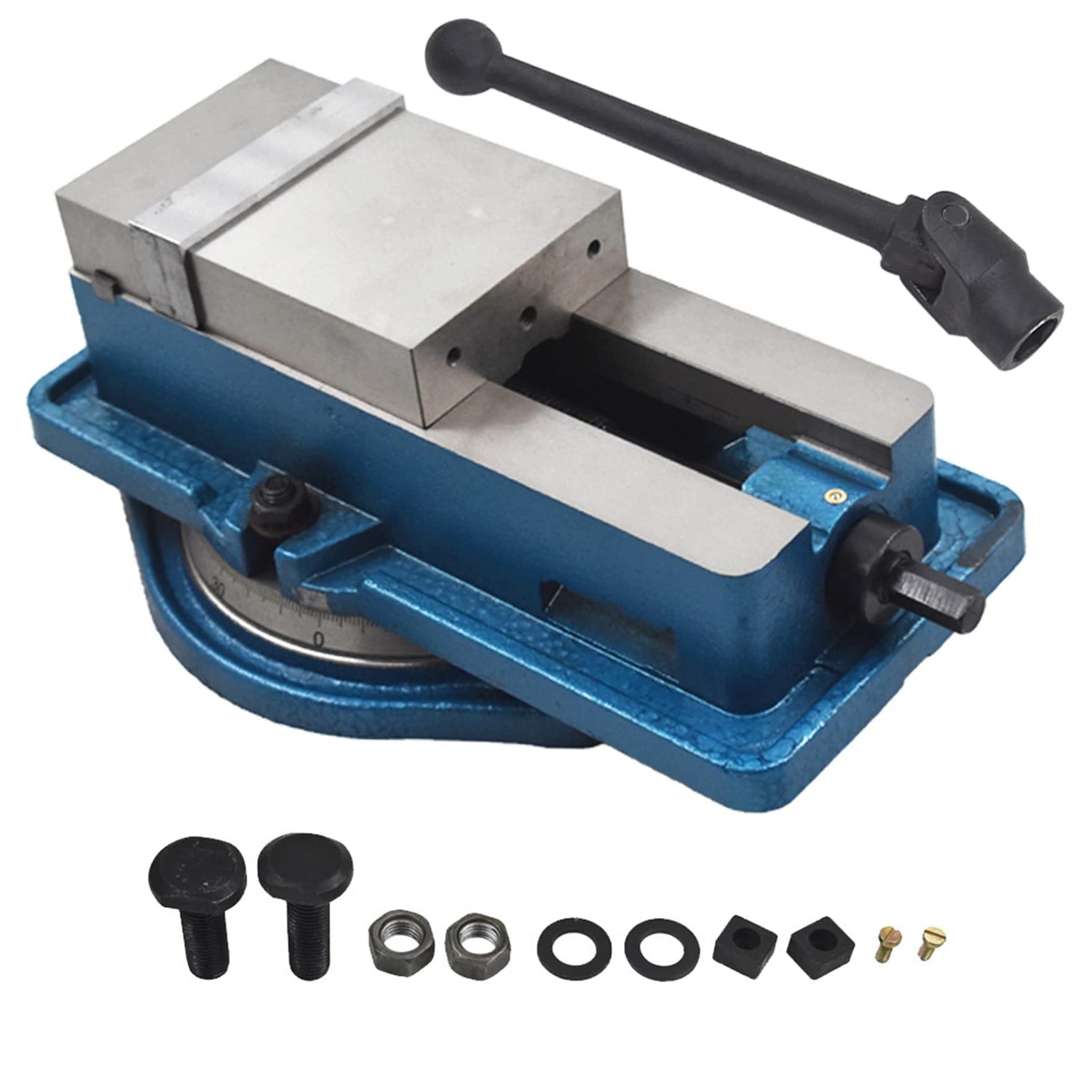

Package Included:
1 x 4 Inch Precision Mill Vise
1 x Accessory Set
Package Dimensions: 14.3 x 9.9 x 6.0 inches
