Welding Symbols Quick Card (English only)
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Author: Builder's Book Inc.
Brand: Builder's Book, Inc.
Edition: 2010
Number Of Pages: 6

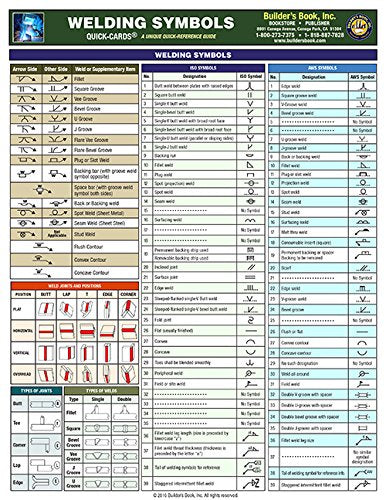

Details: Welding Symbols Quick-Card by Builder's Book
This new, six-page, full-color UV resistant coated card quickly covers essential welding symbols used in architectural plans and engineering drawings. Includes several quick lookup tables
In most cases, symbols are shown for plan view, and where alternatives are commonly in use, multiple symbols are shown. Typical notation formats are also included.
Features: Weld Joints and Positions Types of Joints Types of Welds ISO Symbols AWS Symbols Typical Welding Symbols Basic Joints Identification of Arrow Side and Other Side of Joint Location of Welding Symbol Elements Weld Joints and Types Common Welding Elements Designation of Welding Processes by Letters Designation of Cutting Processes by Letters Structural Steel Shapes Unit Prefixes English Conversion Metric English Conversion Greek Symbols
EAN: 9781889892740
Release Date: 12-02-2010
Languages: English
Binding: Pamphlet
Part Number: 43178-19447
