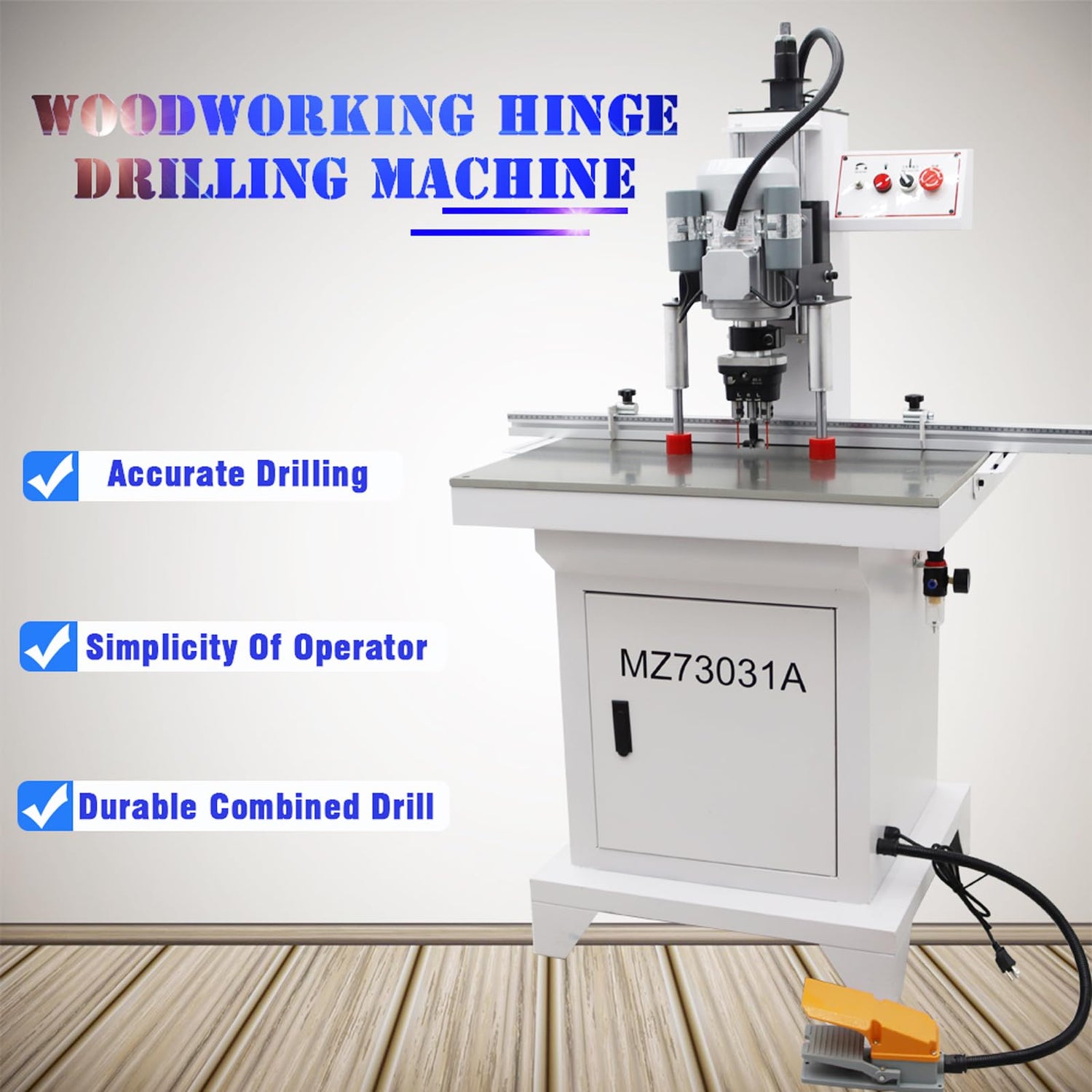

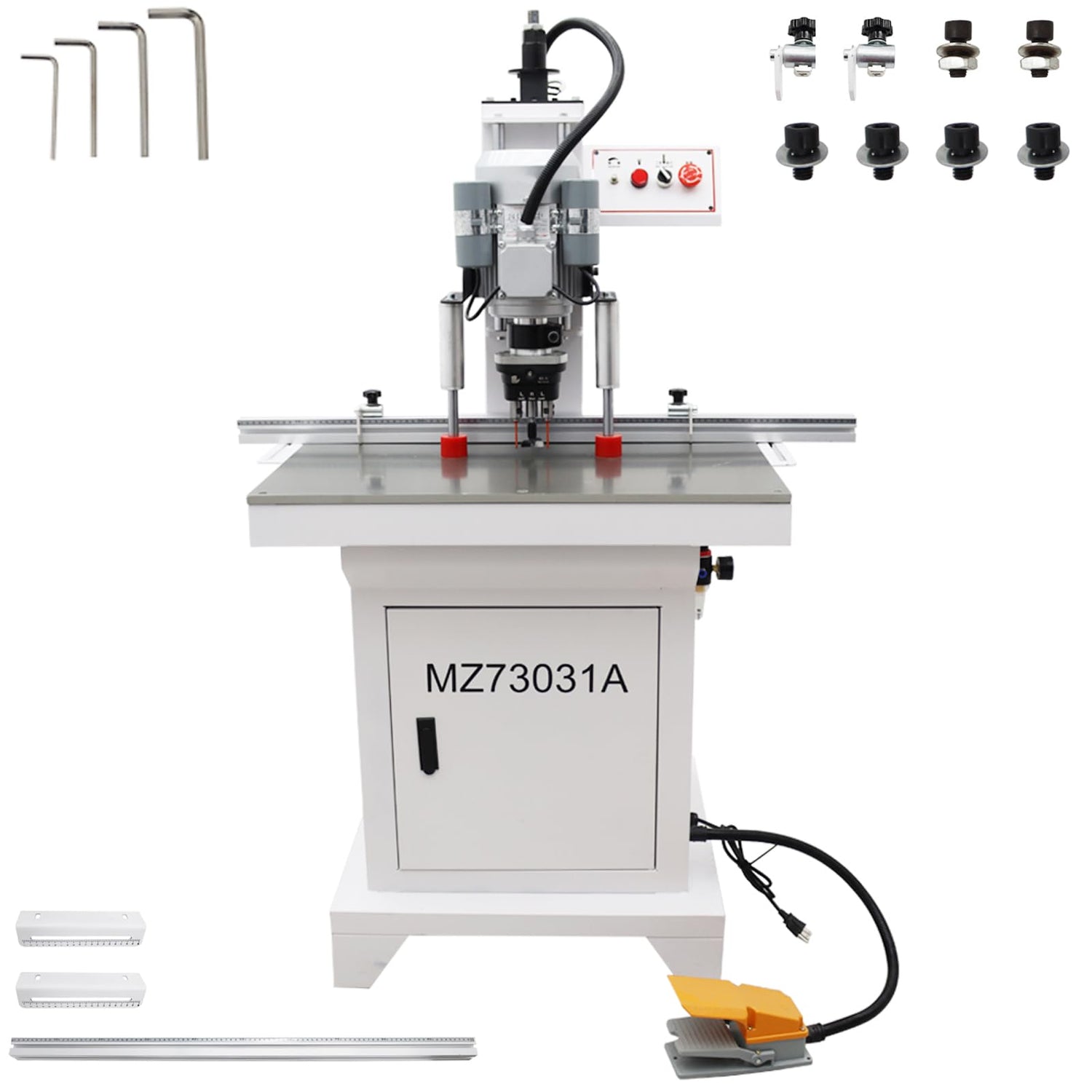

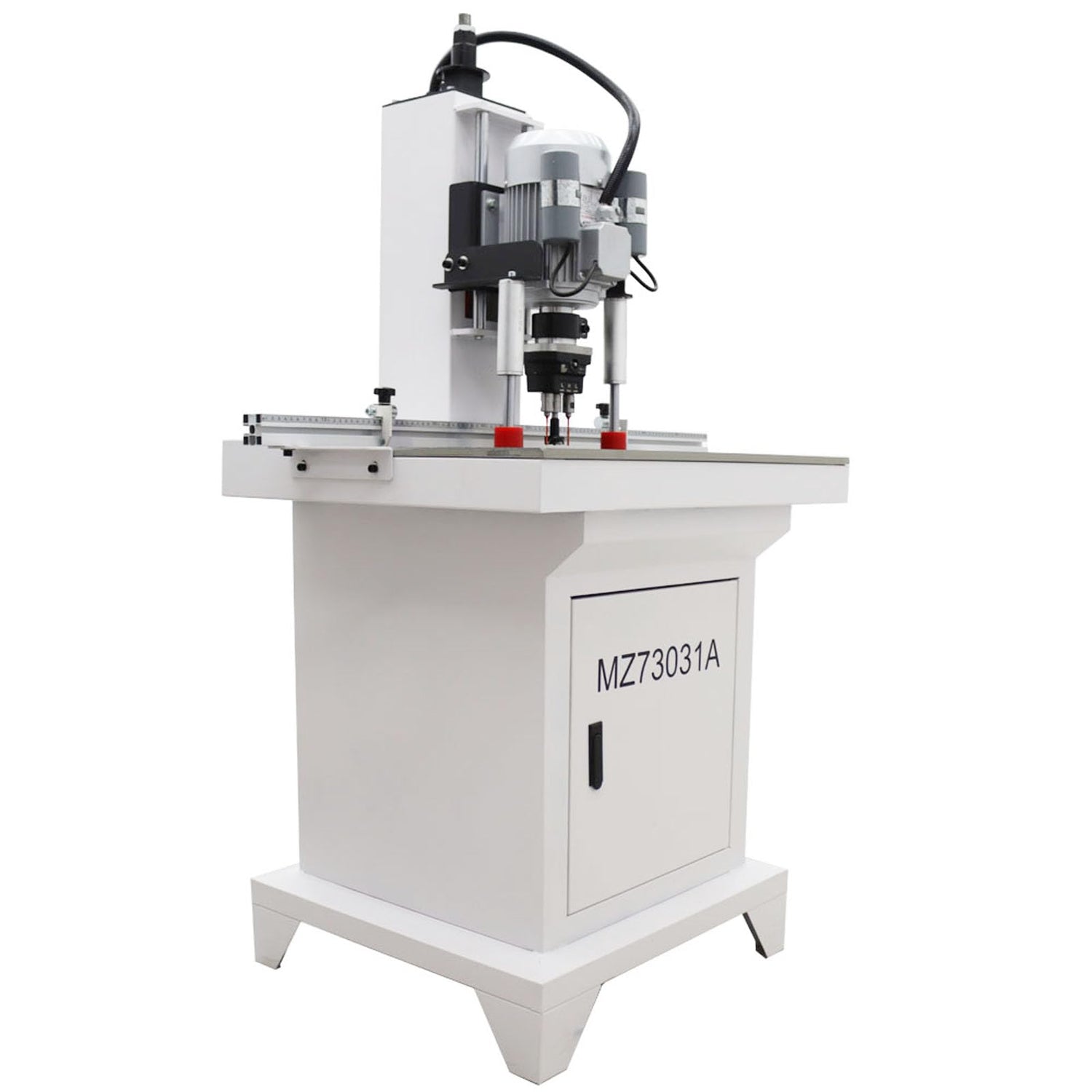

WYDDDARY Hinge Drilling and Boring Machine Hinge Boring Drill Press Machine Precision Woodworking Drilling for Cabinet and Furniture Single Head(48-6) 110V 1500W 2880RPM 0-50mm Depth

Brand: WYDDDARY

Color: Onecolor

Features:

• 【Superior Specifications】With a maximum drilling diameter of 35mm and a maximum depth of hole of 50mm, this machine can handle various profiles effortlessly. The maximum workpiece length of 1000mm allows for versatile applications.
• 【Excellent Performance】Our single head hinge drilling machine equipped with 1.5KW copper core motor, 2880RPM rotating speed, providing long-lasting and reliable performance.
• 【Three-in-One Hole Processing】Our machine eliminates the need for tool calibration, ensuring consistent drilling depth. It can process three holes in the vertical position simultaneously, including one large hole for the hinge head and two assembly screw holes. The presence of a grid scale enables accurate positioning, resulting in precise drilling and hole alignment.

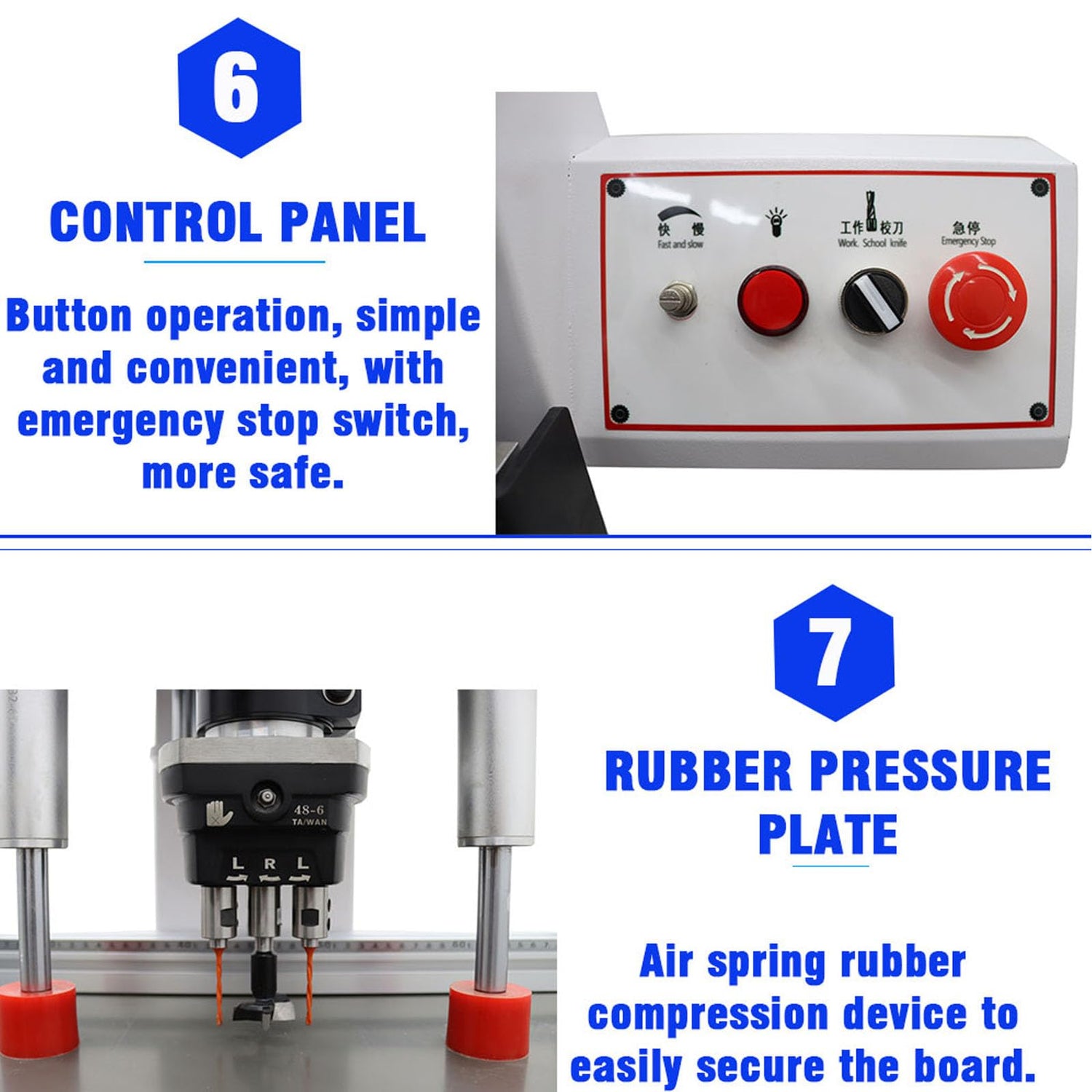

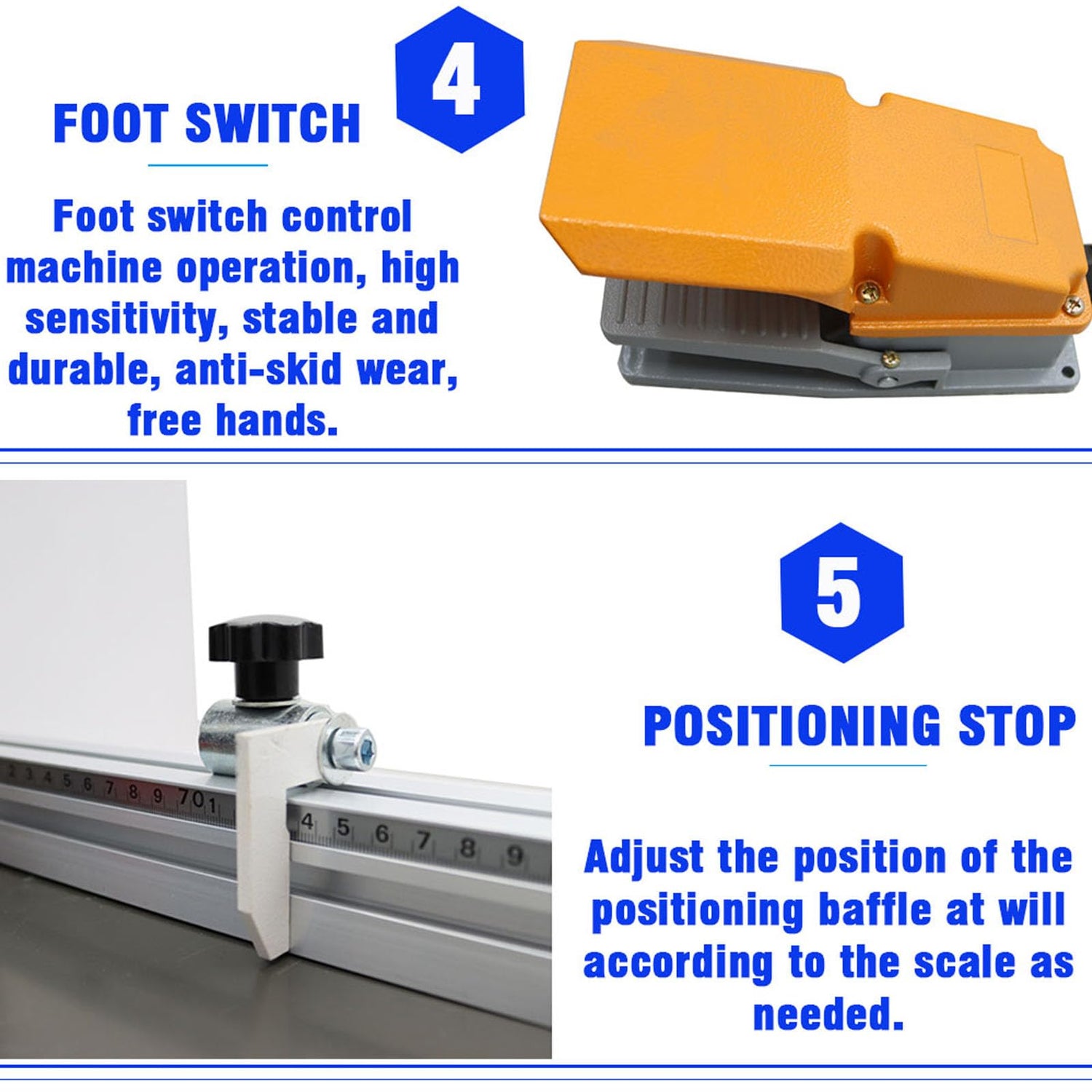

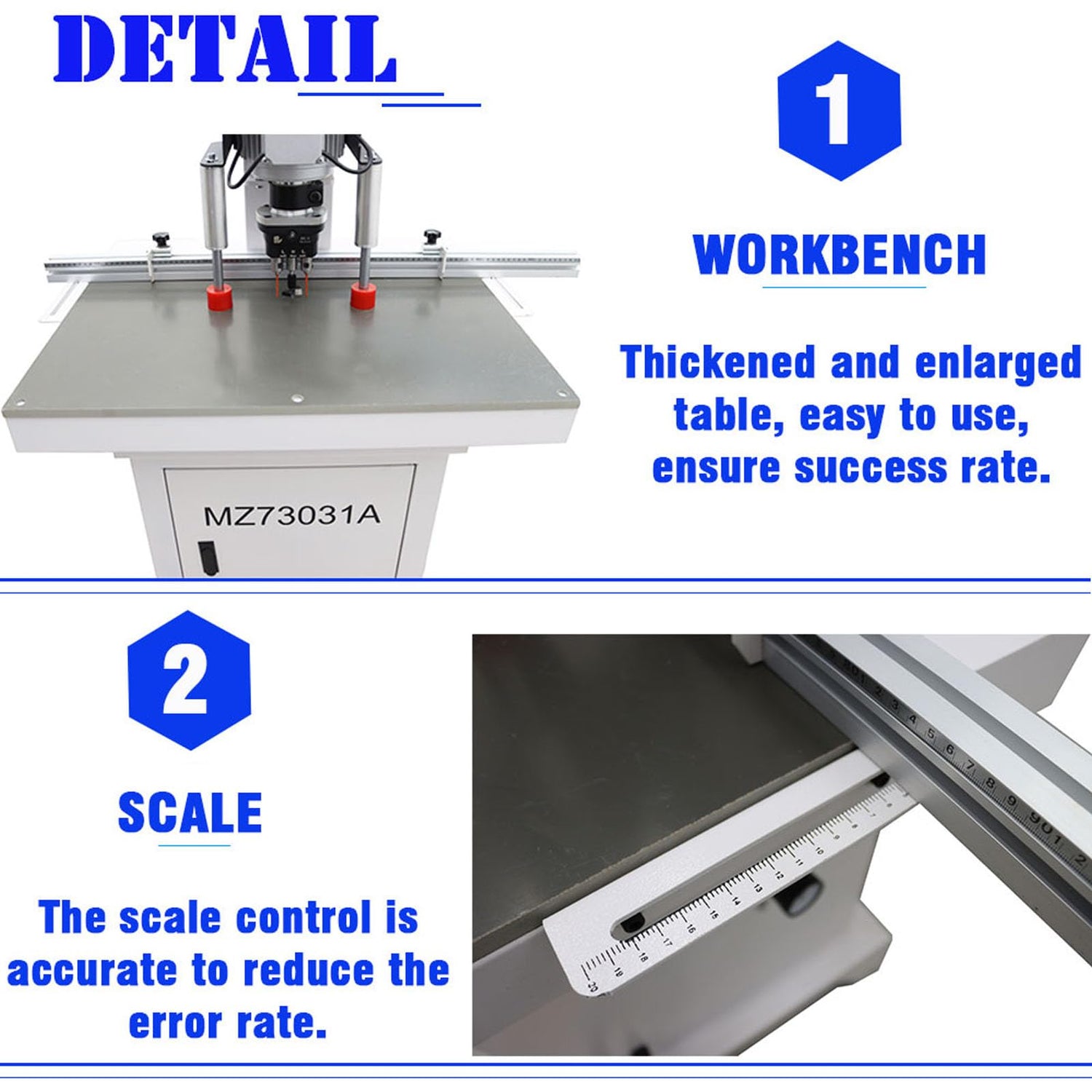

• 【Easy and Safe Operation】Foot pedal design for easy usage, enabling effortless control. The thickened enlarged base make the machine stable in operation. With emergency stop switch for safety.
• 【Wide Application】This hinge drilling machine is ideal for door processing and manufacturing factories, specifically tailored for wardrobe doors, kitchen cabinet doors, bookcase doors, and more. Its adaptability and adjustable workpiece positioning plate make it suitable for drilling various profiles.

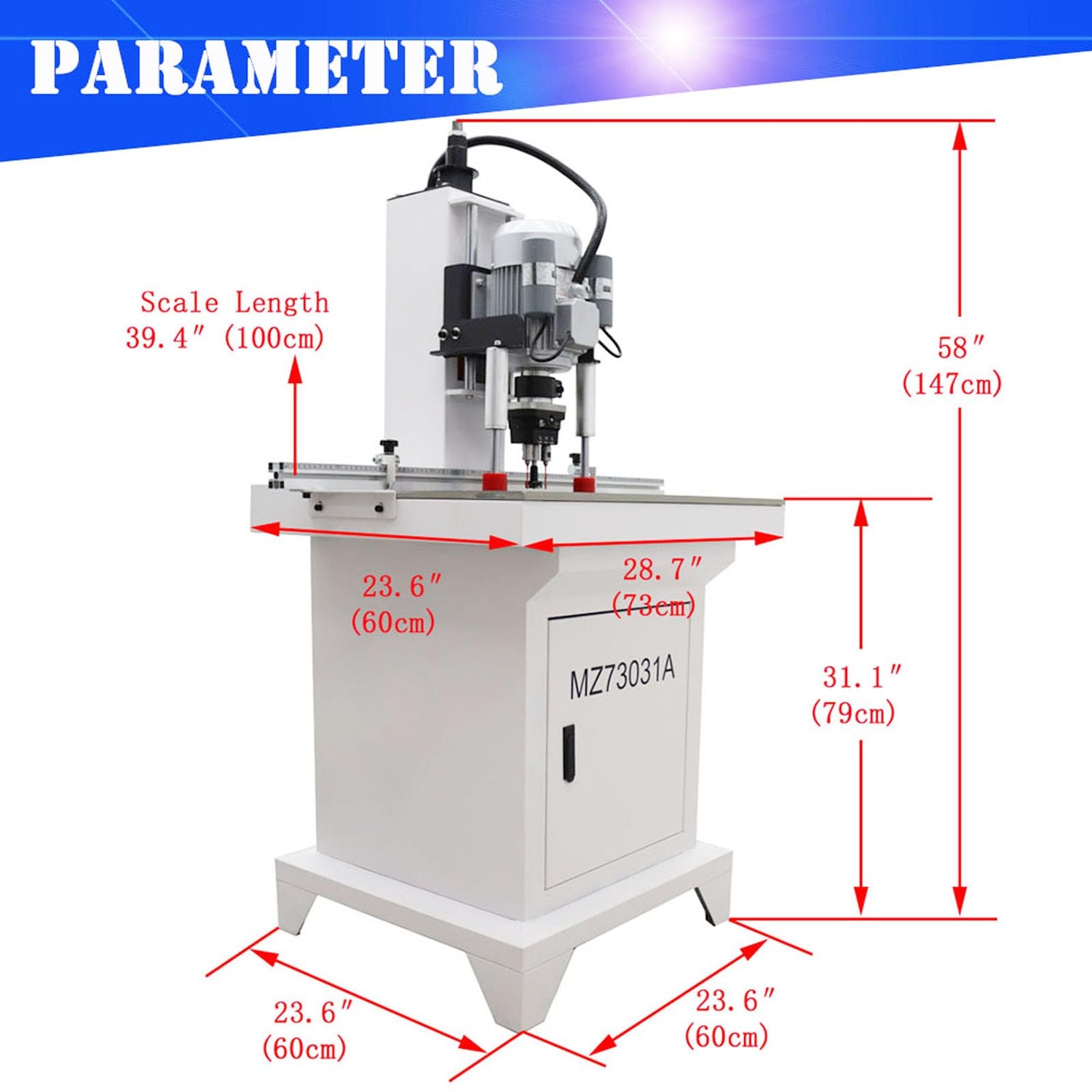

Details: Parameter:

Voltage: 110V
Power: 1500W
Punching Depth: 0-50mm
Speed: 2880r/min

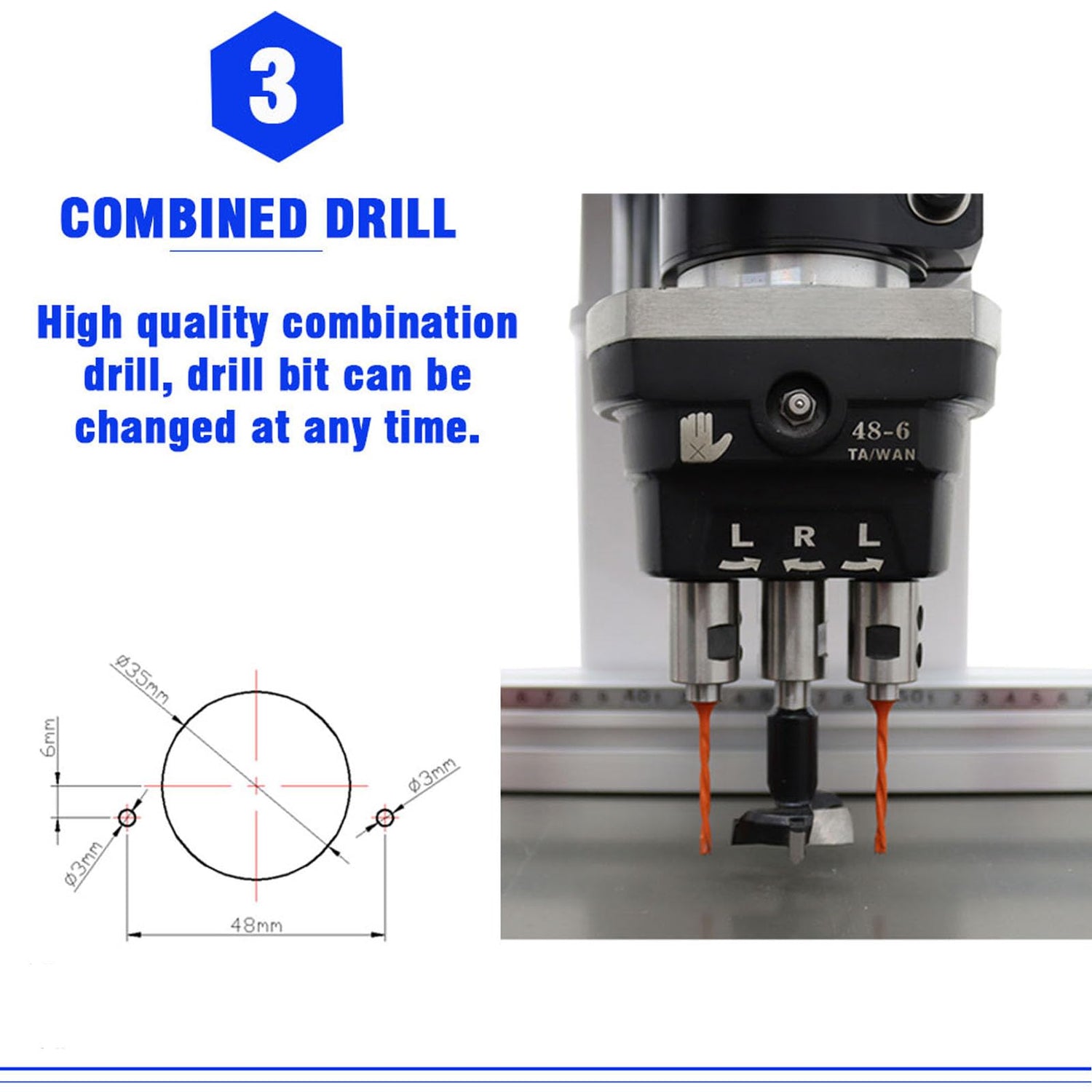

Drill: φ35mm*1,φ3mm*2
Combined Drill Model: 48-6
Scale: 39.4″(100cm)
Air Pressure: 0.6-0.8MPA
Net Weight: 140.8LBS（64kg）
Gross Weight: 233.2LBS(106kg)
Package Size: 31.89″*28.54″*65.75″(81*72.5*167cm)
Precautions For Use：
1.Before operation, check whether the power cable is properly connected, whether the protective device and the pressing device are complete, and whether the components are normal.
2.The operating position should be bright and without shadow.
3.The drill should be centered, balanced and sharp.
4.This machine is mainly used for wood punching processing(thin aluminum can also be), and the selection of materials can not have nails, screws and other tools damaged or blunt foreign bodies.
5.Hands should not touch the rotating parts of the machine tool during operation, and the wood chips should not be removed during operation. The power supply must be cut off before adjusting or removing the wood chips, and can only be carried out after the machine tool stops working.
6.Stop the machine immediately if anything abnormal is found.
NOTE: Confirm drill hole size before purchase.

EAN: 0840403777624

Part Number: CD027278
