YuanTenhwy 4 Sizes 30 45 90 Degree Angle Drill Guide Jig for Angled Hole and Straight Hole,Drill Block，Dowel Drill Guide，Stair Wire Handrail, Deck Cable Railing Lag Screw Drilling Template Block

Brand: YuanTenhwy

Color: Red

Features:

• 【Size】：There are four sizes of guide holes for each drilling angle, which are 3/8”(9.52mm), 5/16”(7.93mm), 1/4”(6.35) mm), 3/16"(4.76mm), compatible with most cable railing lag screws. In order to drill the angle hole more accurately, please use a drill of the corresponding size.

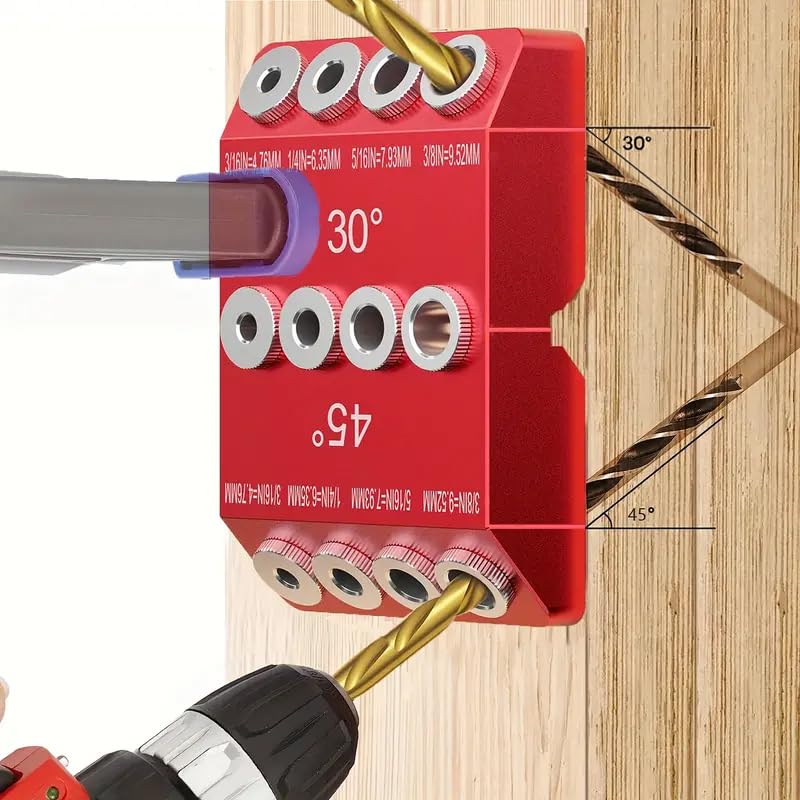

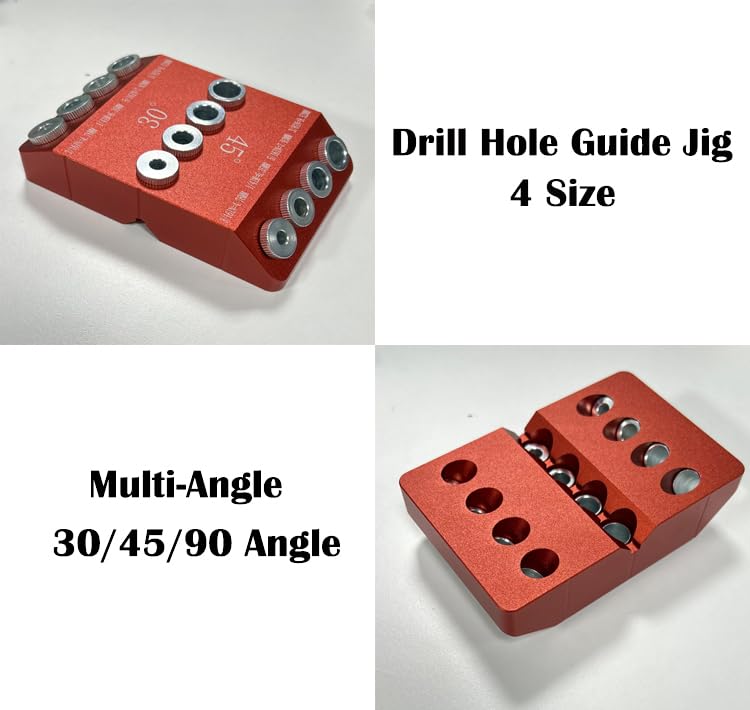

• 【Design】:The angle drill guide for angled holes has a drilling angle of 30 degrees, 45 degrees and 90 degrees.Suitable for 90 Degree horizontal deck post and 45&30 degree angled stairs railing, the angle is fixed without deviation, you can quickly drill accurate 30/45/90 degree angle holes with a handheld drill on the deck post, saving your working time.
• 【Number of items】:There is a 30 45 90 Degree Angle 4 Sizes Drill Hole Guide Jig in a box.

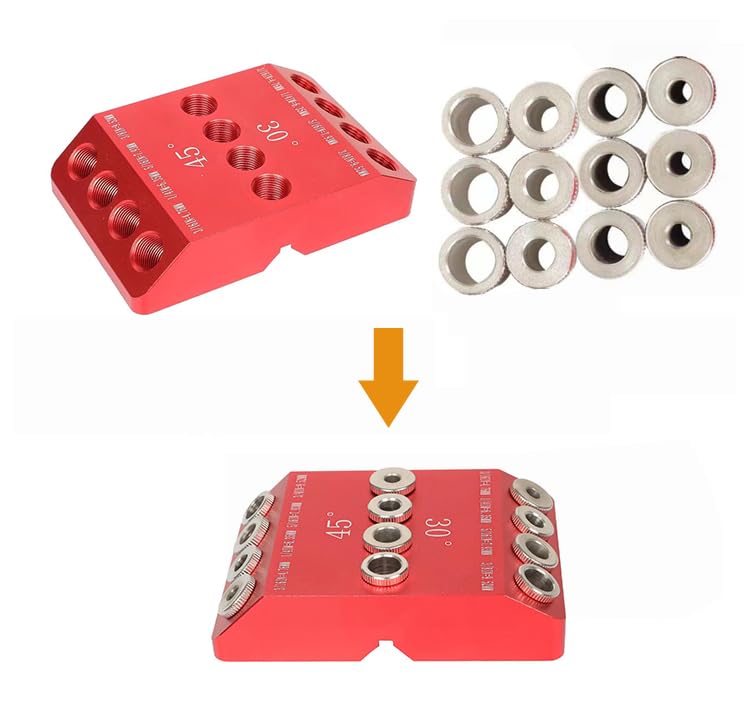

• 【Material】: This angle drill guide for angled holes for cable railing is made of high-quality industrial grade aluminum alloy, hard and lightweight, easy to use and carry. Anodized red surface, keep excellent finish, corrosion resistance and durability.The guide holes of this drill guide are inlaid with steel drill sleeves, so there is no need to

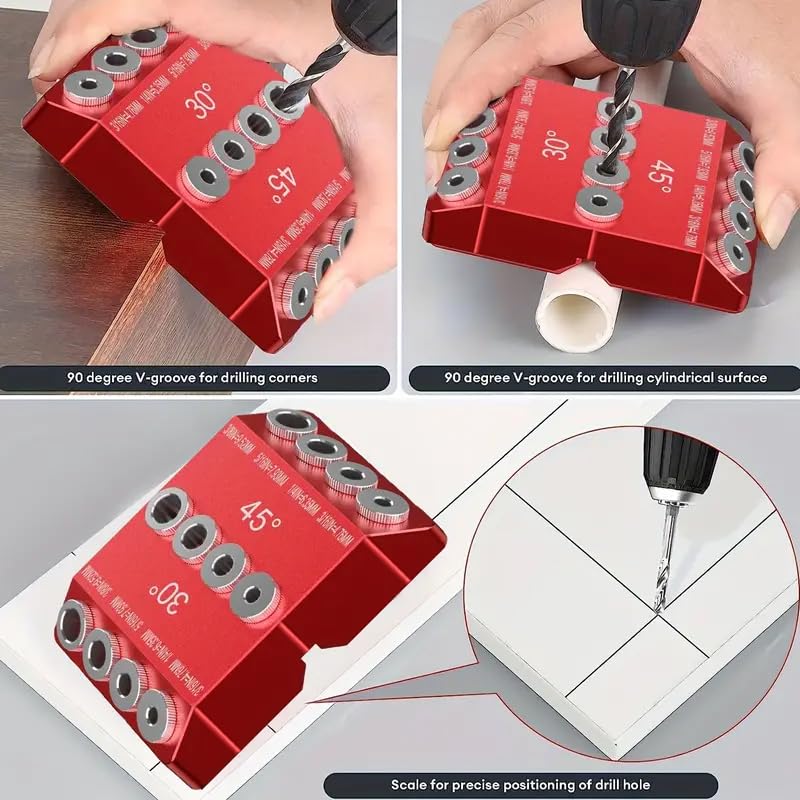

• 【Operation】: This drill guide for angled holes for angle drilling can be used with locking C clamps and F clamps to prevent the drill jig from wobbling while drilling, and allows for drilling burr-free and crack-free holes.

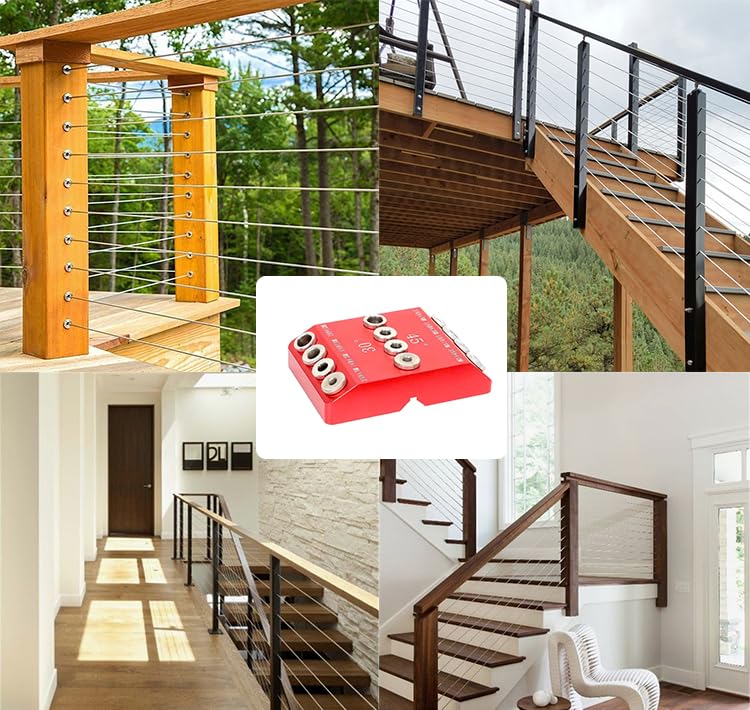

• 【Application】: The Drill Hole Guide Jig is suitable for the installation of wood, aluminum, and high-speed steel posts and deck railing, cable railing, stair deck railing, and DIY railing projects,auxiliary drilling.

Details: YuanTenhwy 30 45 90 Degree Angle 4 Sizes Drill Hole Guide Jig for Angled and Straight Hole,Stair Wire Handrail, Deck Cable Railing Lag Screw Drilling Template Block for Horizontal Cable Wood Post
Specification
Material: Aluminum Alloy, Ultra-hard Electroplated Steel
Color:Color: Anodized red

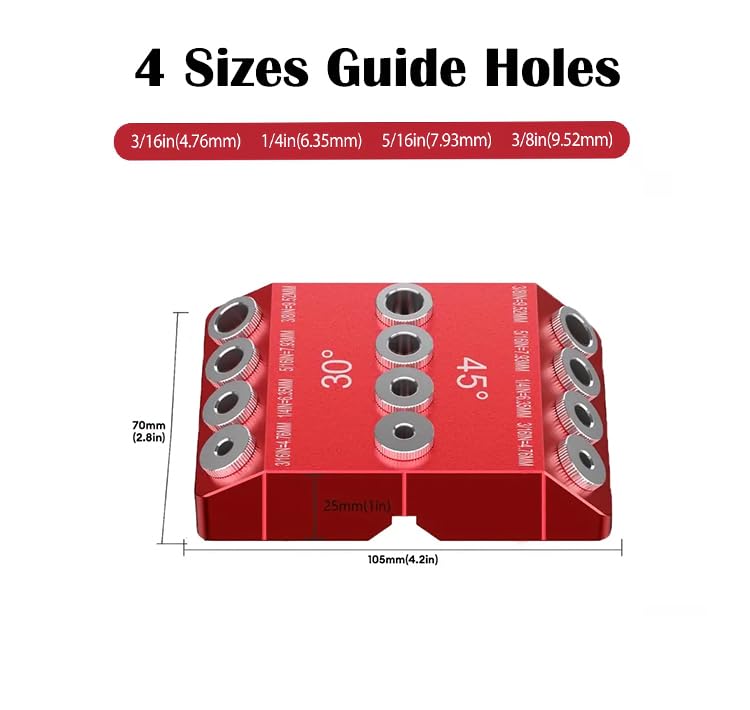

Dimensions:2.8 x 4.2 x 1 inch
Guide Hole Size: 3/8" (9.52mm), 5/16" (7.93mm), 1/4" (6.35mm), 3/16" (4.76mm)

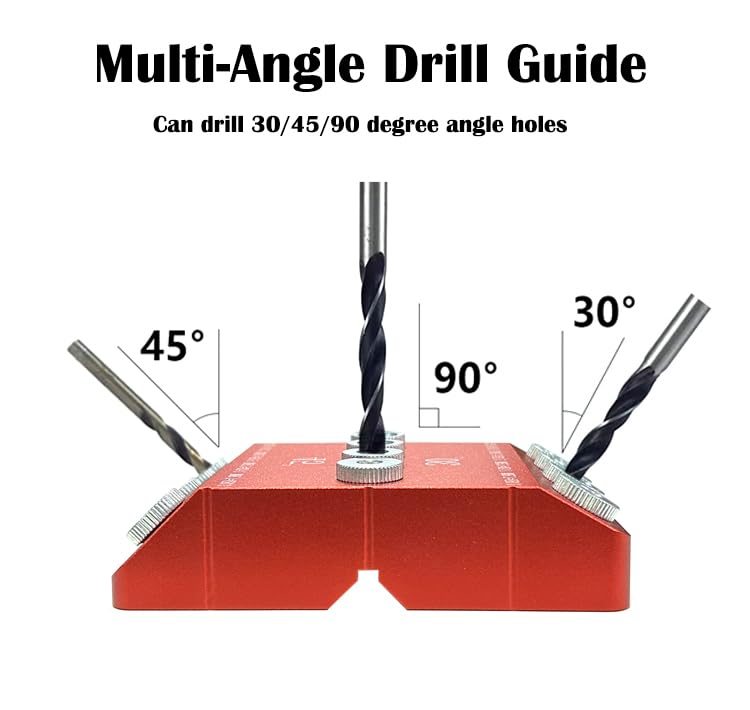

Drilling Angle: 30°, 45°, 90°
Application: Suitable for the installation of wood, aluminum, and high-speed steel posts and deck railing, cable railing, stair deck railing, and DIY railing projects.

EAN: 0720490838081

Part Number: 30-45-90DH-1PCS
