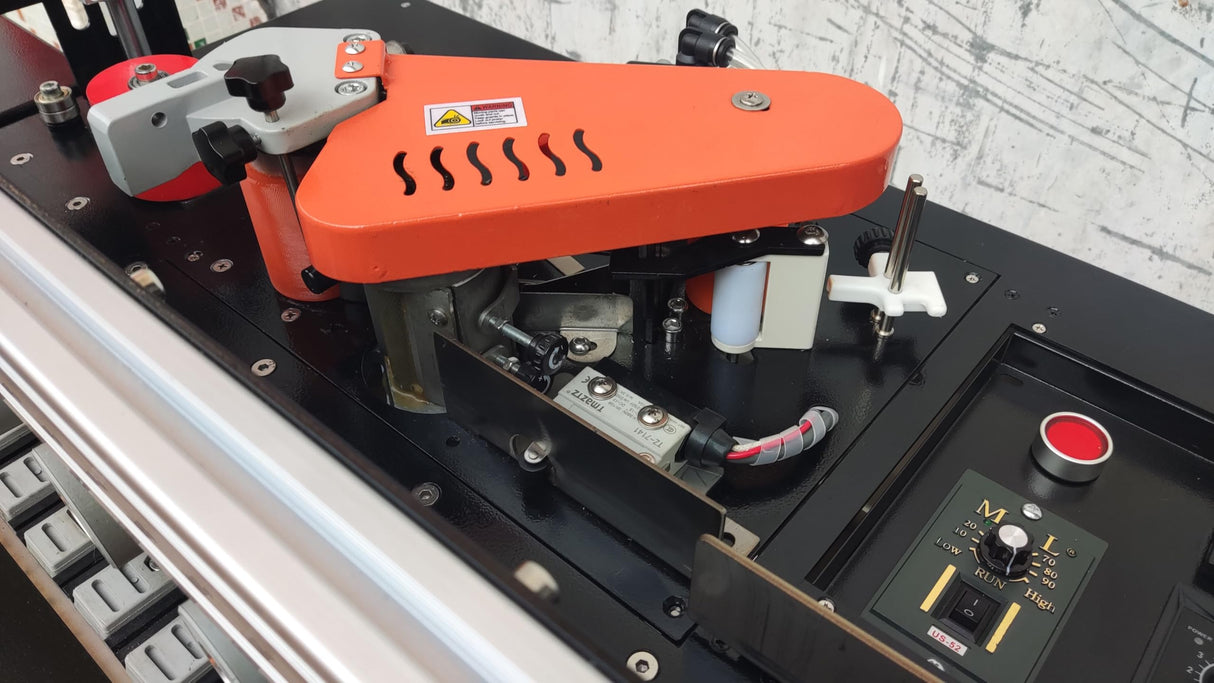

YUCHENGTECH Automatic Edge Bander Banding Machine Lightweight Edge Banding Machine Woodworking Sealing Trimming Edge Bander Double Sided Gluing Automatic Feed/Break Belt Straight JBT190 (220, Volts)

Brand: YUCHENGTECH

Features:

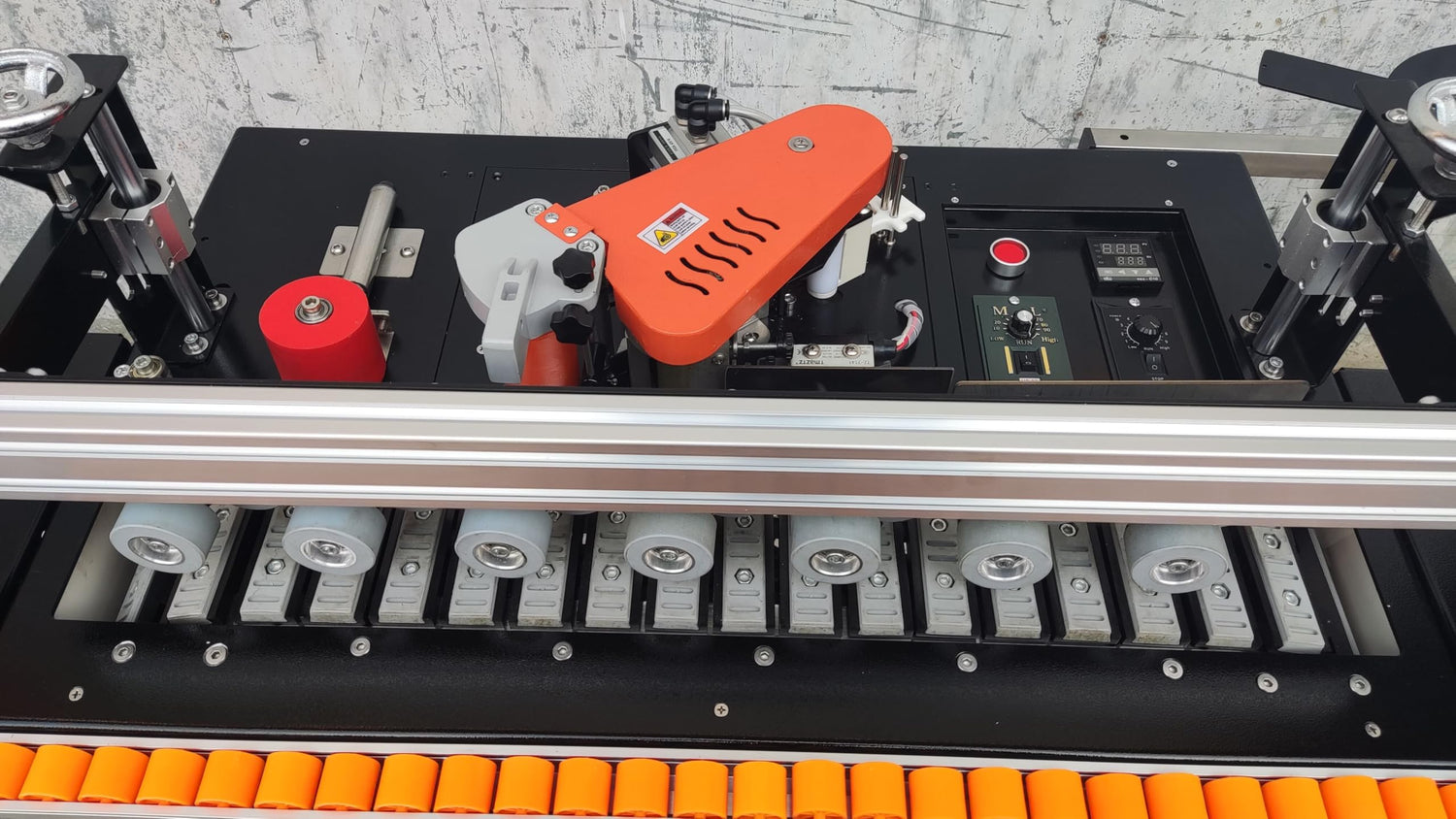

• 1.【Automatic edge banding process】: Upgraded PLC control system can make each processing component realize precise cooperative work. The conveying device can automatically convey the plate through each processing link, automatically complete the pre-milling, gluing, sealing, flanging, rough trimming, fine trimming, profiling tracking, scraping, polishing, slotting and other automated processing components, easy and efficient to operate, and greatly improve the work efficiency.

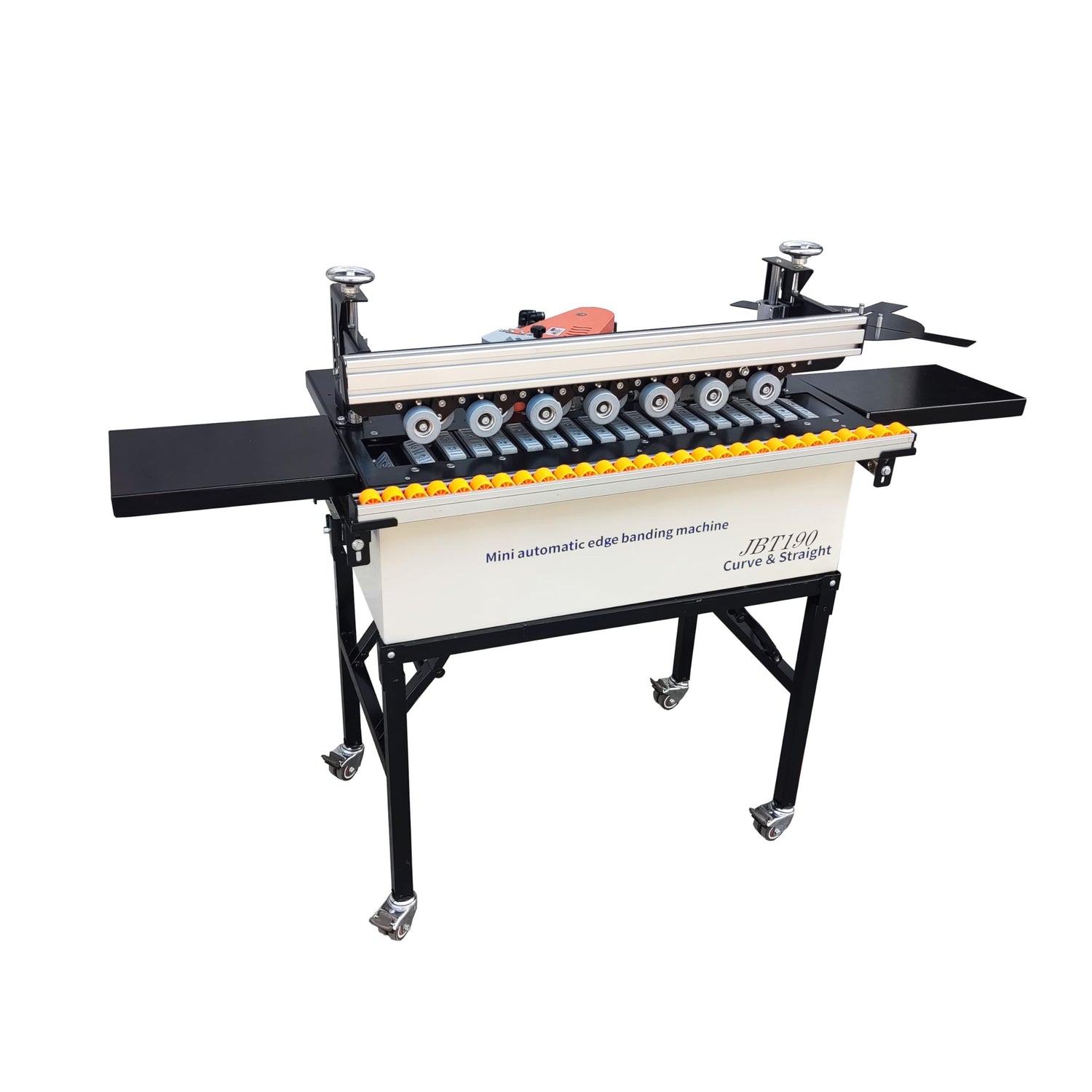

• 2.【Lightweight design】: Reducing the size of the product and installing base wheels, the lightweight design makes the machine easier to operate, suitable for working environments with limited space, especially in the work environment that requires frequent movement or adjustment of the position. Simple structure and more convenient maintenance procedures make daily cleaning and maintenance work easier, which helps to improve work efficiency and reduce labor intensity.
• 3.【Intelligent temperature control system】: Intelligent temperature control system adopts high-precision temperature sensor to monitor the temperature inside the edge banding machine in real time to ensure the temperature control precision during edge banding process. After reaching the set temperature, it can automatically control the opening and closing of the heating module to maintain a constant temperature to ensure smooth and efficient sealing process.
• 4.【Matters need your attention】: Adjust the heating temperature of the temperature control table (the temperature depends on the melting temperature of the hot melt adhesive, and the machine uses 120-180 °C medium and low temperature hot melt adhesive). When the heating reaches the set temperature, the motor switch light will illuminate and press the switch motor to start. It is recommended that the machine be preheated for 10 minutes before the edge is sealed before starting the motor to allow the hot melt to melt completely.
• 5.【Applications】: This product is mainly used for straight edge banding, with higher working efficiency, many buyers who generally purchase this product are commercial buyers of mass production. Suitable for all kinds of plates and edge strips, such as: ABS, PVC, particle board, melamine board, fine wood board, MDF, integrated board, acrylic board, etc.

Details: Function:

1.Pre-milling function: adopting double milling cutters to retouch the ripple marks, burrs or non-vertical phenomenon caused by the cutting saw opening saw processing,

eliminating the burrs and unevenness of the edges of the boards and providing a better foundation for edge sealing.

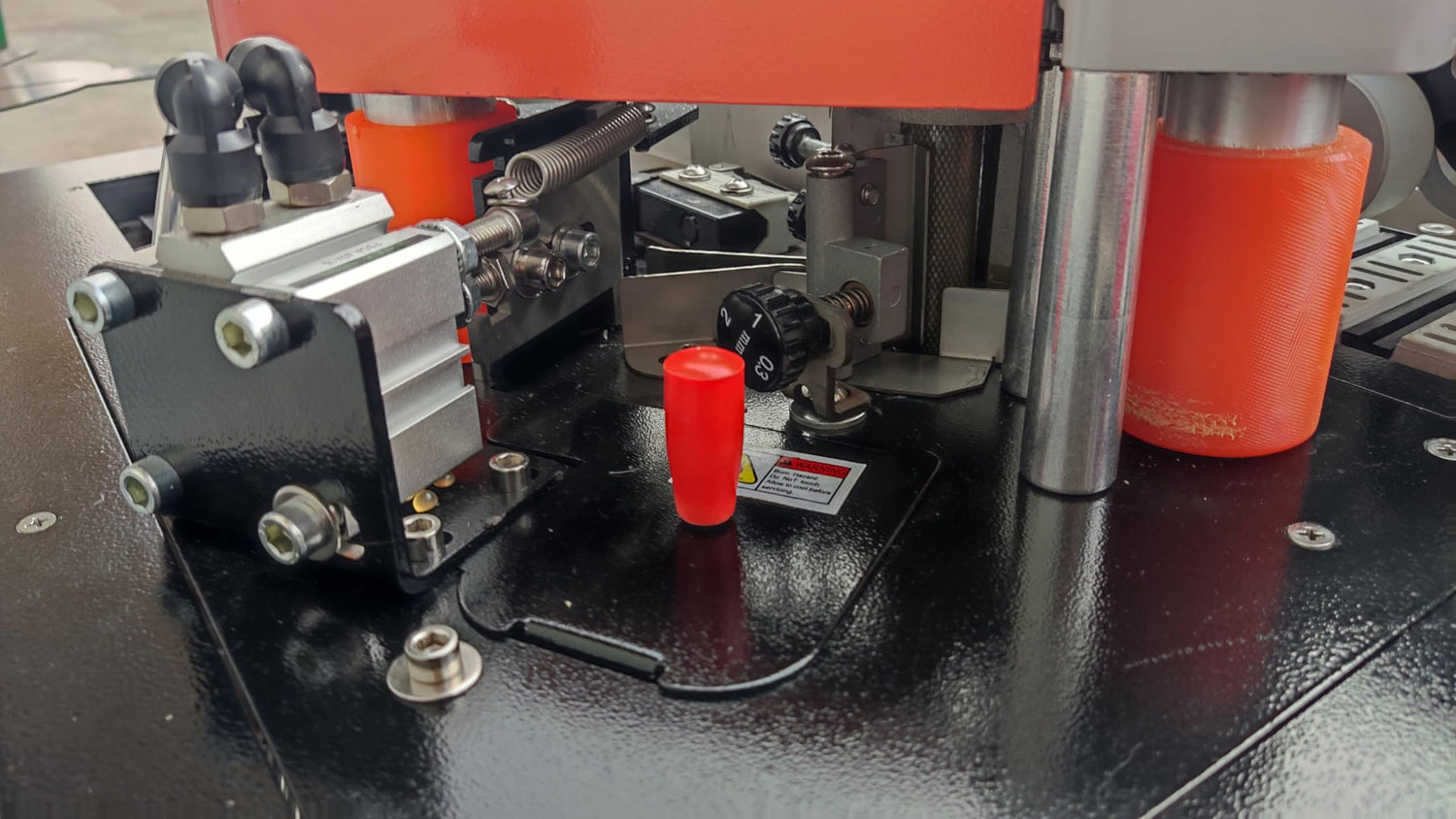

2.Gluing and edging: The edging sheet and edging material are evenly coated with glue on both sides to ensure a stronger adhesion.

3.Flush and fine trimming: through precise linear guide movement, adopting automatic tracking by mold and high-frequency and high-speed motor fast cutting structure,

to ensure the cut-off surface is flat and smooth.

4.Trimming and polishing: used to eliminate the ripple marks caused by the cutting process of trimming non-linear motion, making the upper and lower parts of the plate more smooth and neat.

Parameters:

Model: JBT190

Voltage: 220V, 50 Hz

Total power: 1500W

Edge band thickness: 0.3-3mm

Edge band width: 10-60mm

Feed speed: 0.5-5 m/min

Working temperature: 120-180℃

Gluing method: double-sided glue

Weight: 63 kg

Size: 87×51×51cm

model number: NNW-963
